Home >> Isuzu Truck >> 2001 >> Rodeo Sport 2WD V6-3.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Sensors and Switches - Computers and Control Systems >> Oxygen Sensor >> Locations >> Component Locations

Component Locations

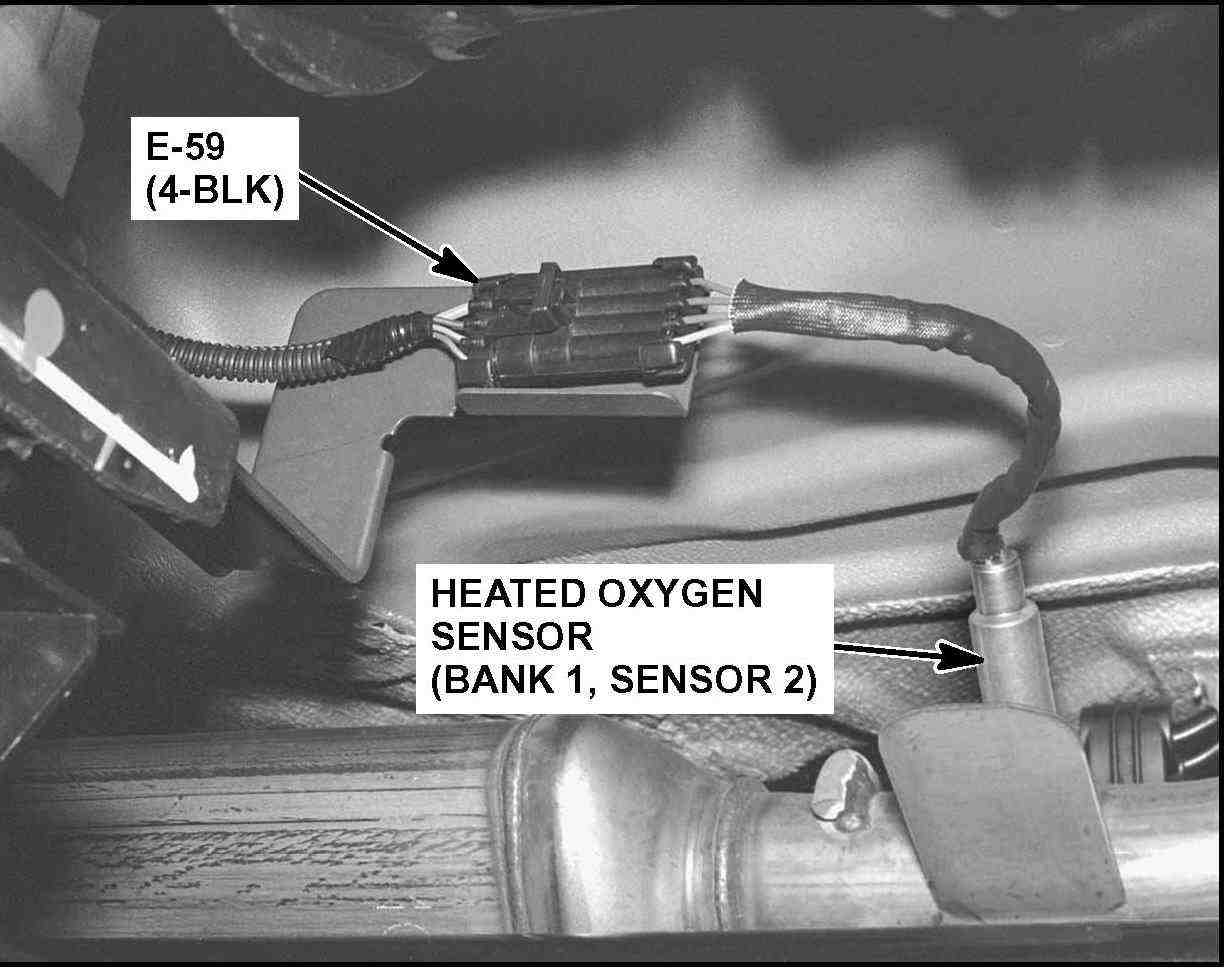

98. Left Front Exhaust Downpipe:



99. Rear Of Left Catalytic Converter:

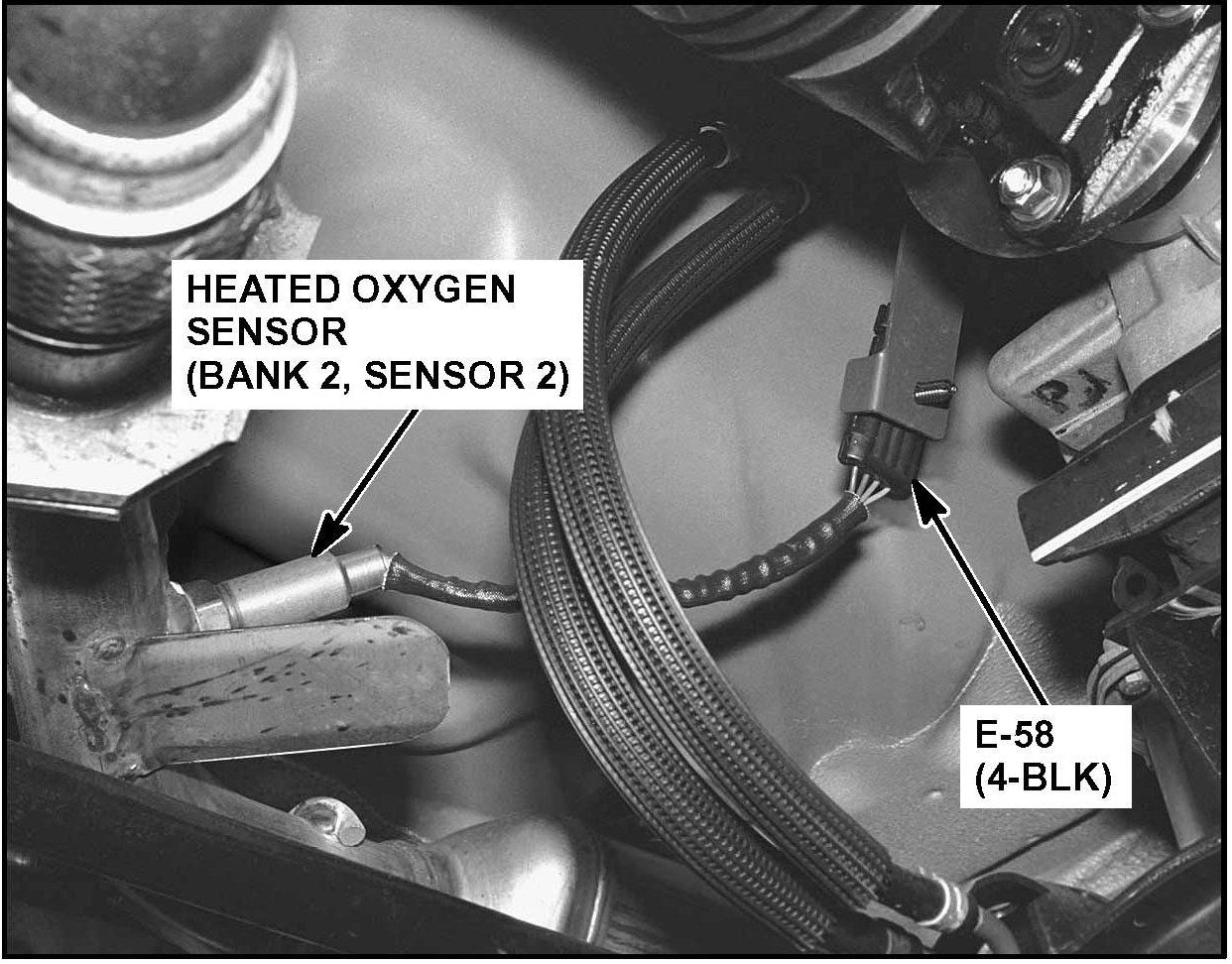

100. Right Front Exhaust Downpipe:



101. Rear Of Right Catalytic Converter:
