Luggage Room Light Bulb (LWB)

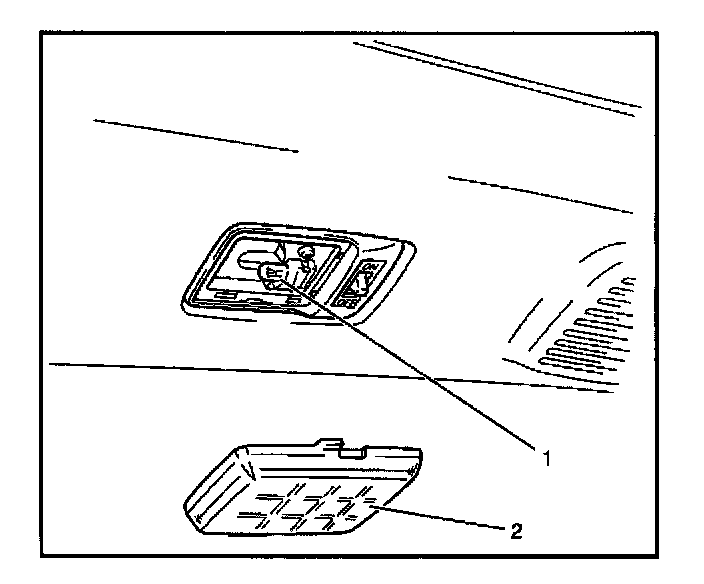

LUGGAGE ROOM LIGHT BULB (LWD)REMOVAL
1. Disconnect the battery ground cable.
2. Remove the lens (2).
3. Remove the bulb (1).
- Pull out the bulb.
INSTALLATION
To install, follow the removal steps in the reverse order.
REMOVAL
1. Disconnect the battery ground cable.
2. Remove the lens (2).
3. Remove the bulb (1).
- Pull out the bulb.
INSTALLATION
To install, follow the removal steps in the reverse order.
