Isuzu Truck
>>
2001
>>
Rodeo Sport 2WD V6-3.2L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Sensors and Switches - Instrument Panel
>>
Key Reminder Switch
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

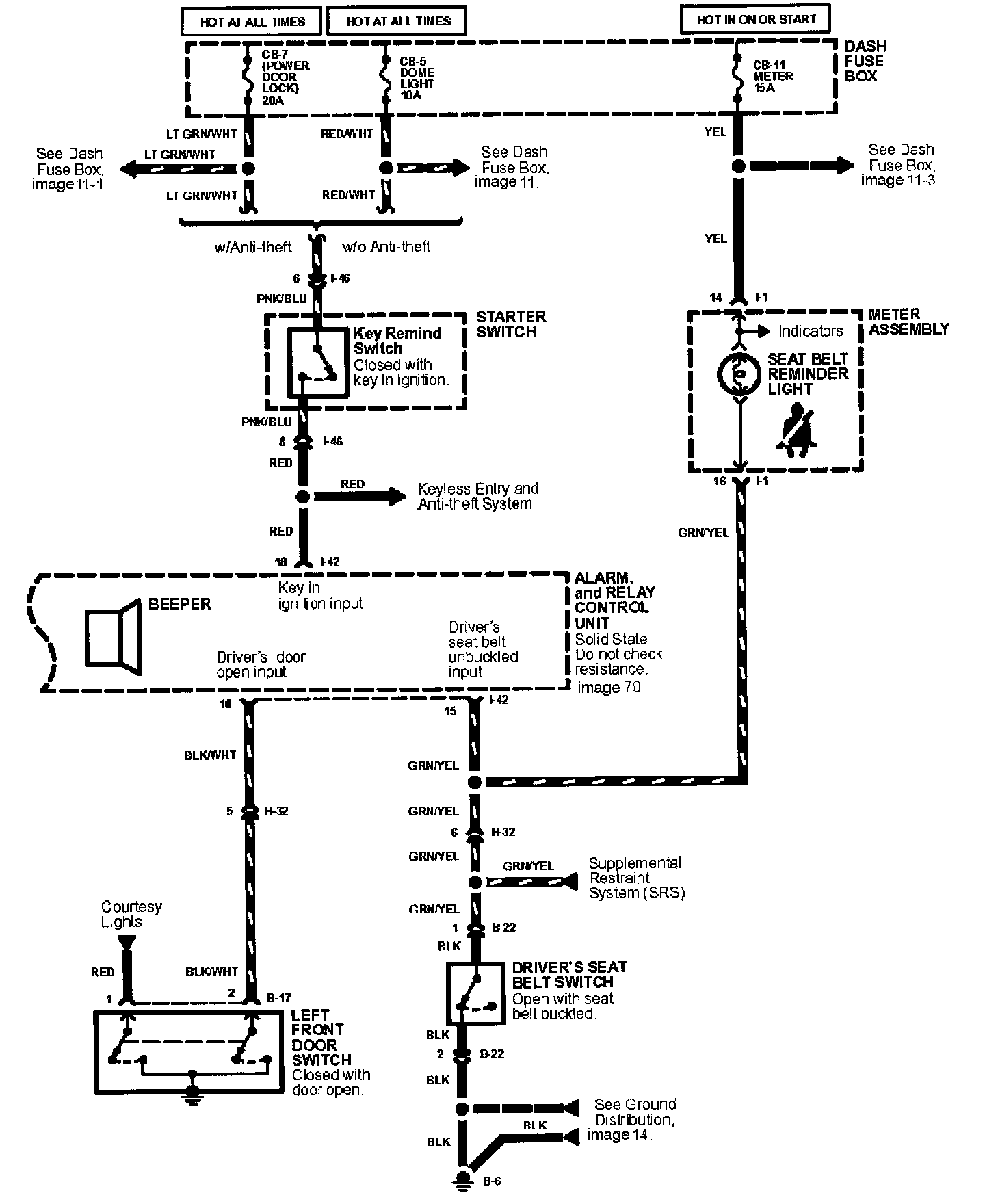

Seat Belt, Lights-On, And Key-In Ignition Warning System Image 73:
Seat Belt, Lights-On, And Key-In Ignition Warning System Image 73-1:
