Home >> Isuzu Truck >> 2001 >> Rodeo Sport 2WD V6-3.2L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Catalytic Converter

Catalytic Converter

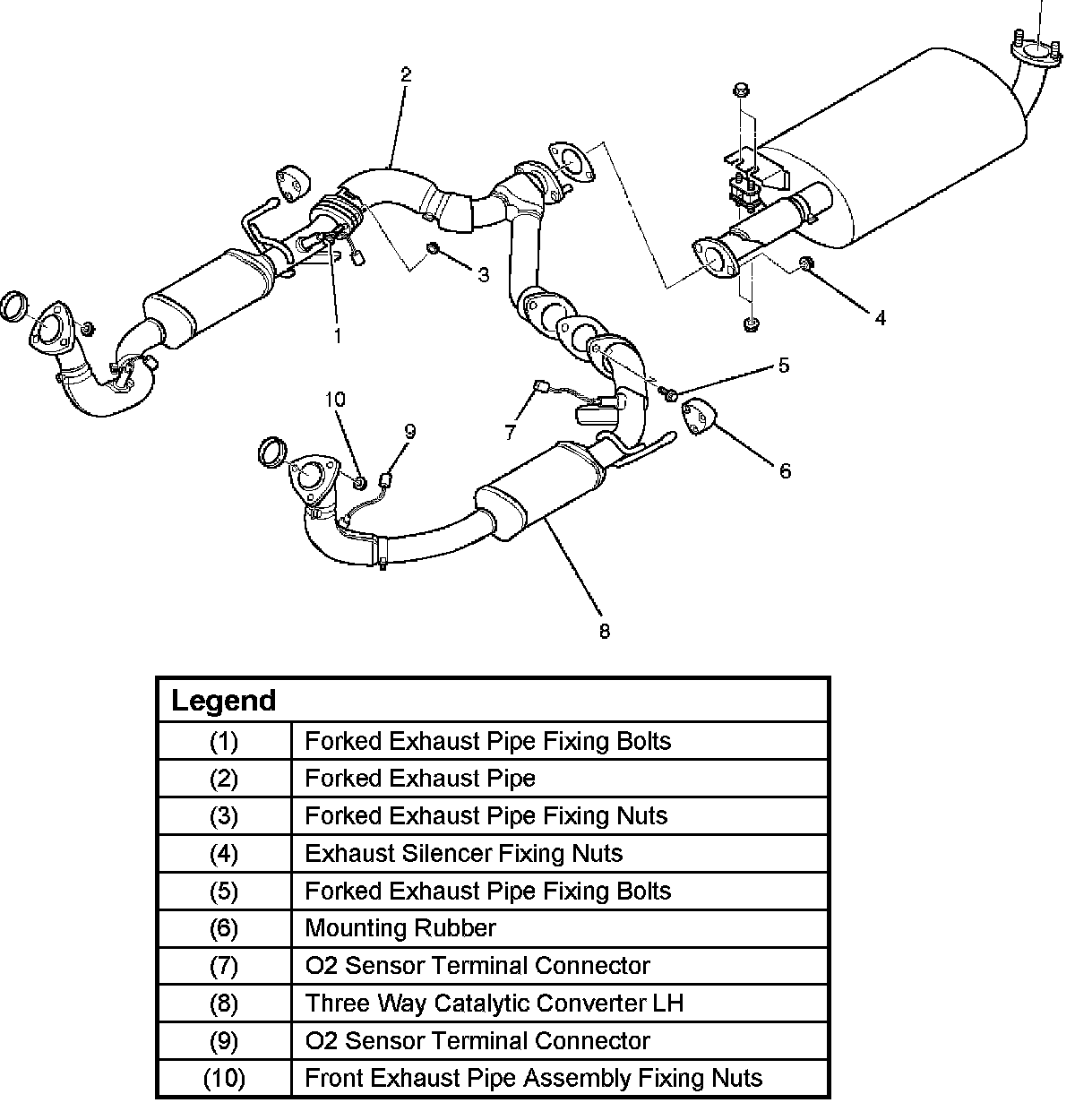

TWC Converter RH, Forked Exhaust Pipe and Associated Parts:



TWC Converter LH, Forked Exhaust Pipe and Associated Parts:
