ECM/PCM Circuit Diagrams

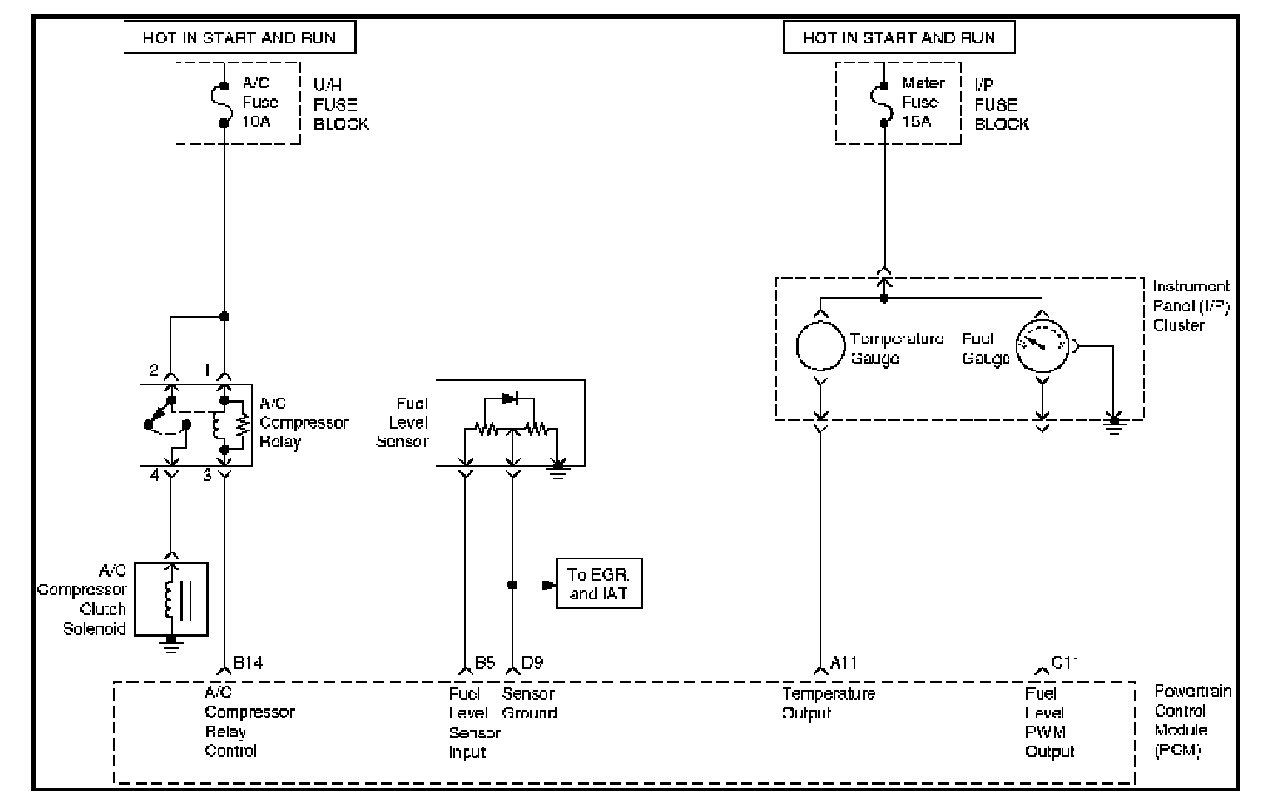

PCM Wiring Diagram (1 Of 13):

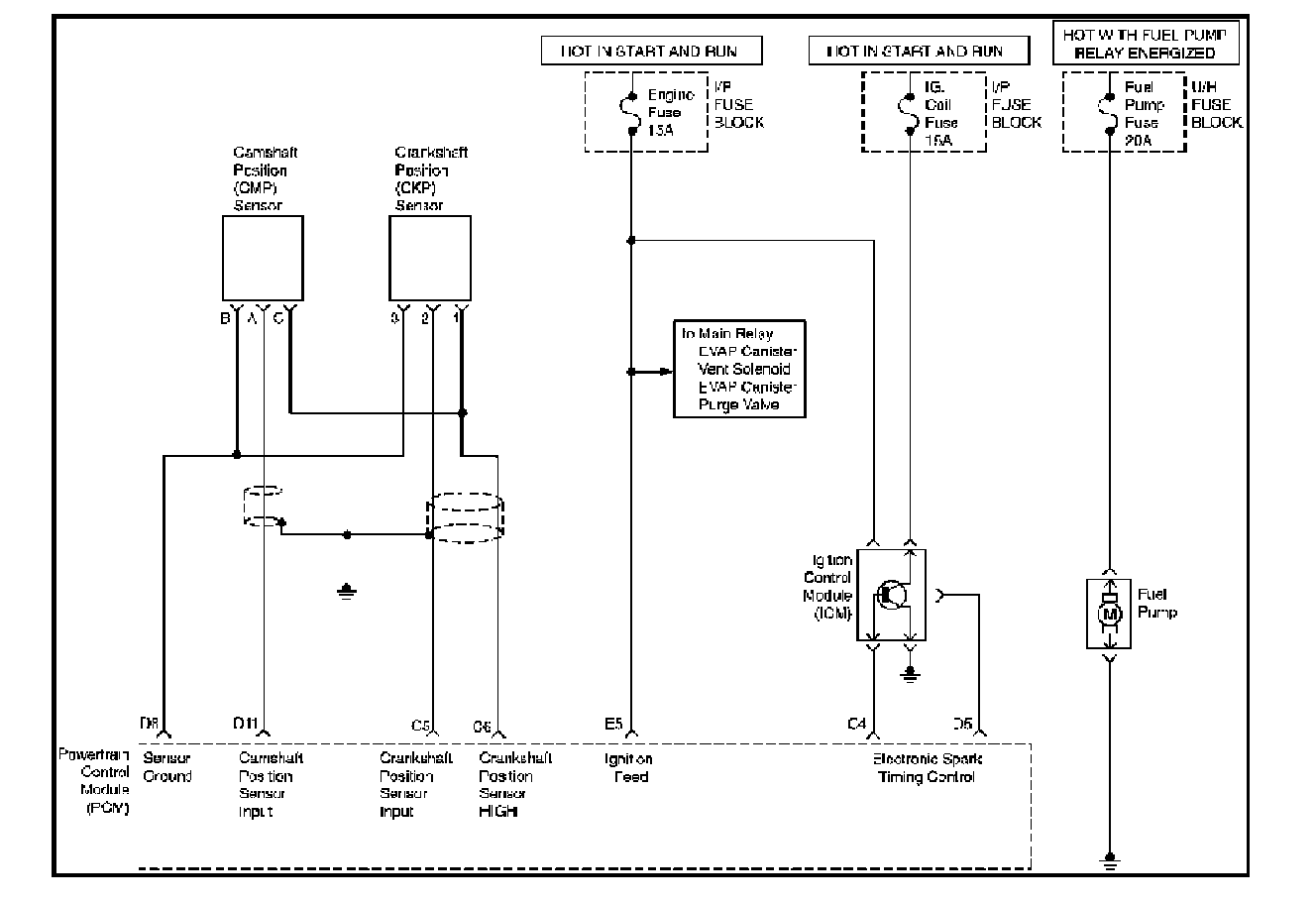

PCM Wiring Diagram (2 Of 13):

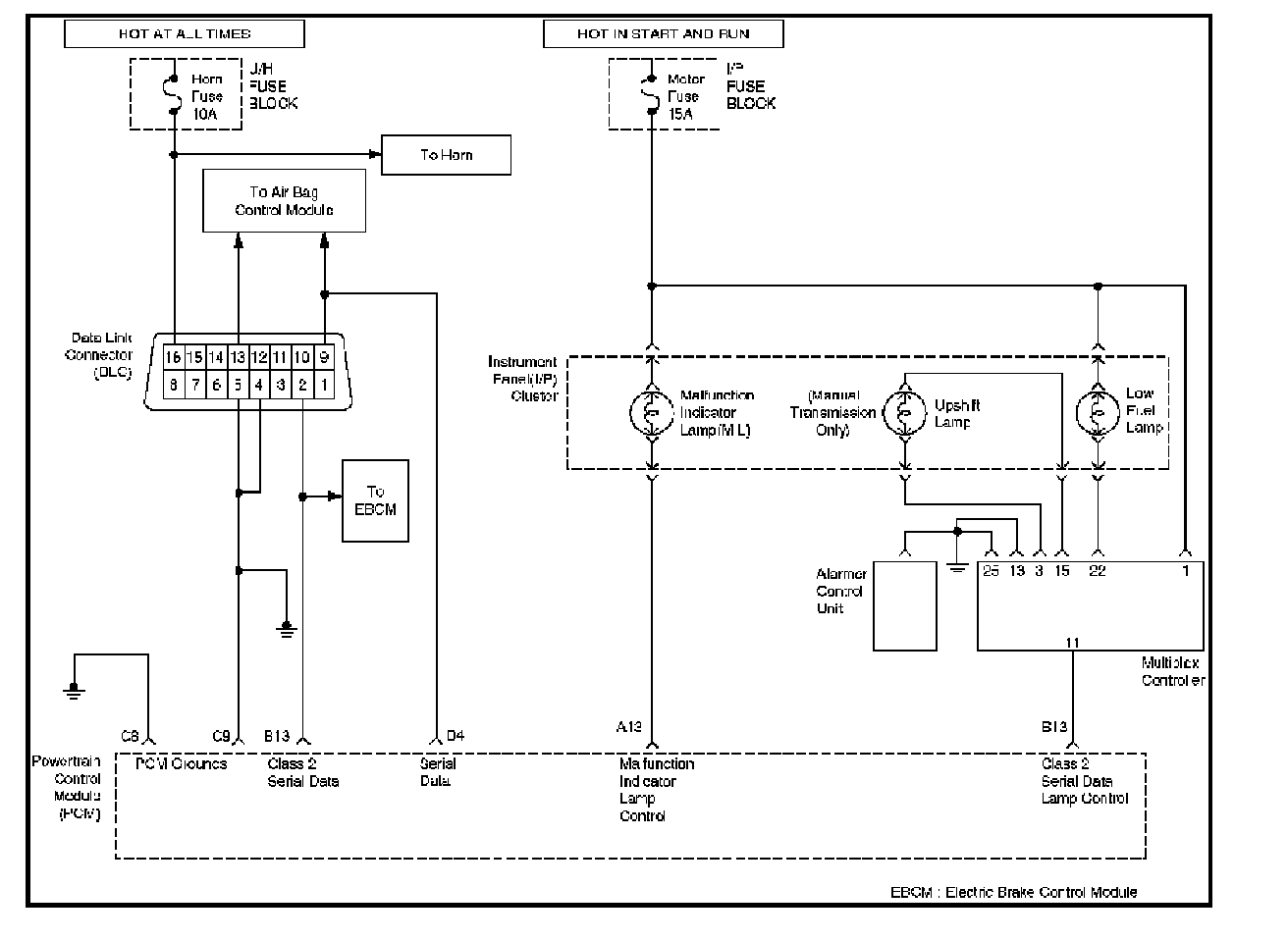

PCM Wiring Diagram (3 Of 13):

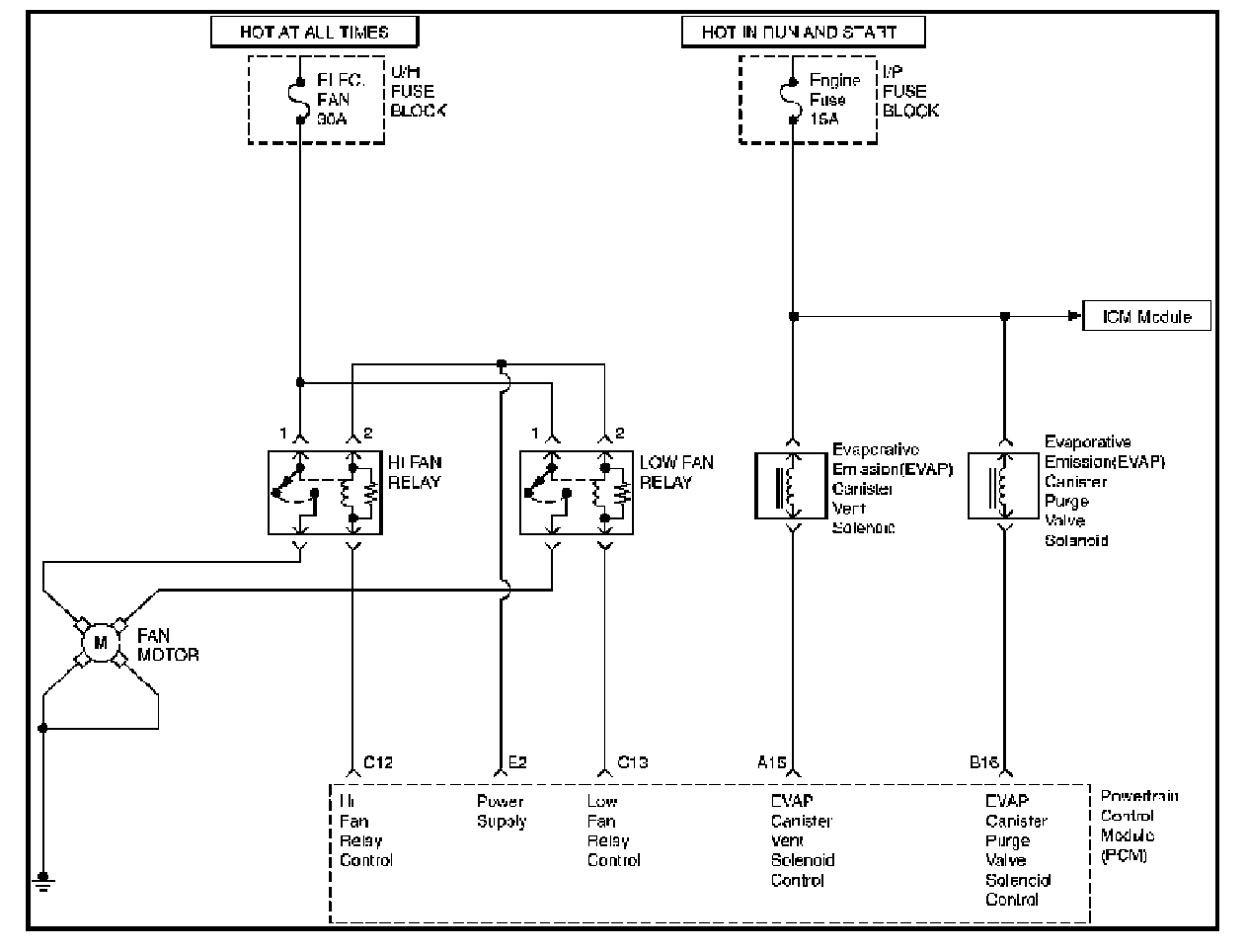

PCM Wiring Diagram (4 Of 13):

PCM Wiring Diagram (5 Of 13):

PCM Wiring Diagram (6 Of 13):

PCM Wiring Diagram (7 Of 13):

PCM Wiring Diagram (8 Of 13):

PCM Wiring Diagram (9 Of 13):

PCM Wiring Diagram (10 Of 13):

PCM Wiring Diagram (11 Of 13):

PCM Wiring Diagram (12 Of 13):

PCM Wiring Diagram (13 Of 13):
