Multi-Plexed Indicator Control Unit

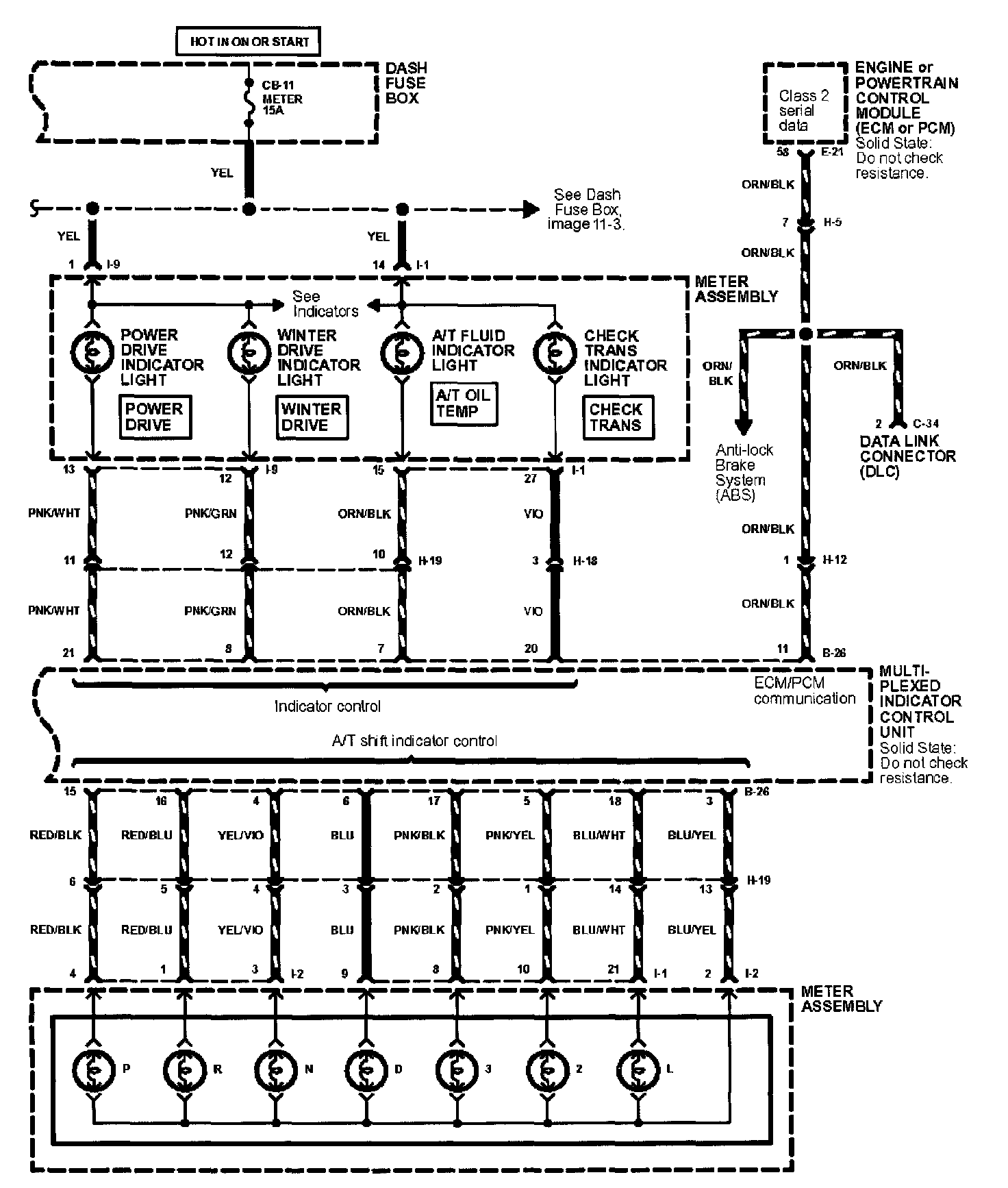

Multi-Plexed Indicator Control Unit Image 50:

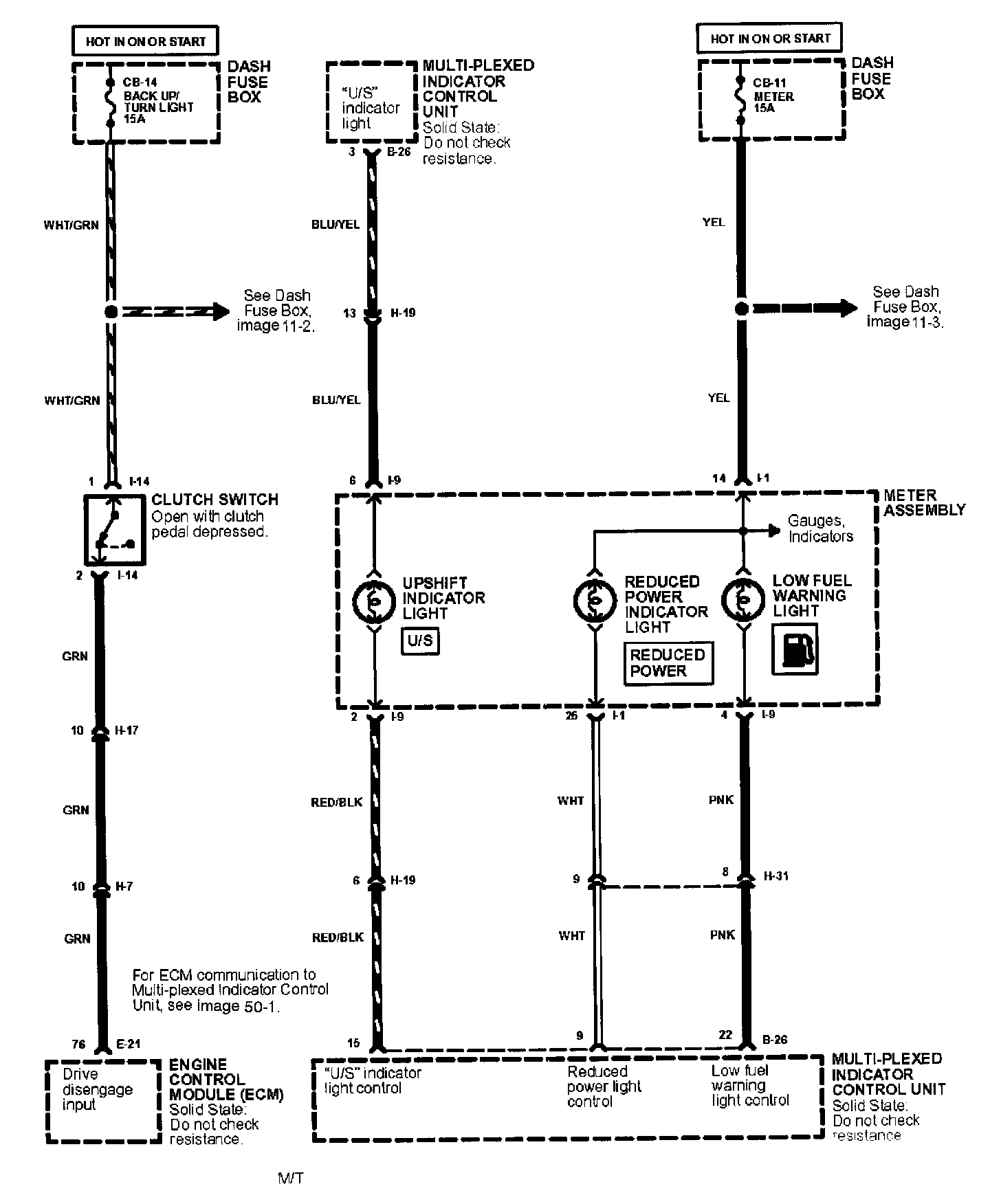

Multi-Plexed Indicator Control Unit Image 50-1:



Multi-Plexed Indicator Control Unit Image 50-2:
