With TECH 2 Scan Tool

TECH 2 SCAN TOOL





From 98 MY, Isuzu dealer service departments are recommended to use Tech 2. Please refer to Tech 2 scan tool user guide.

Getting Started
Before operating the Isuzu PCMCIA card with the Tech 2, the following steps must be performed:
1. The Isuzu 98 System PCMCIA card (1) inserts into the Tech 2 (4).
2. Connect the SAE 16/19 adapter (2) to the DLC cable (3).
3. Connect the DLC cable to the Tech 2 (4).
4. Mark sure the vehicle ignition is off.

The DLC is located behind the driver side kick panel:

5. Connect the Tech 2 SAE 16/19 adapter to the vehicle DLC.
6. The vehicle ignition turns on.
7. Power up the Tech 2.

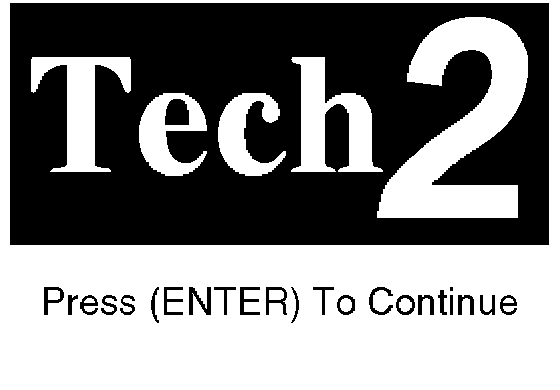

Verify the Tech 2 power up display.

Operating Procedure





The power up screen is displayed when you power up the tester with the Isuzu systems PCMCIA card. Follow the operating procedure.


DTC DISPLAY
DTCs can be displayed by TECH 2 using "Diagnostic Trouble Codes" mode.


Notes:
- If the the vehicle starts (The wheels turn) or the brake pedal is depressed during Diagnostic Trouble Code (DTC) display, the display will be discontinued. After initial check, the status that is under the control of ABS will be returned.

- Up to 3 different codes can be stored.
- If the ABS should turn OFF due to an intermittent defect, the system will be restored at the next key cycle, if the initial check finds no abnormality (when IGN is switched from OFF to ON).





- After displaying DTC 12 three times, one DTC after another is displayed, starting with the most recent one. (However, display is discontinued after about 5 minutes.)
- The DTC 12 is displayed repeatedly. (Display is discontinued after about 5 minutes after)
