Mirrors: Service and Repair

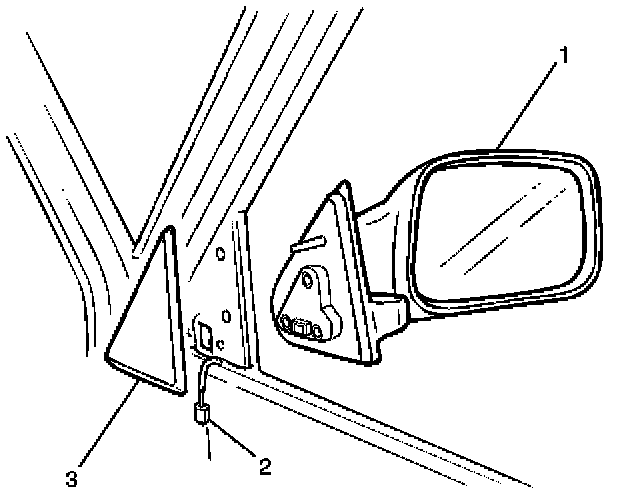

Door Mirror Assembly Removal

1. Disconnect the battery ground cable.
2. Remove the door mirror cover (3).
3. Remove the door mirror assembly (1).
- Remove the three bolts and disconnect the connector (2).







Installation

To install, follow the removal steps in the reverse order.
