Home >> Isuzu Truck >> 2001 >> Rodeo Sport 2WD V6-3.2L >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Trunk / Liftgate Lock >> Locations

Trunk / Liftgate Lock: Locations

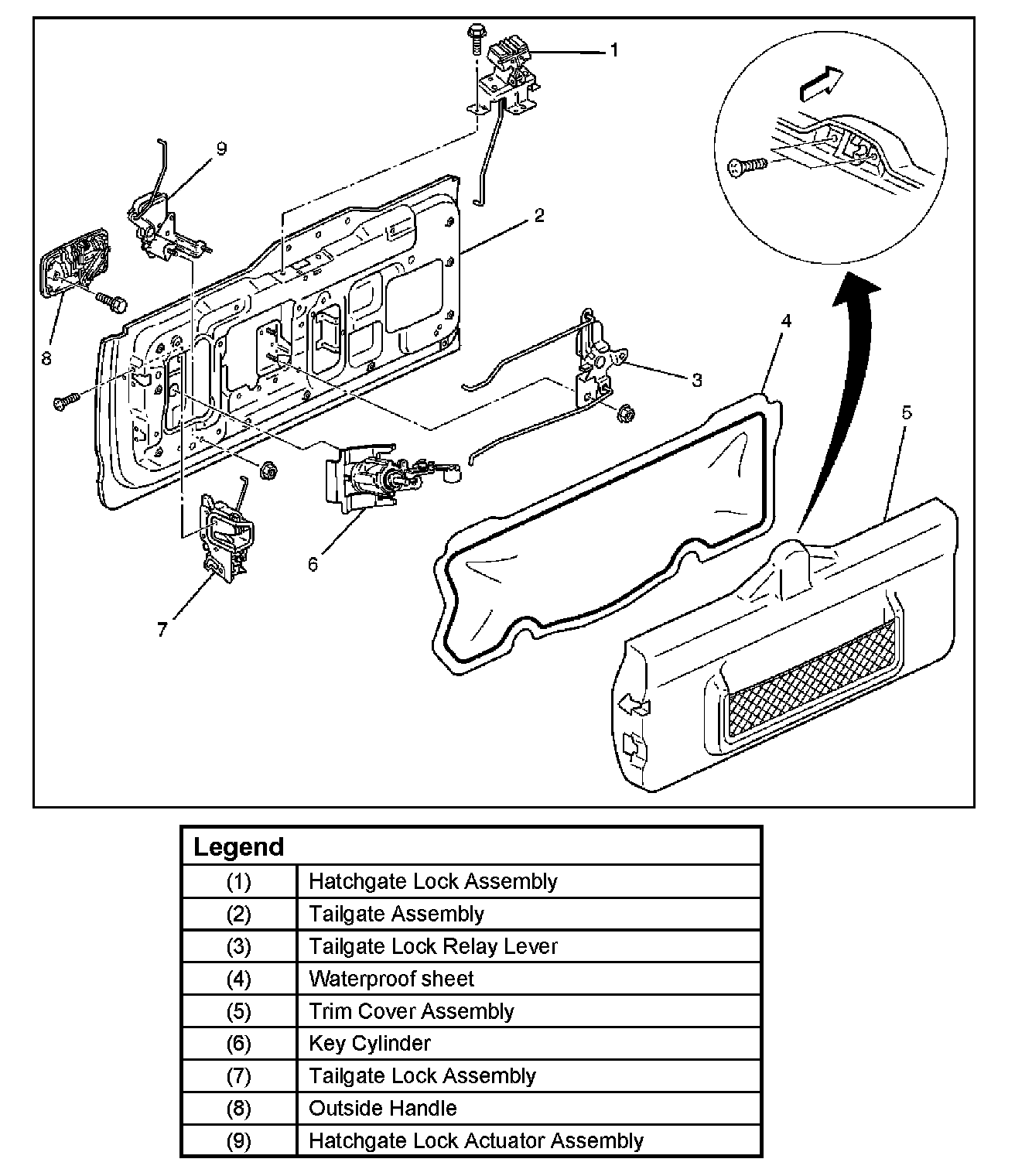

Tailgate Lock And Hatchgate Lock (LWB):



Tailgate Lock And Associated Parts:
