Electrical Diagrams

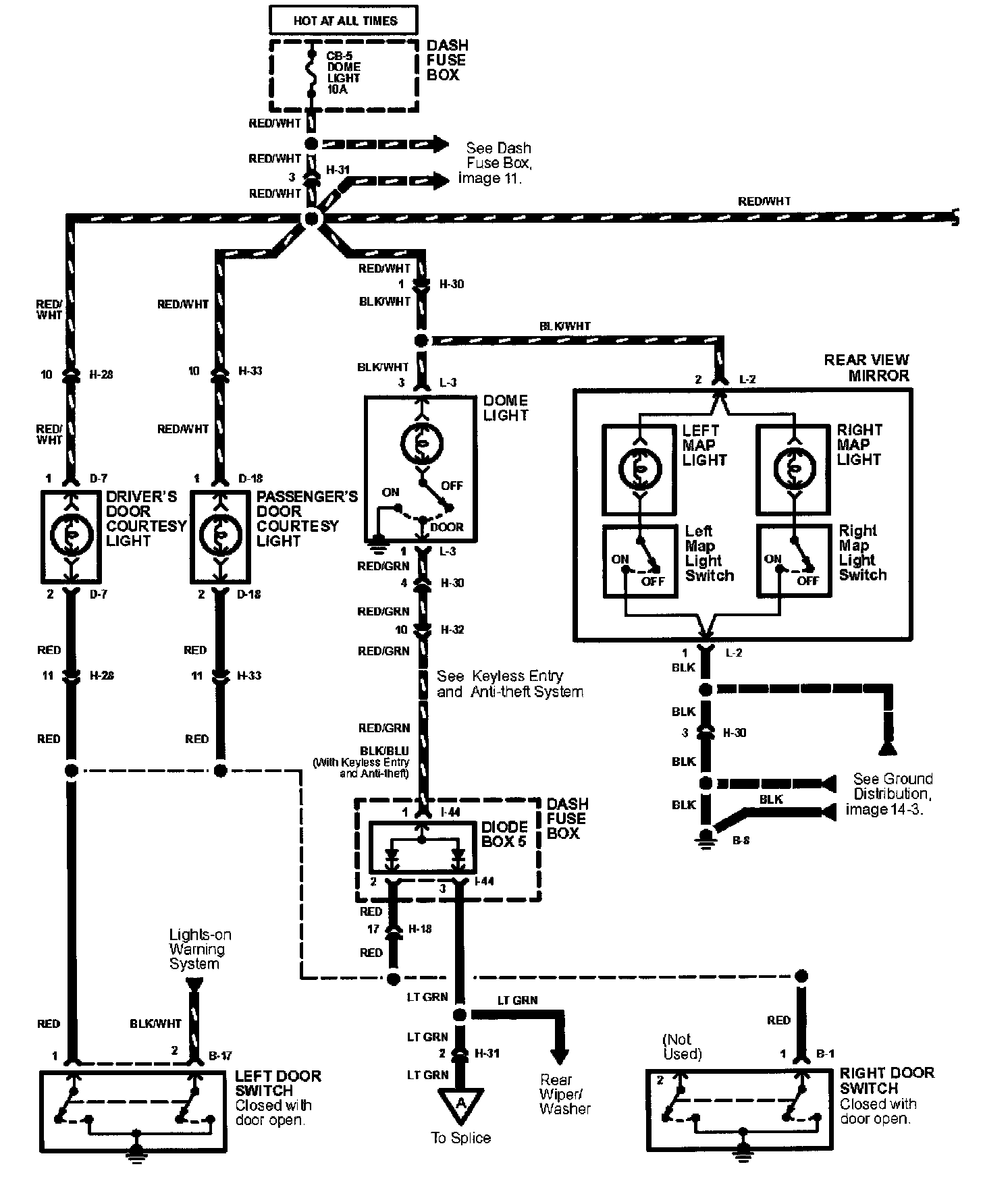

Dome, Luggage Room, Courtesy, And Map Lights Image 114-4:

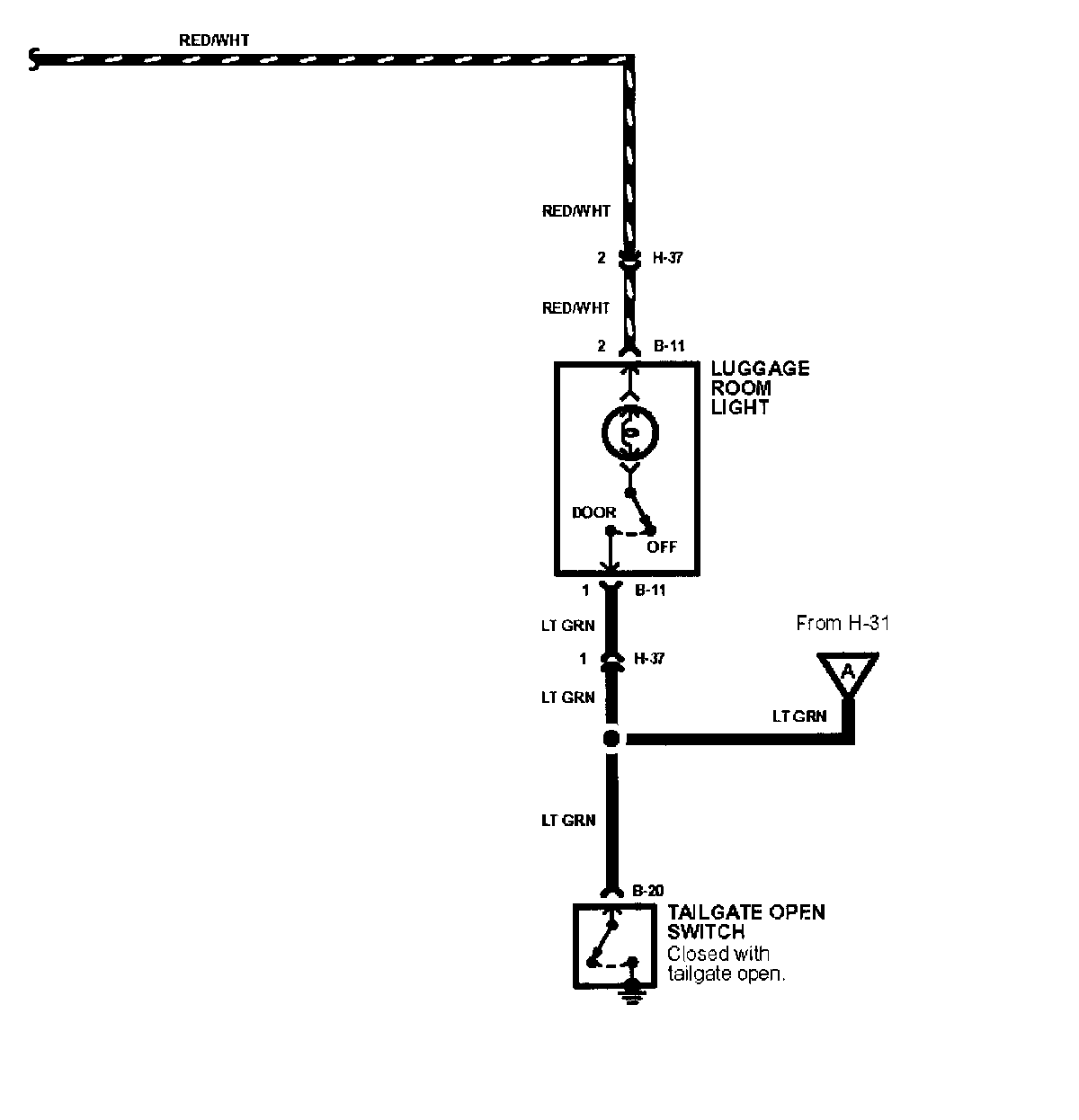

Dome, Luggage Room, Courtesy, And Map Lights Image 114-5:
