Wiper Blade Element Replacement
Removal ProcedureIMPORTANT: The wiper blade element must be replaced if removed from the wiper arm blade.
1. Remove the wiper arm blade from the wiper arm assembly.

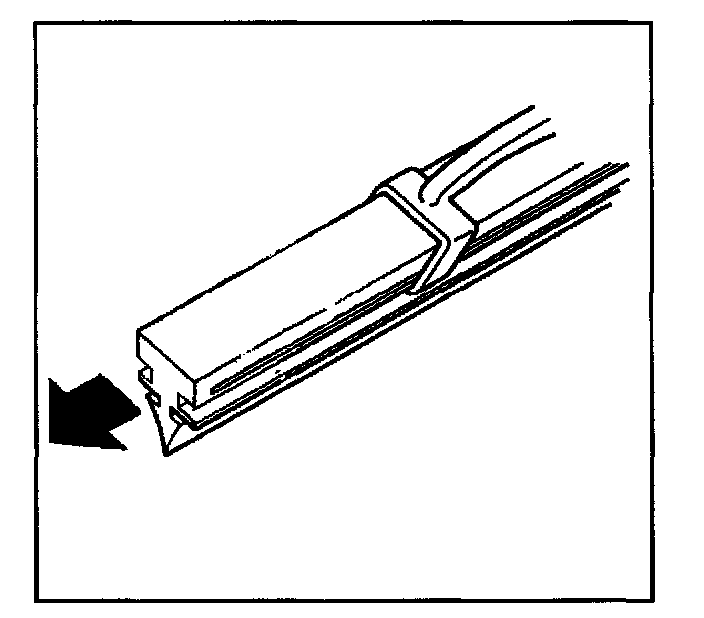

2. Firmly grasp the wiper blade element at the heel (bottom) claw of the wiper arm blade.
3. Pull the wiper blade element from the wiper arm blade.
Installation Procedure
1. Slide the wiper blade element through the heel (bottom) claw of the wiper arm blade.
2. Guide the wiper blade element through the wiper arm blade claws making sure that the claws remain in the large groove of the element.
3. Continue to feed the wiper blade element through the wiper arm blade until the heel claw contacts the edge of the wiper blade element notches.
4. Pull the heel claw into the wiper blade element notches.
5. Install the wiper arm blades on the wiper arm assemblies.
