Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Wipers High Mode Inoperative , Low Mode Operates

Wipers High Mode Inoperative , Low Mode Operates

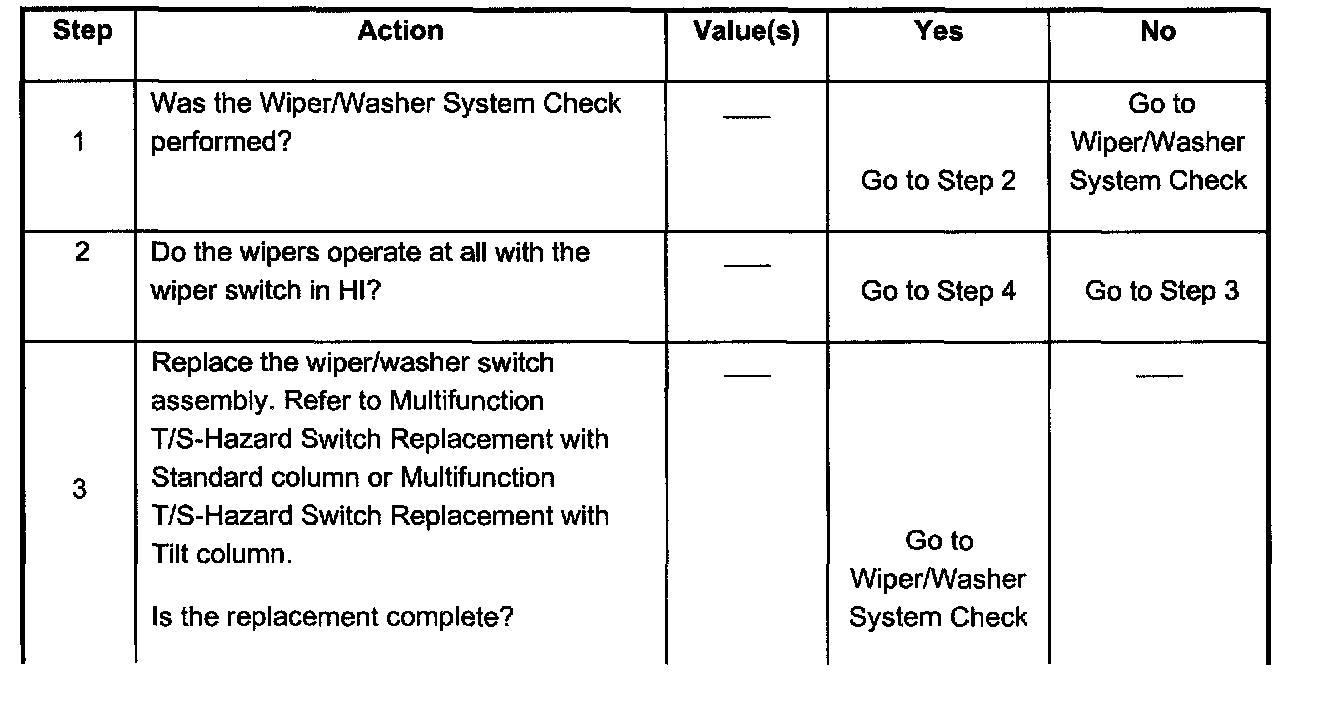

Steps 1 - 3:

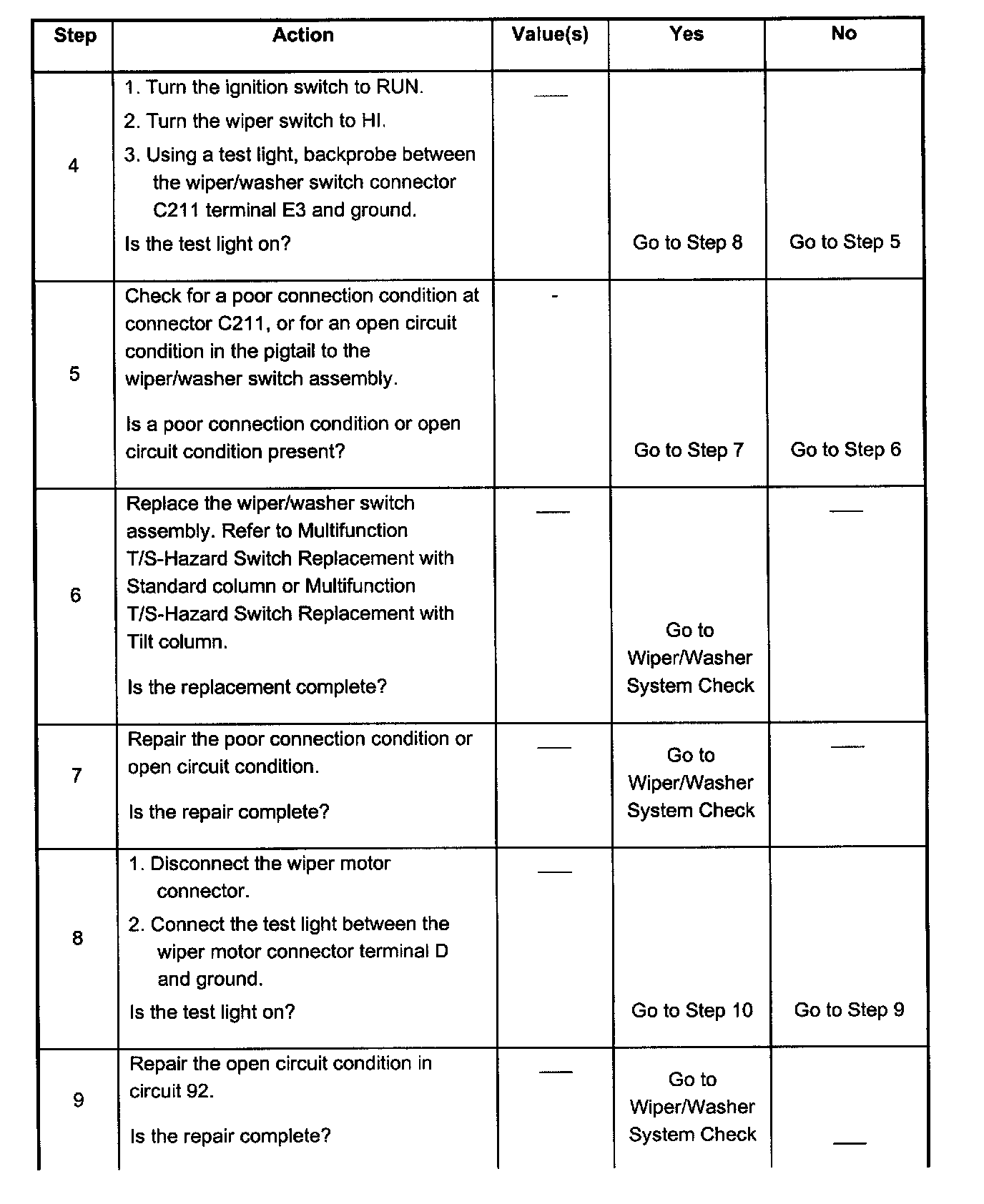

Steps 4 - 9:

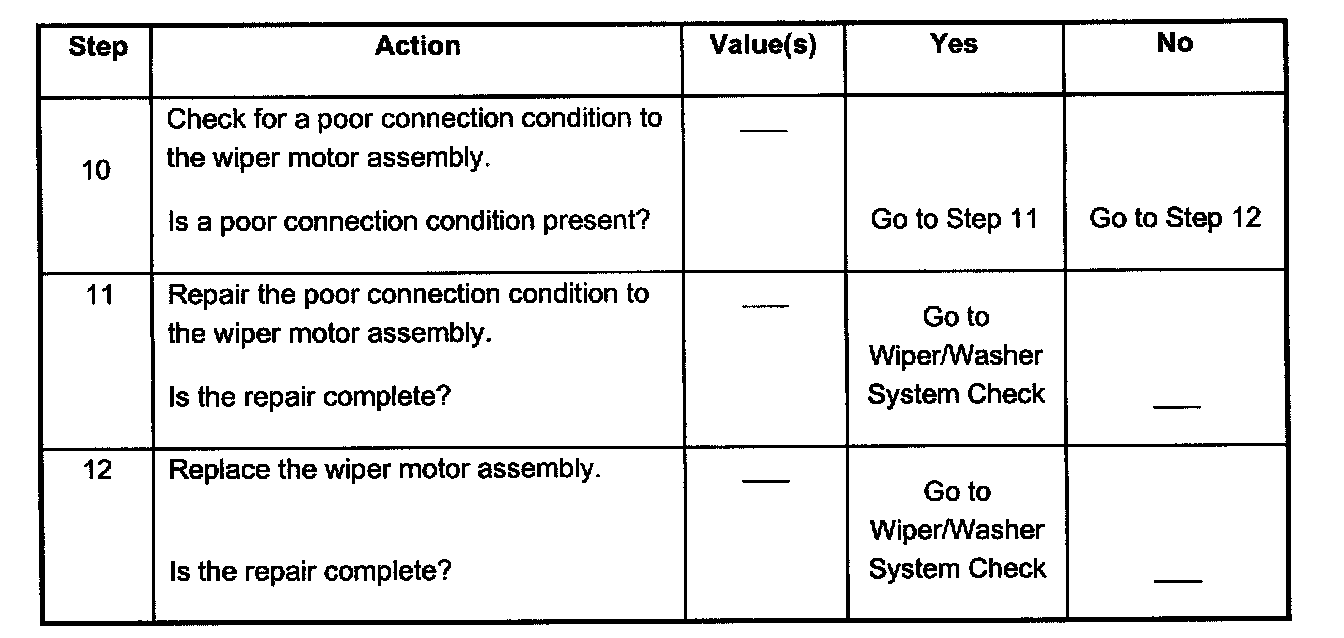

Steps 10 - 12:
