Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Wipers Delay Mode Inoperative

Wipers Delay Mode Inoperative

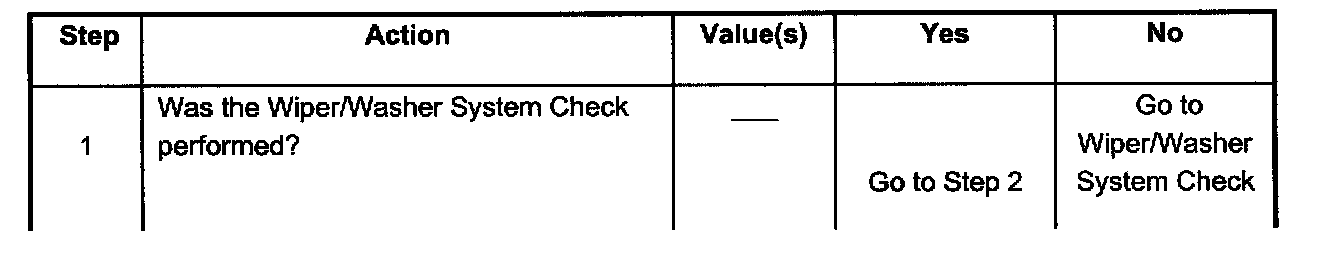

Step 1:

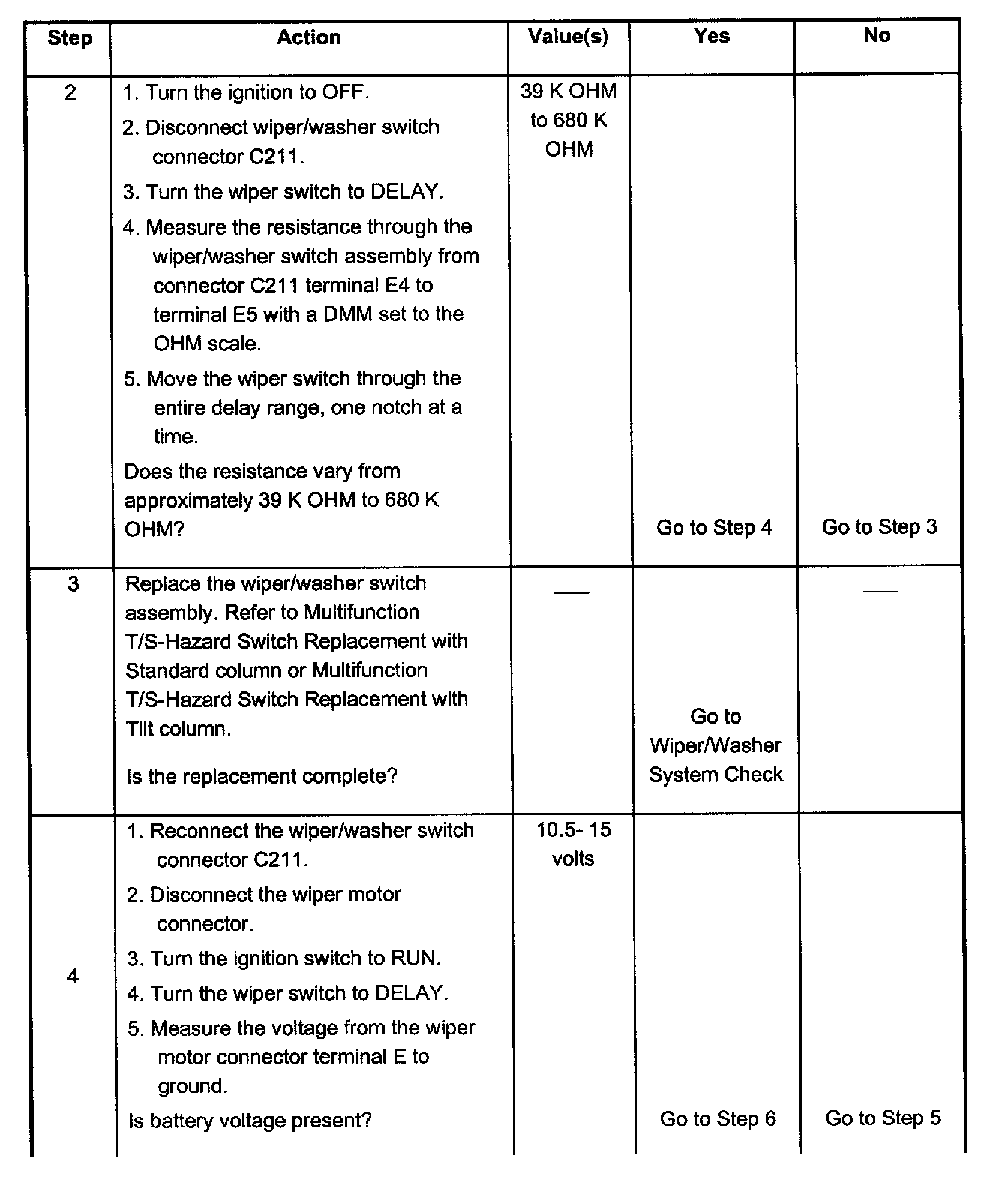

Steps 2 - 4:

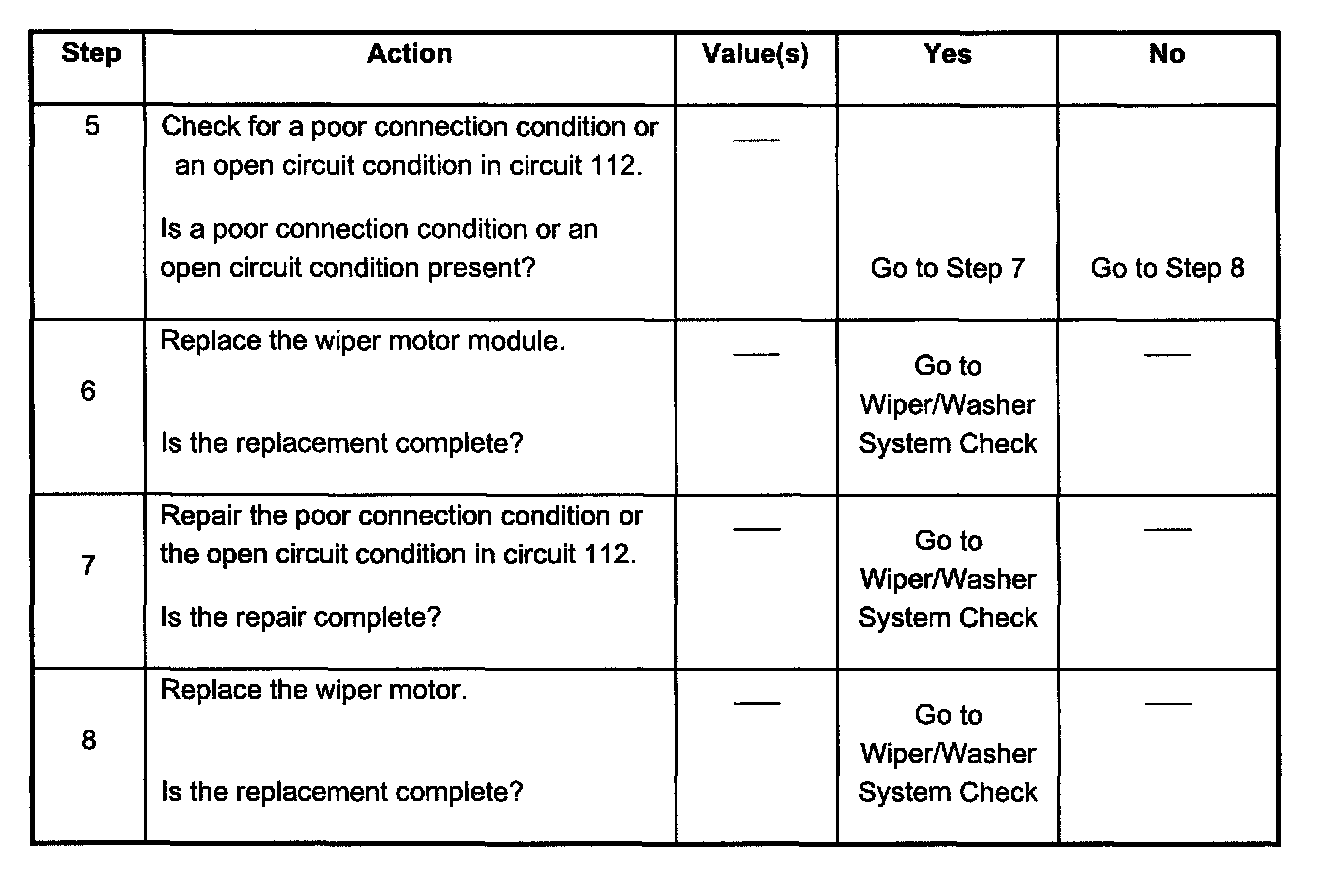

Steps 5 - 8:
