Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Wipers All Modes Inoperative

Wipers All Modes Inoperative

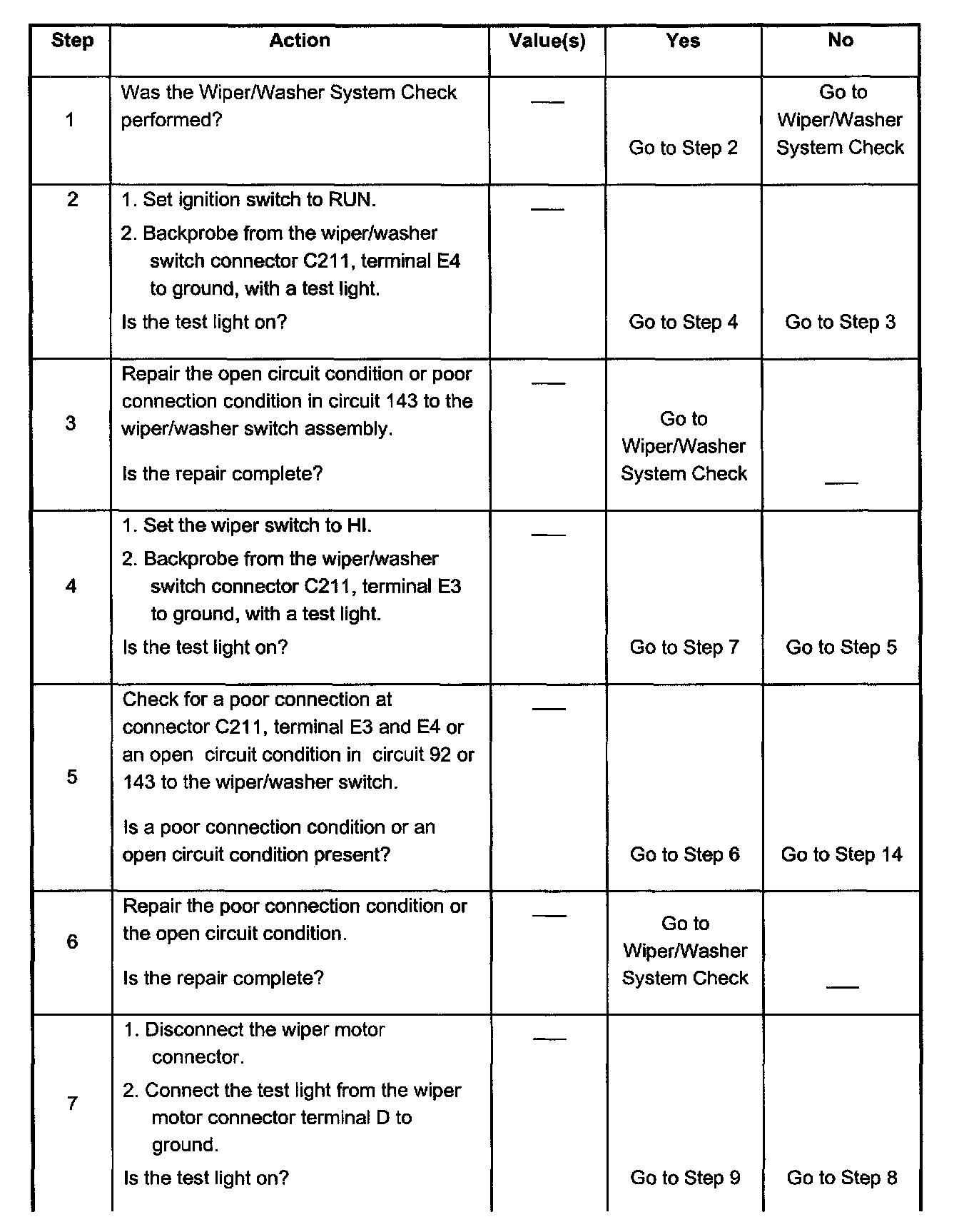

Steps 1 - 7:

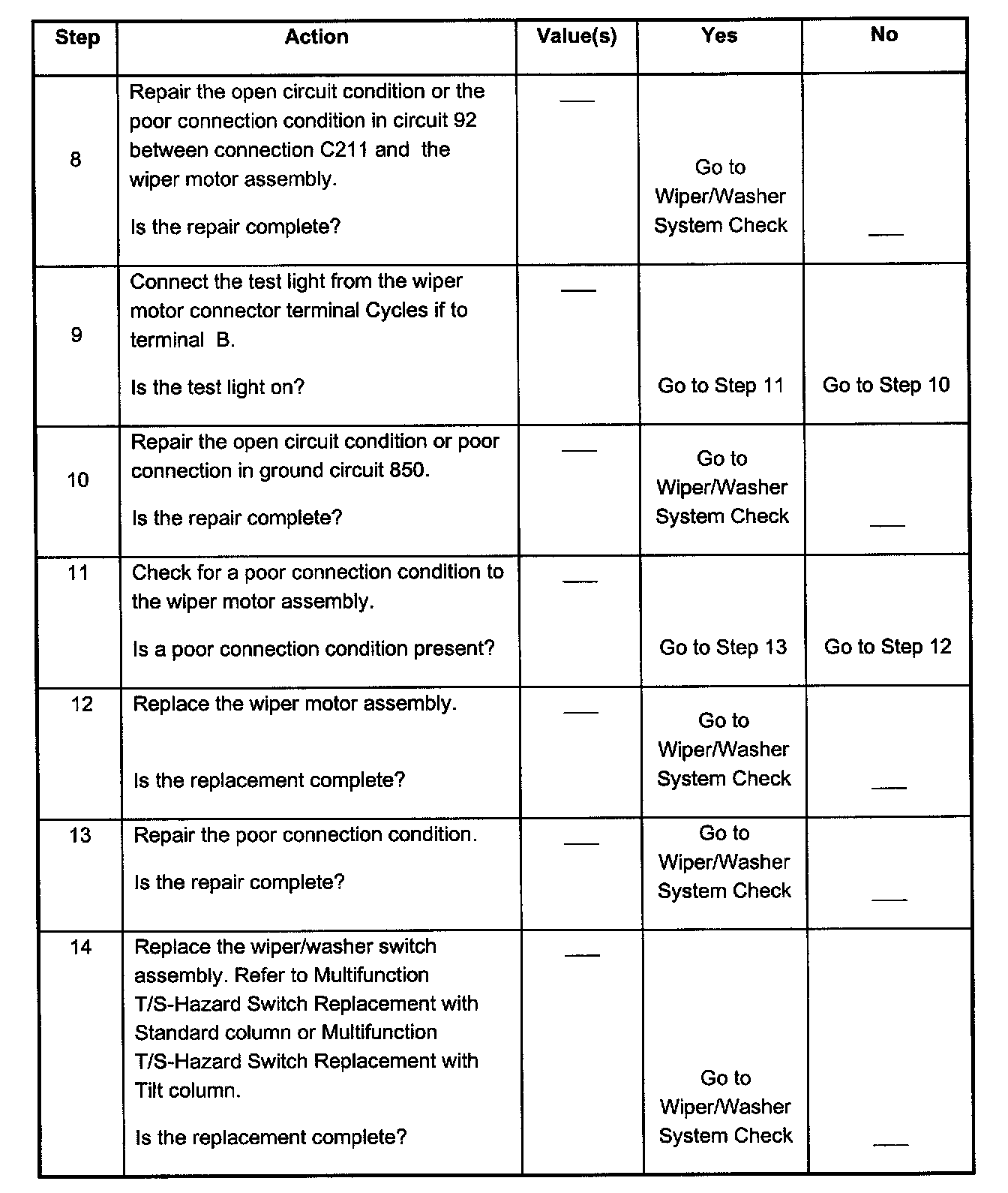

Steps 8 - 14:
