Blade Element Set Check

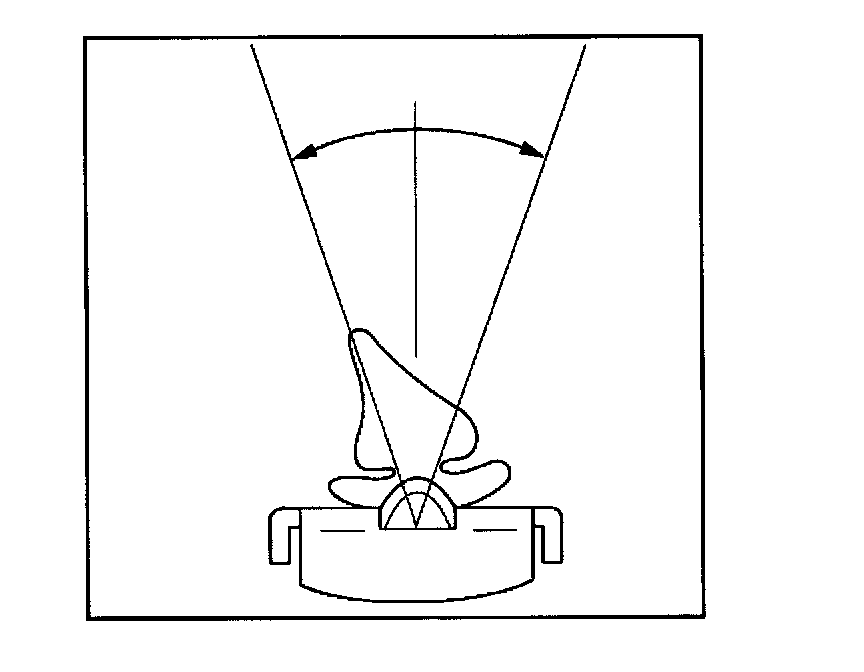

Remove the wiper arm blades from the wiper arm assemblies, being careful to note orientation for reassembly. Look down the length of the blade element. The rubber element which contacts the glass must be on the centerline of the blade assembly ± 15 degrees. Replace the element if necessary.
