TFP Manual Valve Position Switch Resistance Check
TFP Manual Valve Position Switch Resistance Check

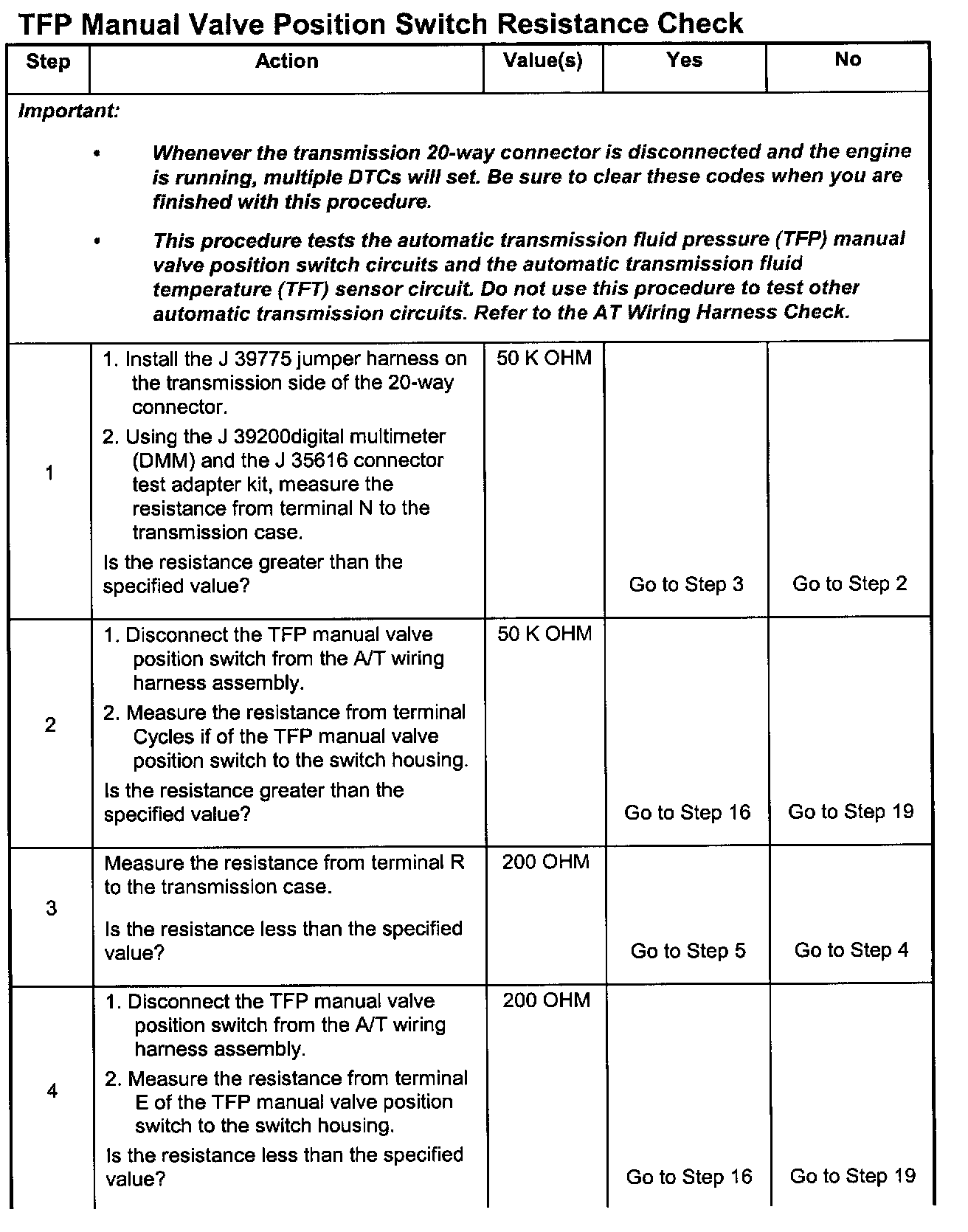

Steps 1 - 4:

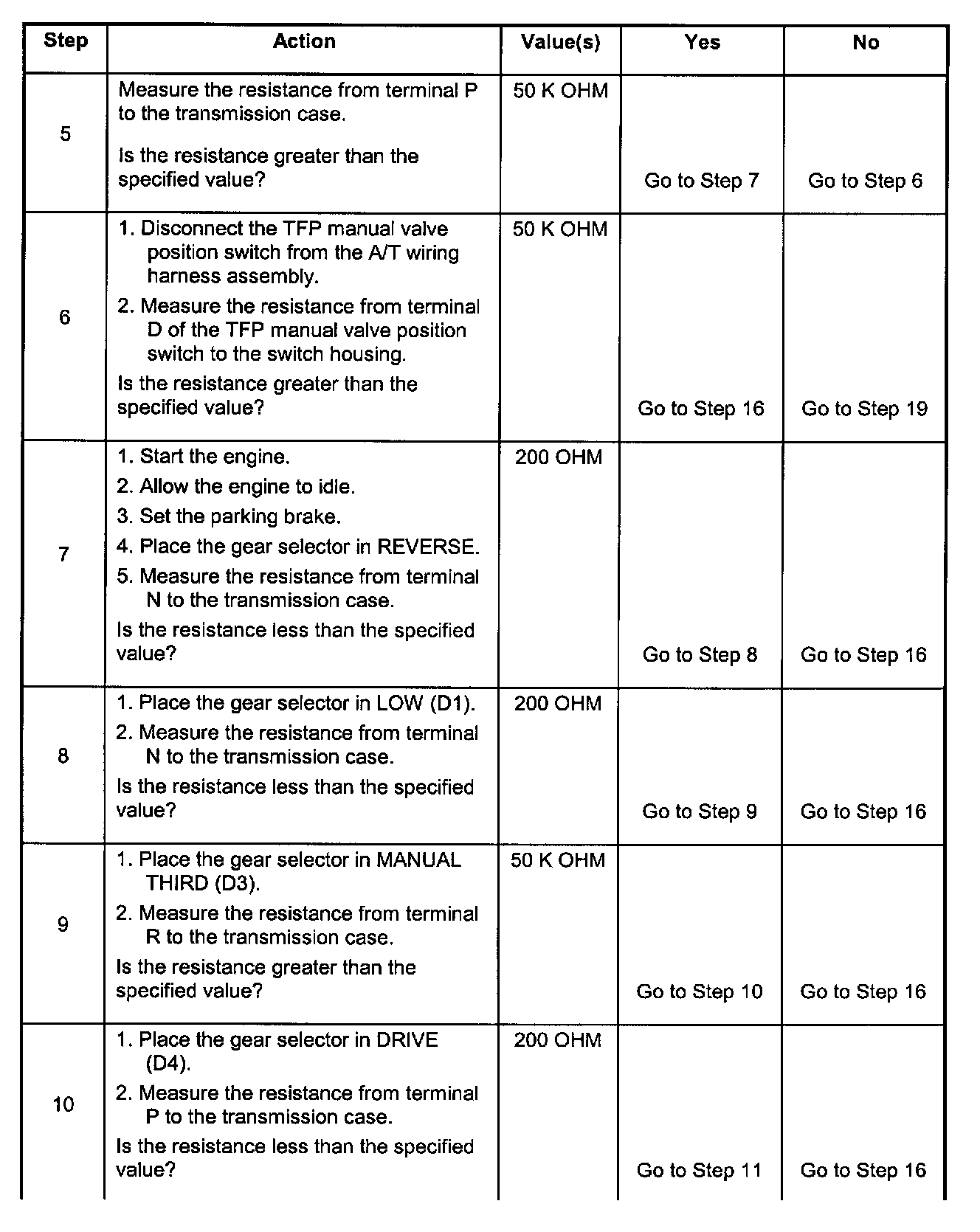

Steps 5 - 10:

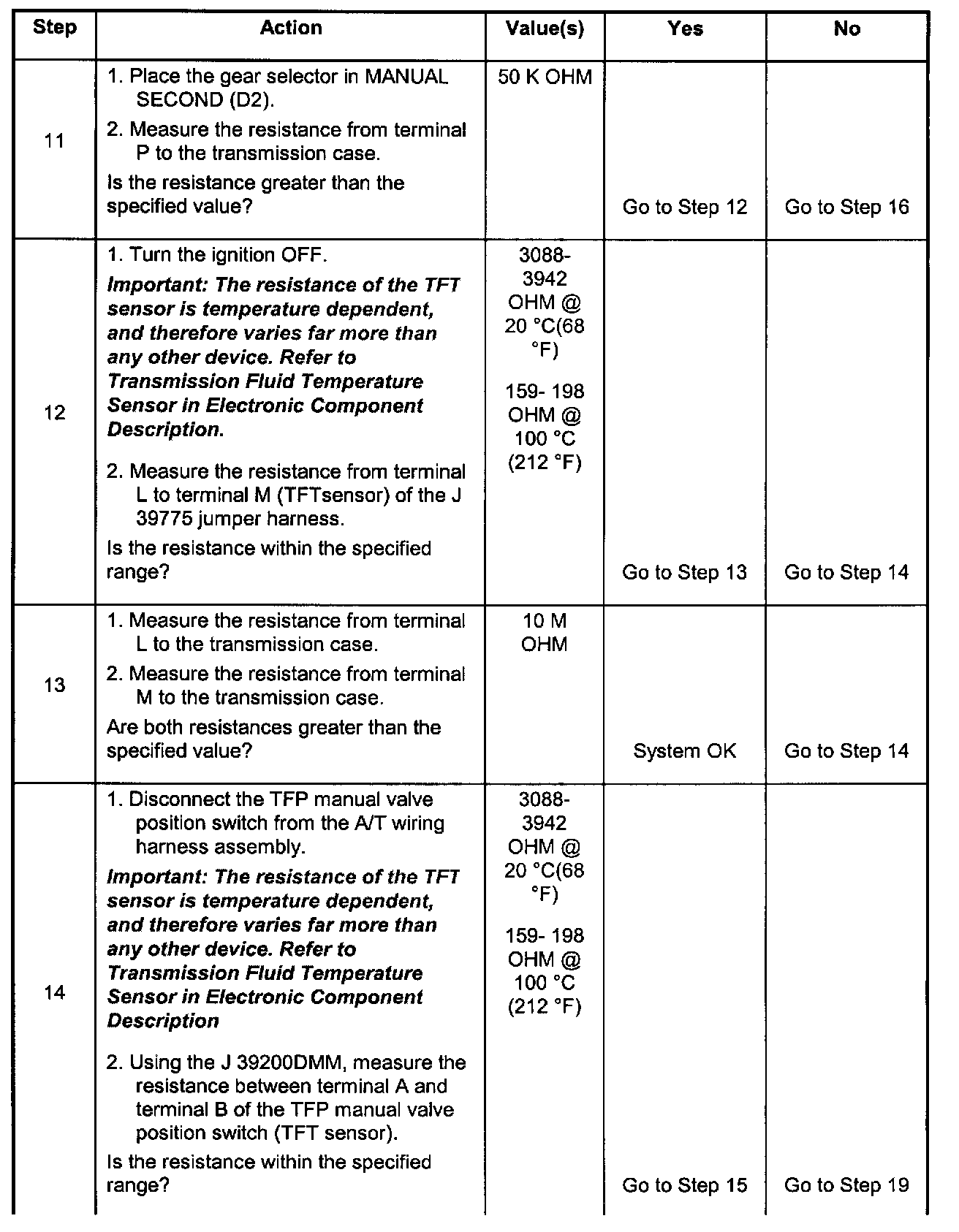

Steps 11 - 14:

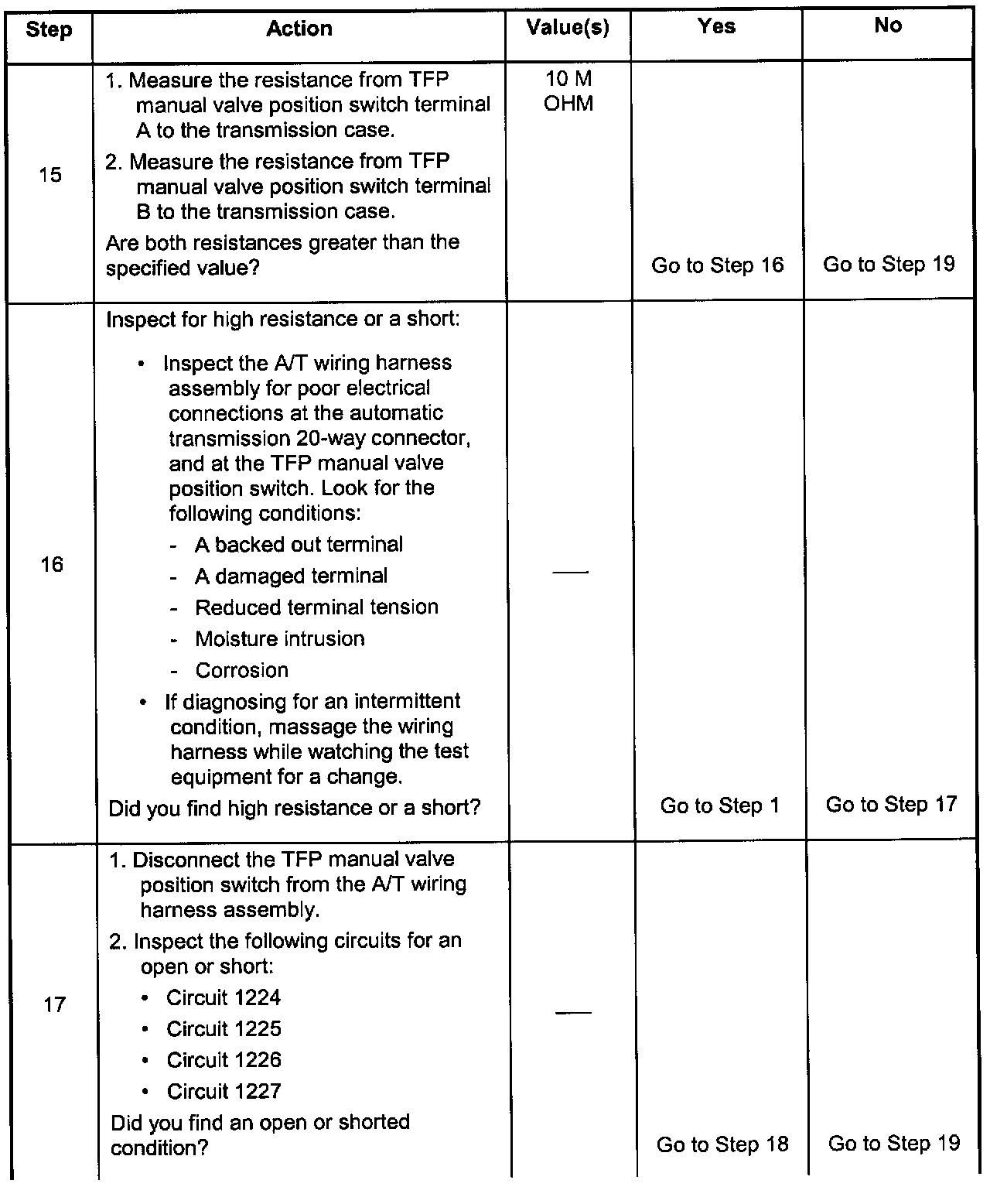

Steps 15 - 17:

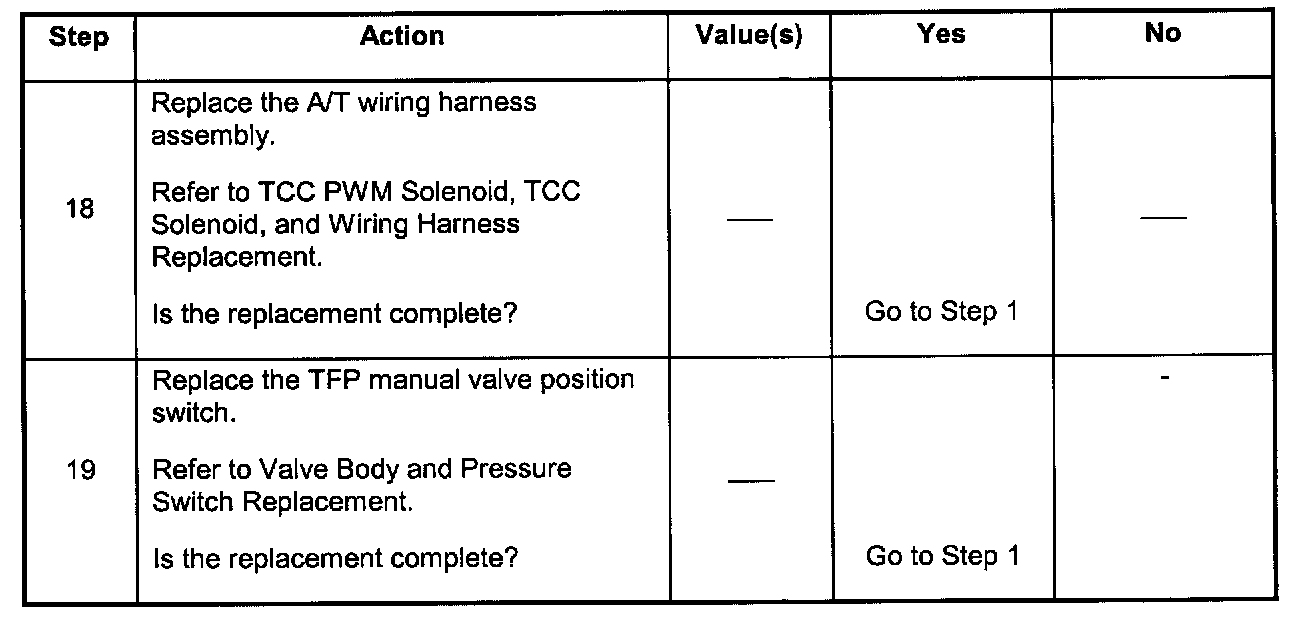

Steps 18 - 19:
TFP Manual Valve Position Switch Resistance Check
