Manual Transmission/Transaxle: Testing and Inspection

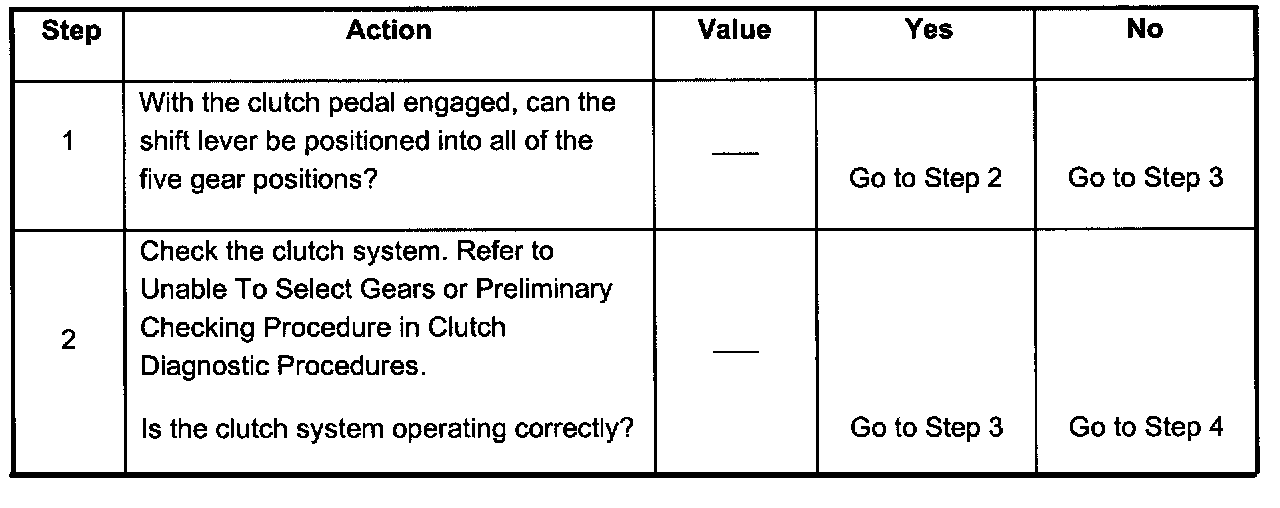

Steps 1 - 2:

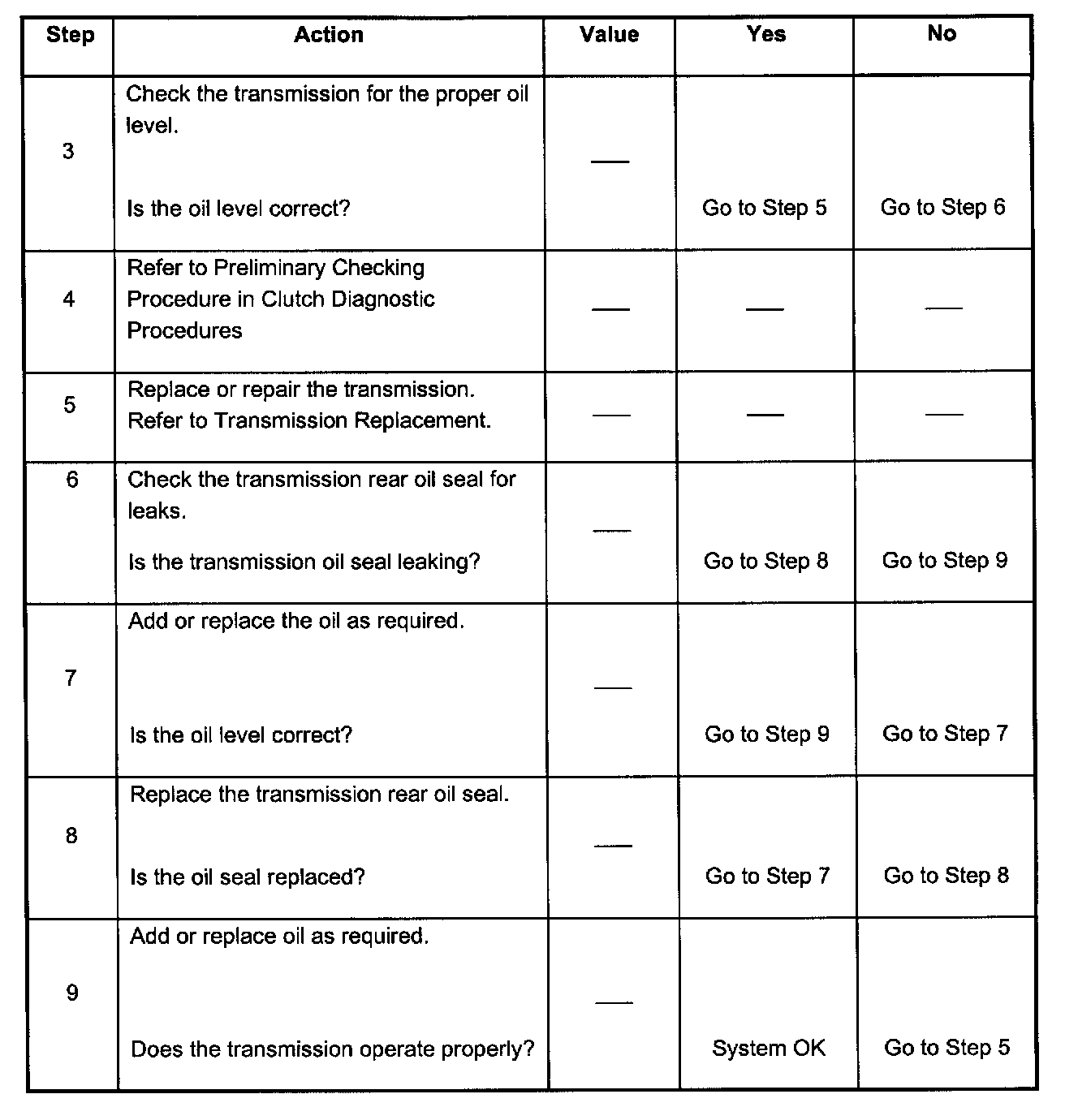

Steps 3 - 9:




Manual Transmission Diagnosis
