Center Support: Service and Repair

CENTER BEARING REPLACEMENT

Removal Procedure




1. Raise and suitably support the vehicle.
2. Remove the two-piece propeller shaft.
3. Remove the center bearing.

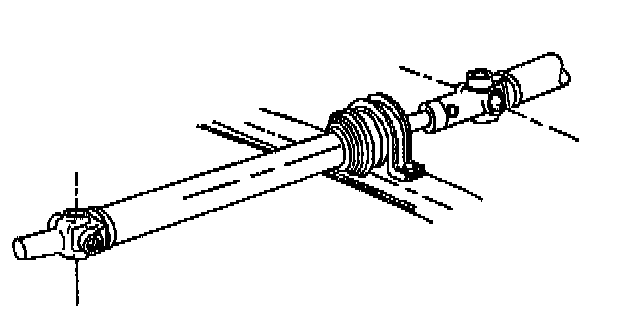

- Stand the propeller shaft on end in a press with the center bearing supported by press bars.
- Press the propeller shaft down and off the center bearing.

Installation Procedure

1. Install the center bearing onto the propeller shaft by pressing the center bearing onto the shaft using a press.




2. Install the two-piece propeller shaft.
3. Remove the safety stands and lower the vehicle.
