Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Noise Diagnosis - Locking/Limited Slip - Rear

Noise Diagnosis - Locking/Limited Slip - Rear

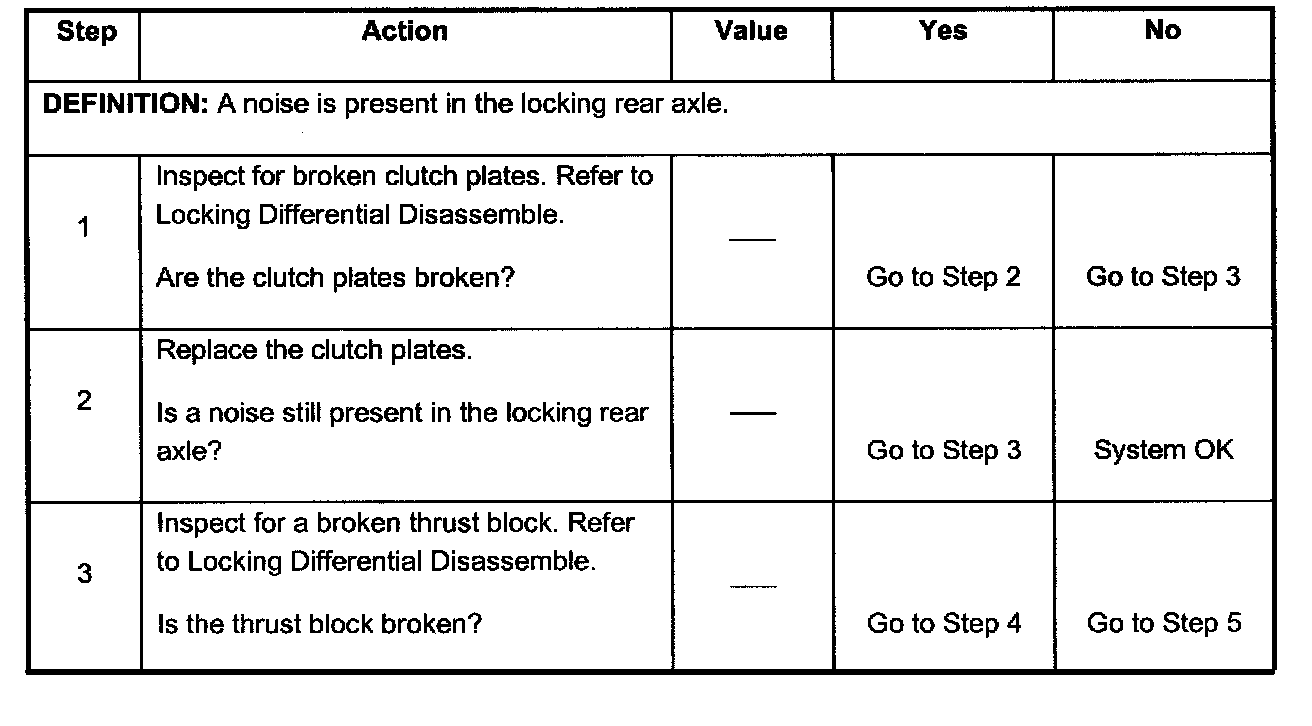

Steps 1 - 3:

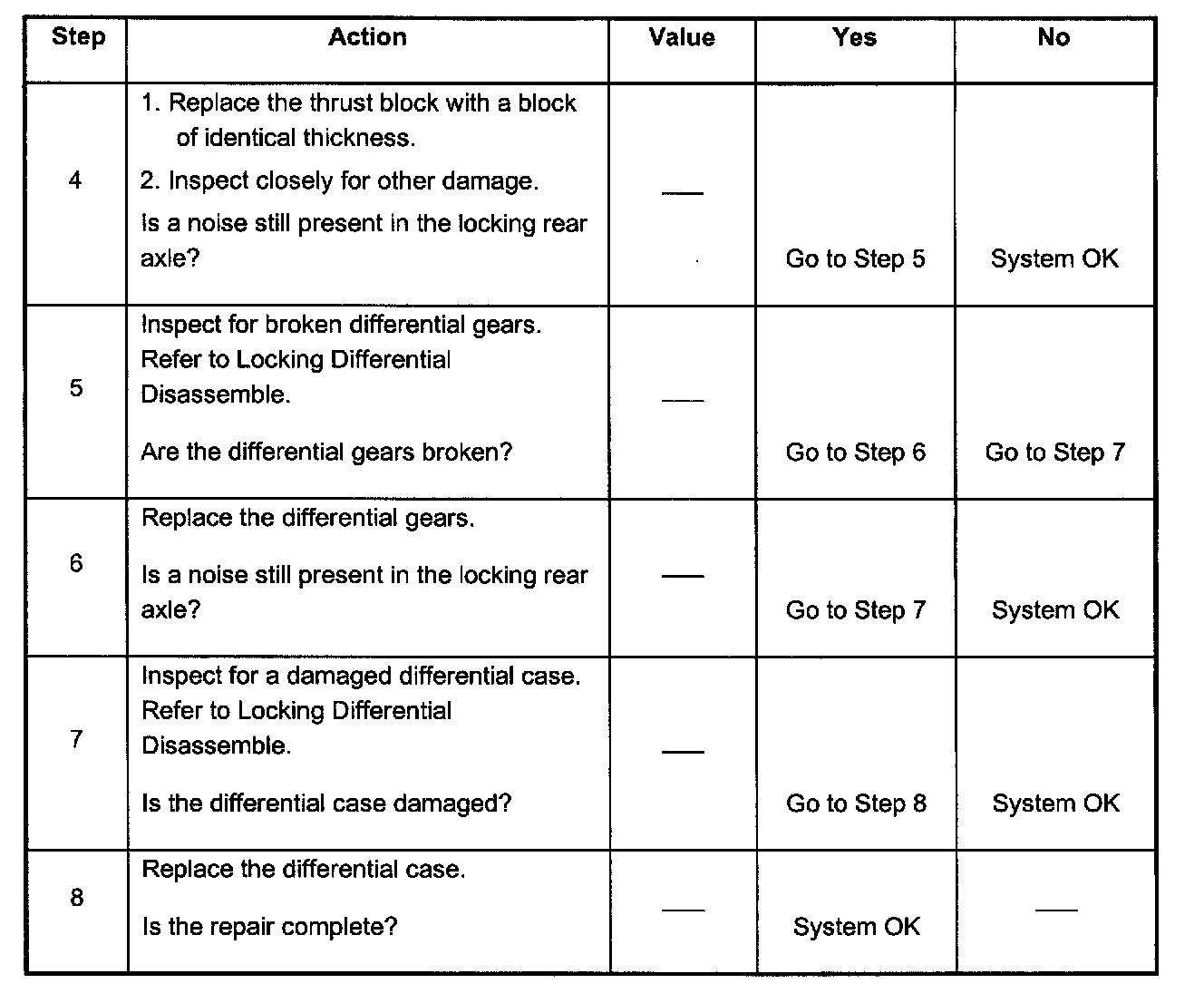

Steps 4 - 8:




Noise Diagnosis
