Hombre XS Space Cab 2WD V6-4.3L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Differential Assembly
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Diagnosis By Symptom - Locking/Limited Slip - Rear
>>
Locking Rear Axle Does Not Lock
Locking Rear Axle Does Not Lock

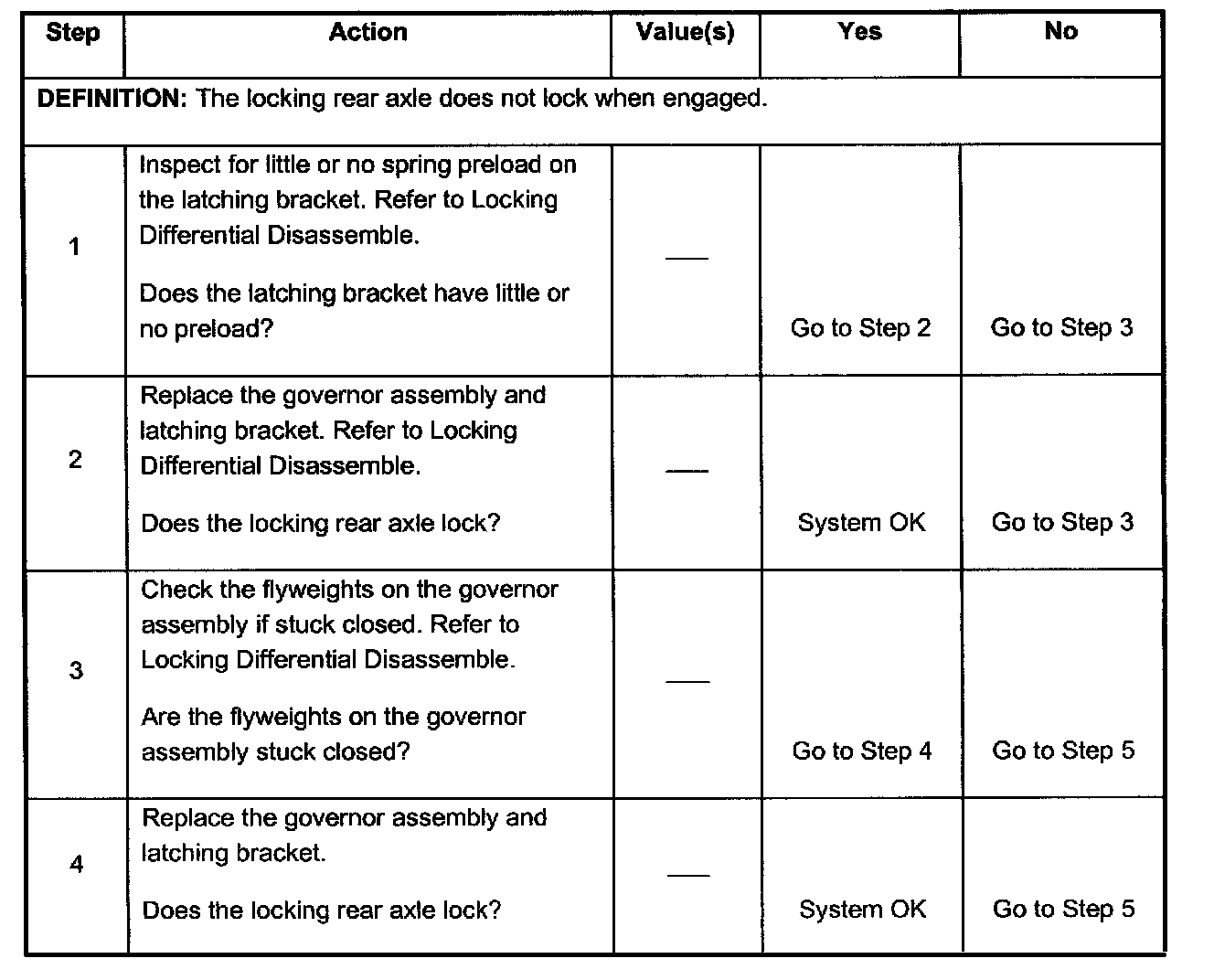

Steps 1 - 4:

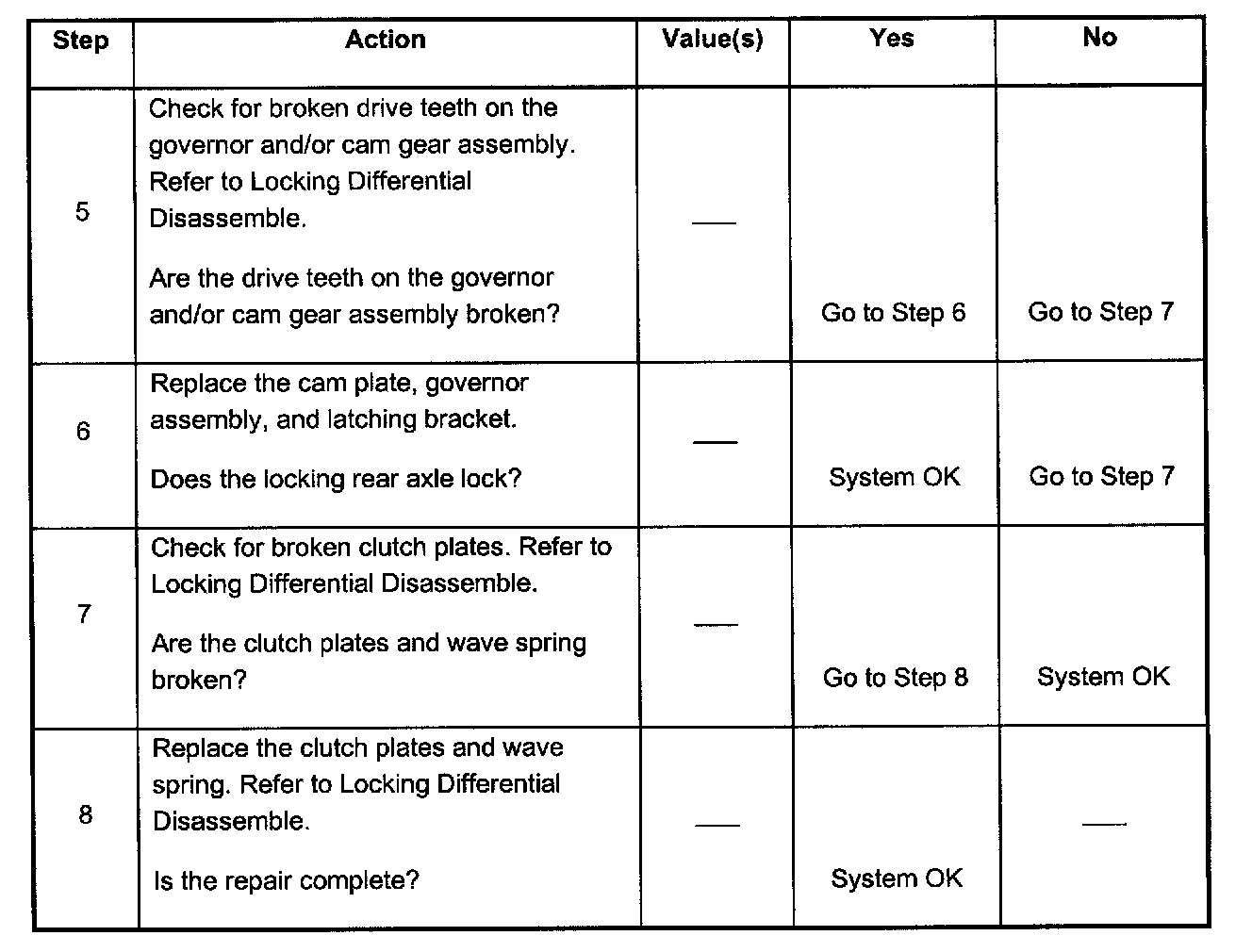

Steps 5 - 8:
Locking Rear Axle Does Not Lock
