Isuzu Truck
>>
1999
>>
Hombre XS Space Cab 2WD V6-4.3L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Differential Assembly
>>
Specifications
>>
Mechanical Specifications
>>
Locking/Limited Slip
Locking/Limited Slip

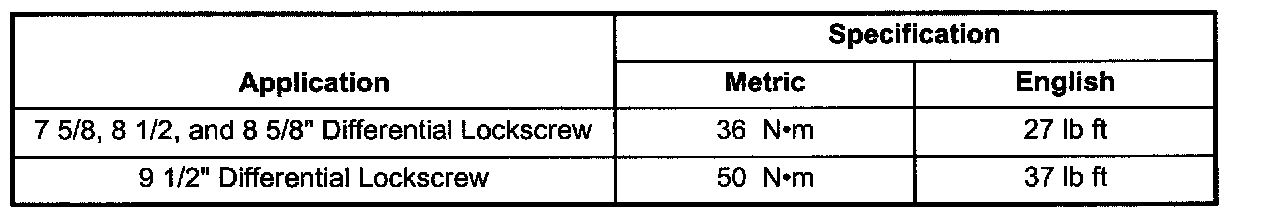

Fastener Tightening Specifications

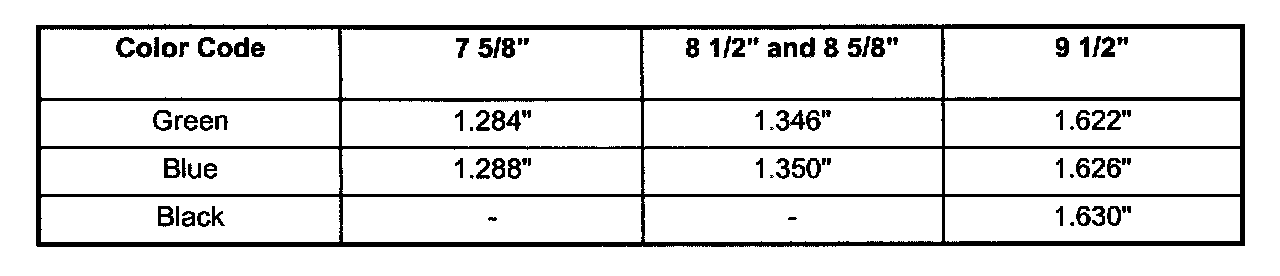

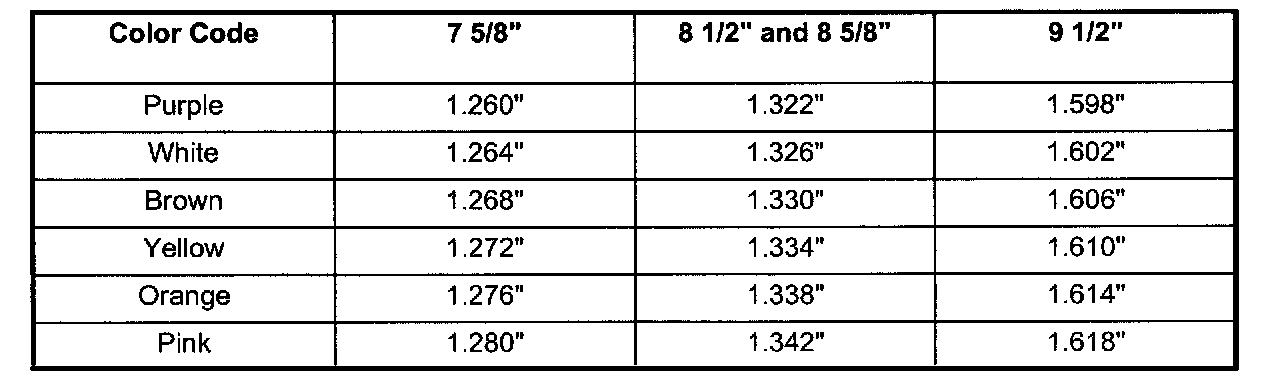

Thrust Block Sizes (Locking)

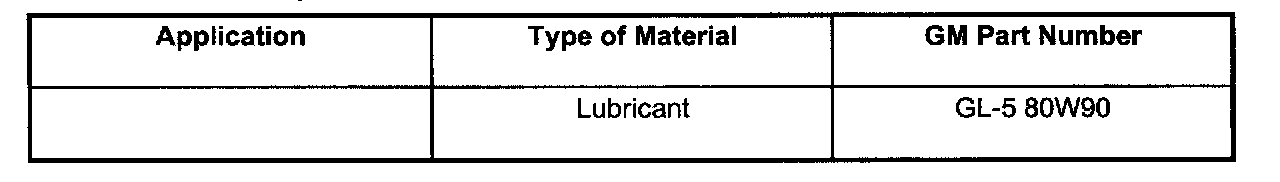

Lubrication Specifications
