Torque Converter: Application and ID

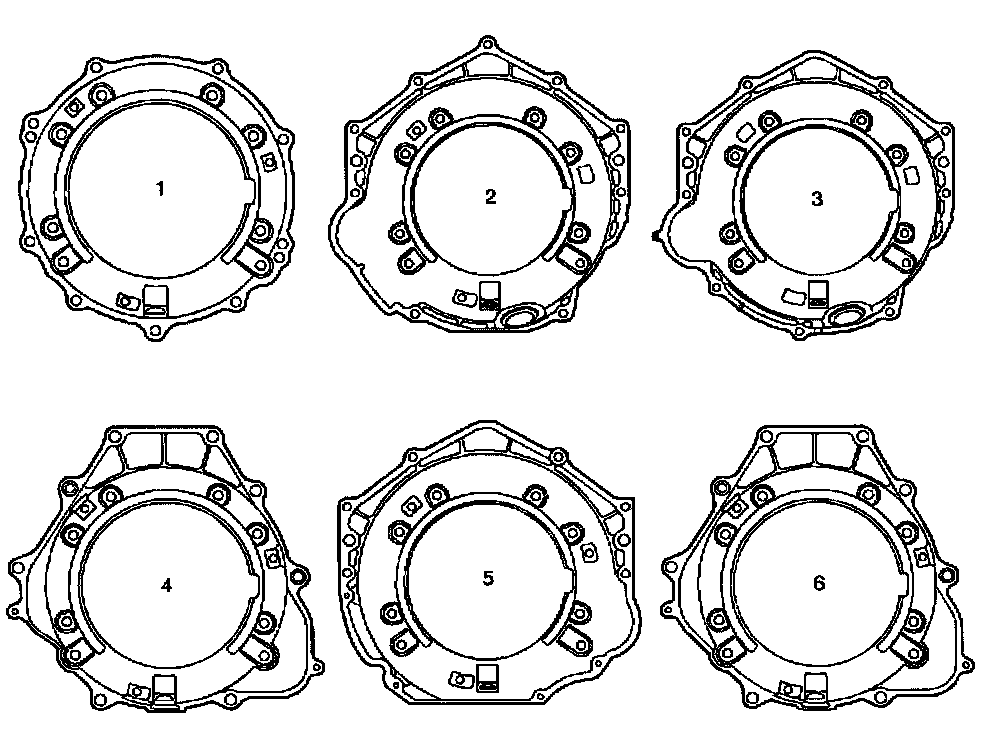

Torque Converter Housing Identification
(1) Domestic Large Bell V-8 (Y-Car)
(2) Domestic Gen III Large Bell V-8 (300 mm)
(3) Domestic Gen I/kK Large Bell V-8N-6
(4) Holden Small Bell V-6
(5) Holden Gen III Large Bell V-8
(6) Domestic Small Bell V-6
