Component Tests and General Diagnostics

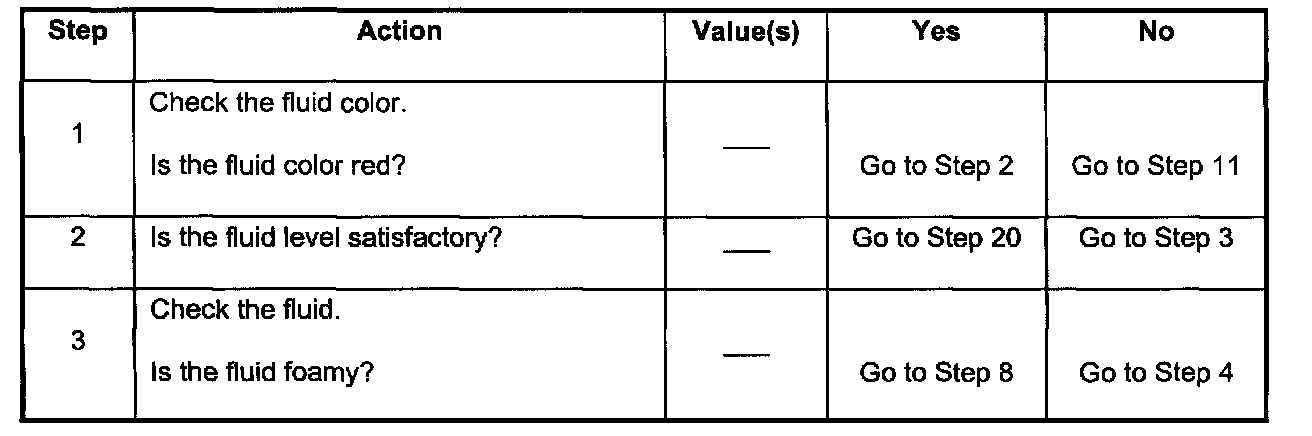

Steps 1 - 3:

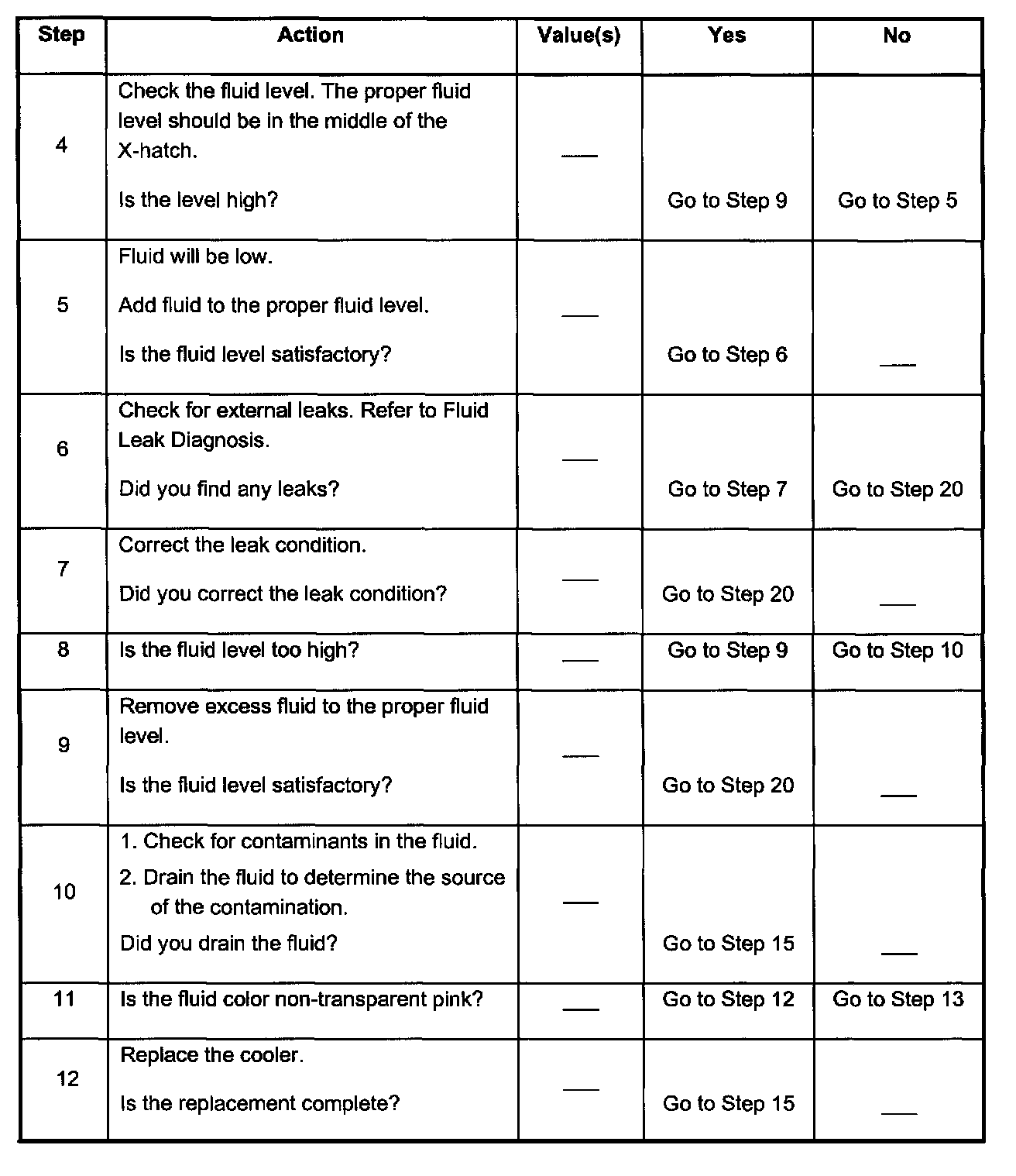

Steps 4 - 12:

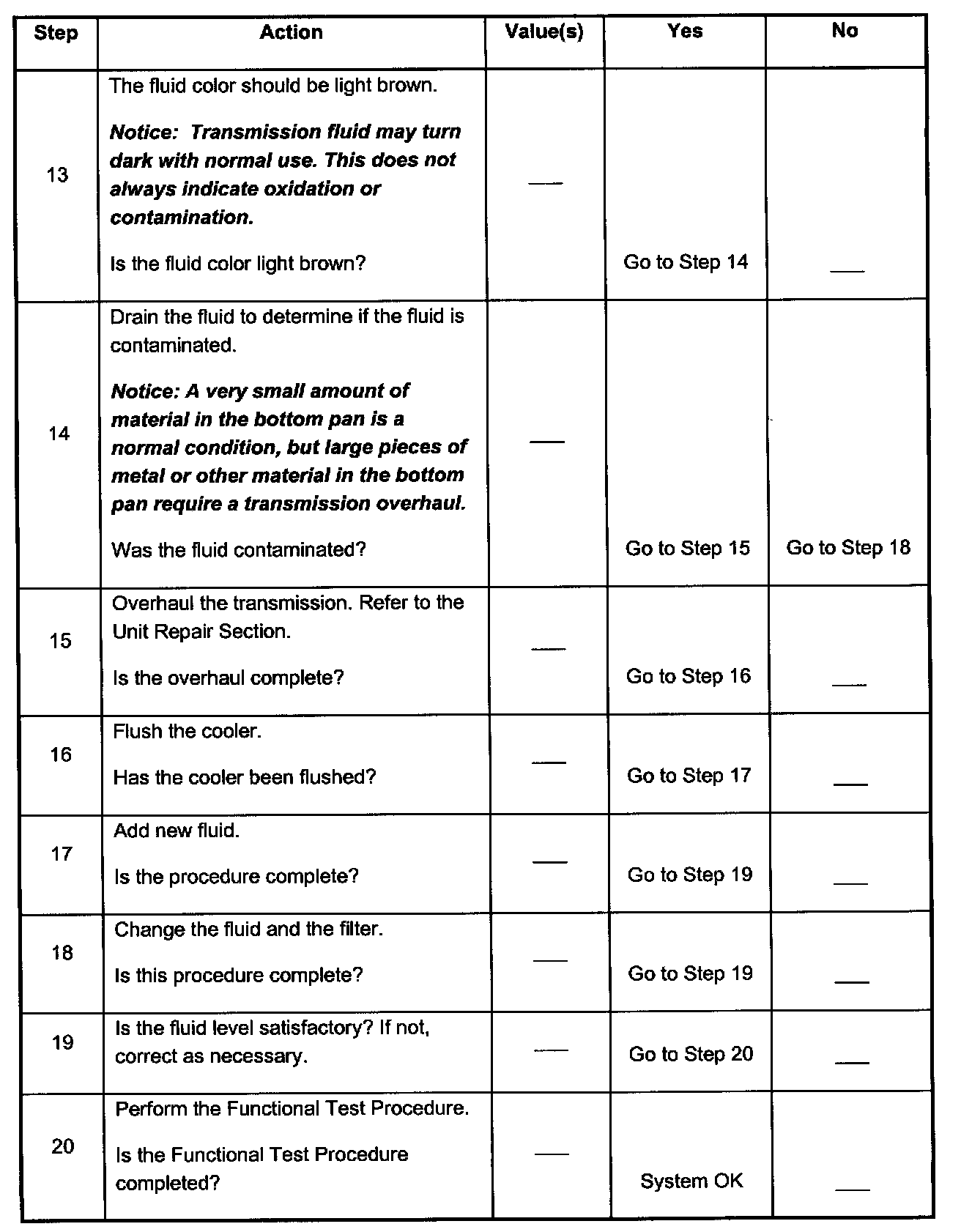

Steps 13 - 20:




Transmission Fluid Checking Procedure
