Floor Shift Control Replacement
Floor Shift Control ReplacementRemoval Procedure
1. Remove the shift lever.
2. Remove the shift control cover.
3. Remove the shift cable. Refer to Shift Cable A/T; Service and Repair.
Service and Repair

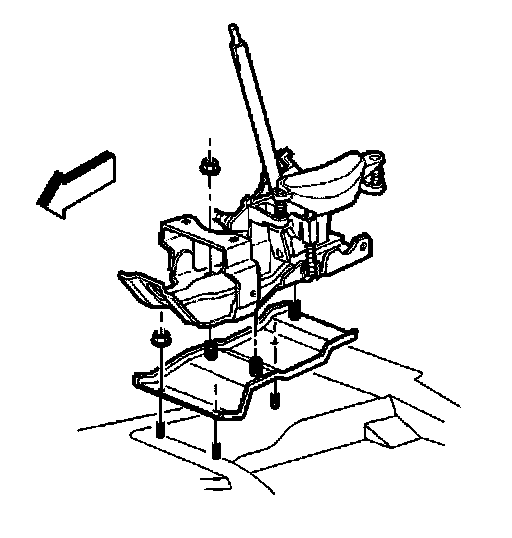

4. Remove the nuts securing the shift controller to the floor panel.
Installation Procedure

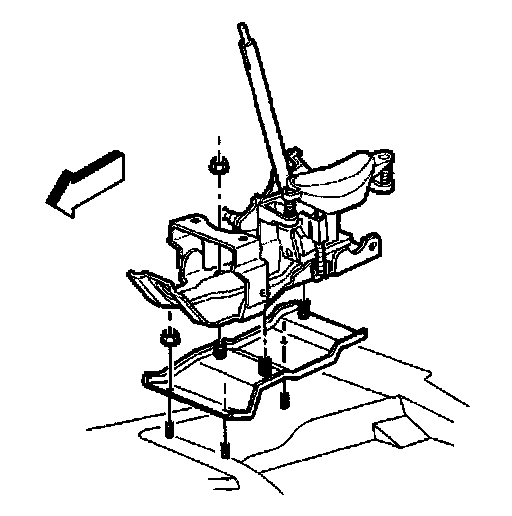

1. Install the nuts securing the shift controller to the floor panel.
Tighten
Tighten the nuts to 25 N.m (18 lb in).
2. Install the shift cable.
Refer to Shift Cable A/T; Service and Repair.

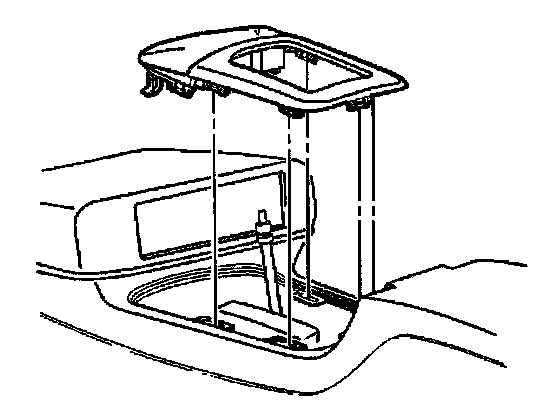

3. Install the shift control cover.
4. Install the shift boot.
