Strut or Shock Diagnosis

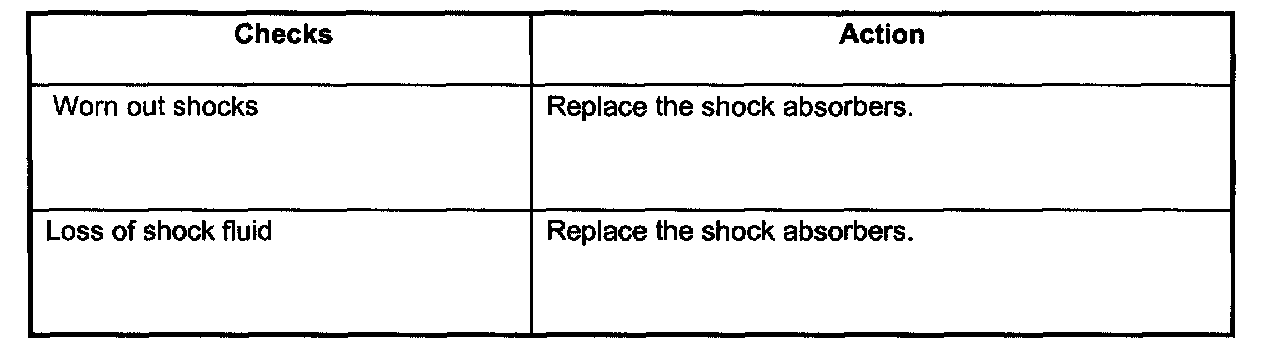

Struts or Shock Absorbers Weak

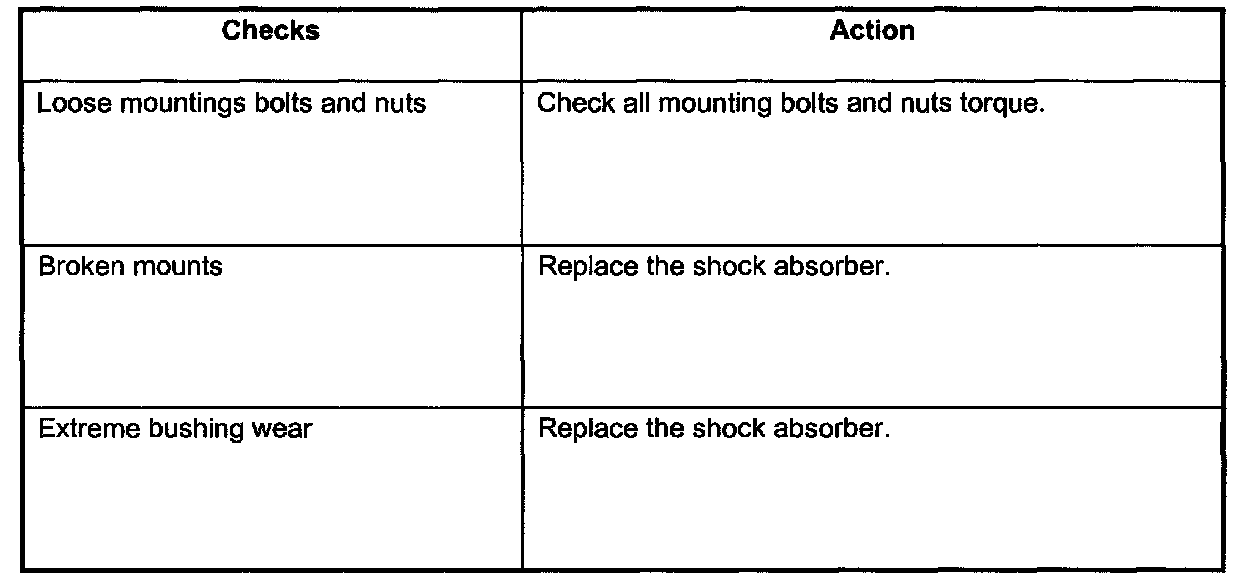

Struts or Shock Absorbers Noisy

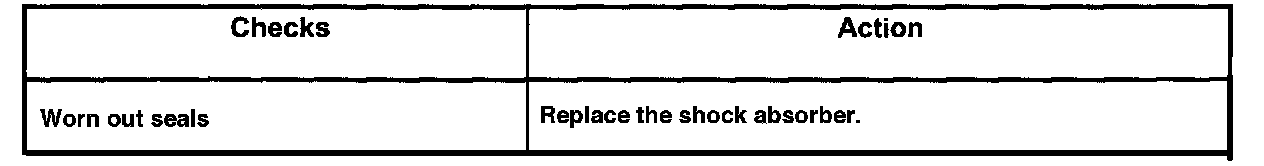

Struts or Shock Absorbers Leak
