Pitman Shaft Seals and Bearing Replacement
Pitman Shaft Seals and Bearing ReplacementDisassembly Procedure
Tools Required
- J 6278 Pitman Shaft Bearing Remover and Installer
- J 6219 Pitman Shaft Oil Seal Installer J 4245 Internal Snap Ring Pliers
1. Remove the nut (4).
2. Remove the lock washer (3).
3. Remove the pitman arm from the steering gear.
4. Remove the pitman shaft and side cover. Refer to Pitman Shaft and Side Cover Replacement.
5. Clean the exposed end of the pitman shaft.
6. Clean the steering gear housing.
7. Use a wire brush to clean the pitman shaft splines.
8. Remove the dust seal (1).

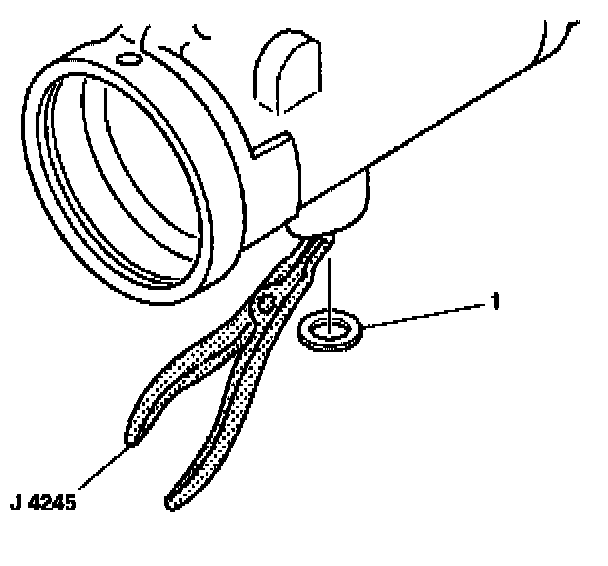

9. Remove the retaining ring using J 4245
Important: Use care not to score the steering gear housing bore when prying out the seals and the washers.

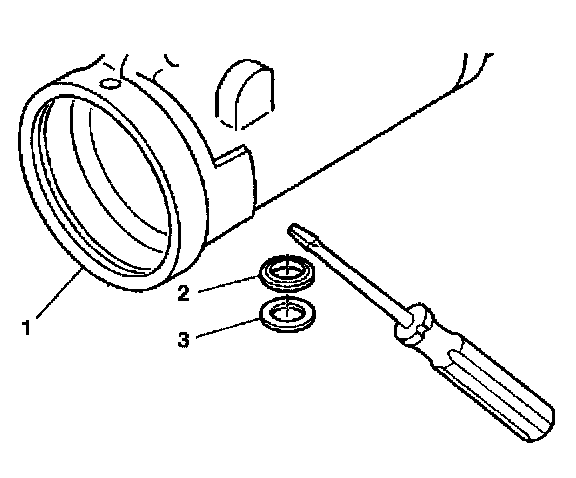

10. Use a screw driver to pry the backup washer (3)and the double lip seal (2) from the steering gear housing (1).
11. Inspect the steering gear housing (1) for burrs.
12. Remove the steering gear housing (1) if necessary.

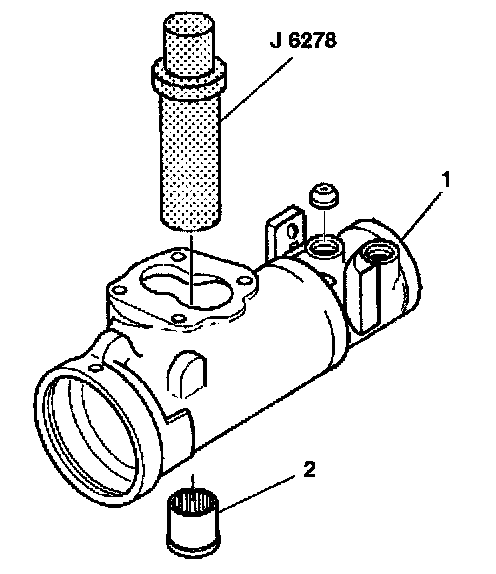

13. Insert J 6278 through the hole in the top of the steering gear housing (1).
14. Drive out the needle bearing (2).
Assembly Procedure
Tools Required
- J 6278 Pitman Shaft Bearing Remover and Installer
- J 4245 Internal Snap Ring Pliers
1. Coat the double lip seal (2) and the washer (3) with grease.

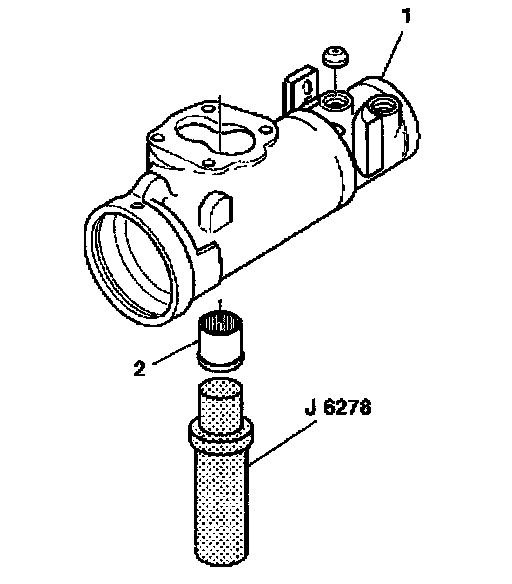

2. Install the needle bearing (2)to the steering gear housing (1) using J 6278
3. Install the double lip seal (2).
4. Install the backup washer (3).
5. Install the retaining ring using J 4245
6. Install the pitman shaft and the side cover. Refer to Pitman Shaft and Side Cover Replacement.
7. Install the dust seal (1).
8. Install the pitman arm to the steering gear.
9. Install the lock washer.
10. Install the nut.
