Check Valve Replacement

Check Valve Replacement

Disassembly Procedure

Important: Do not to damage the threads of the steering gear housing when removing the check valve.




Align the check valve (1) from the steering gear housing (2) using a small screwdriver.

Assembly Procedure

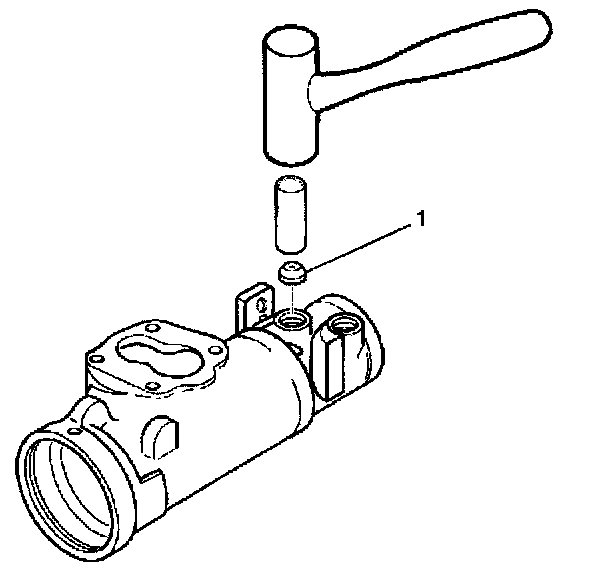

Install the check valve (1) using a318 inch diameter piece of tubing 100 mm (4 inches) long to drive into the steering gear housing (2).
