Turn Signal and Multifunction Switch Assb. (Column Shift)

Turn Signal and Multifcn Sw Assembly (Column Shift)

Disassembly Procedure

1. Remove the upper and lower shrouds. Refer to Shrouds, Shift Lever Seal Disassemble (Column Shift).

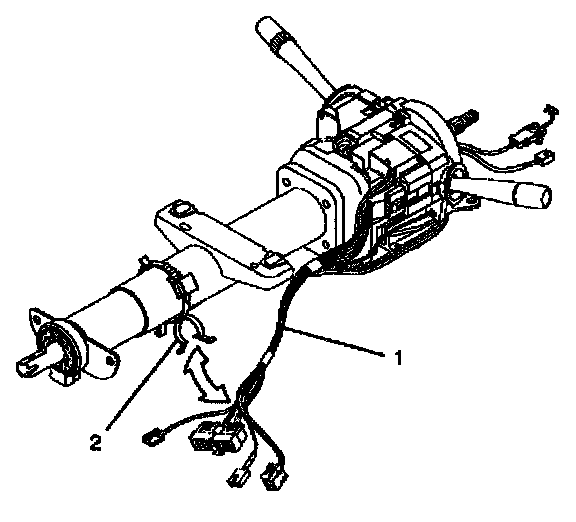

2. Remove the wire harness straps (2) from the wire harness assembly (1).
3. Disconnect the turn signal and multifunction switch assembly connector from the SRS coil assembly connector.

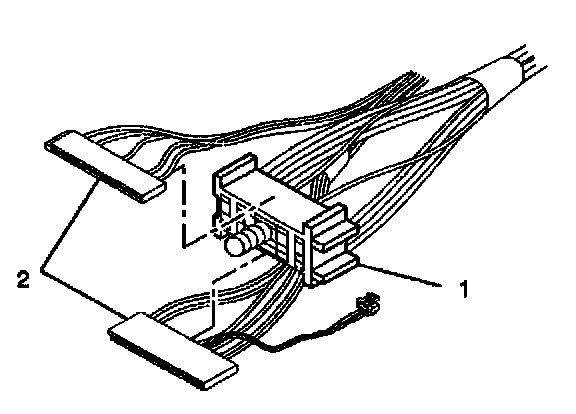

4. Slide the 2 connectors (2) of the turn signal and multifunction switch assembly out of the bulkhead connector (1).




5. Remove the 2 pan head tapping screws (1) from the turn signal and multifunction switch assembly (2).
6. Remove the turn signal and multifunction switch assembly (2)from the steering column housing assembly.

Assembly Procedure

1. Install the turn signal and multifunction switch assembly (2) onto the steering column housing assembly.




Important: Be sure that the electrical contact of the turn signal and multifunction switch assembly (2) rests on the turn signal cancel cam assembly.

2. Screw the 2 pan head tapping screws (1) into the turn signal and multifunction assembly (2).
Tighten
Tighten the 2 pan head tapping screws to 7 N.m (62 lb in).




3. Slide the 2 connectors (2) of the turn signal and multifunction switch assembly into the bulkhead connector (1).




4. Reconnect the turn signal and multifunction switch assembly connector to the SRS coil assembly connector.
5. Attach the wire harness assembly (1) to the steering column with new wire harness straps (2).
6. Install the upper and lower shrouds.
