Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Starting and Charging >> Testing and Inspection

Starting and Charging: Testing and Inspection

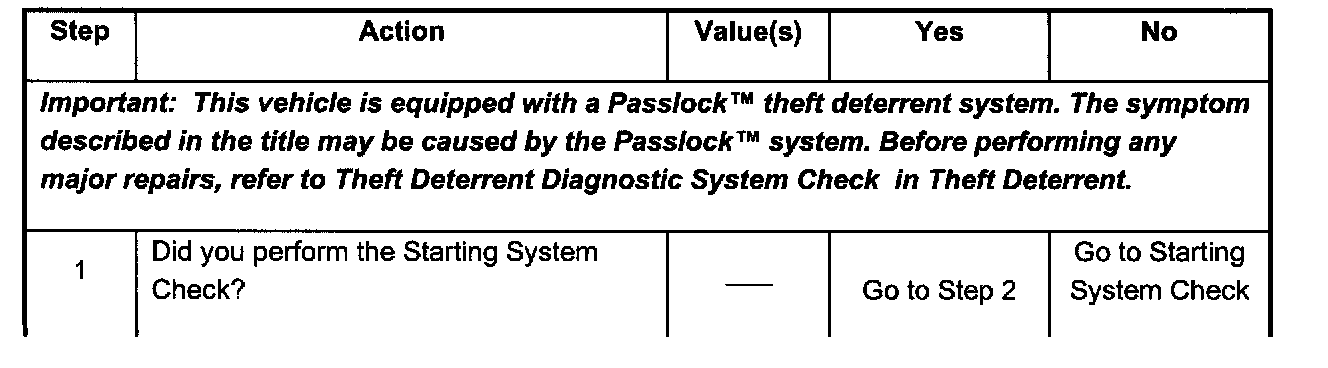

Step 1:

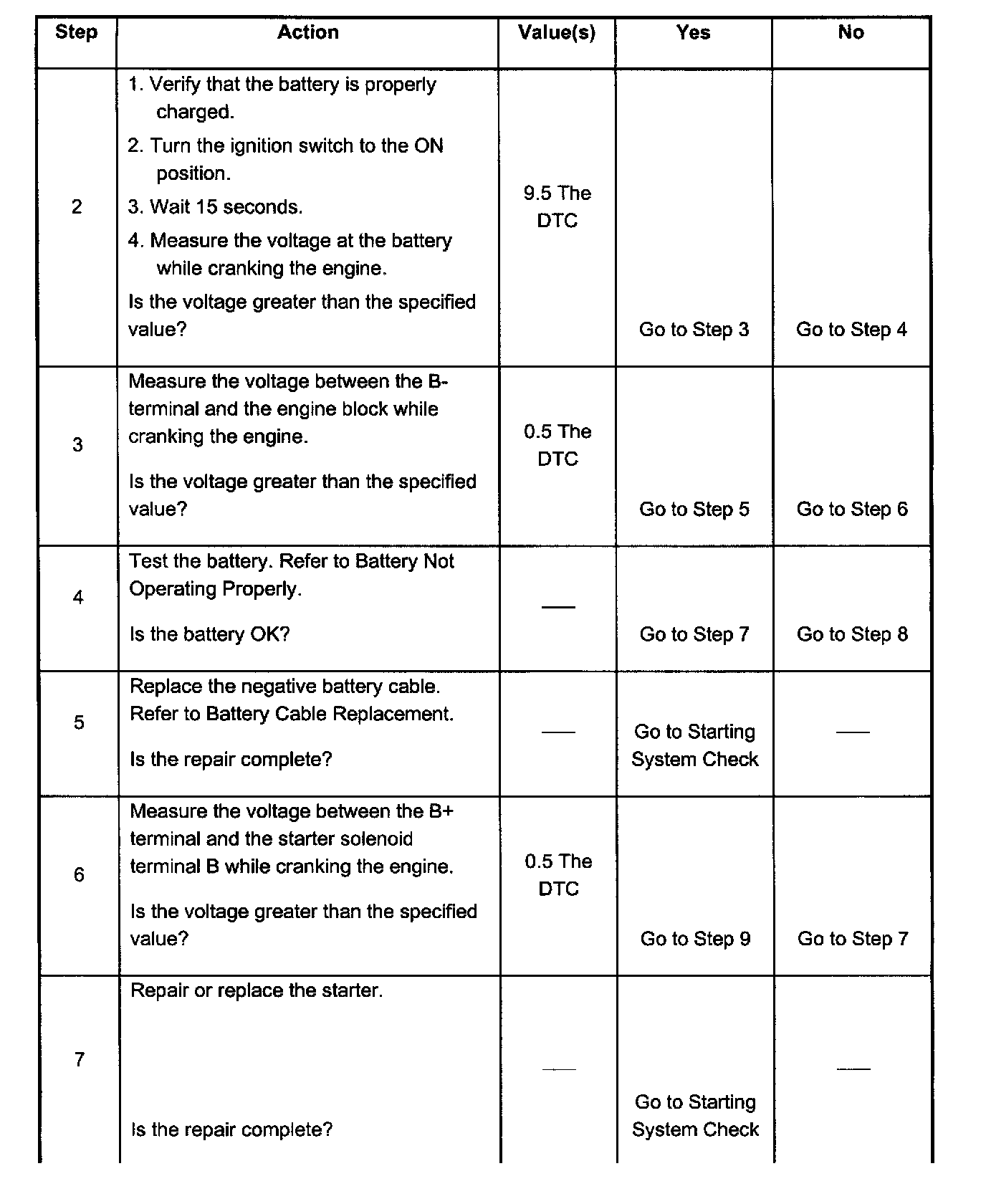

Steps 2 - 7:

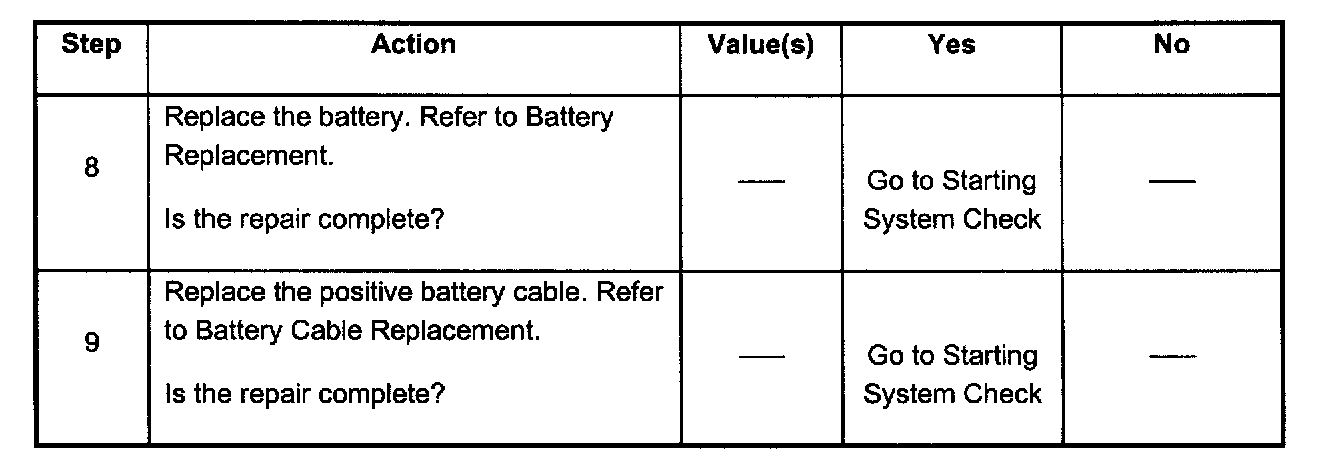

Steps 8 - 9:
