Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Starter Solenoid Does Not Click

Starter Solenoid Does Not Click

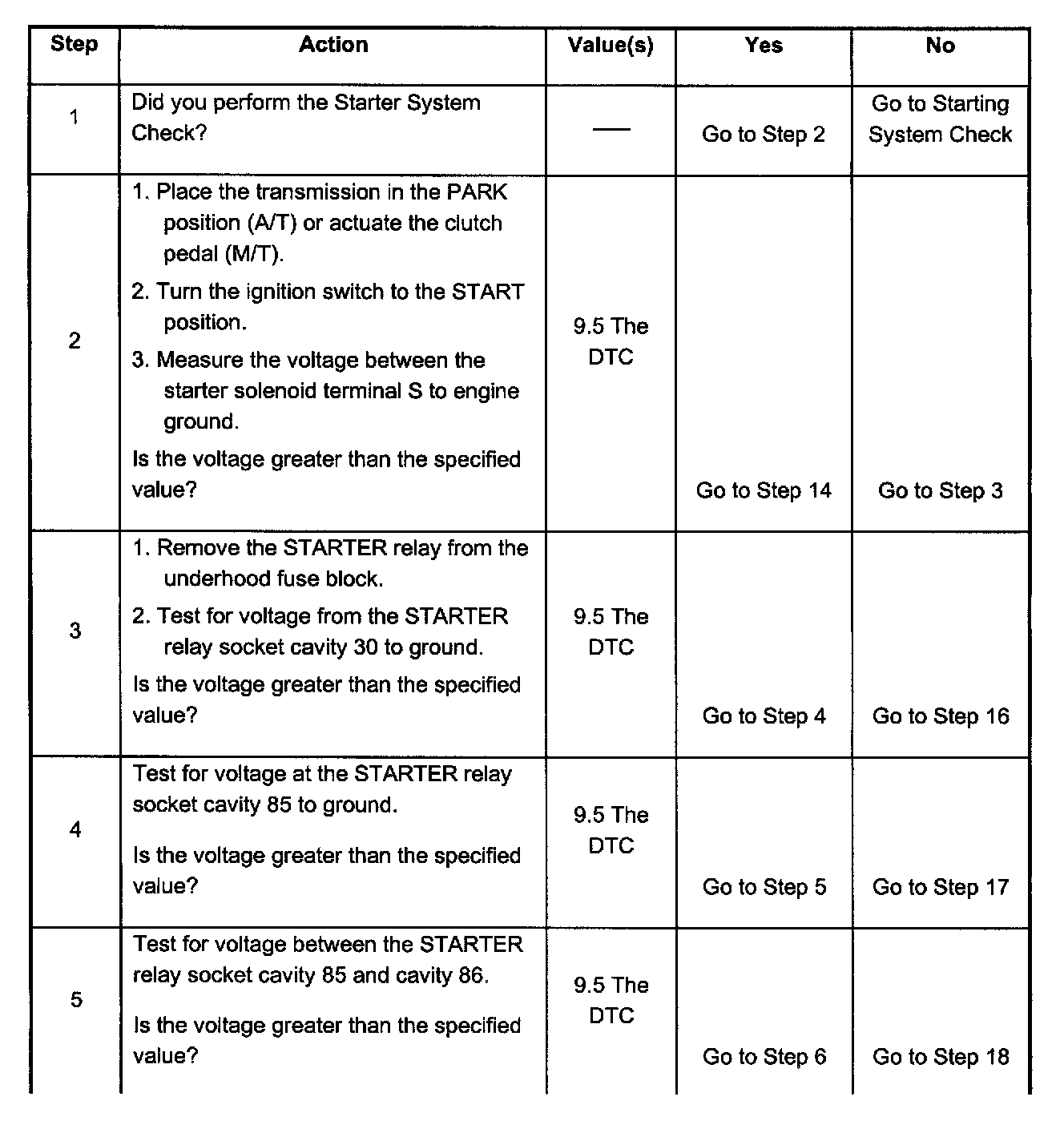

Steps 1 - 5:

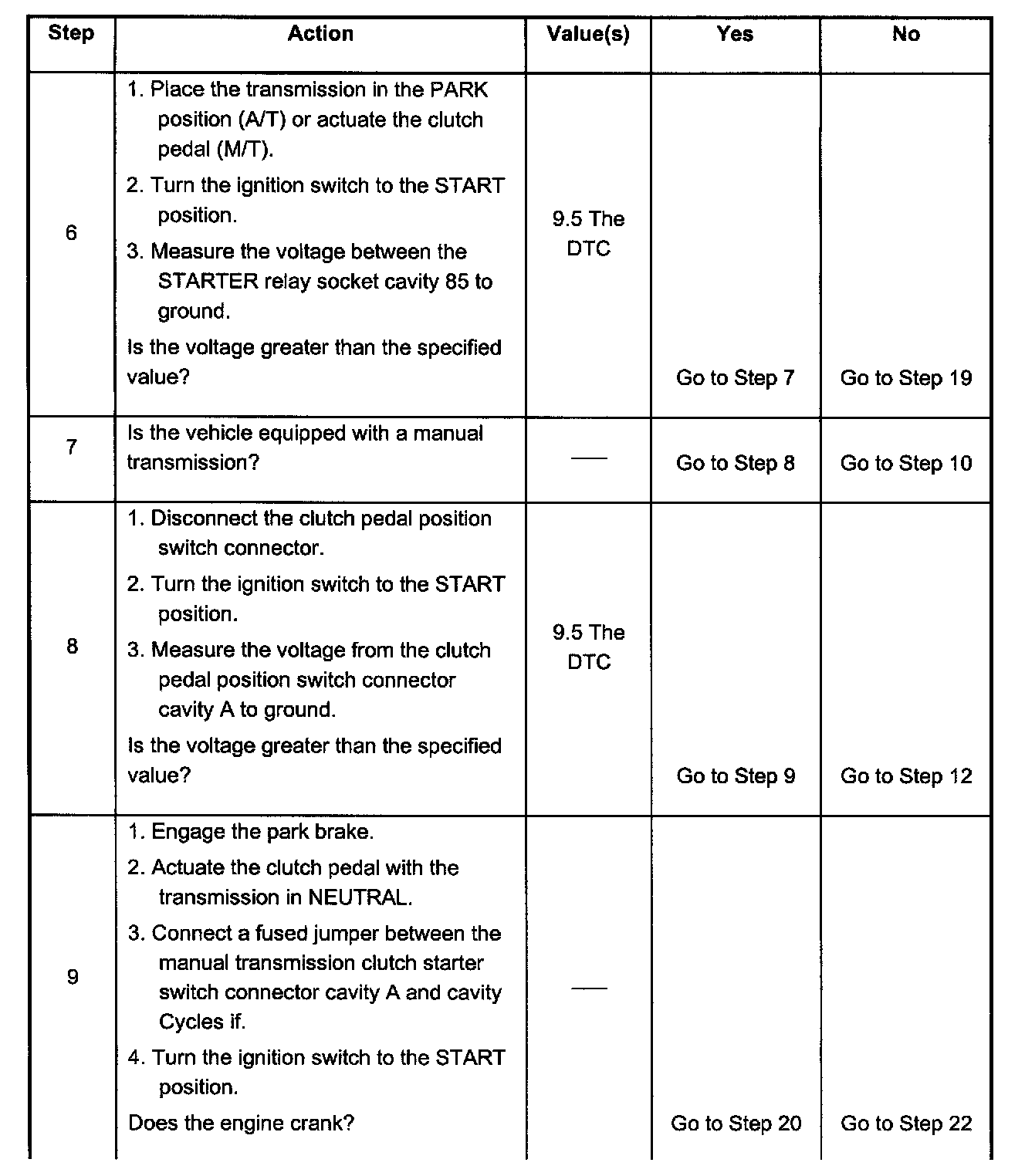

Steps 6 - 9:

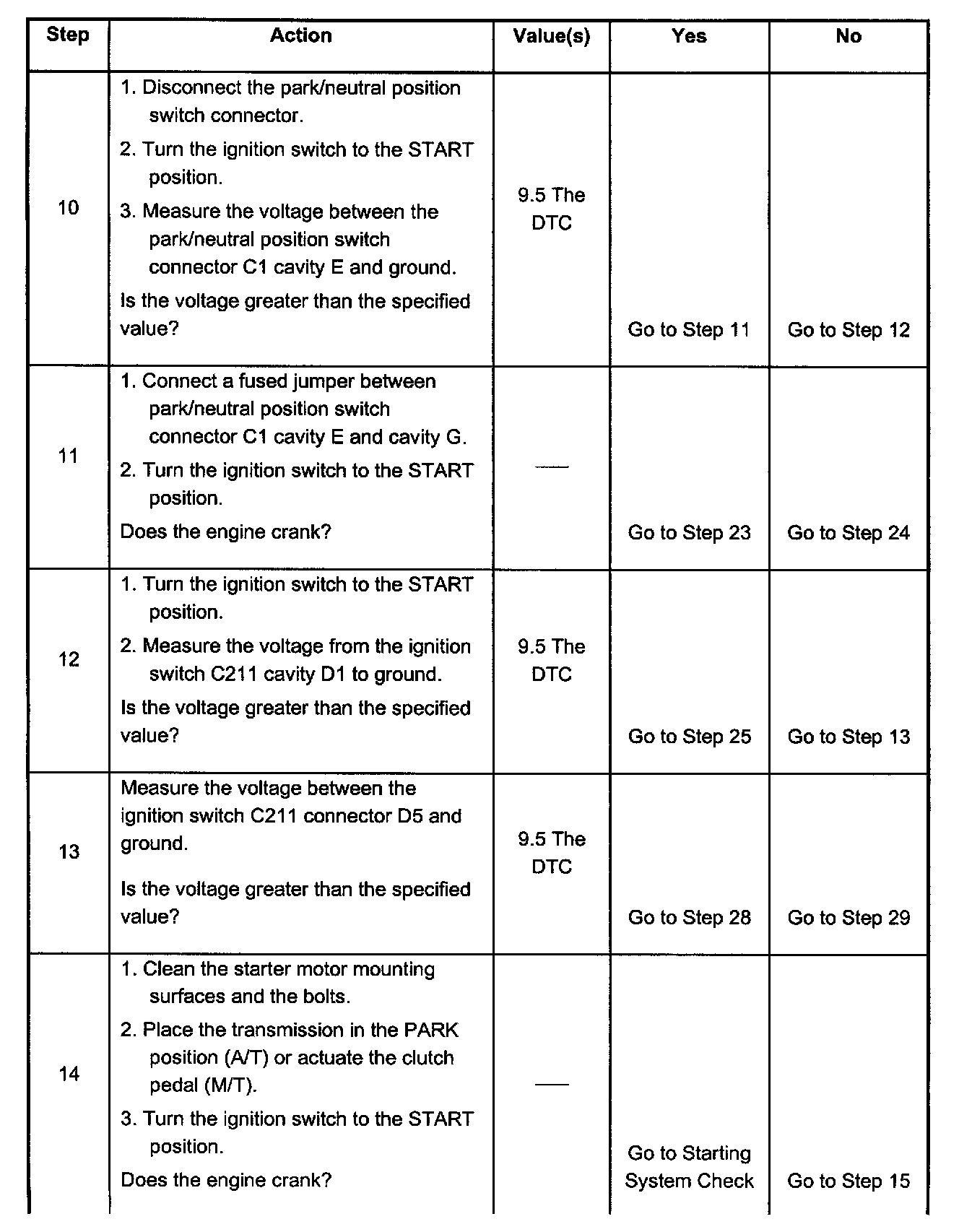

Steps 10 - 14:

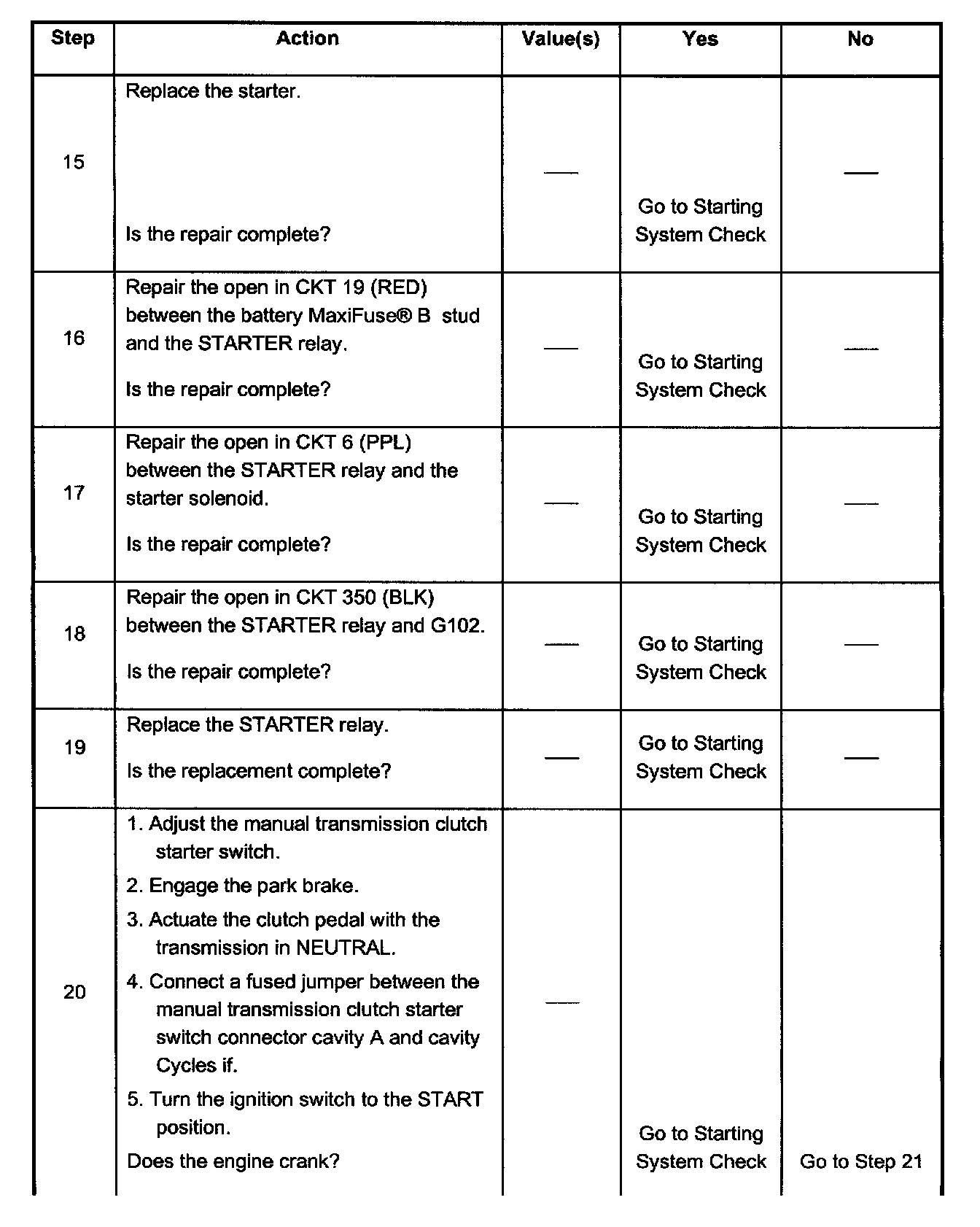

Steps 15 - 20:

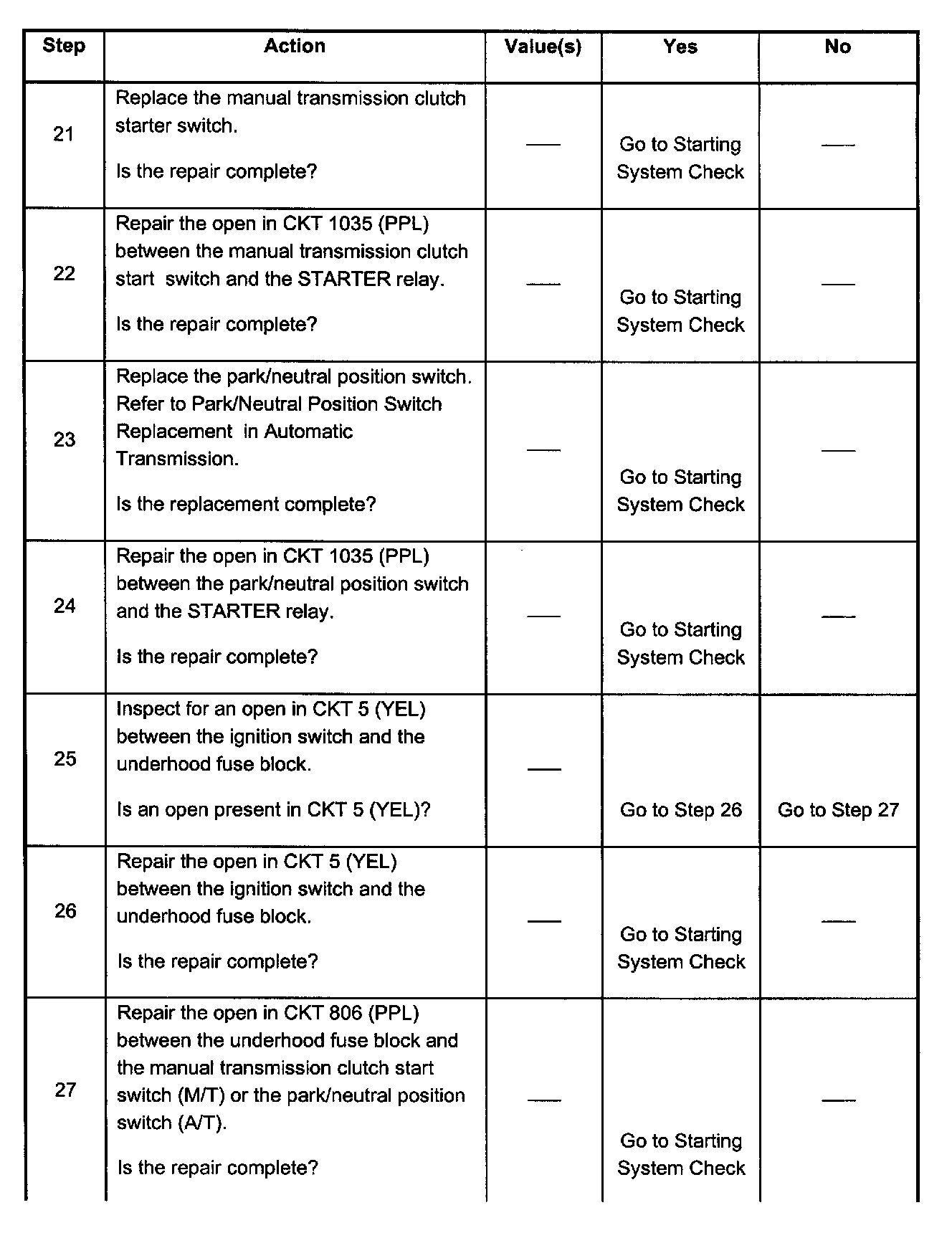

Steps 21 - 27:

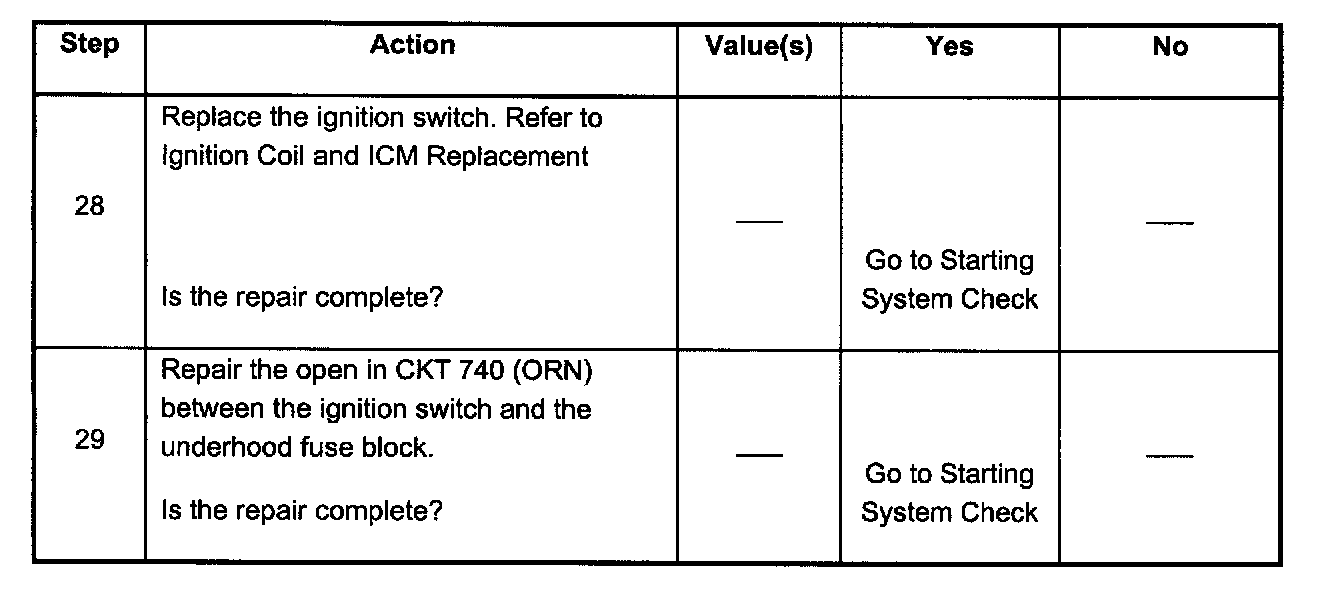

Steps 28 - 29:
