Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Starter Motor Noise Diagnosis

Starter Motor Noise Diagnosis

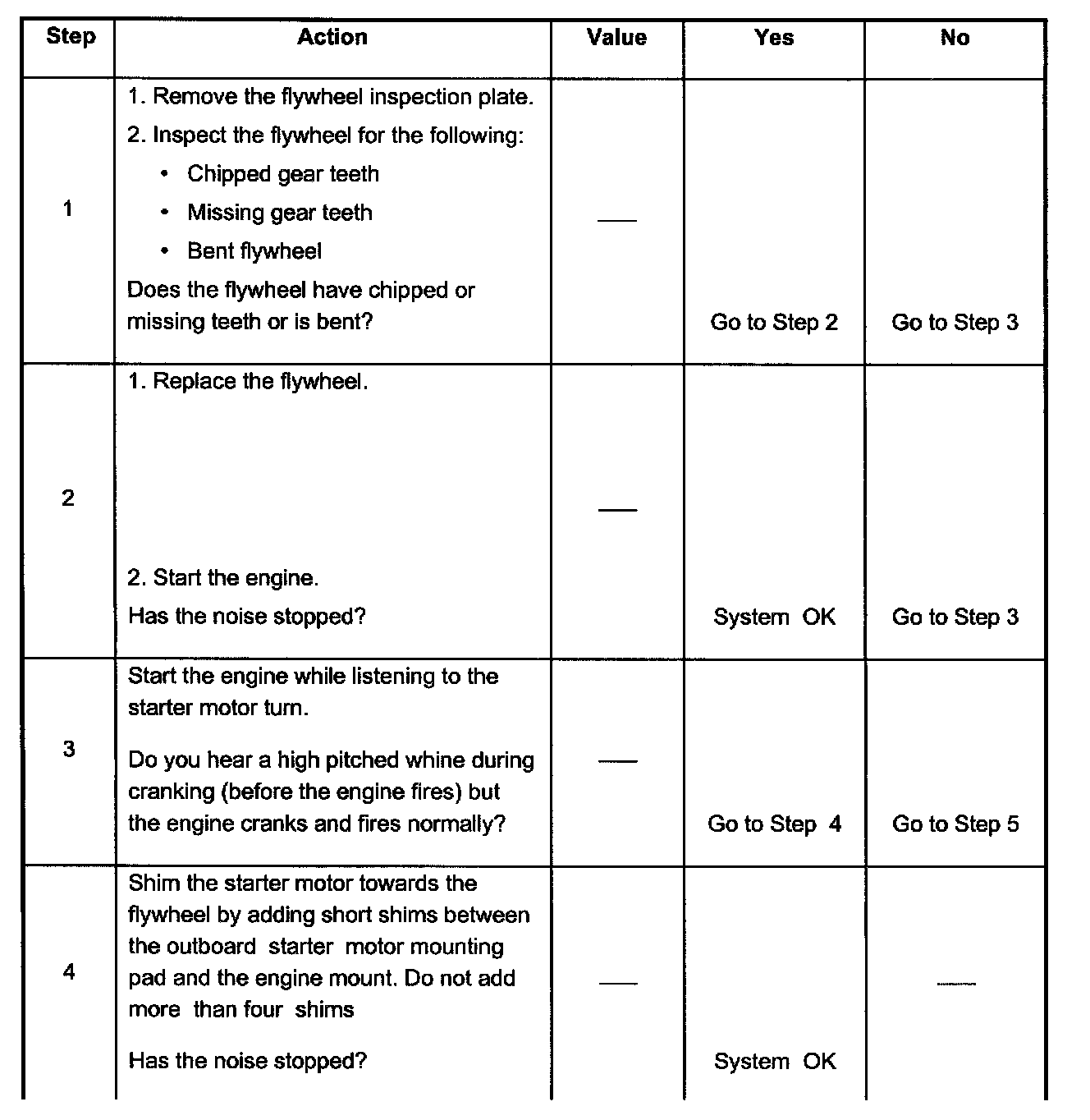

Steps 1 - 4:

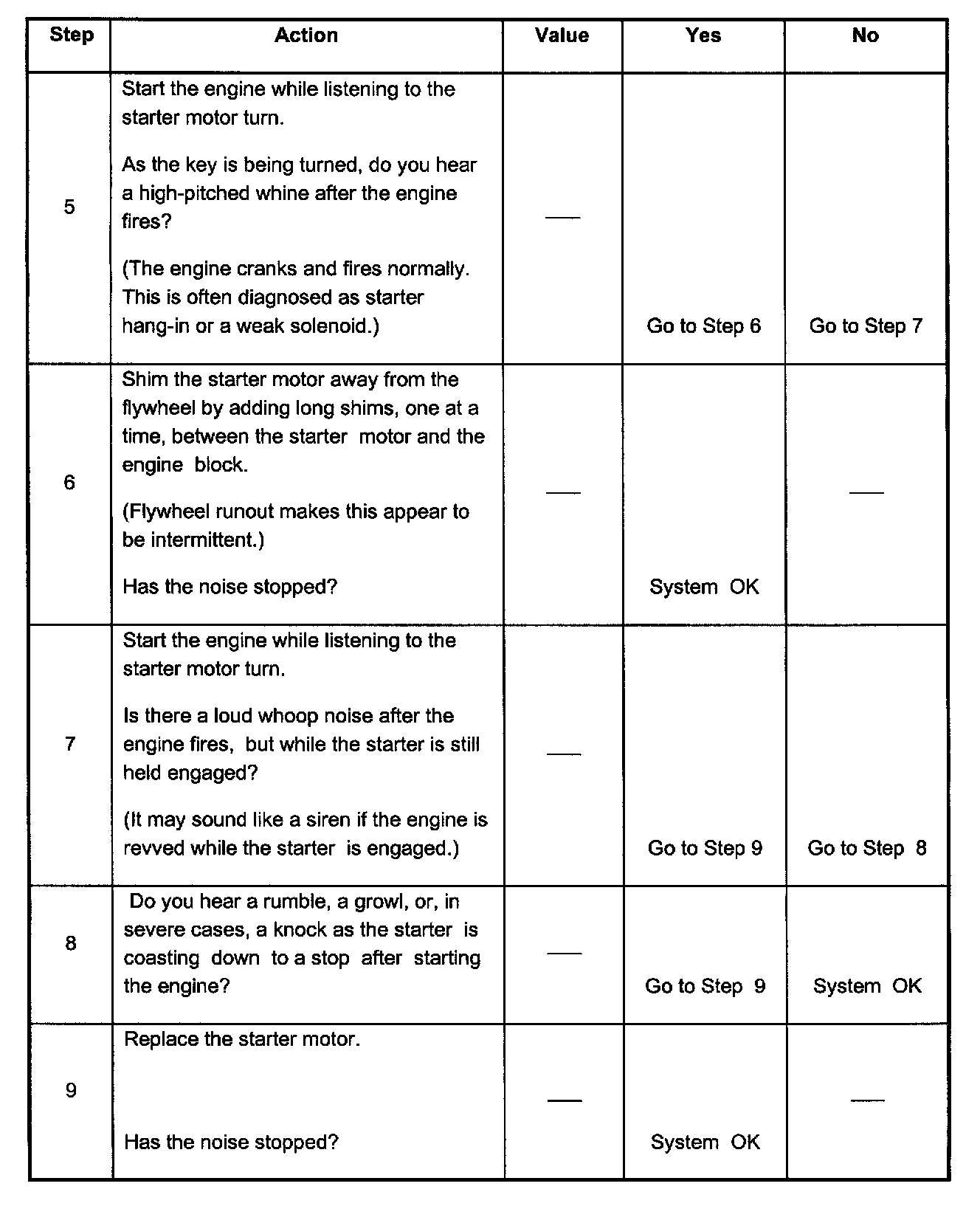

Steps 5 - 9:
