Fuse Block: Application and ID

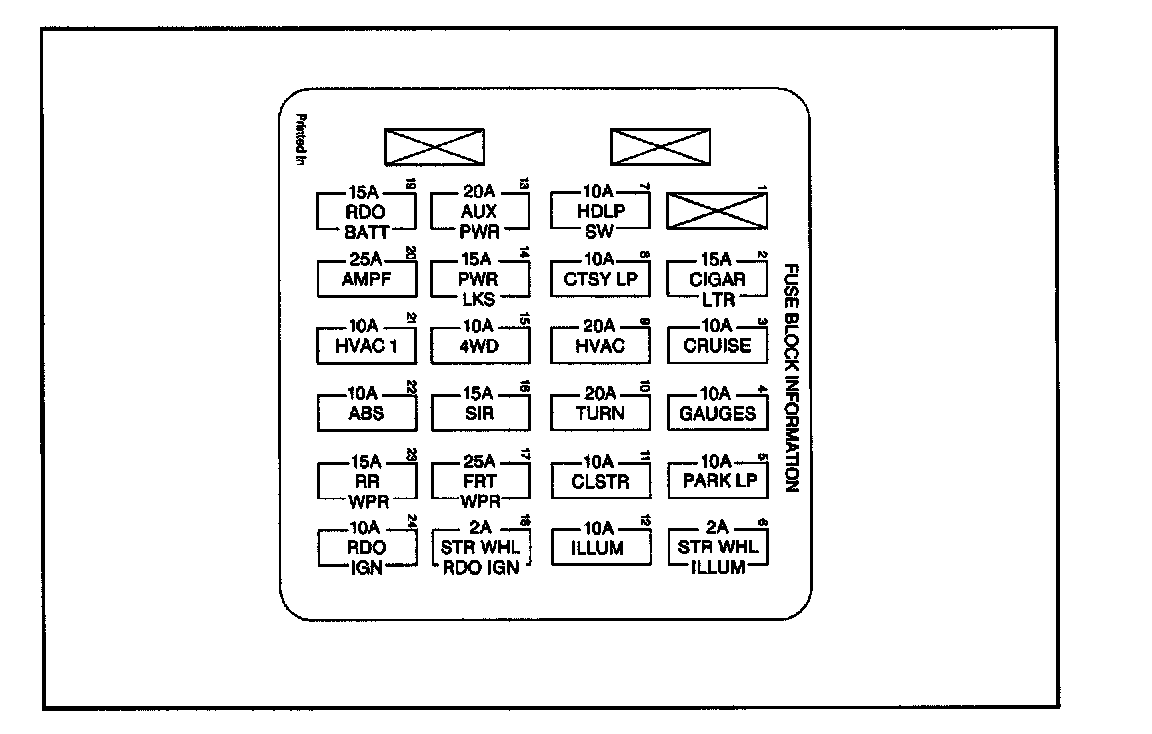

Instrument Panel Fuse Block (Label):

Underhood Fuse Block (Label):

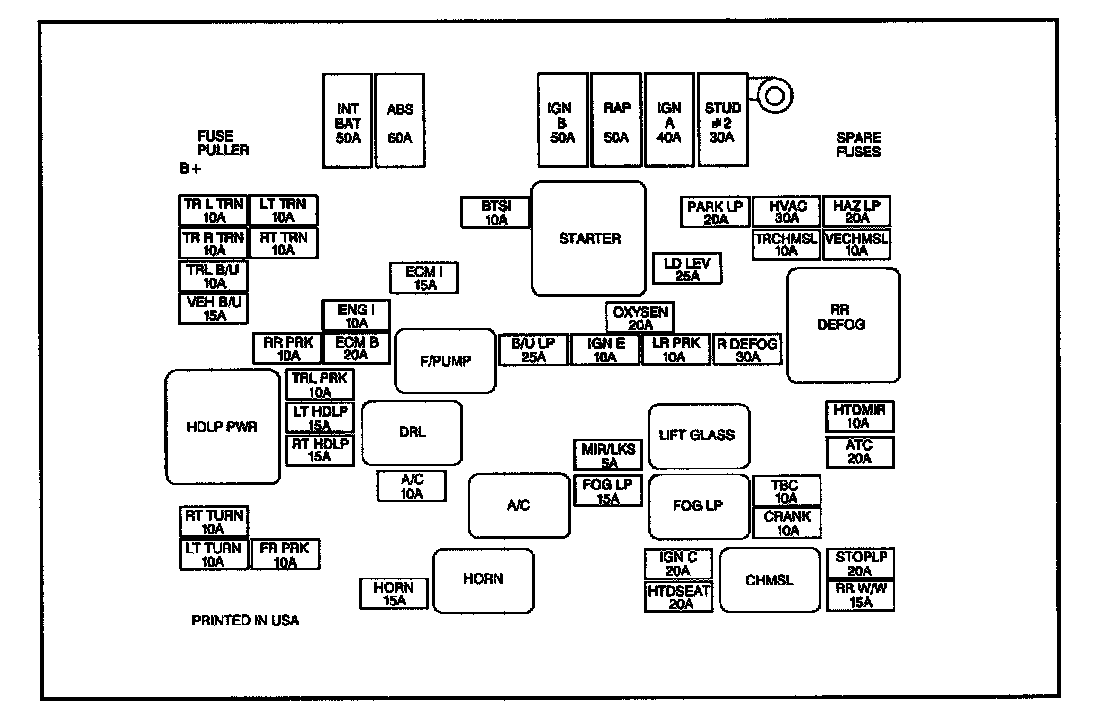

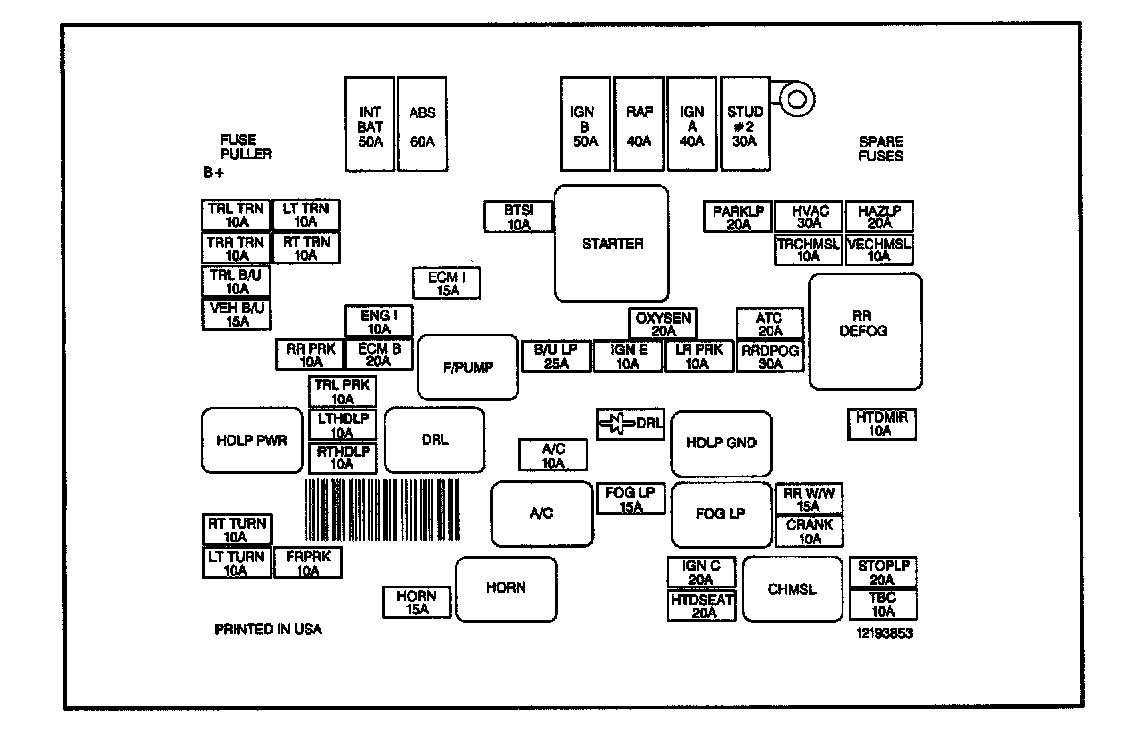

Underhood Fuse Block Detail:

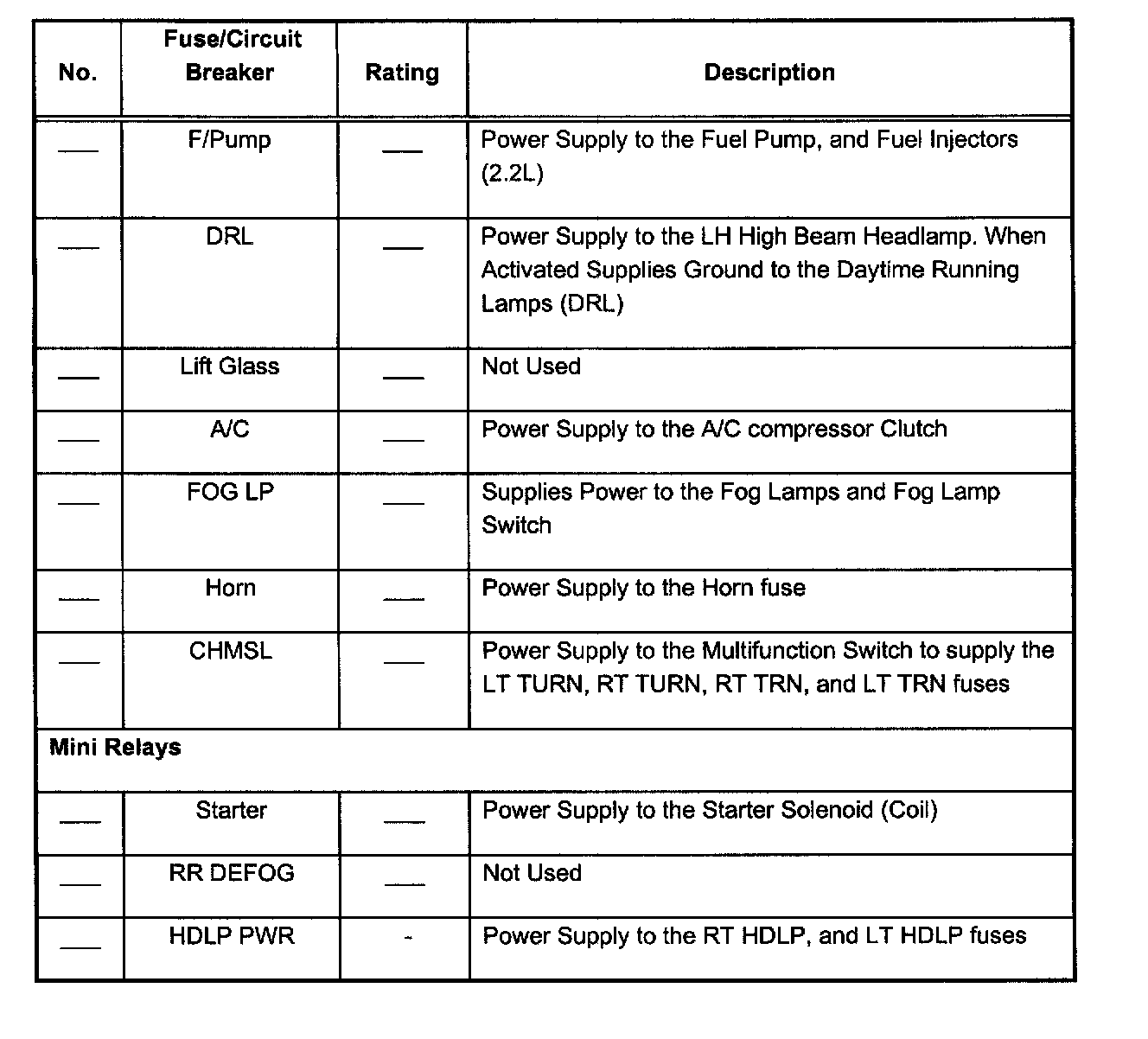

Underhood Fuse Block: Part 1 Of 3:

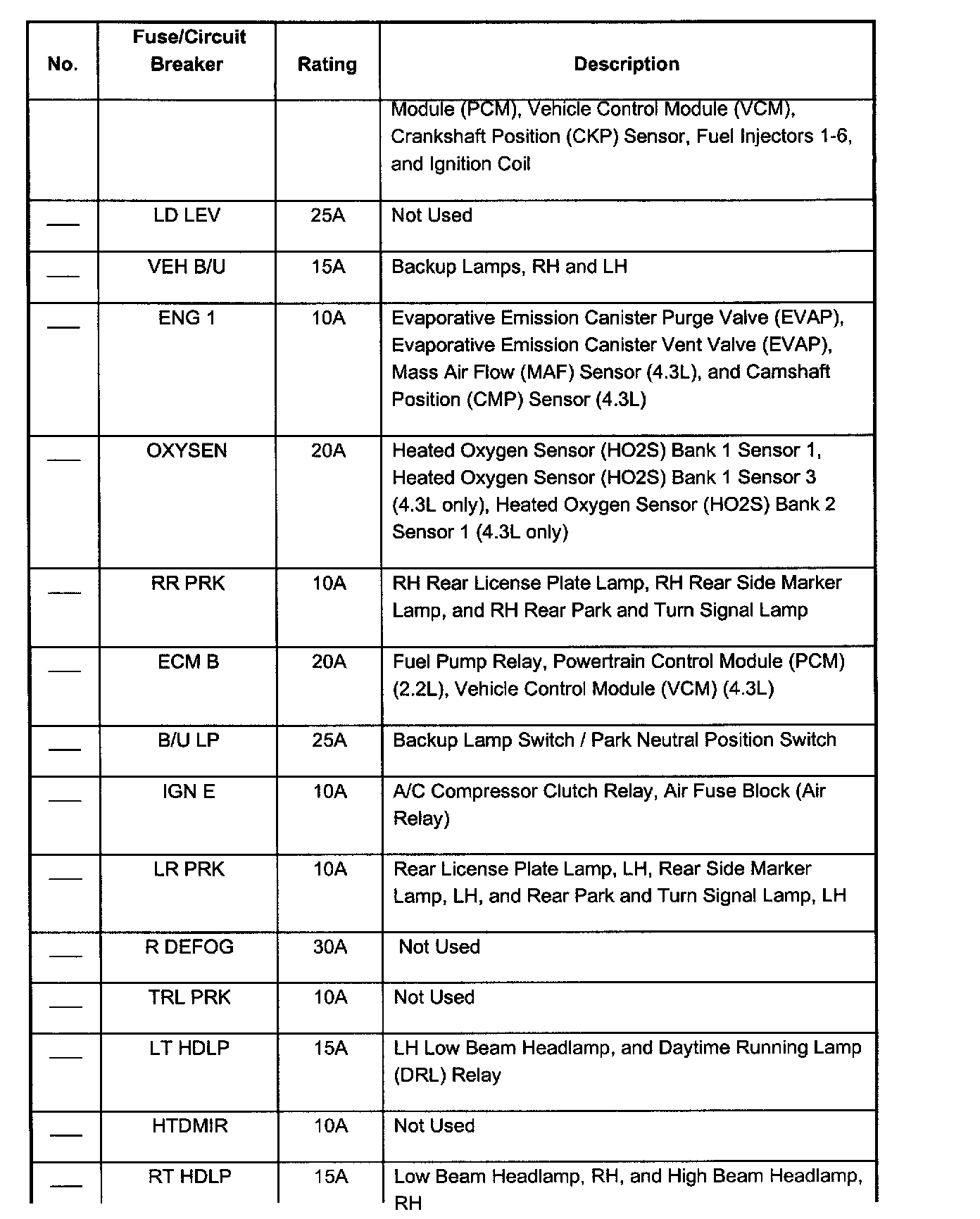

Underhood Fuse Block: Part 2 Of 3:

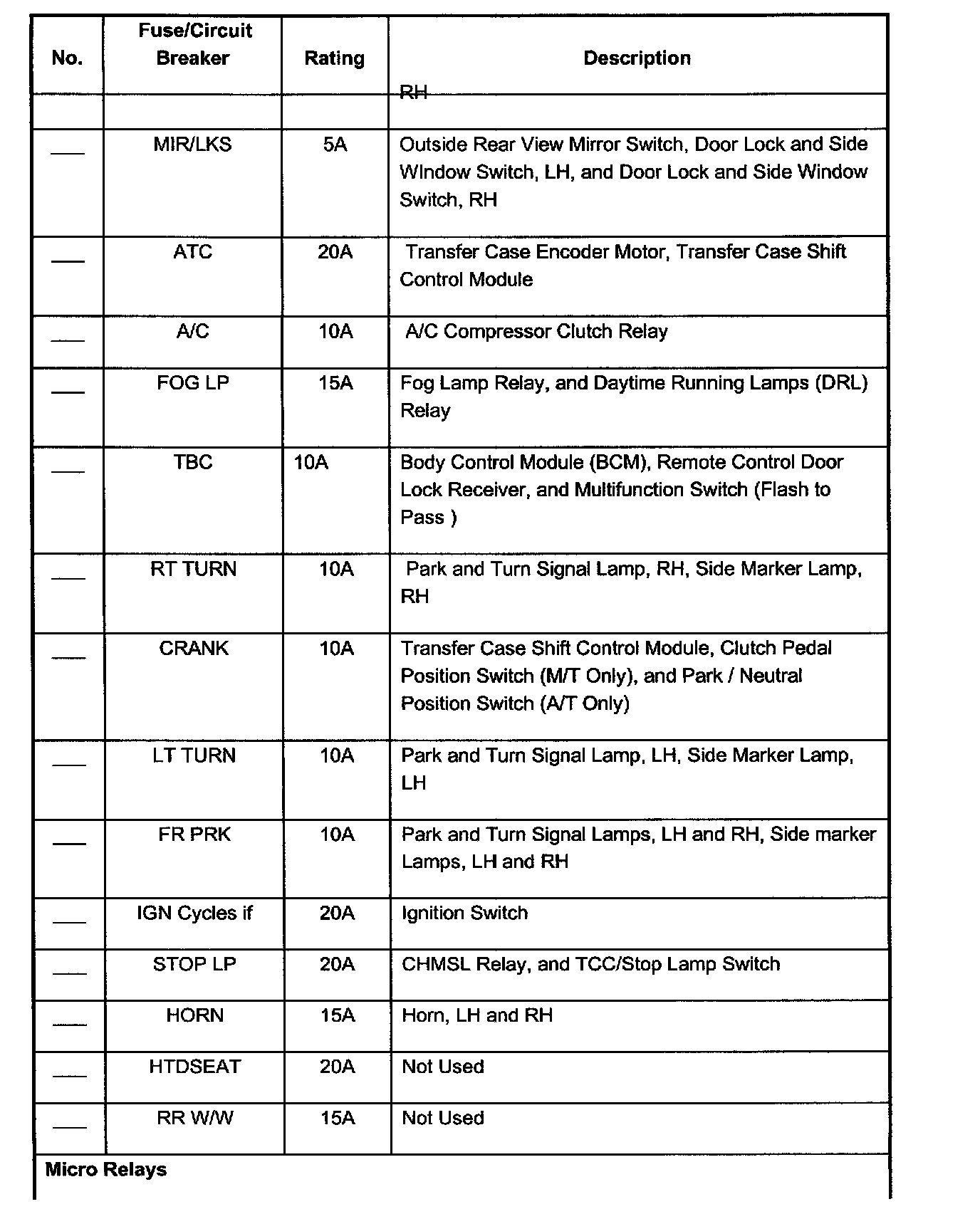

Underhood Fuse Block: Part 3 Of 3:

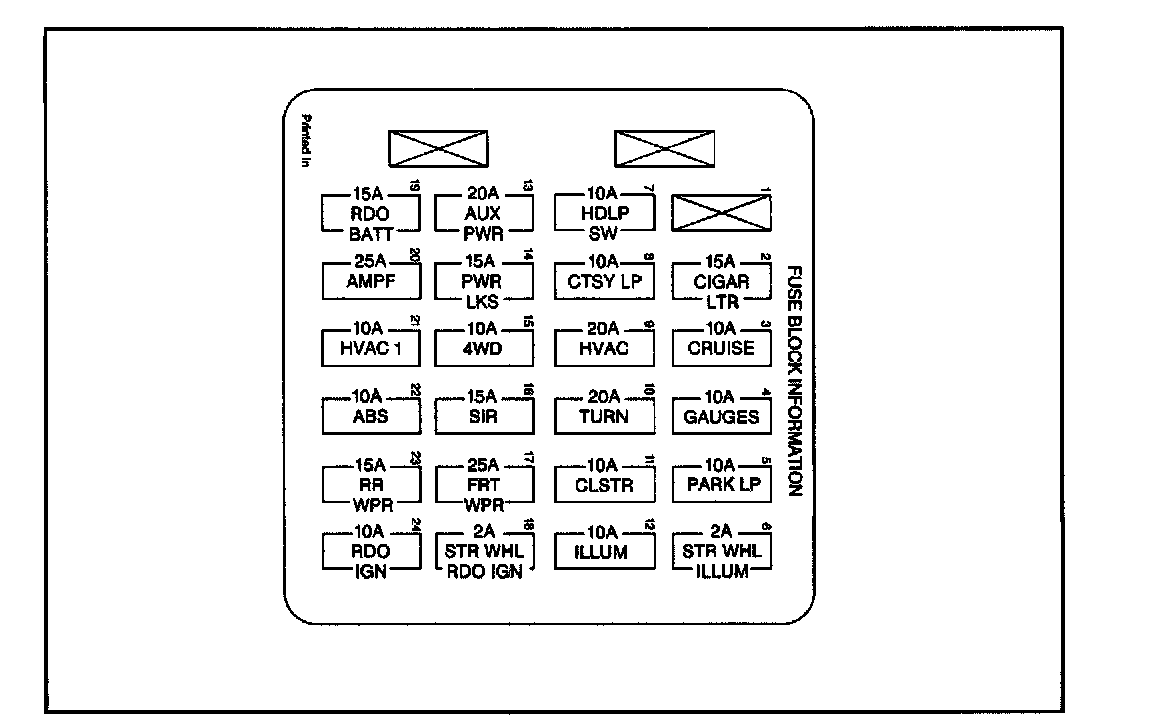

IP Fuse Block Detail:

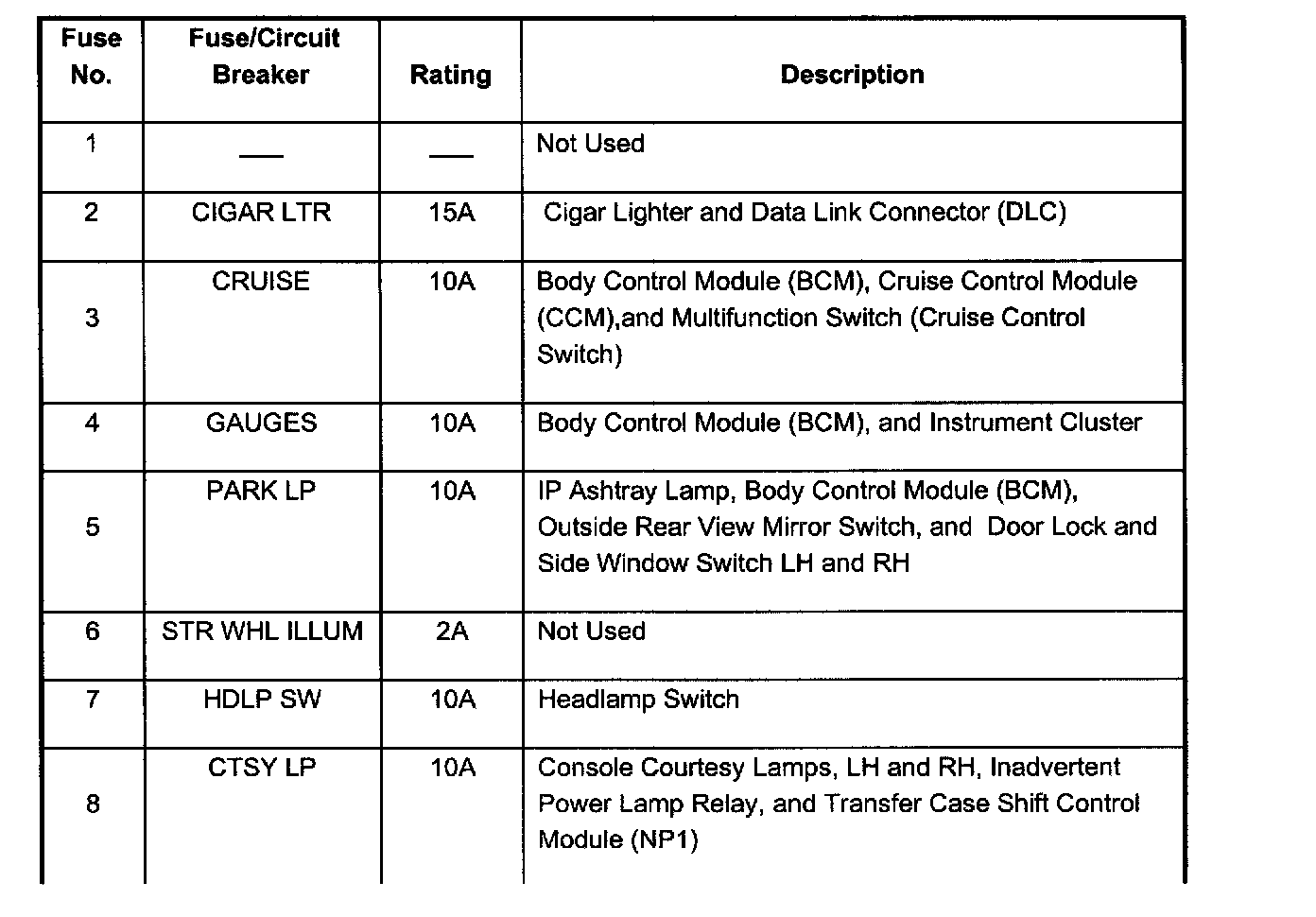

IP Fuse Block: Fuse No. 1 - 8:

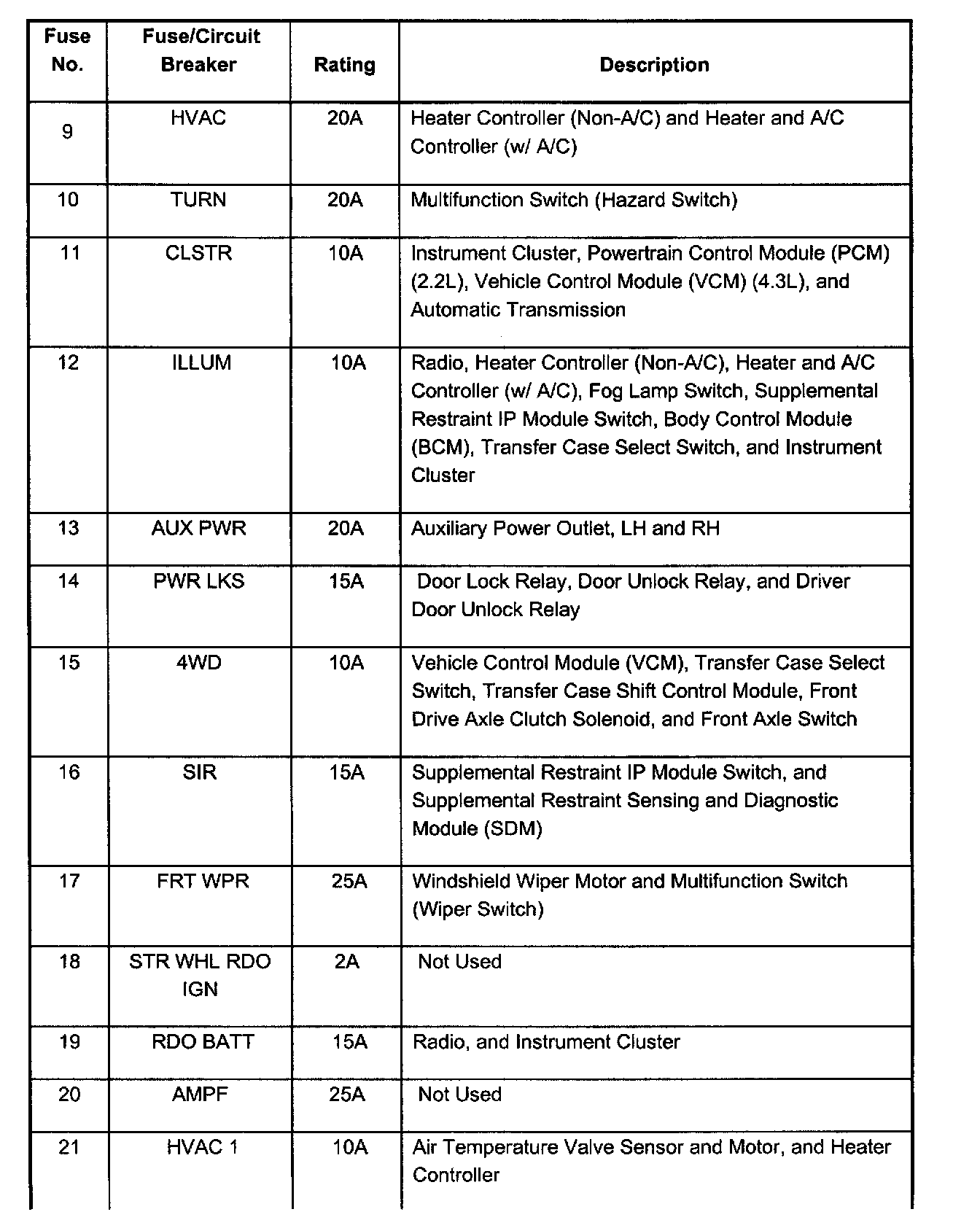

IP Fuse Block: Fuse No. 9 - 21:

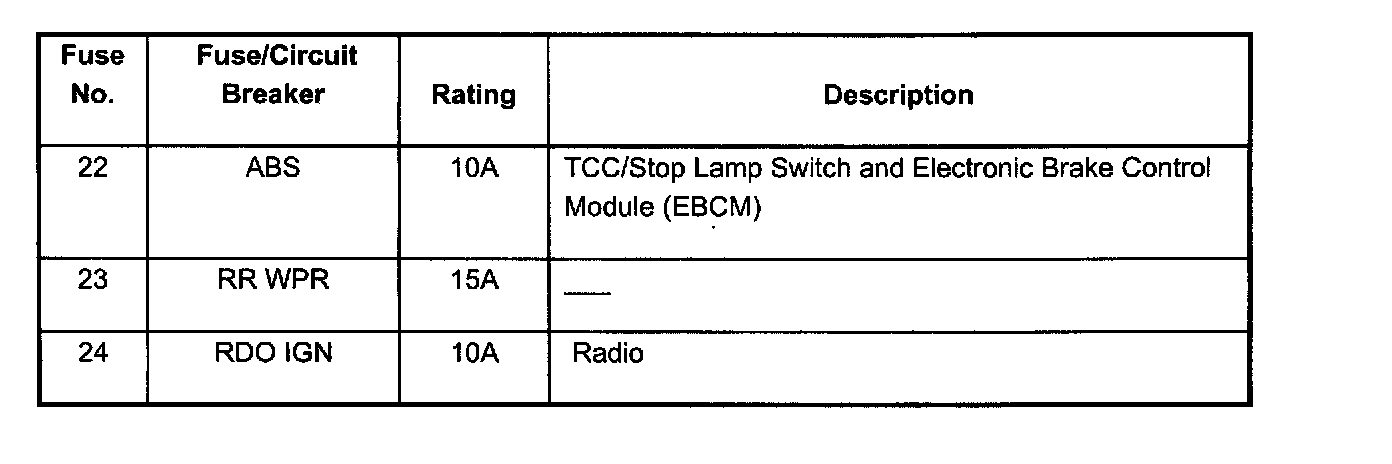

IP Fuse Block: Fuse No. 22 - 24:

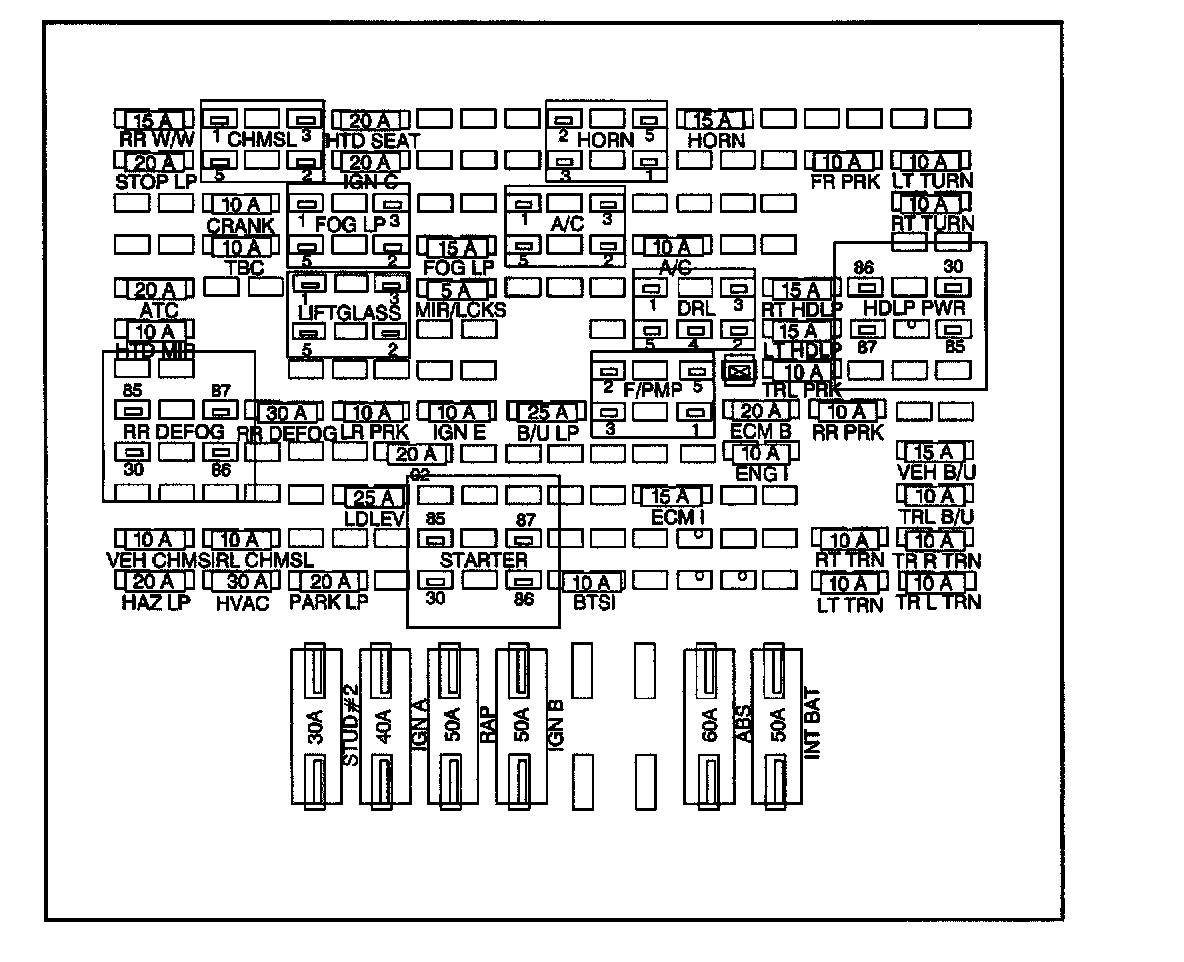

Underhood Fuse Block:

Body Relay Block:

Underhood Fuse Block Connector Locations:
