Generator Not Operating Properly

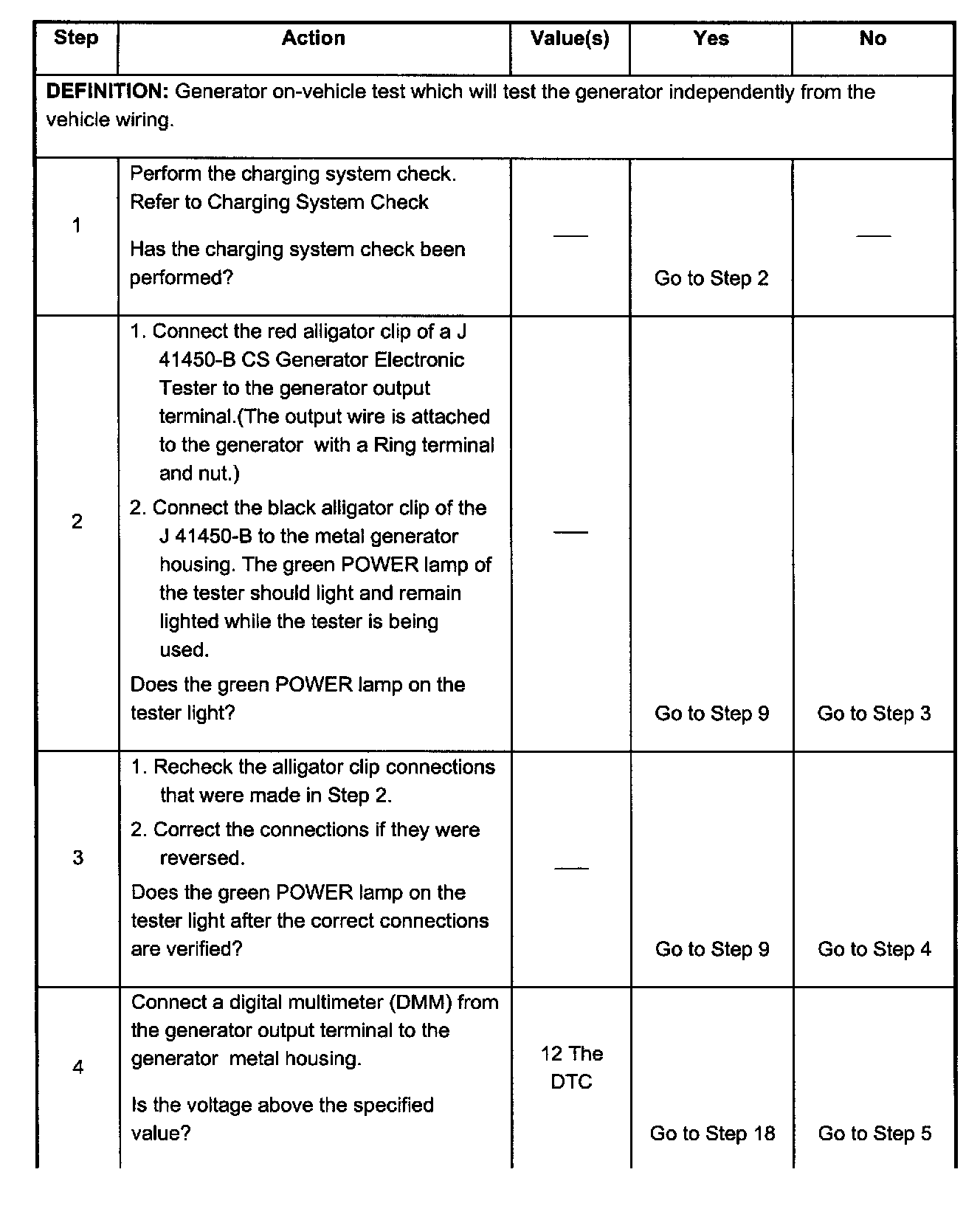

Steps 1 - 4:

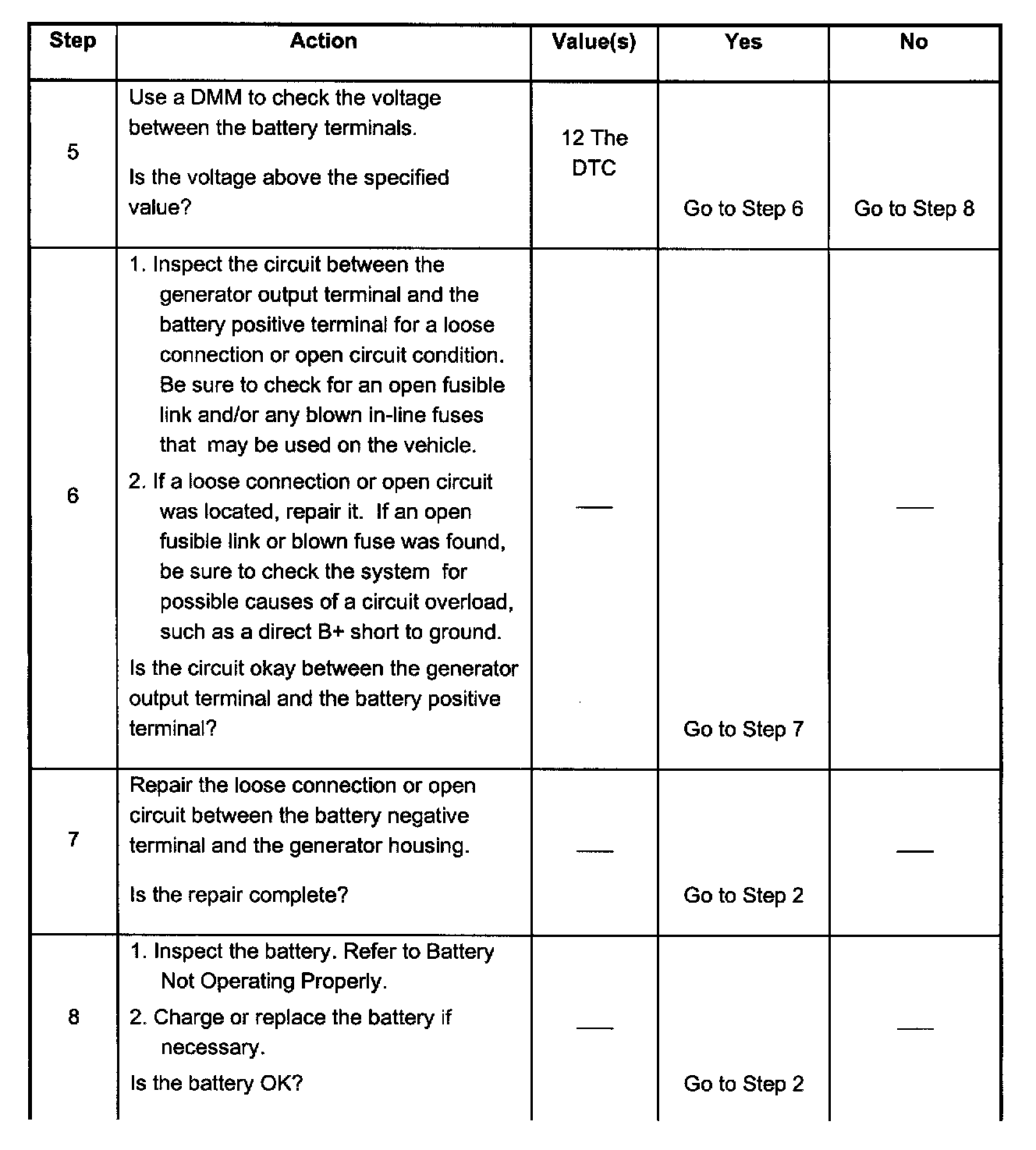

Steps 5 - 8:

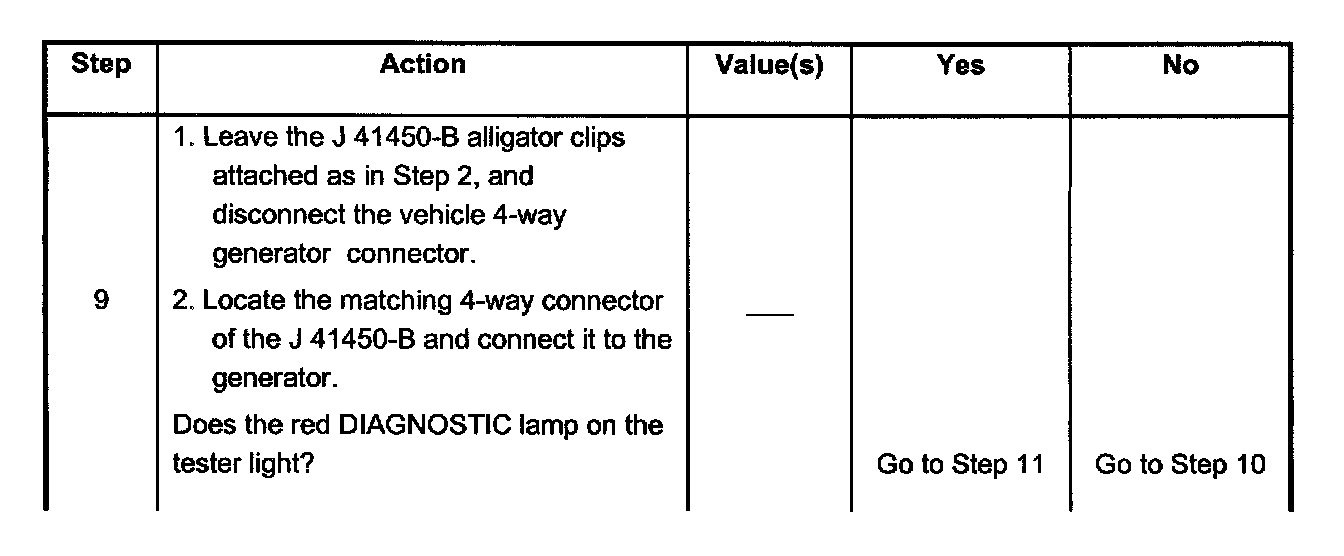

Step 9:

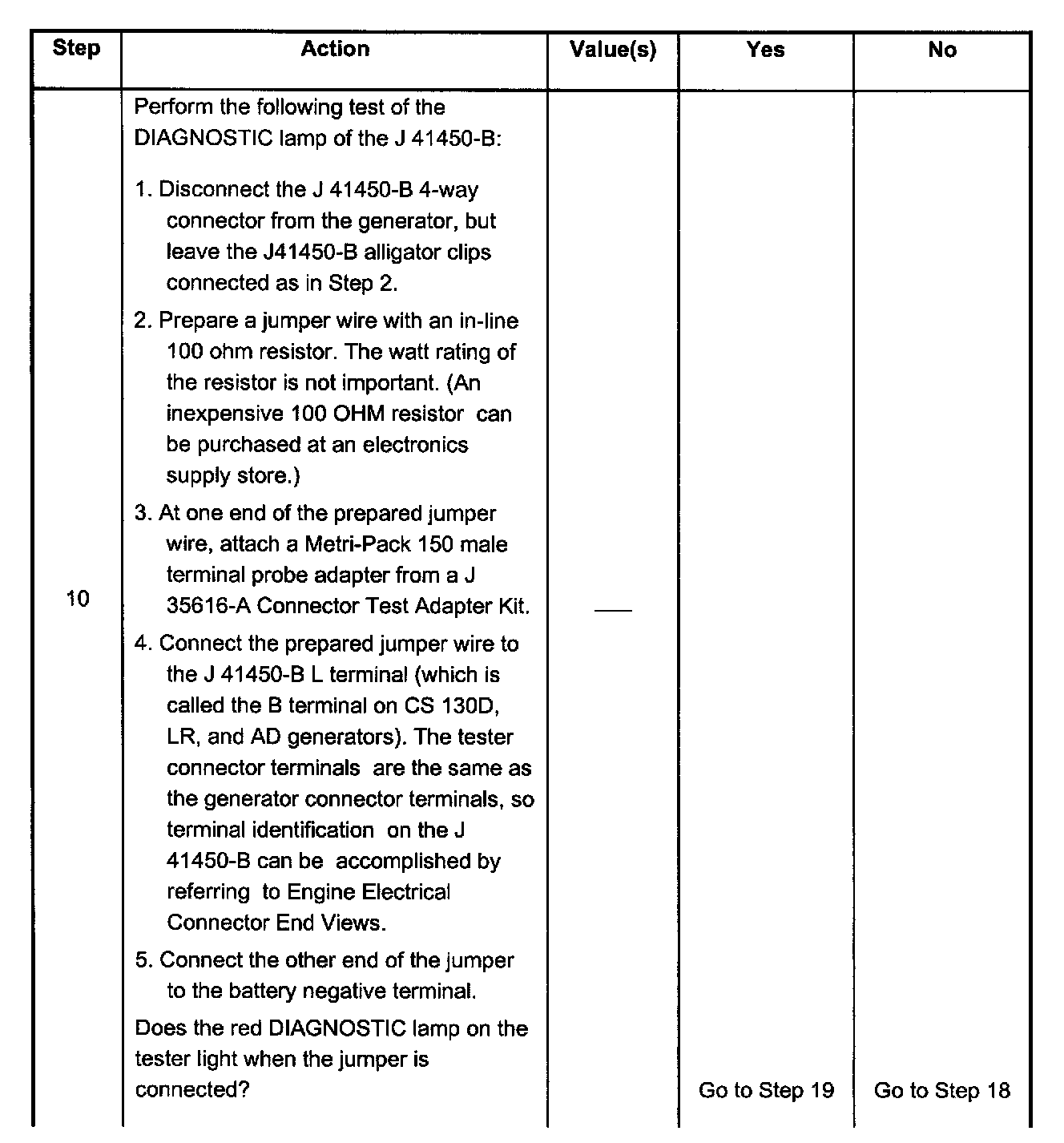

Step 10:

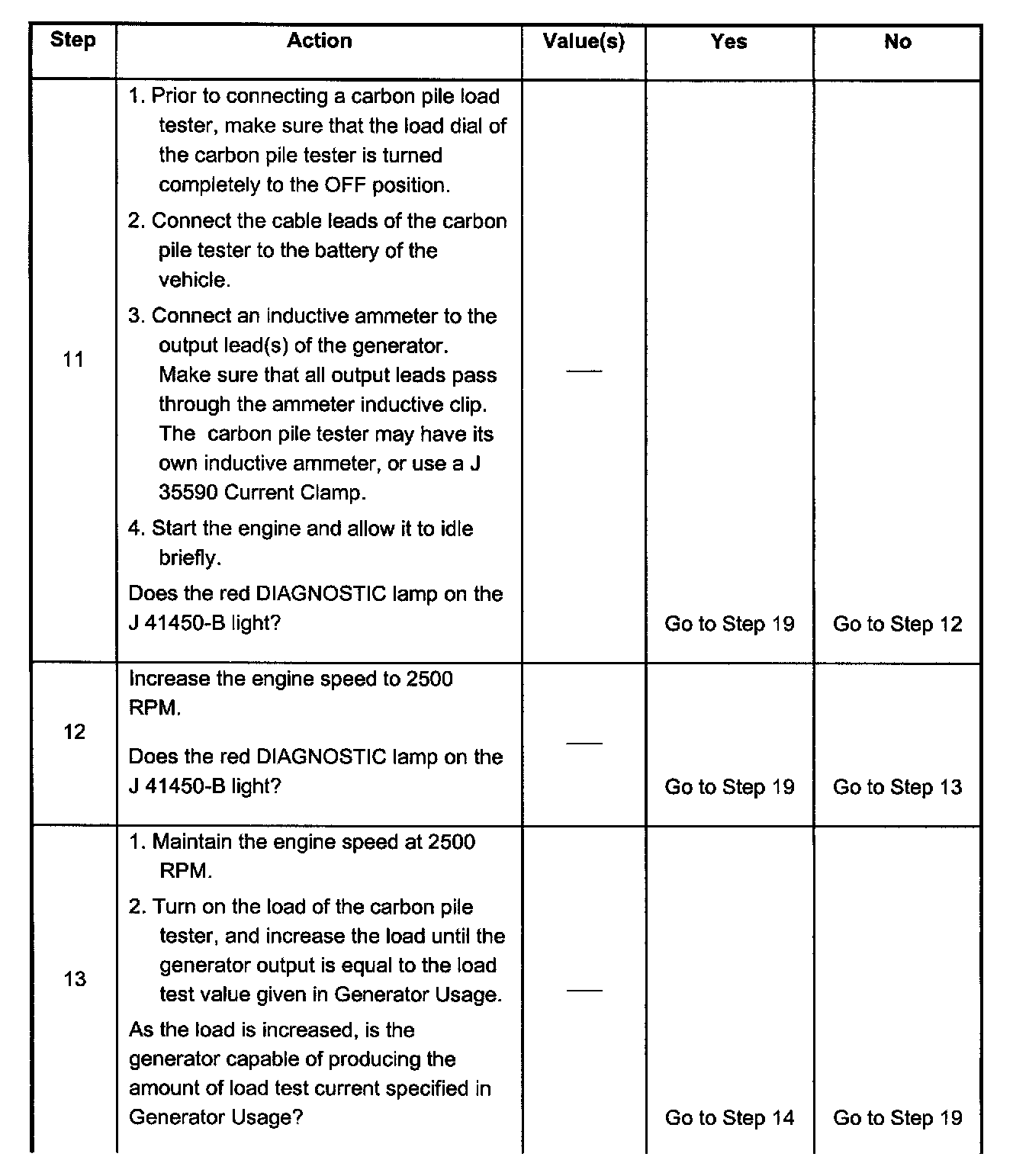

Steps 11 - 13:

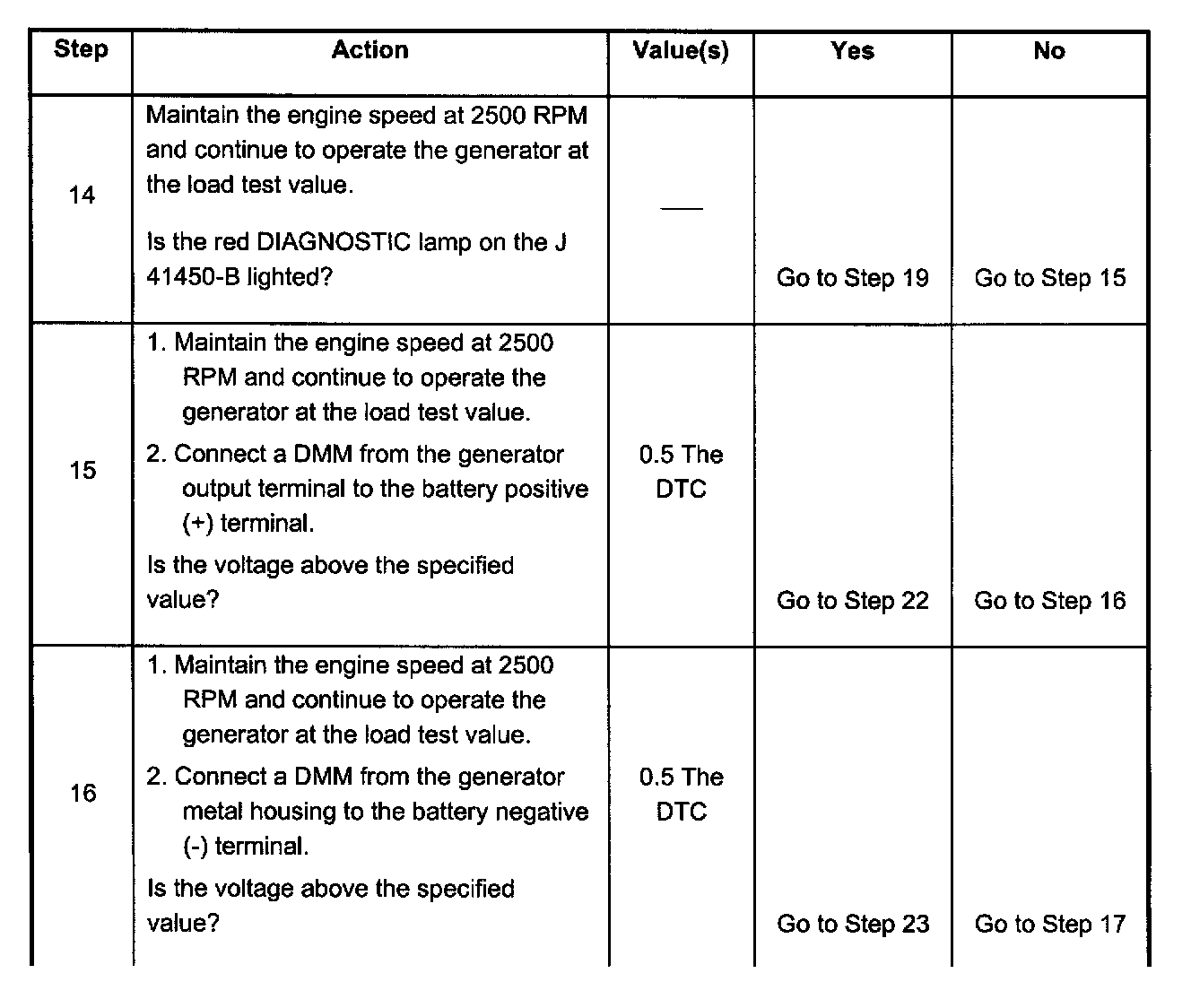

Steps 14 - 16:

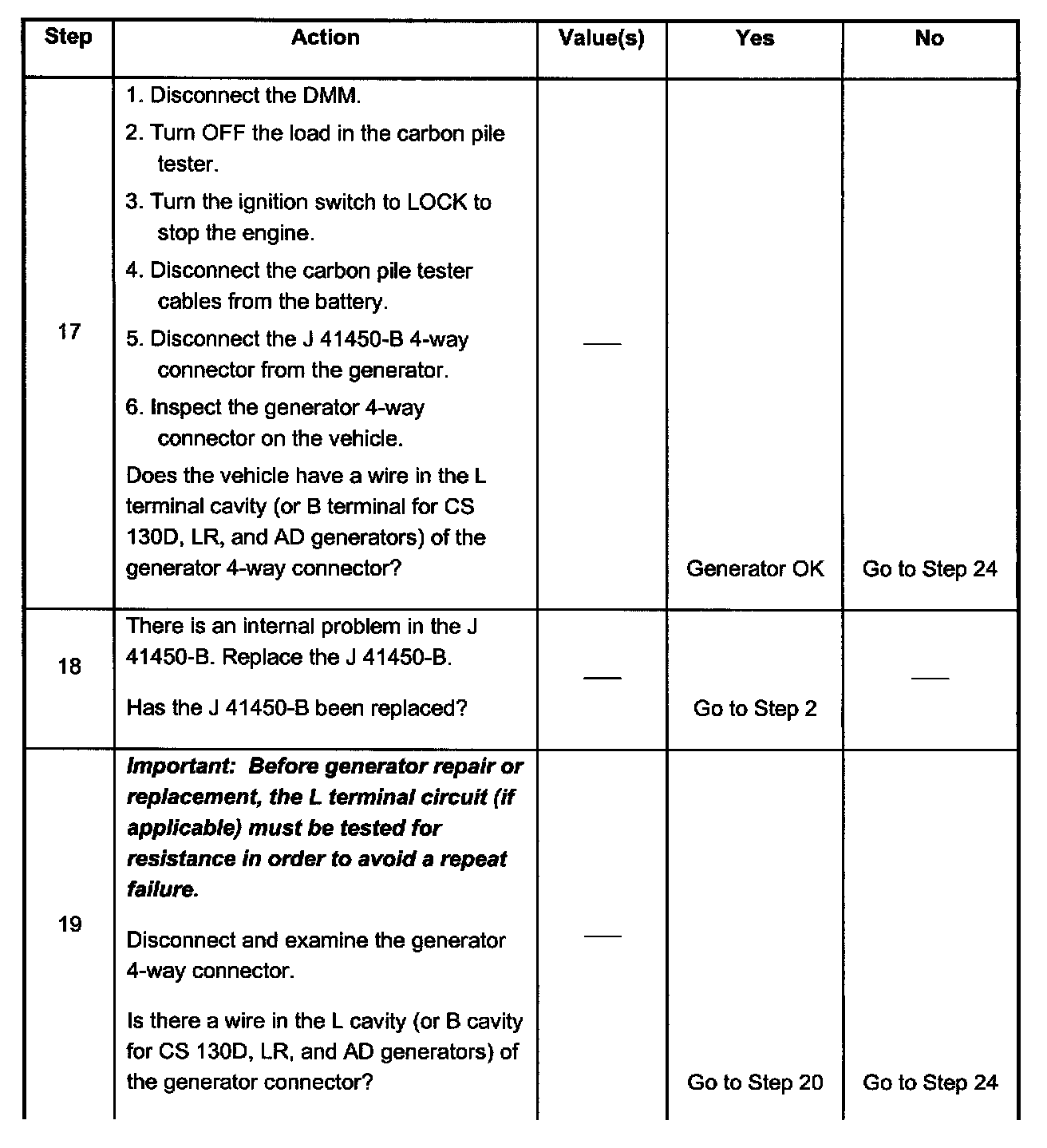

Steps 17 - 19:

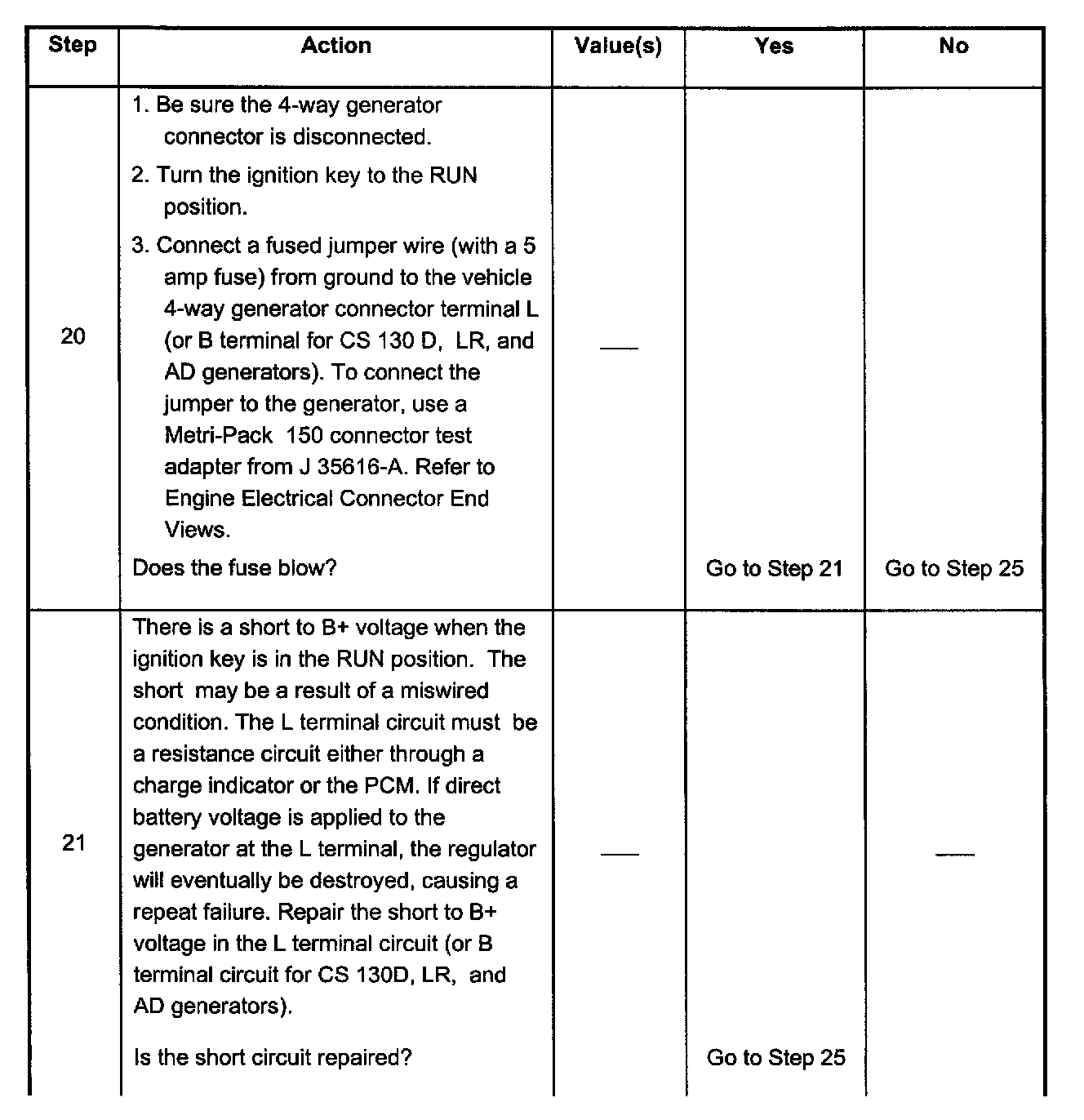

Steps 20 - 21:

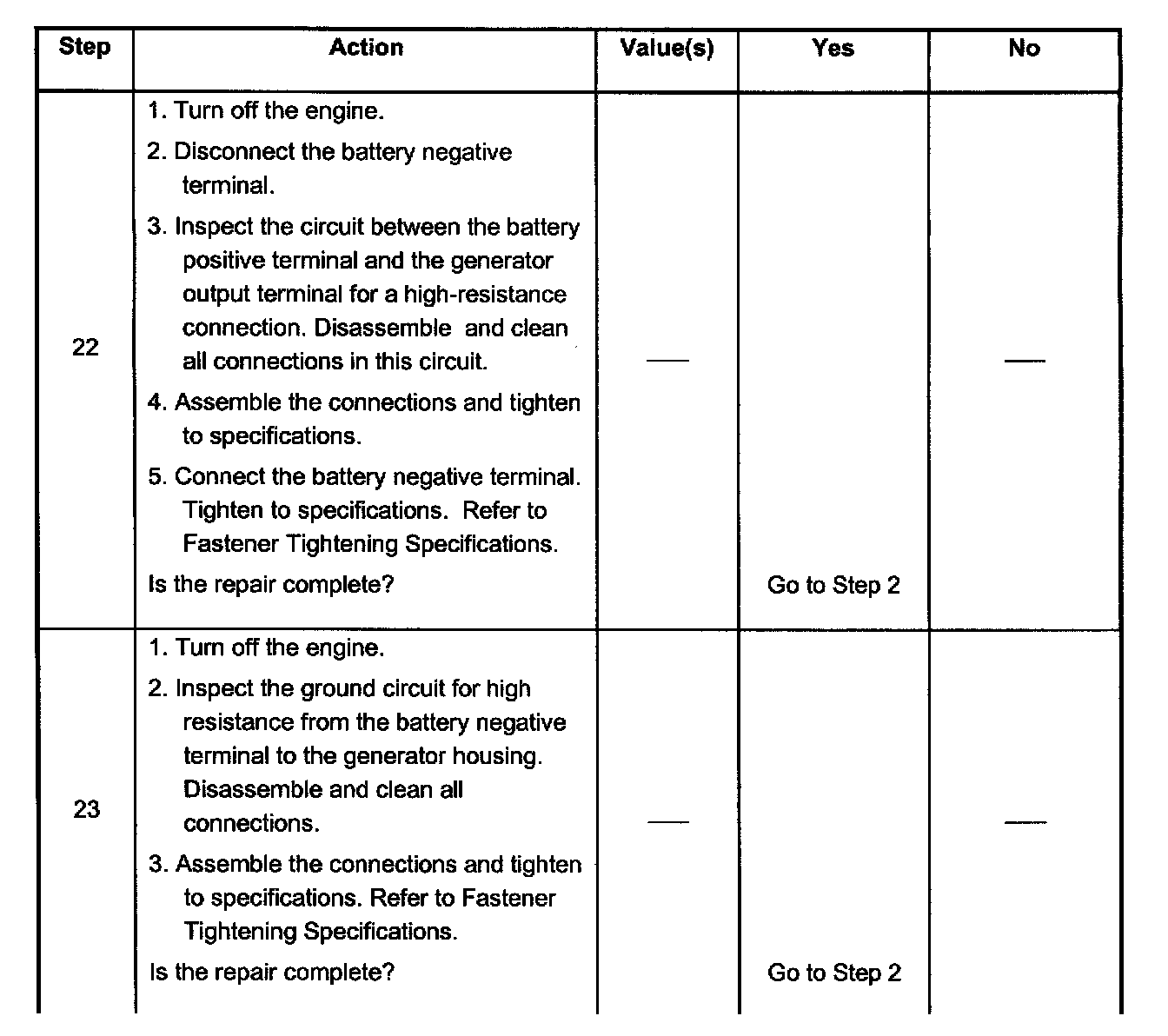

Steps 22 - 23:

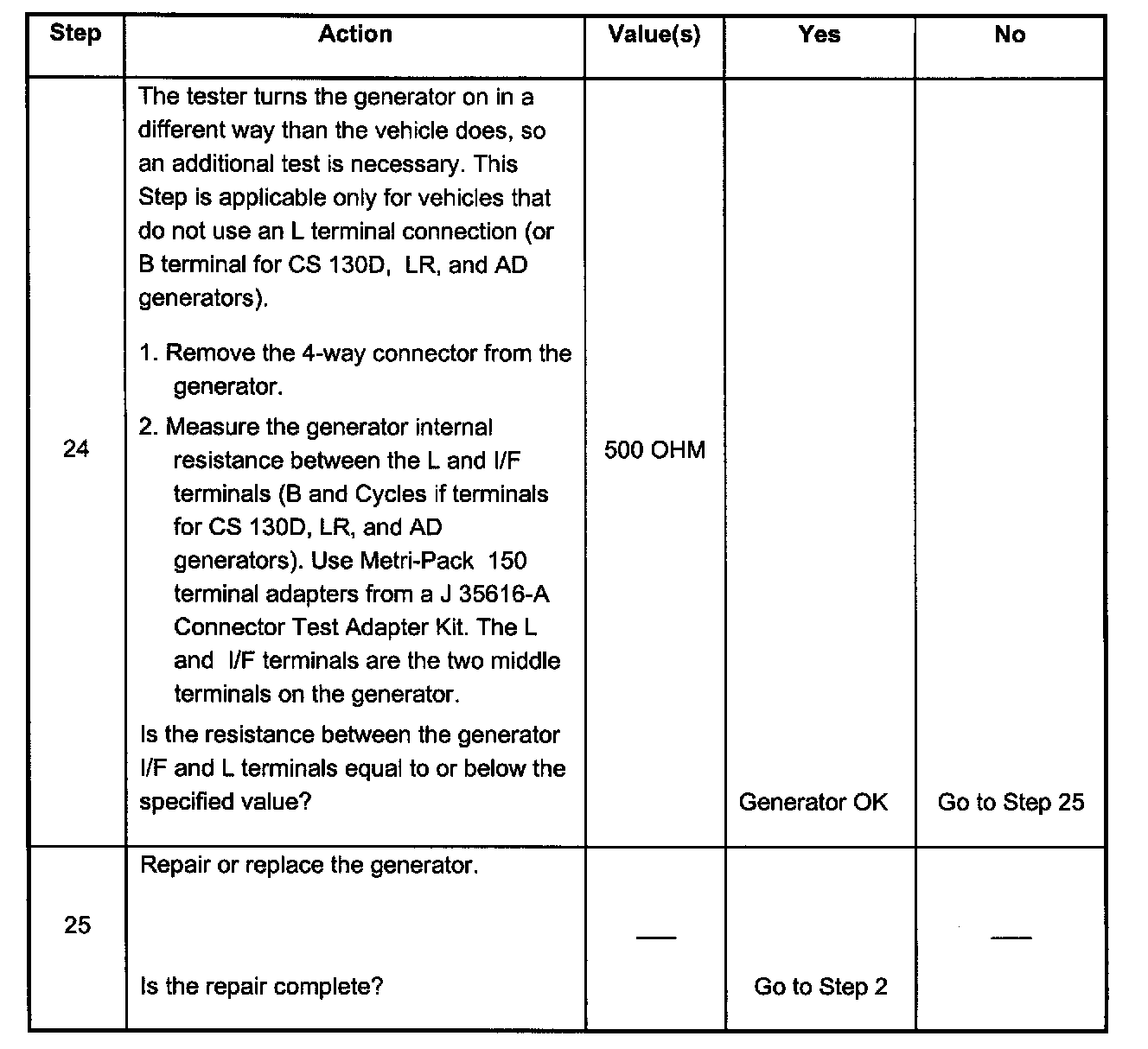

Steps 24 - 25:
