Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Steering >> System Specifications >> Steering Linkage

Steering Linkage


Steering Linkage (Non-Rack & Pinion)

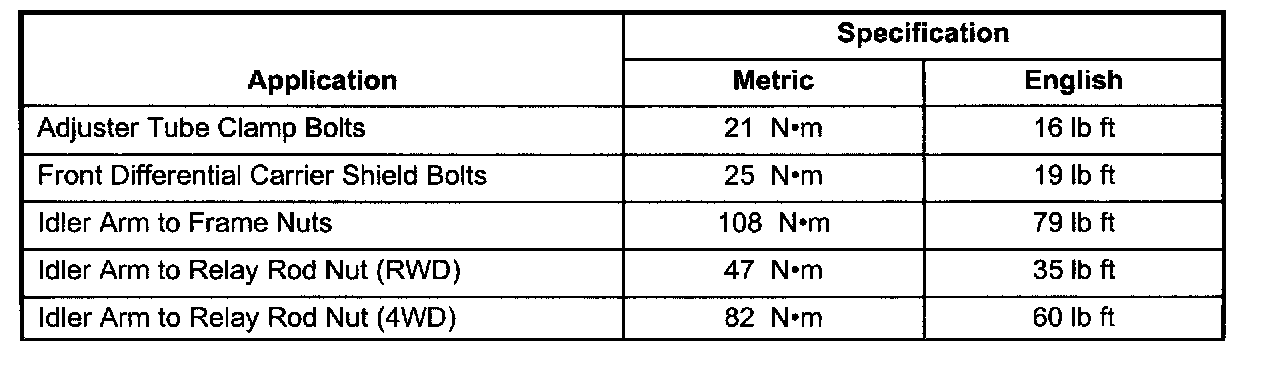

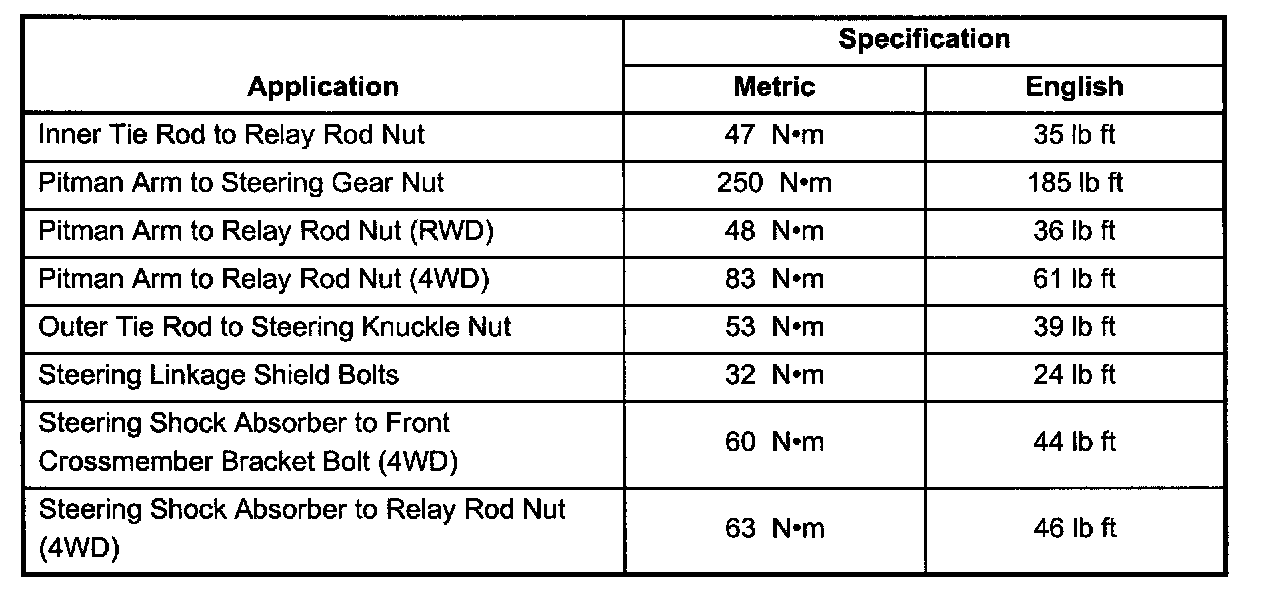

Fastener Tightening Specifications
