General Specifications

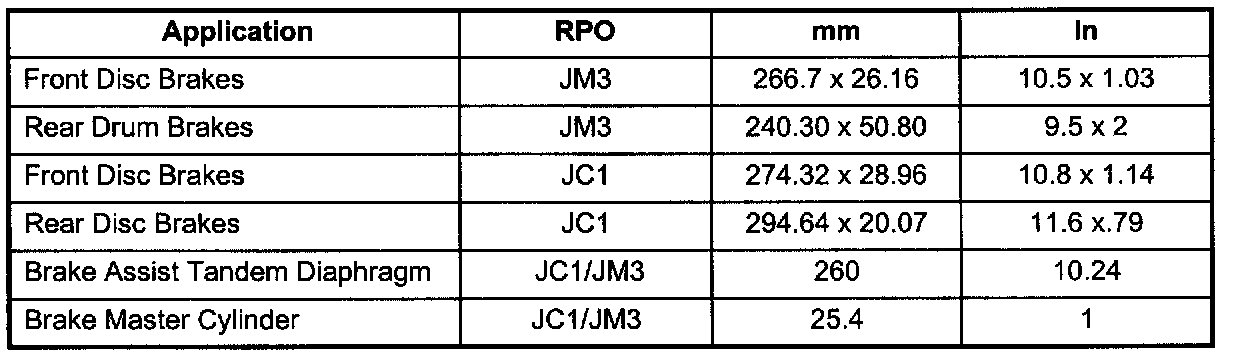

Brake System Specifications

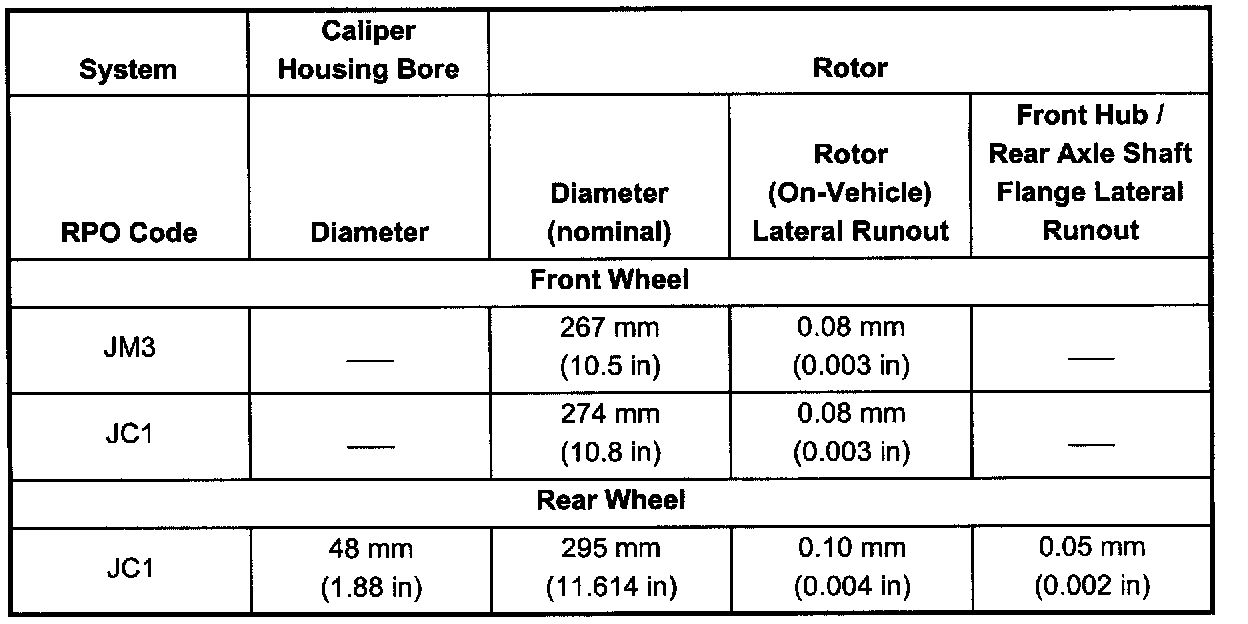

Disc Brakes (General Specifications)

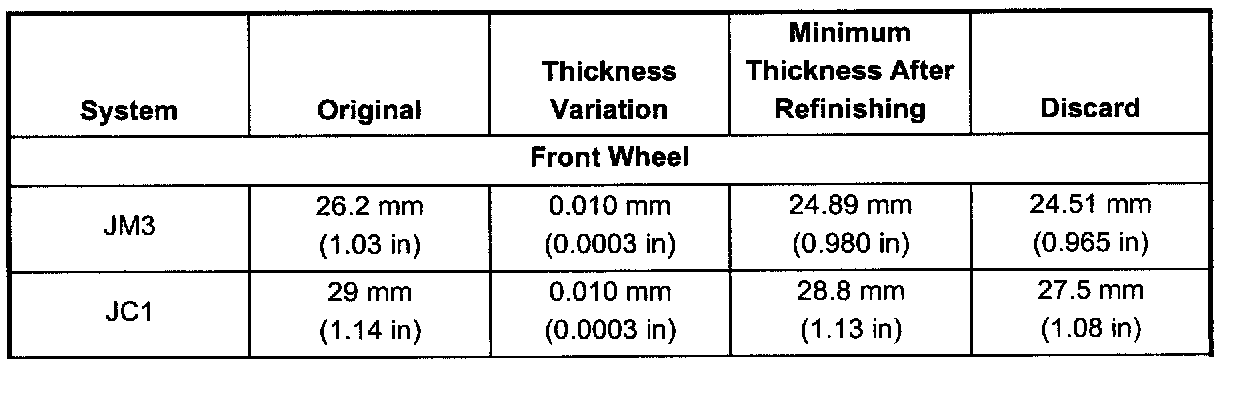

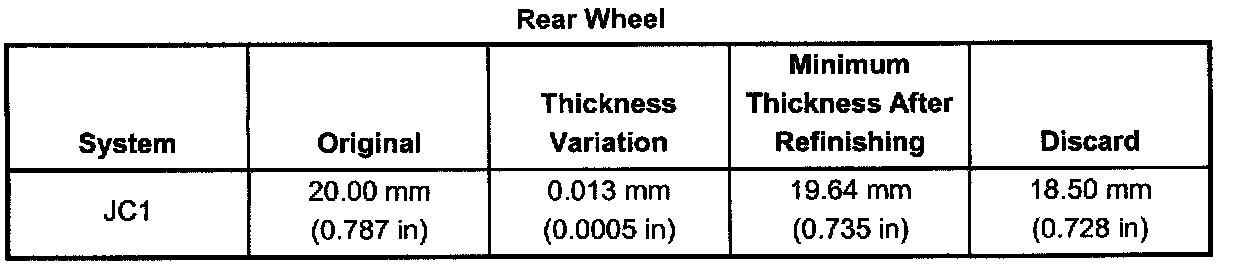

Brake Rotor Thickness

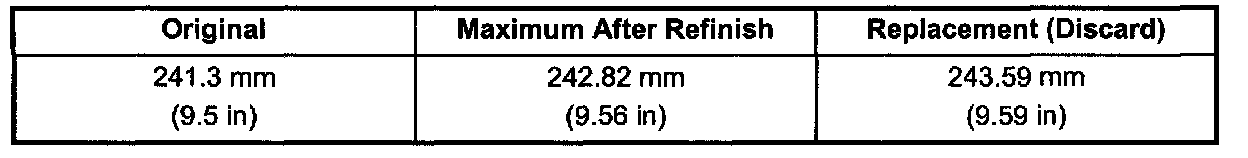

Drum Diameter Specifications
