Shift Solenoid, A/T

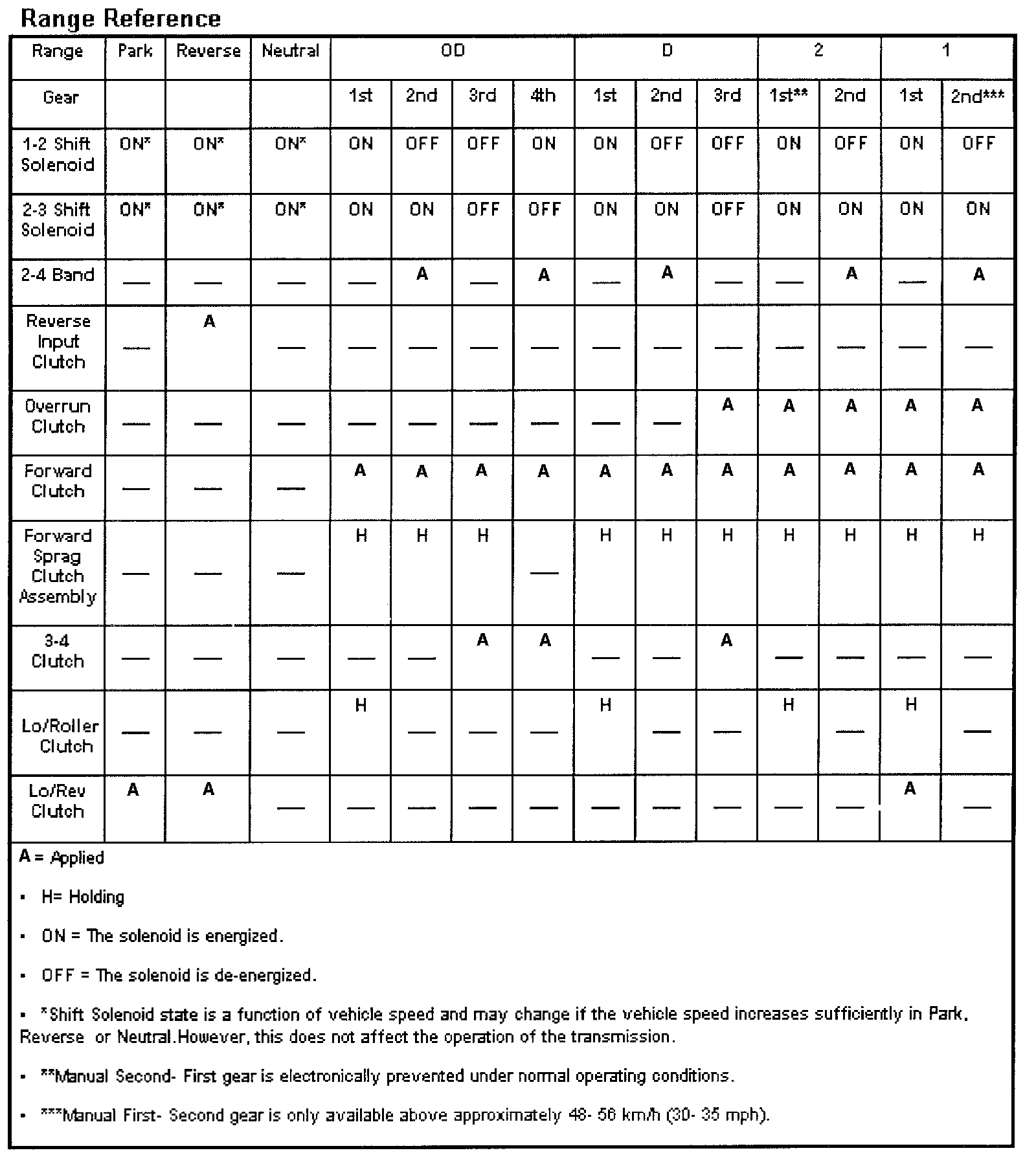

Range Reference

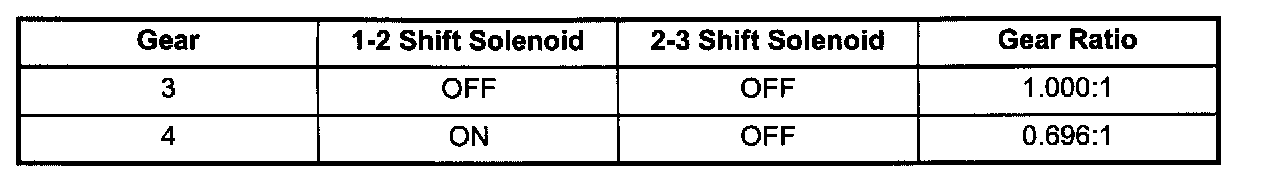

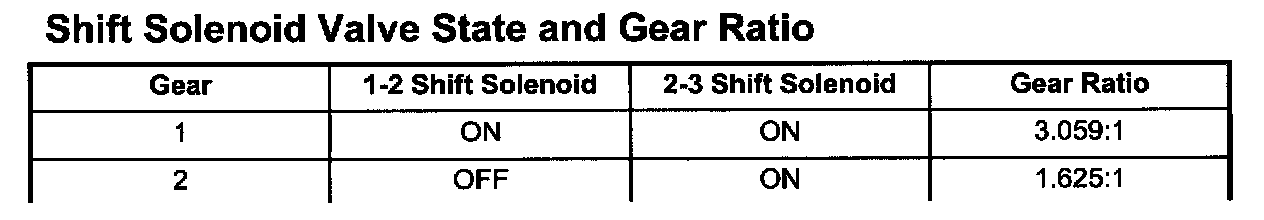

Shift Solenoid Valve State and Gear Ratio
CX�:

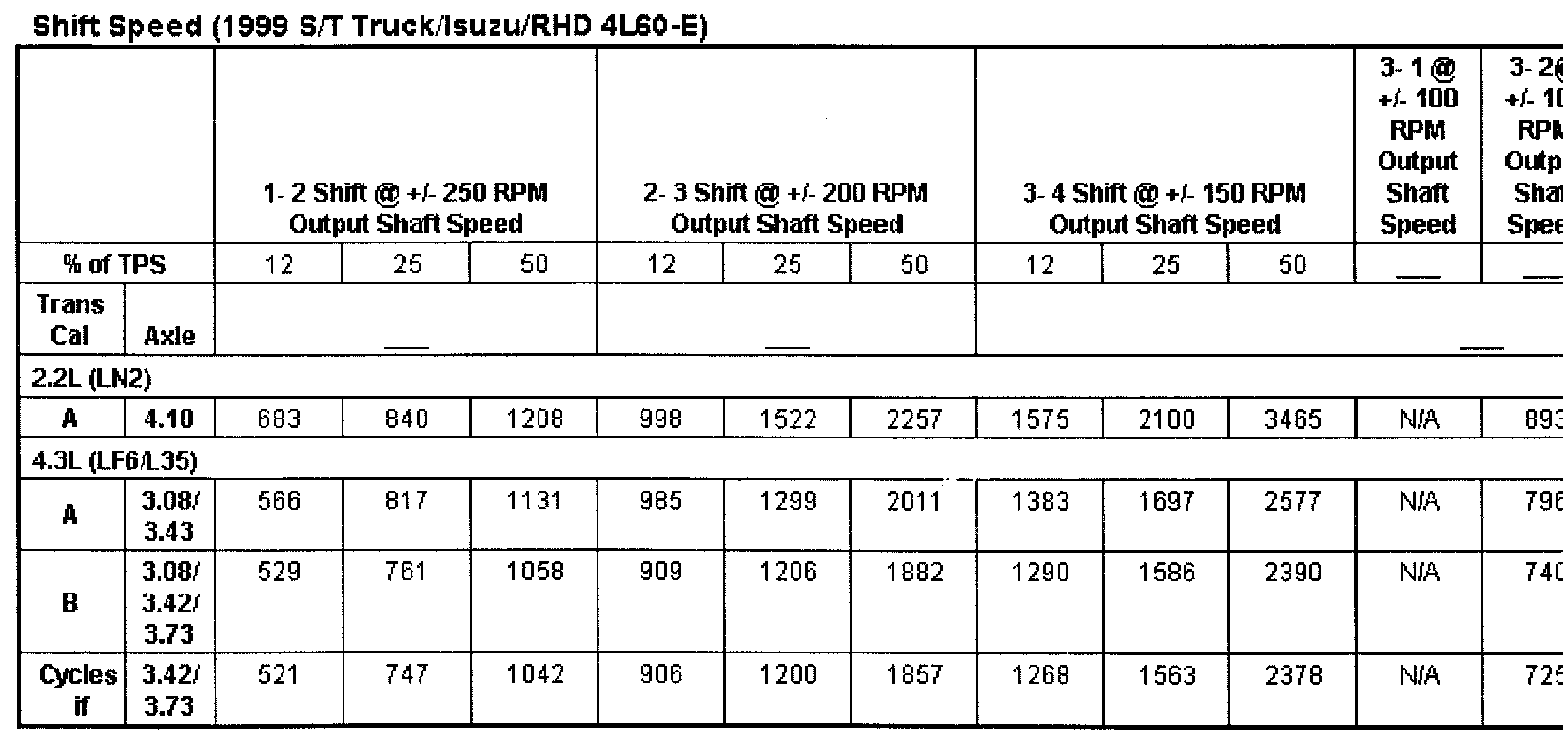

Shift Speed (1999 S/T Truck/Isuzu/RHD 4L60-E)

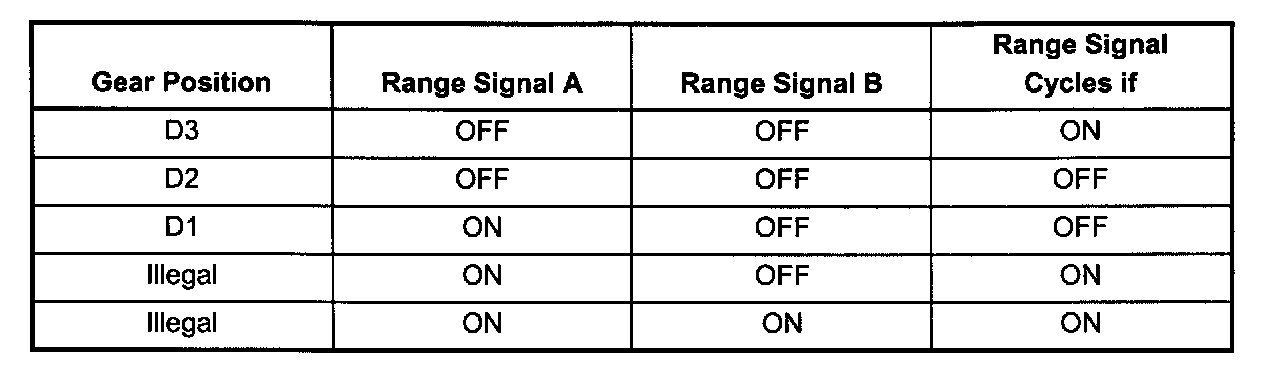

TFP Manual Valve Position Switch Logic
Range Reference
Shift Solenoid Valve State and Gear Ratio
Shift Speed (1999 S/T Truck/Isuzu/RHD 4L60-E)
TFP Manual Valve Position Switch Logic
