Park/Neutral Position Switch (W/ A/T) -Standard Column

Standard Wheel Column Component Views

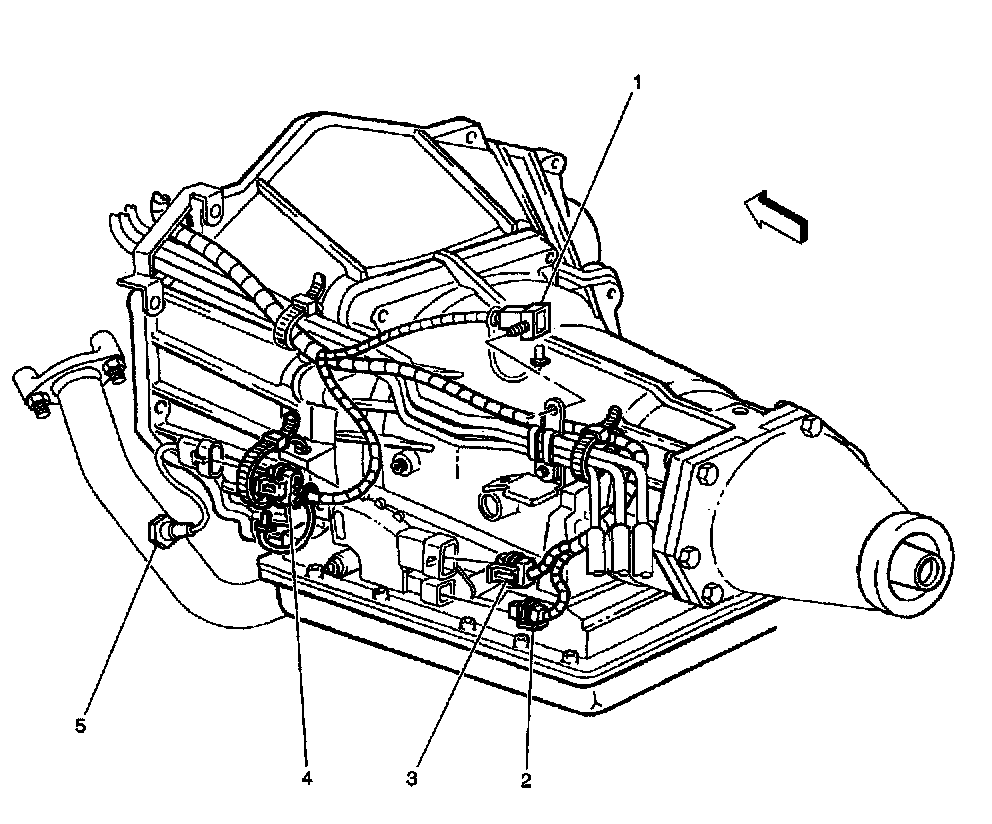

Park/Neutral Position Switch (w/ A/T) 4.3L Shown, 2.2L Similar

Legend

(1) C104
(2) Park/Neutral Position (PNP) Switch Connector C2
(3) Park/Neutral Position (PNP) Switch Connector C1
(4) C105
(5) Heater Oxygen Sensor (H025) Bank 1, Sensor 1
