Door Switch: Service and Repair

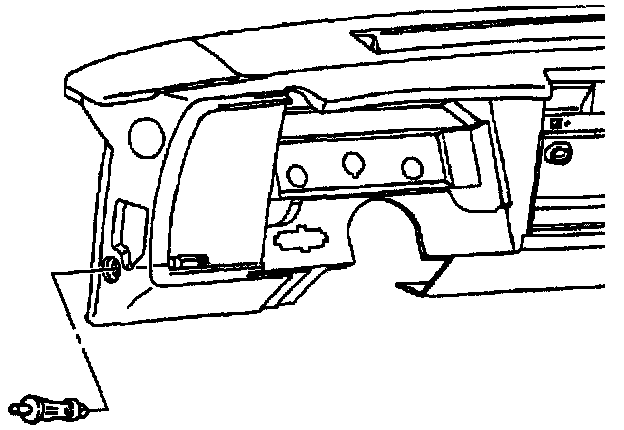

Removal Procedure

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.




1. Disconnect the battery negative cable.
2. Remove the instrument panel sound insulator (right side only).
3. Reach up and disconnect the electrical connector.




4. Squeeze the locking tabs in order to remove the door jamb switch from the vehicle.

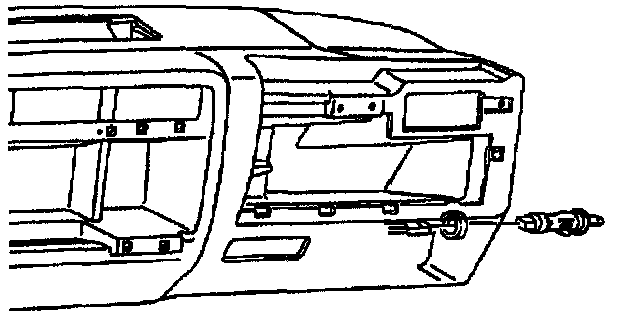

Installation Procedure




1. Install the door jamb switch to the vehicle. Fully seat the locking tabs.
2. Connect the electrical connector to the switch.




3. Install the instrument panel sound insulator (right side only).
4. Connect the battery negative cable.
