Jump Seat Belts

Removal Procedure




1. Fold the jump seat seat back down to access the jump seat seat belt.

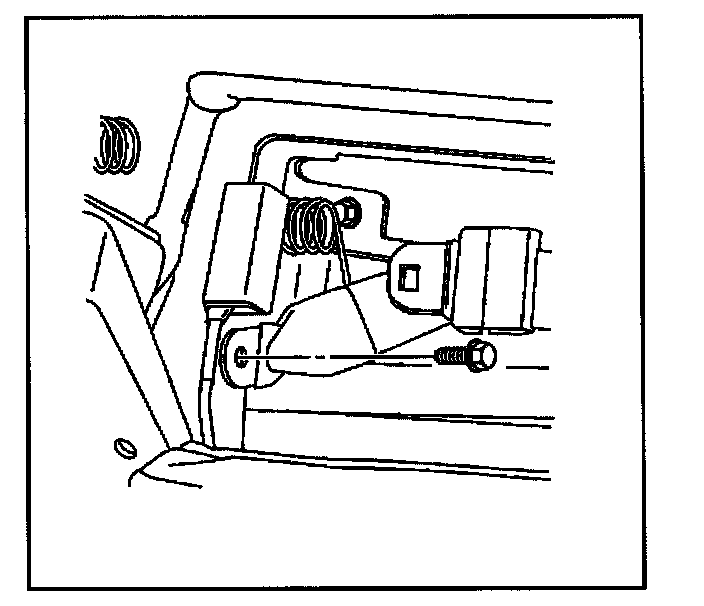

2. Remove the jump seat seat belt retaining bolt.
3. Remove the jump seat seat belt.

Installation Procedure




1. Install the jump seat seat belt.

NOTE: Refer to Fastener Note in Service Precautions.

2. Install the jump seat seat belt retaining bolt.

Tighten: Tighten the jump seat seat belt retaining bolt to 55 N.m (41 lb ft).
