Front Seat Belt Buckle

Removal Procedure







1. Disconnect the driver-side seat belt buckle electrical connector.

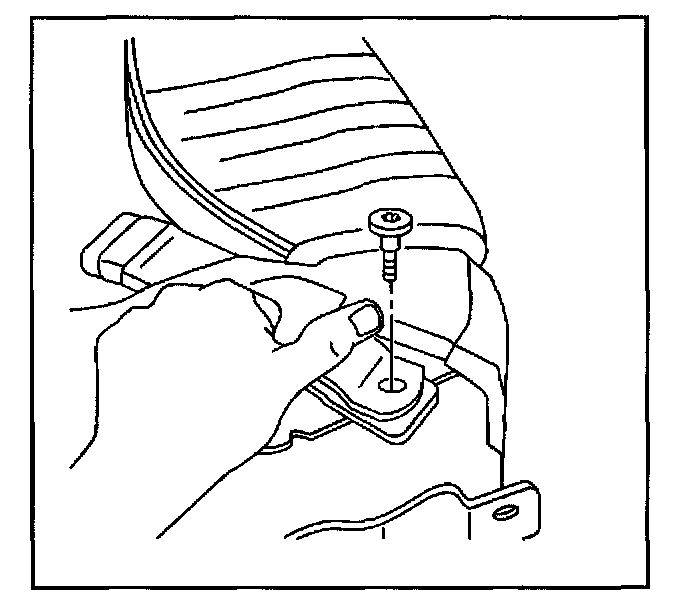

2. Remove the bolt that retains the driver-side seat belt buckle or buckles to the seat.




3. Remove the driver-side seat belt buckle or buckles from the seat.
4. Remove the bolt that retains the passenger-side seat belt buckle or buckle and belt assembly to the seat.
5. Remove the passenger-side seat belt buckle or buckle and belt assembly from the seat.

Installation Procedure




1. Install the passenger-side seat belt buckle or buckle and belt assembly to the vehicle.

NOTE: Refer to Fastener Note in Service Precautions.




2. Install the bolt that retains the passenger-side seat belt buckle or buckle and belt assembly to the vehicle.

Tighten: Tighten the seat belt buckle or buckle and belt assembly bolt to 70 N.m (52 lb ft).

3. Install the driver-side seat belt buckle or buckles to the seat.




4. Install the bolt that retains the driver-side seat belt buckle or buckles to the seat.

Tighten: Tighten the seat belt buckle or buckles bolt to 70 N.m (52 lb ft).

5. Connect the driver-side seat belt buckle electrical connector.
