EVAP System Hoses/Pipes Replacement (Engine)




Removal Procedure




1. Disconnect the EVAP pipe from the EVAP purge solenoid. Refer to Quick Connect Fitting(s) Service (Plastic Collar).

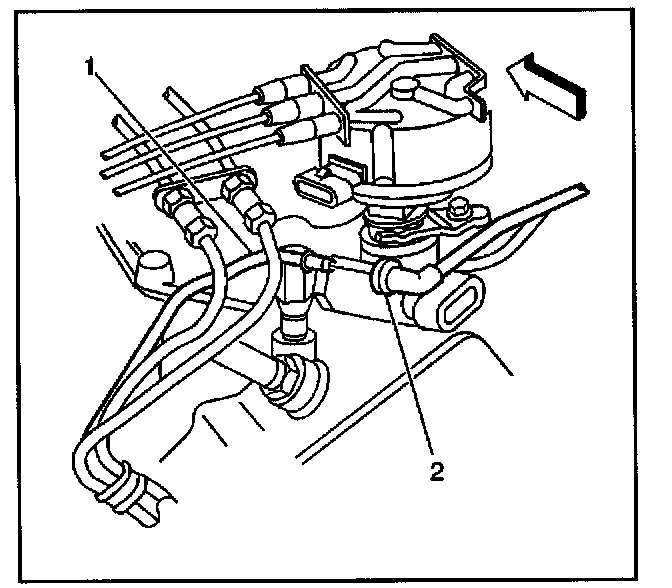

2. Disconnect the EVAP (2) pipe from the EVAP front chassis pipe (1). Refer to Quick Connect Fitting(s) Service (Plastic Collar).




Installation Procedure




1. Connect the EVAP pipe (2) to the EVAP front chassis pipe (1). Refer to Quick Connect Fitting(s) Service (Plastic Collar).
2. Connect the EVAP pipe to the EVAP purge solenoid. Refer to Quick Connect Fitting(s) Service (Plastic Collar).
