Evaporative Emission Control Canister: Service and Repair

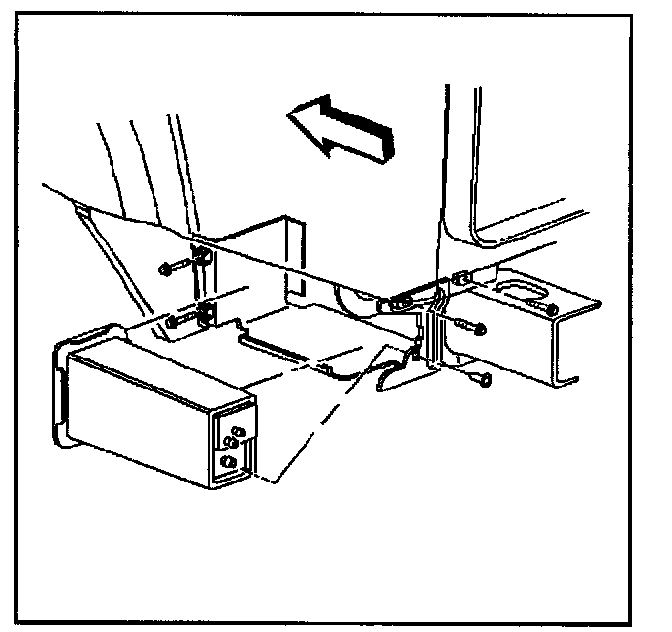

REMOVAL
1. Raise the vehicle.




2. Remove the canister mounting bolts.
3. After marking the hoses, disconnect the hoses from the canister.
4. Remove the canister.

INSTALLATION




1. Connect the hoses to the canister.
2. Install the canister to the bracket.
3. Install the canister mounting bolts.
4. Lower the vehicle.
