Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Evaporative Emissions System >> Evaporative Emission Control Canister >> Locations

Evaporative Emission Control Canister: Locations

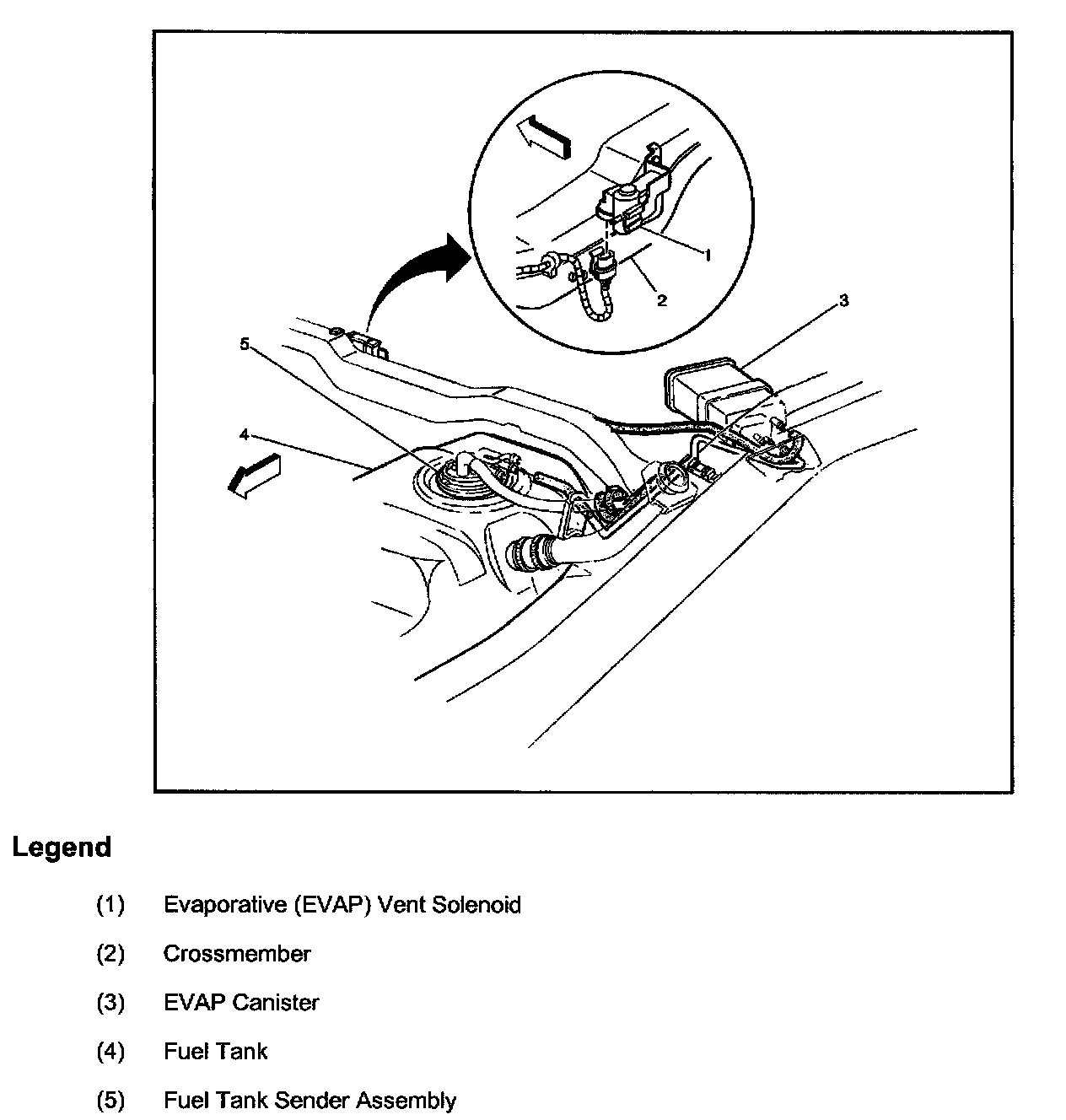

EVAP Canister And EVAP Vent Valve (4DR Utility And Pickup):
