Canister Purge Solenoid: Service and Repair

REMOVAL

1. CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

Disconnect the negative battery cable.




2. Disconnect the EVAP purge line.

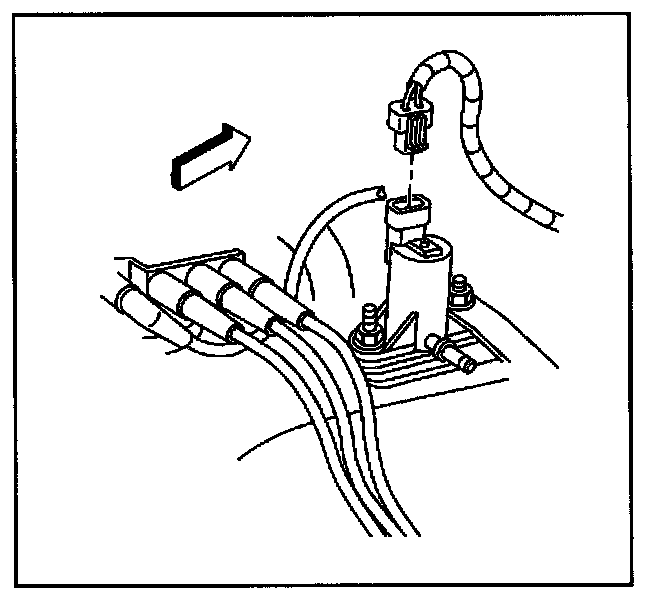

3. Disconnect the purge solenoid electrical connector.




4. Remove the purge solenoid mounting nuts.




5. Remove the purge solenoid from the intake manifold.

INSTALLATION

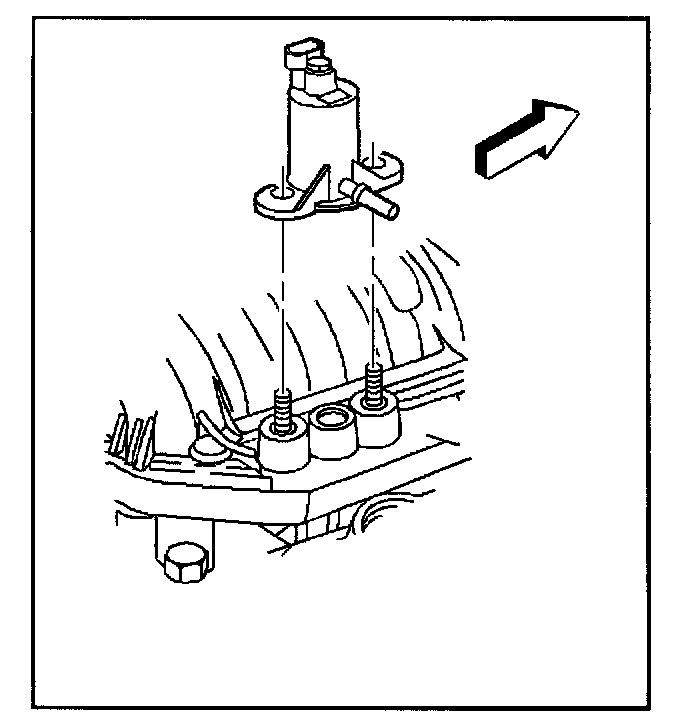

1. Install the purge solenoid to the intake manifold.






2. NOTE: Refer to Fastener Note in Service Precautions.

Install the purge solenoid mounting nuts.

Tighten
Tighten the bolts to 12 N.m (106 lb in).




3. Connect the purge solenoid electrical connector.




4. Connect the EVAP purge line.
5. Connect the negative battery cable.
