Scan Tool Does Not Communicate With Uart Data Line
Scan Tool Does Not Communicate With Uart Data Line

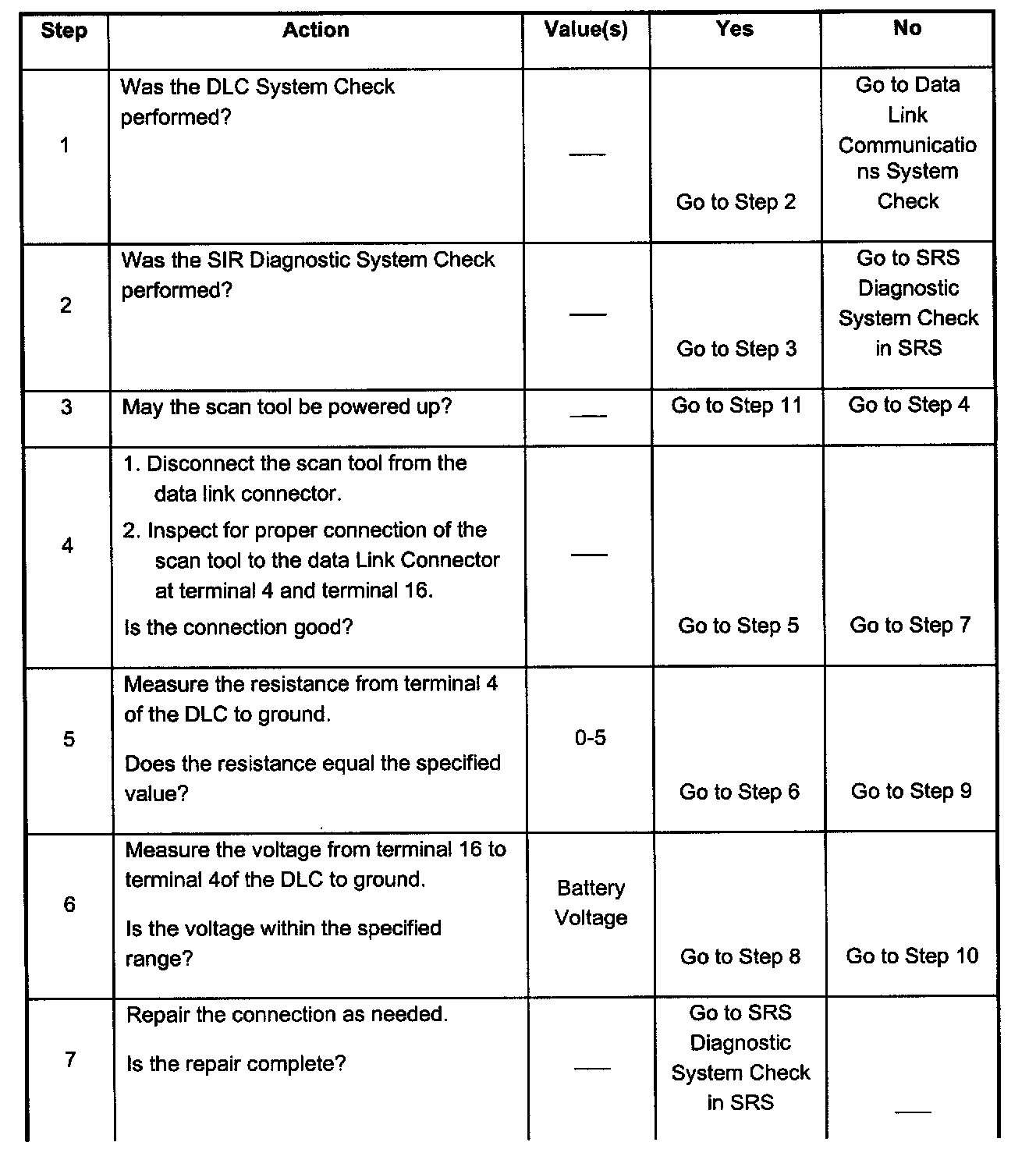

Steps 1 - 7:

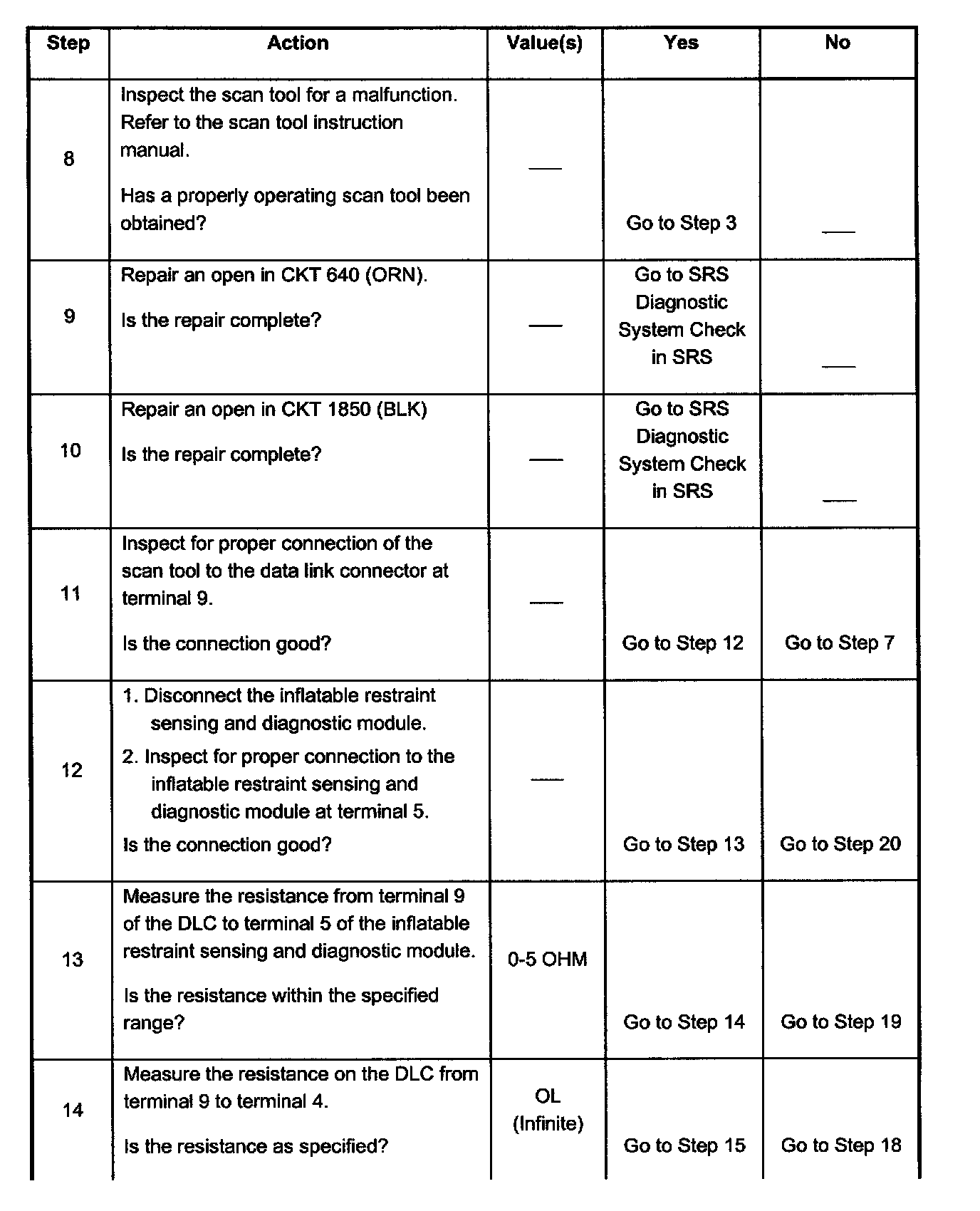

Steps 8 - 14:

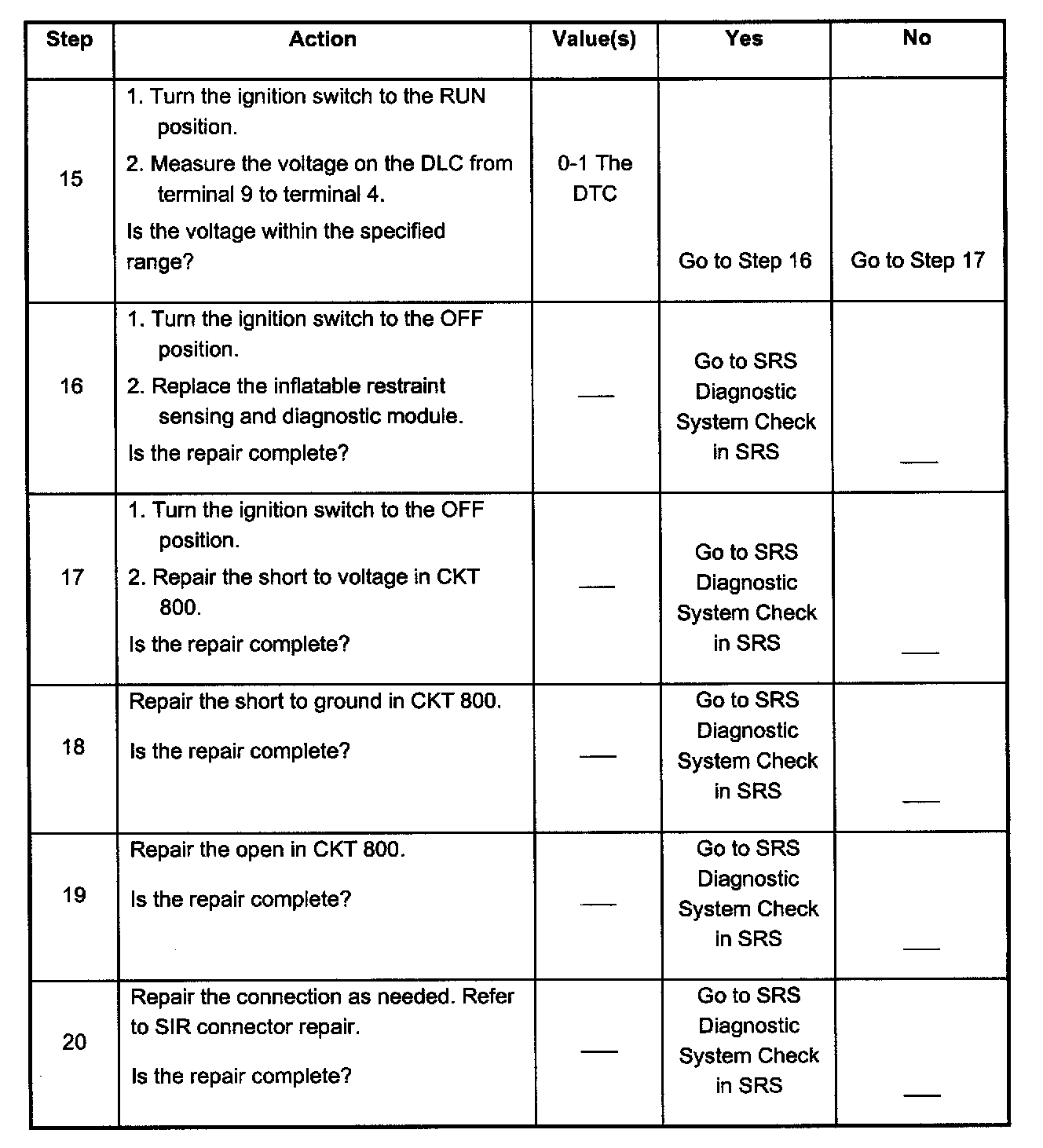

Steps 15 - 20:
