Connector End Views

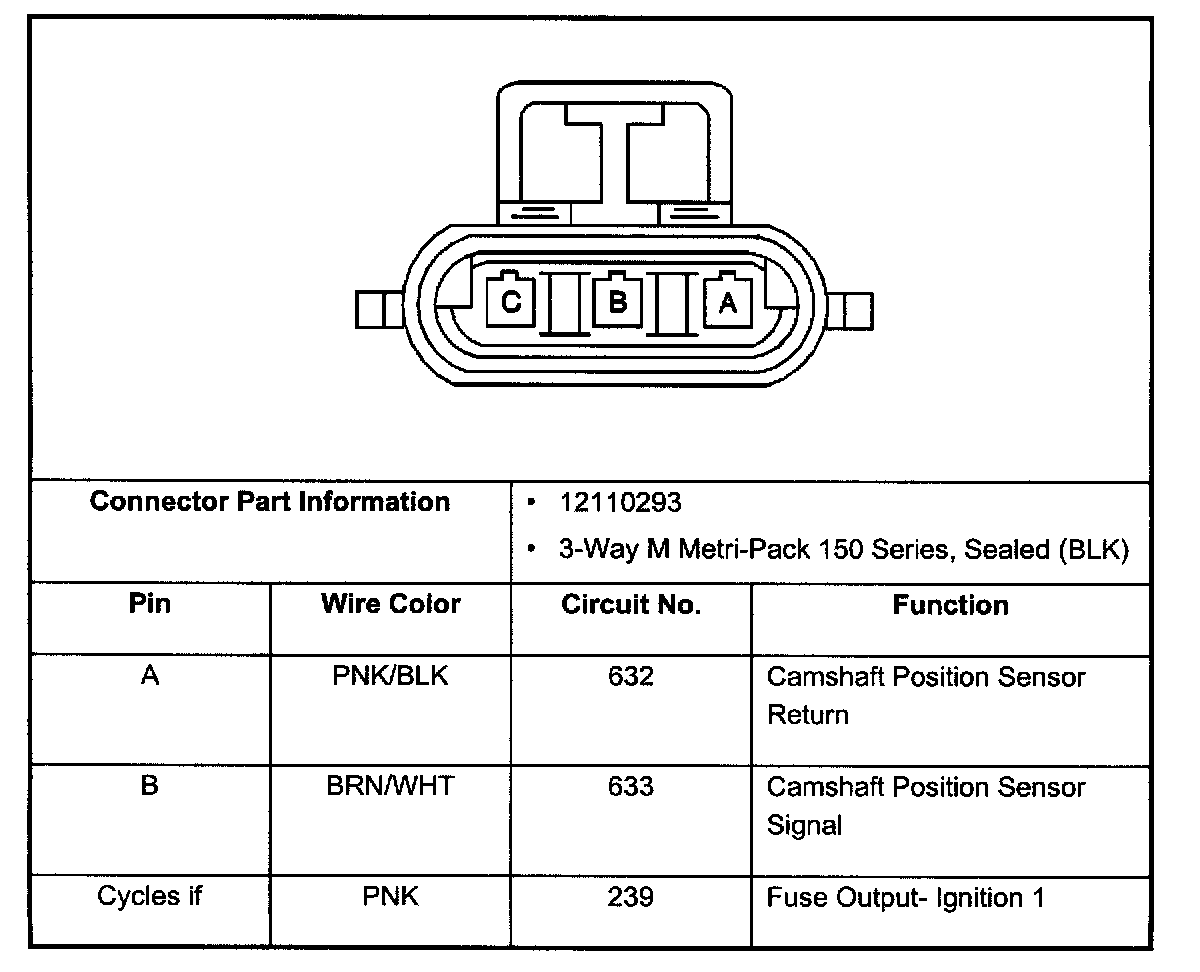

Camshaft Position (CMP) Sensor Connector:

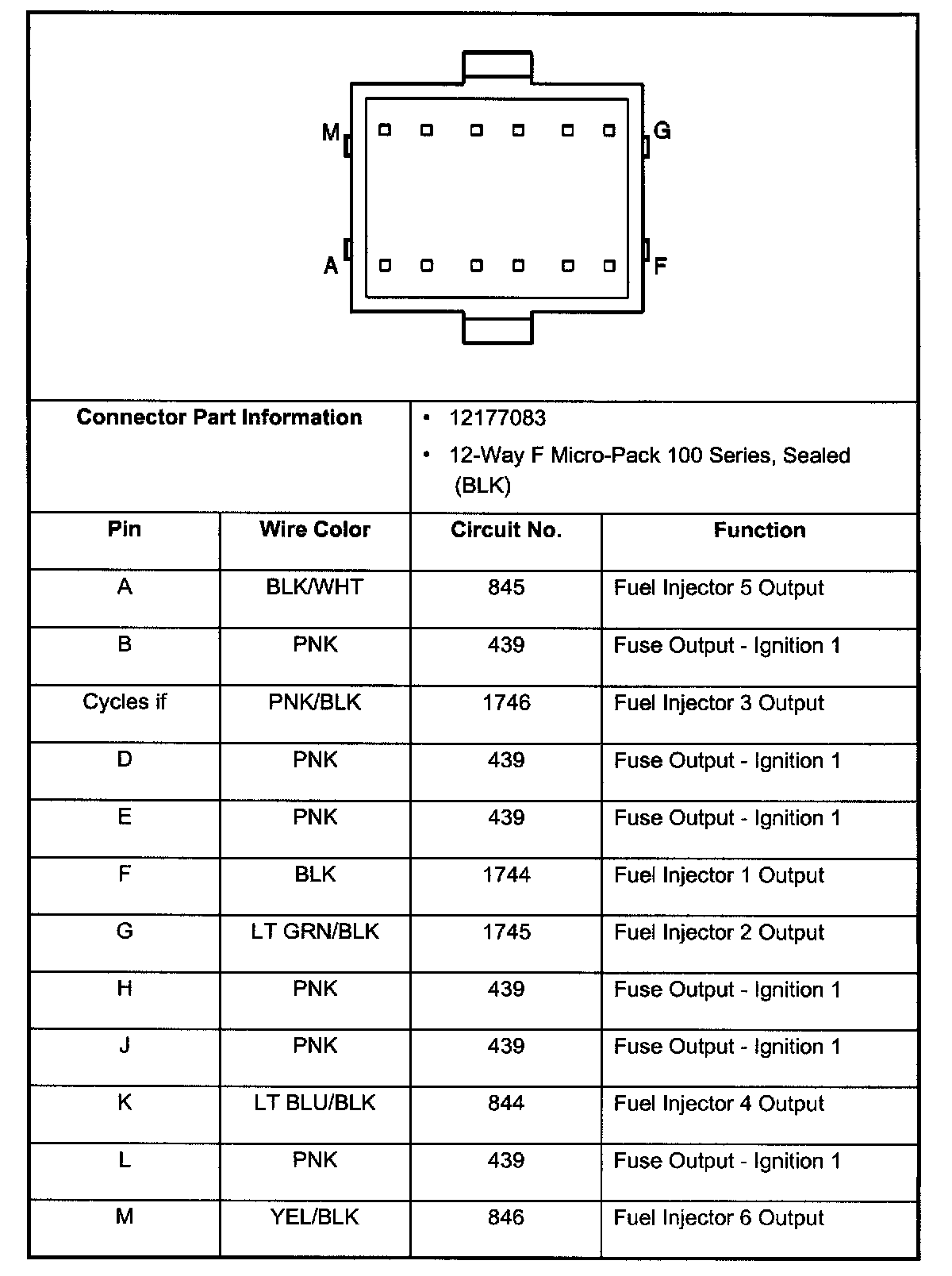

Central Sequential Fuel Injection (CSFI) Connector:

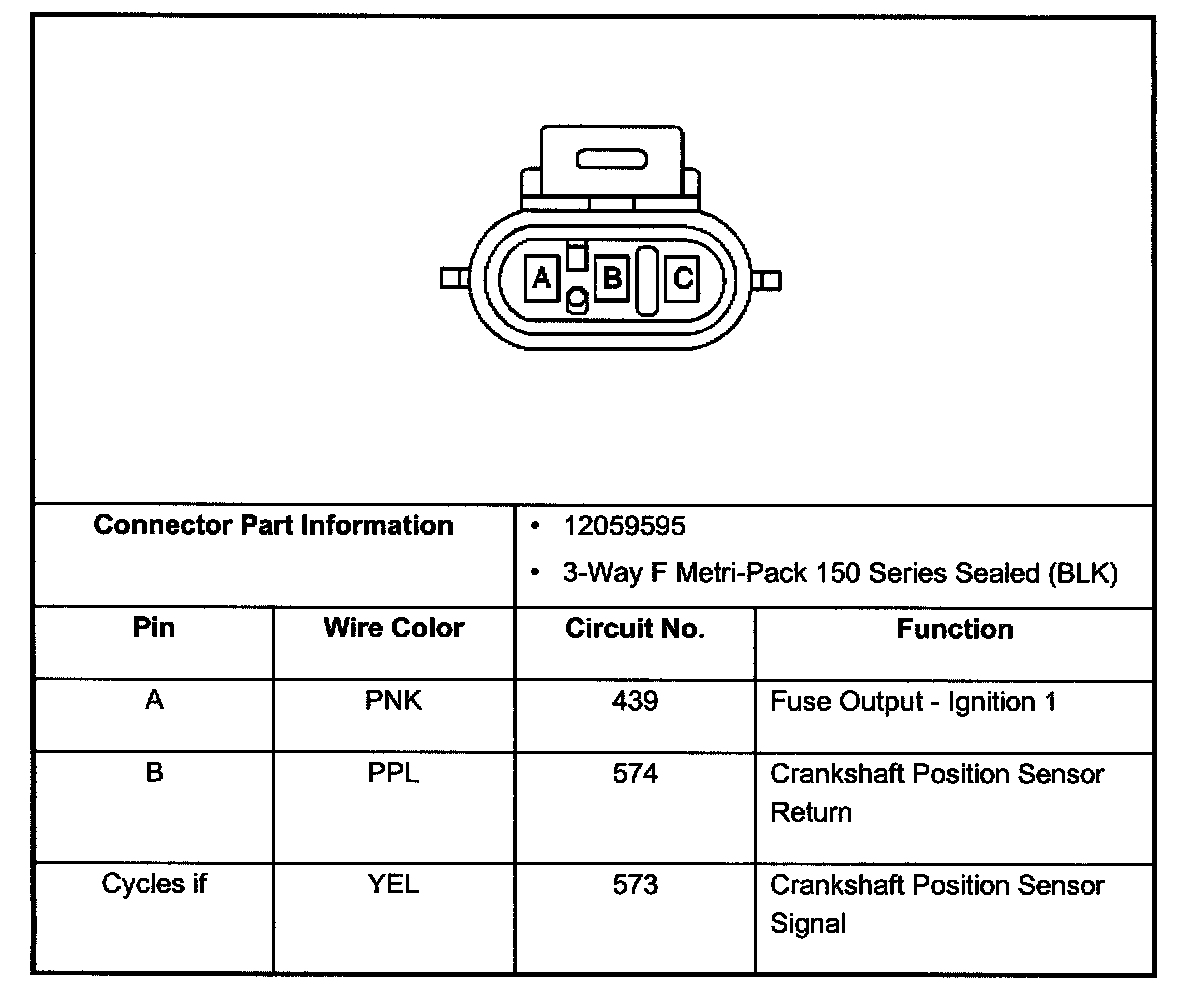

Crankshaft Position (CKP) Sensor Connector:

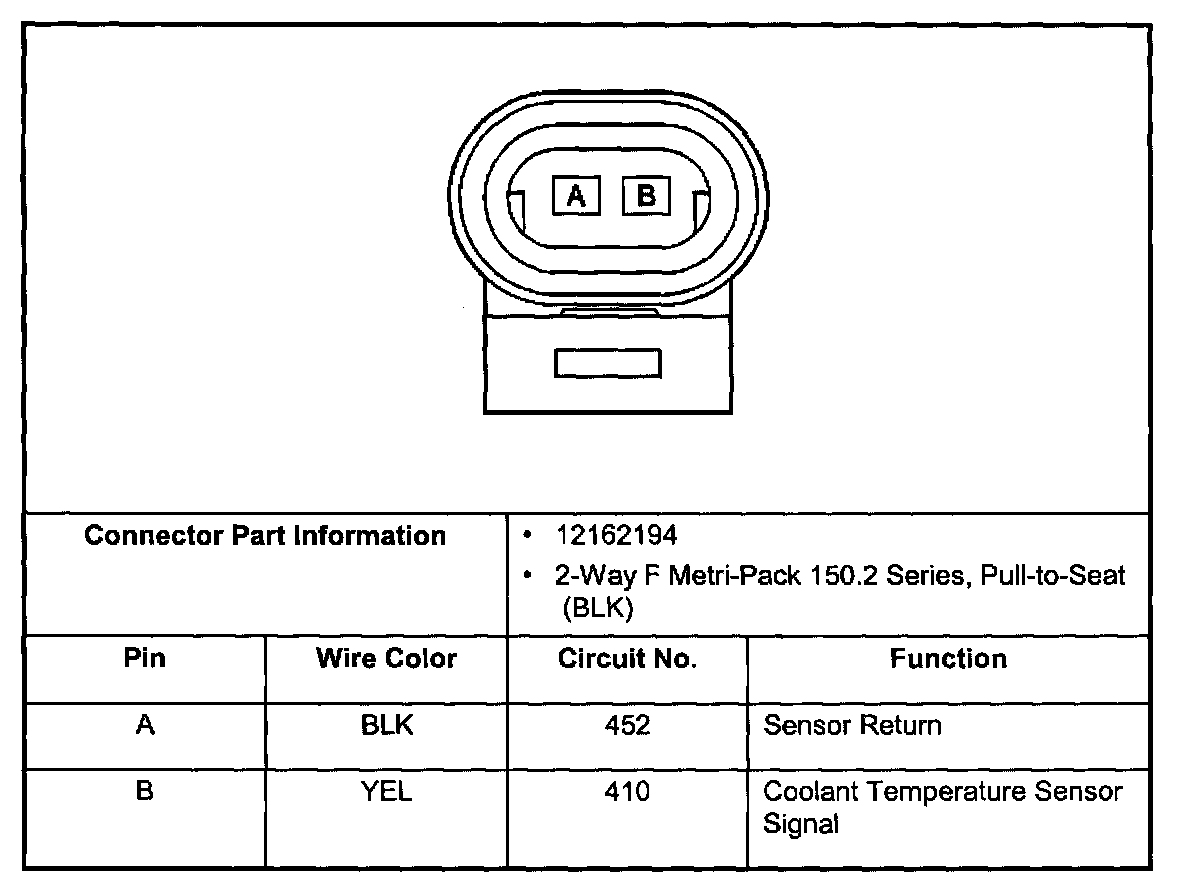

Engine Coolant Temperature (ECT) Sensor Connector:

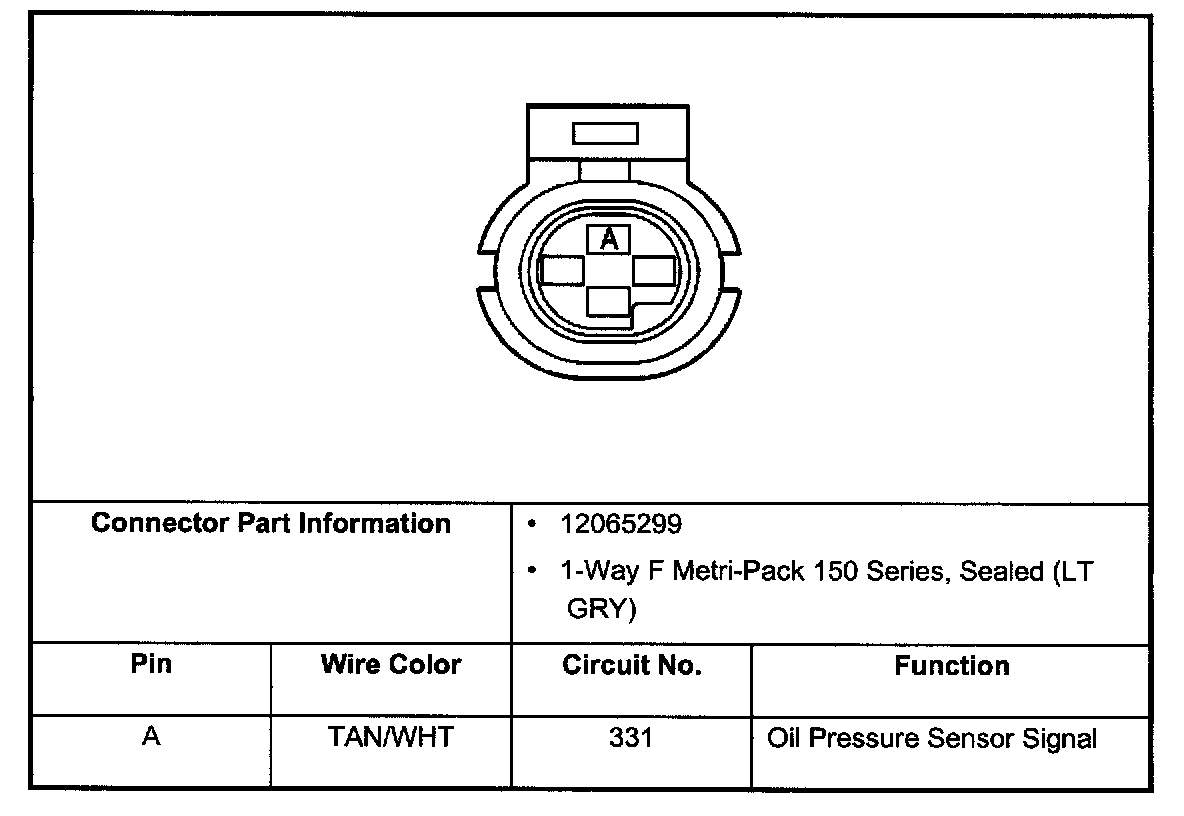

Engine Oil Pressure Gauge Sensor Connector:

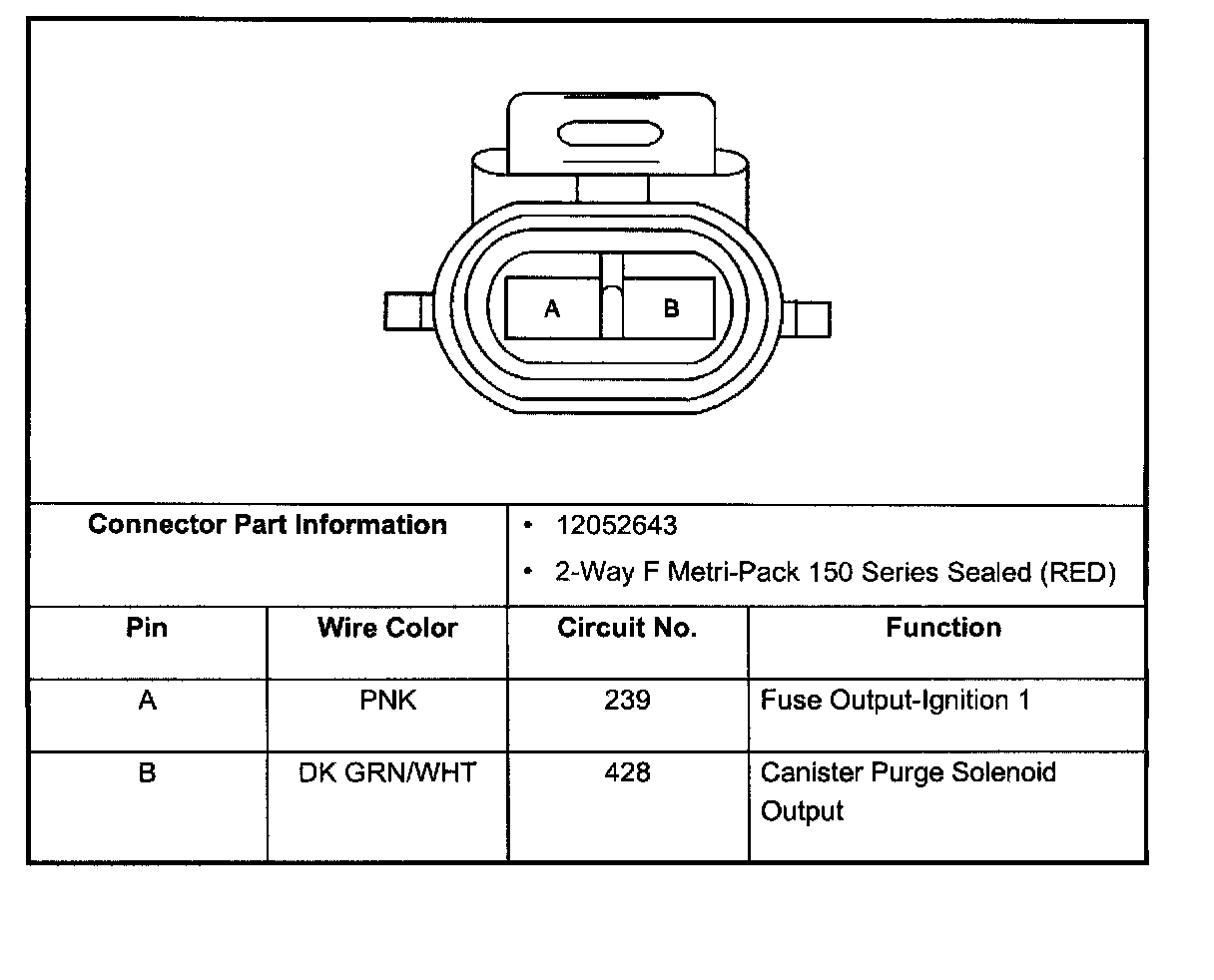

EVAP Emission Canister Purge Valve:

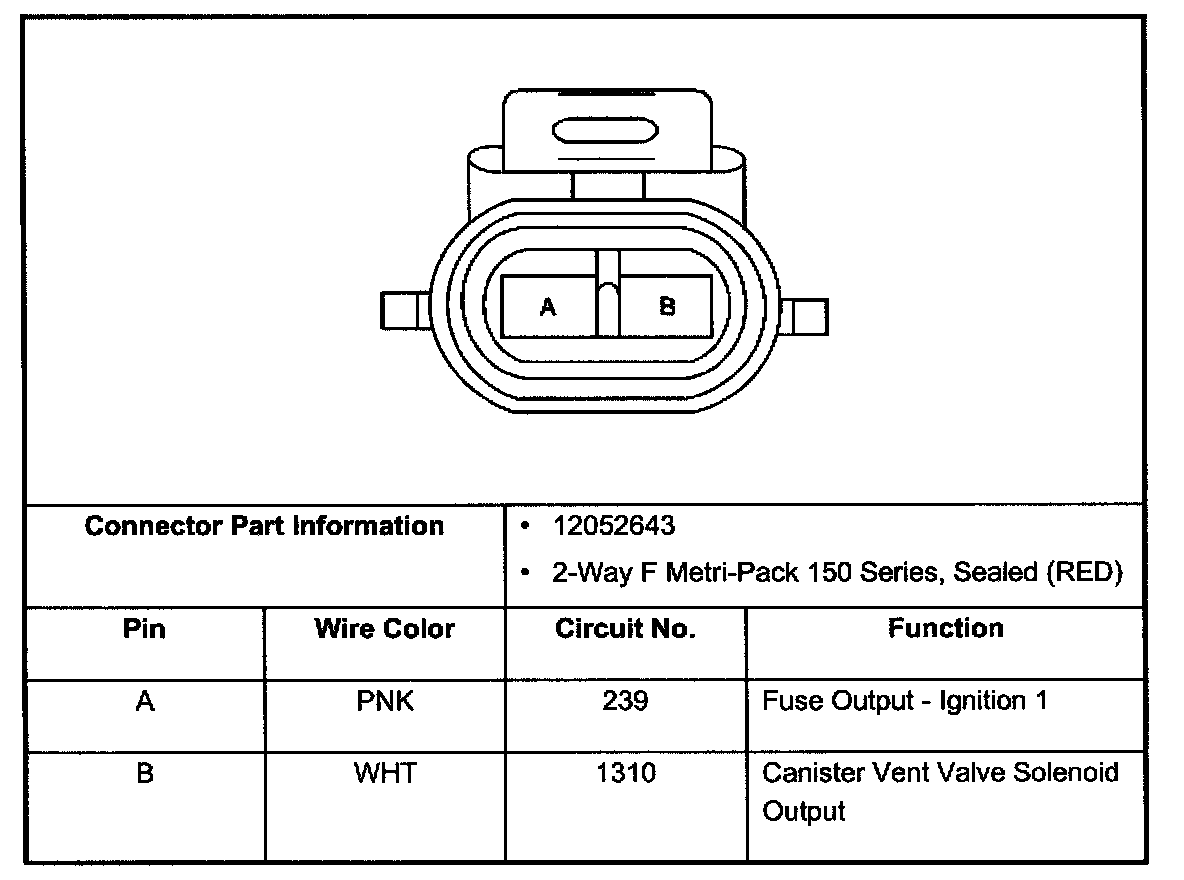

EVAP Emission Canister Vent Valve Connector:

Fuel Tank Pressure Sensor Connector:

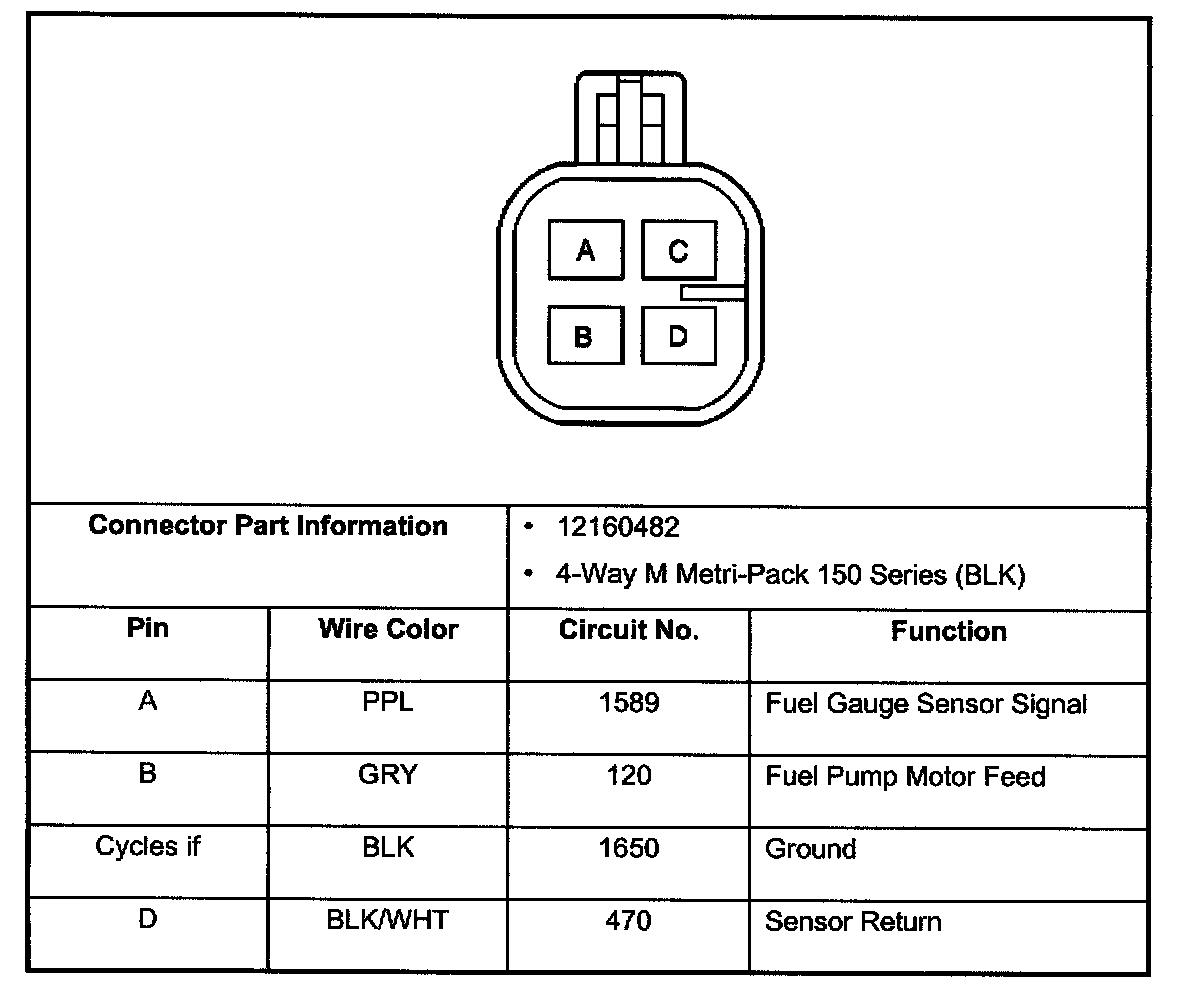

Fuel Pump And Sender Connector:

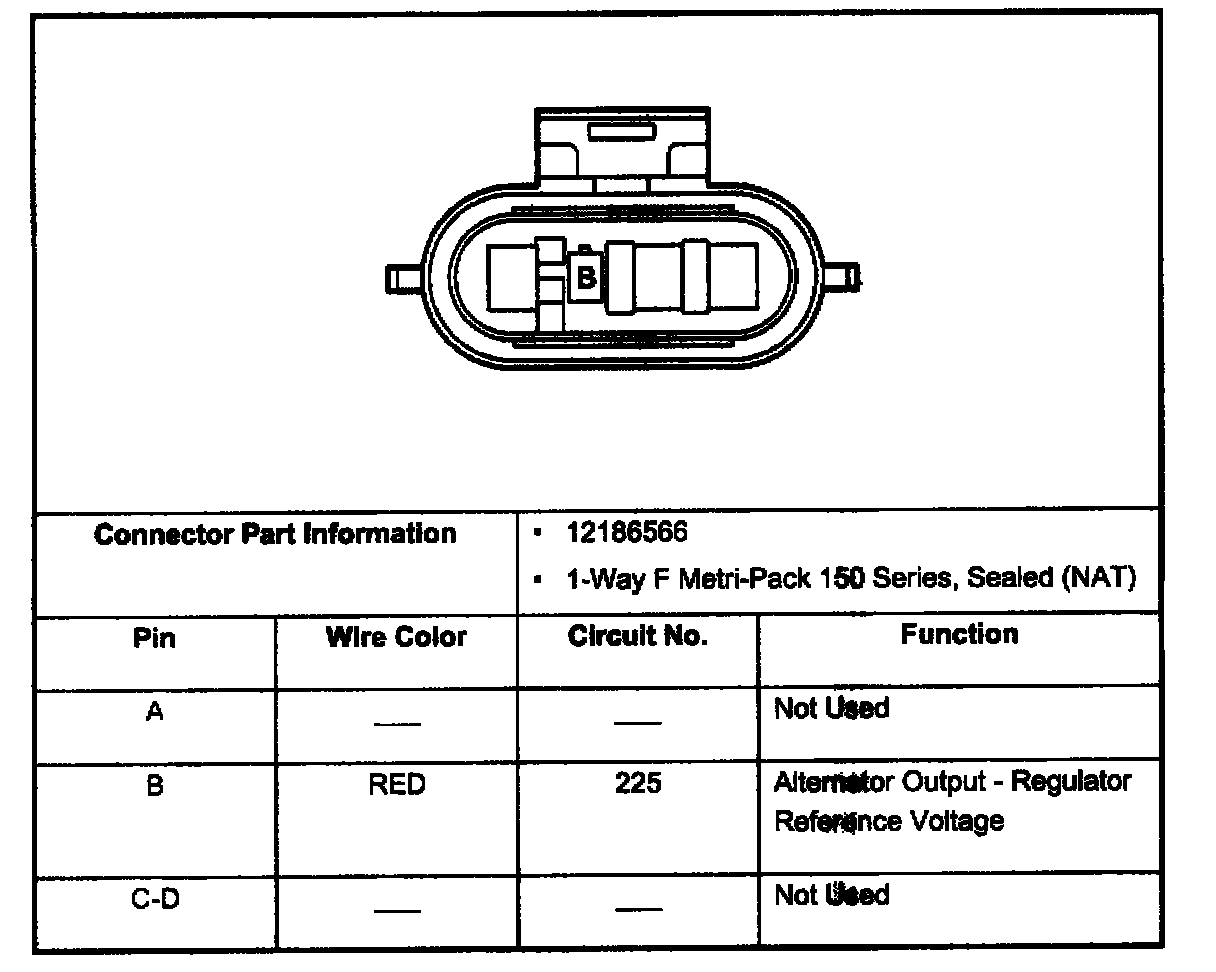

Generator Connector:

H2OS Connector, Bank 1, Sensor 1:

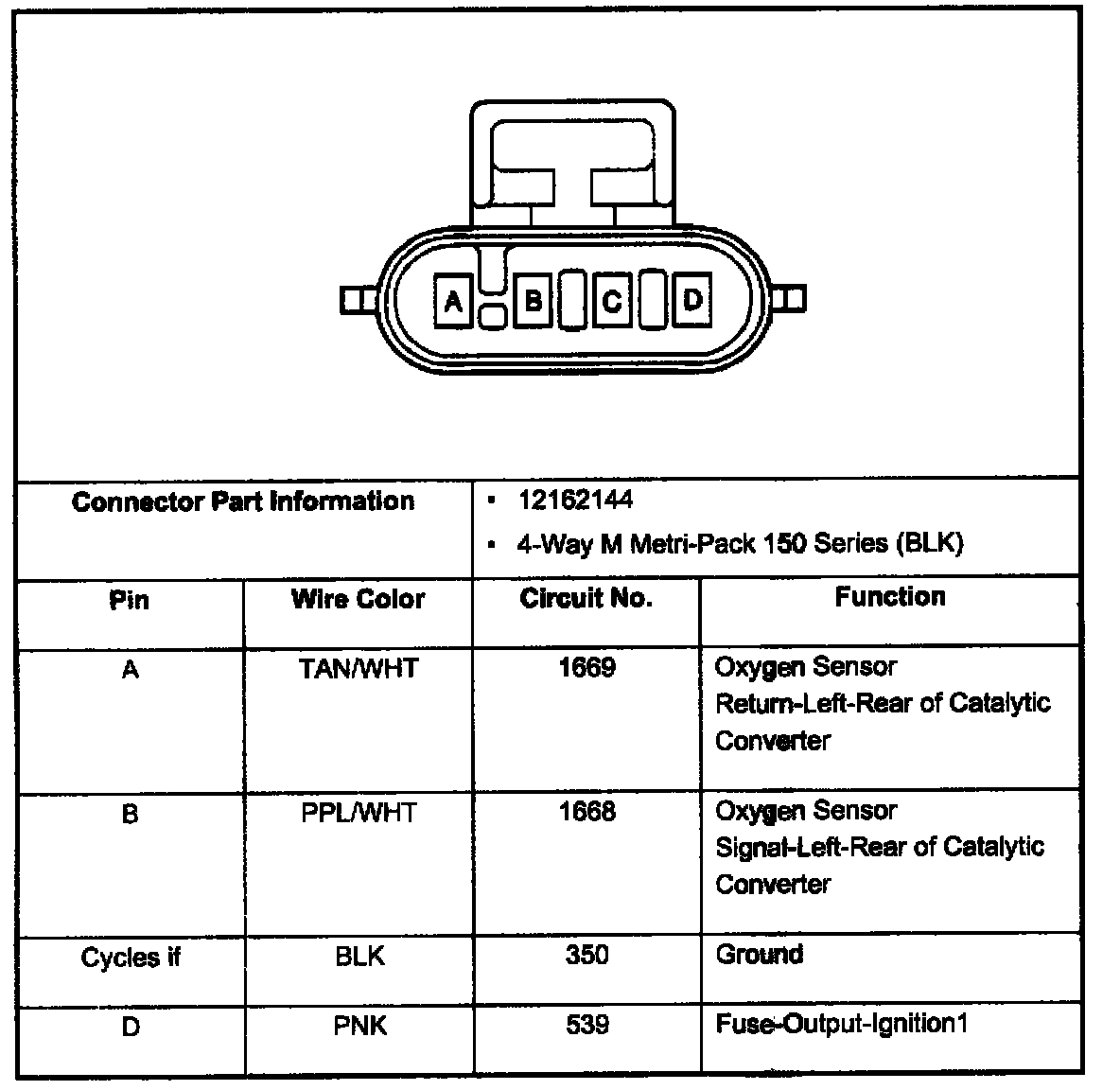

H2OS Connector, Bank 1, Sensor 3:

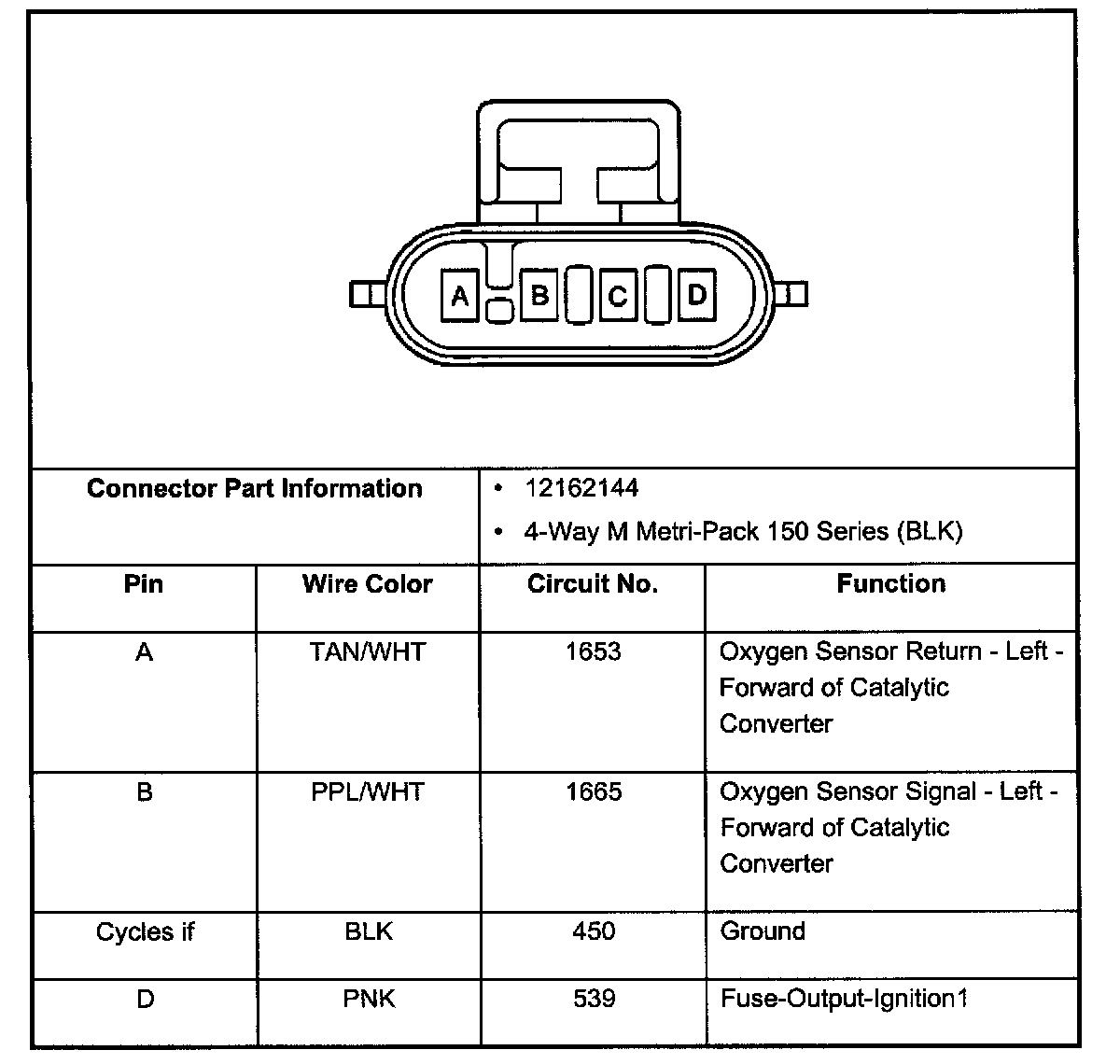

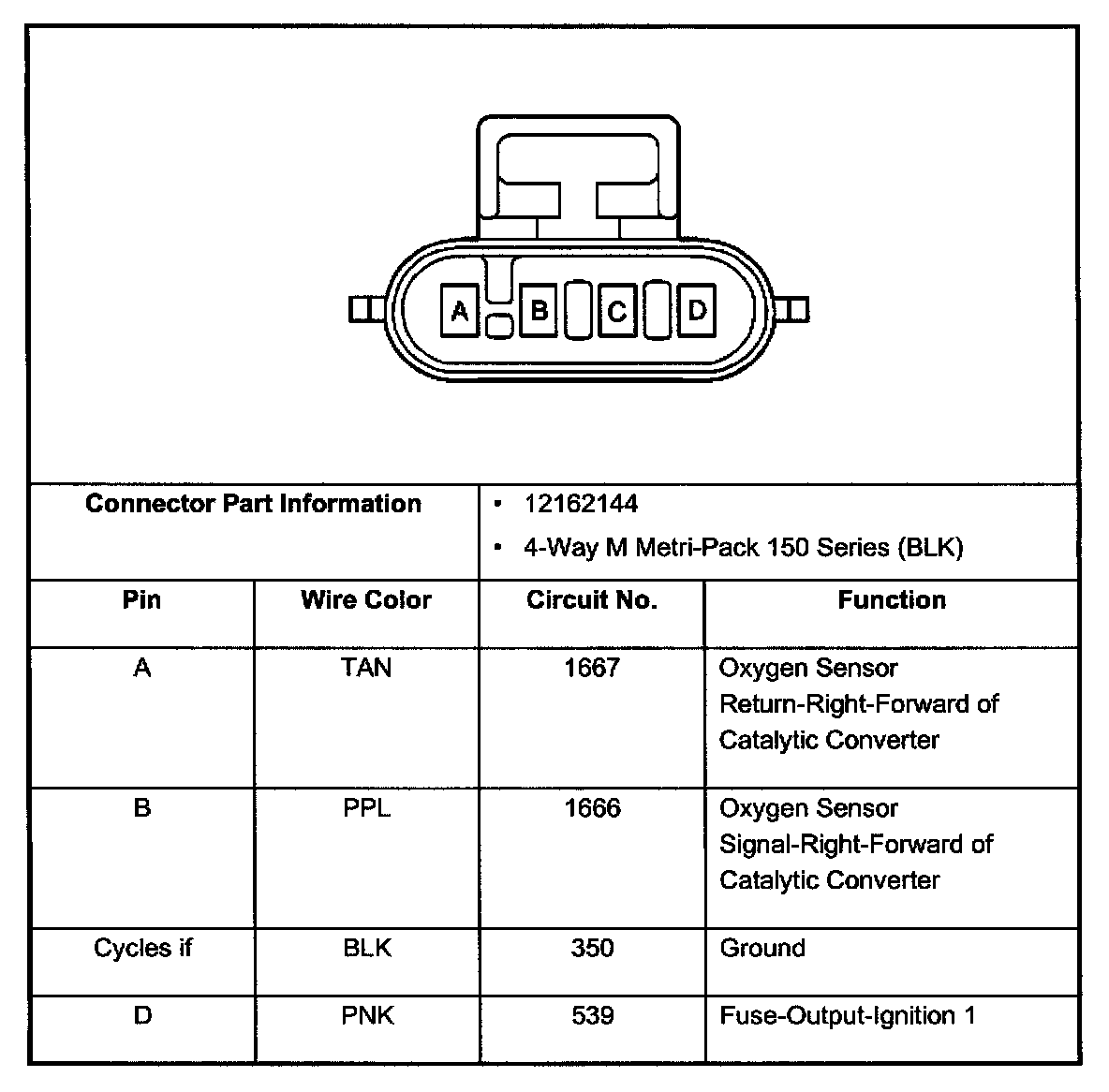

H2OS Connector, Bank 2, Sensor 1:

Idle Air Control (IAC) Valve Connector:

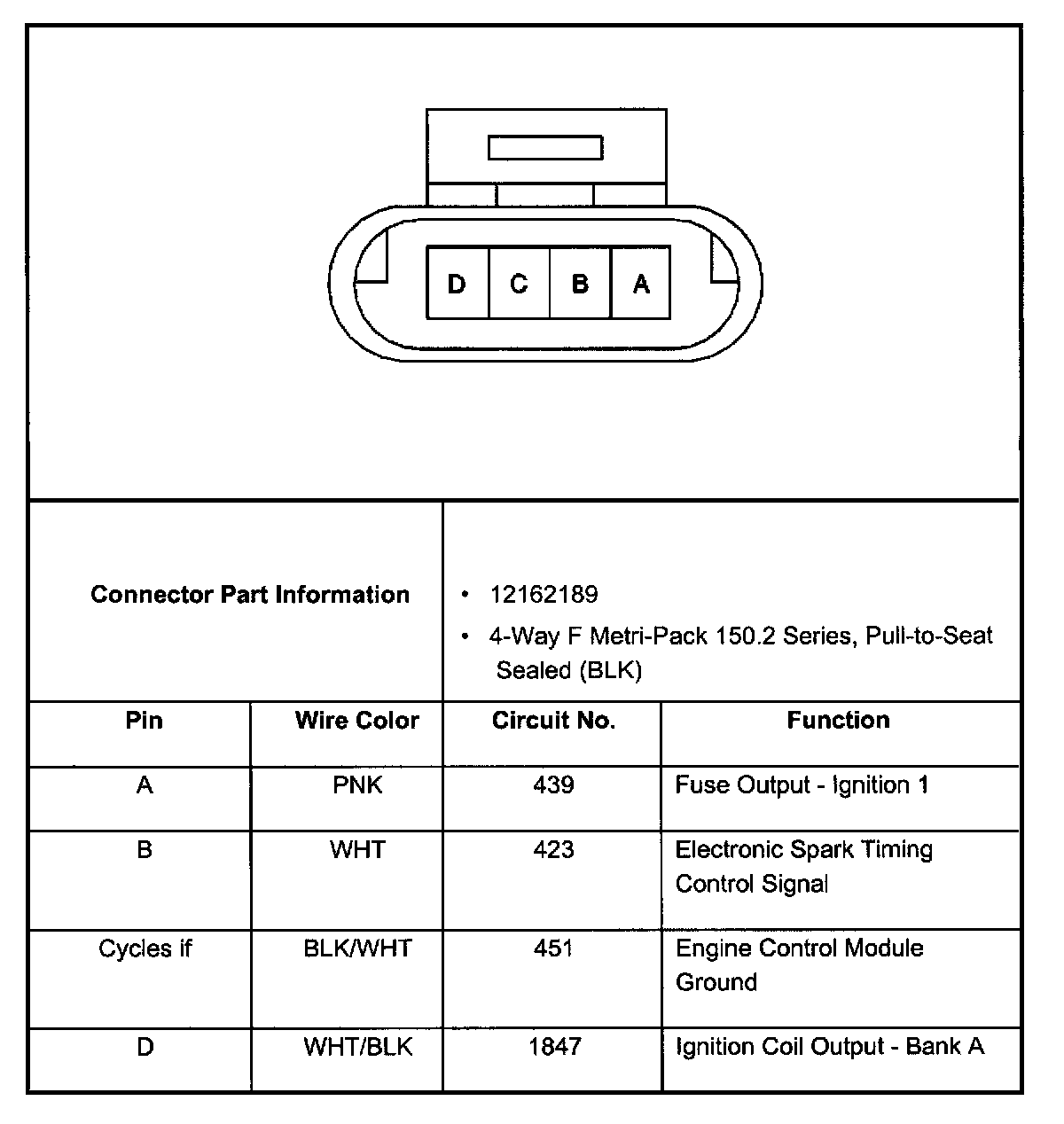

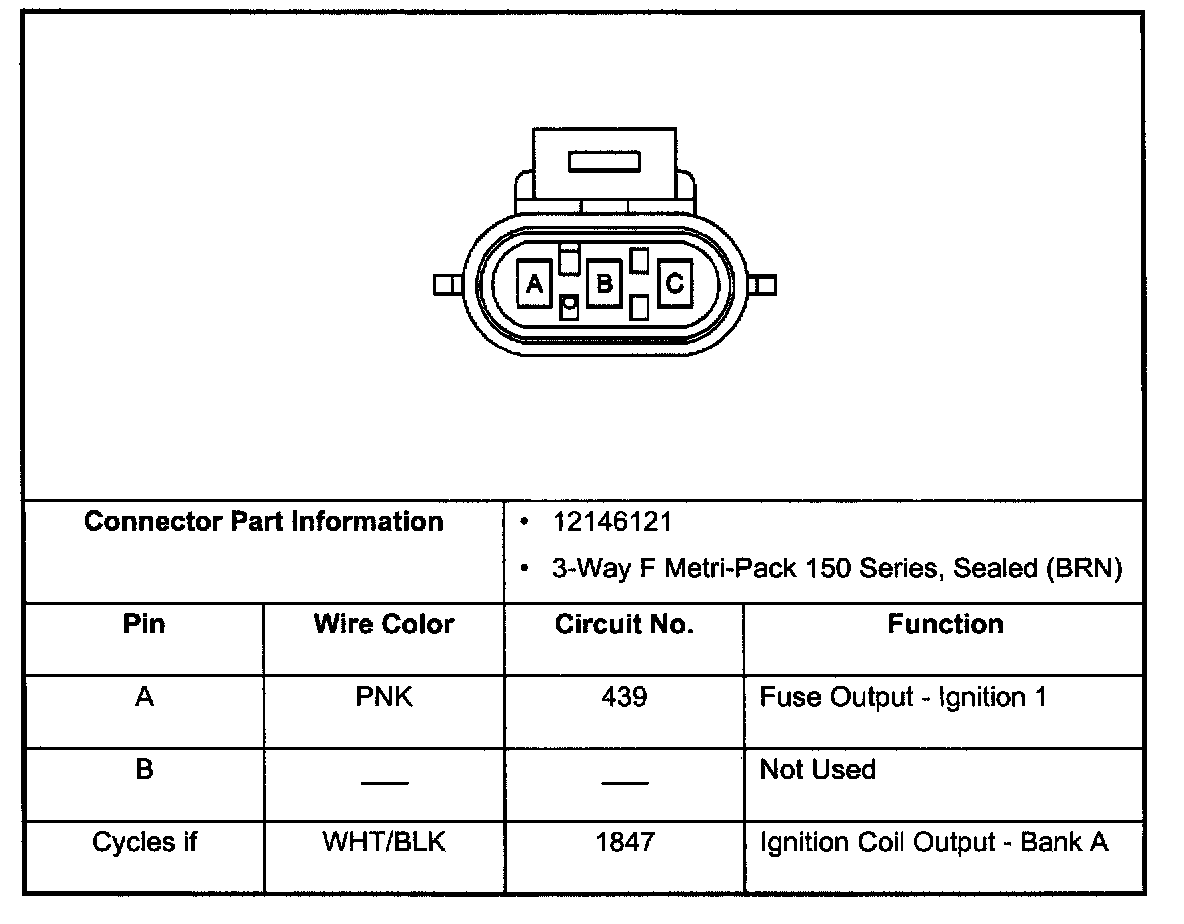

Ignition Coil Connector:

Ignition Control Module (ICM) Connector:

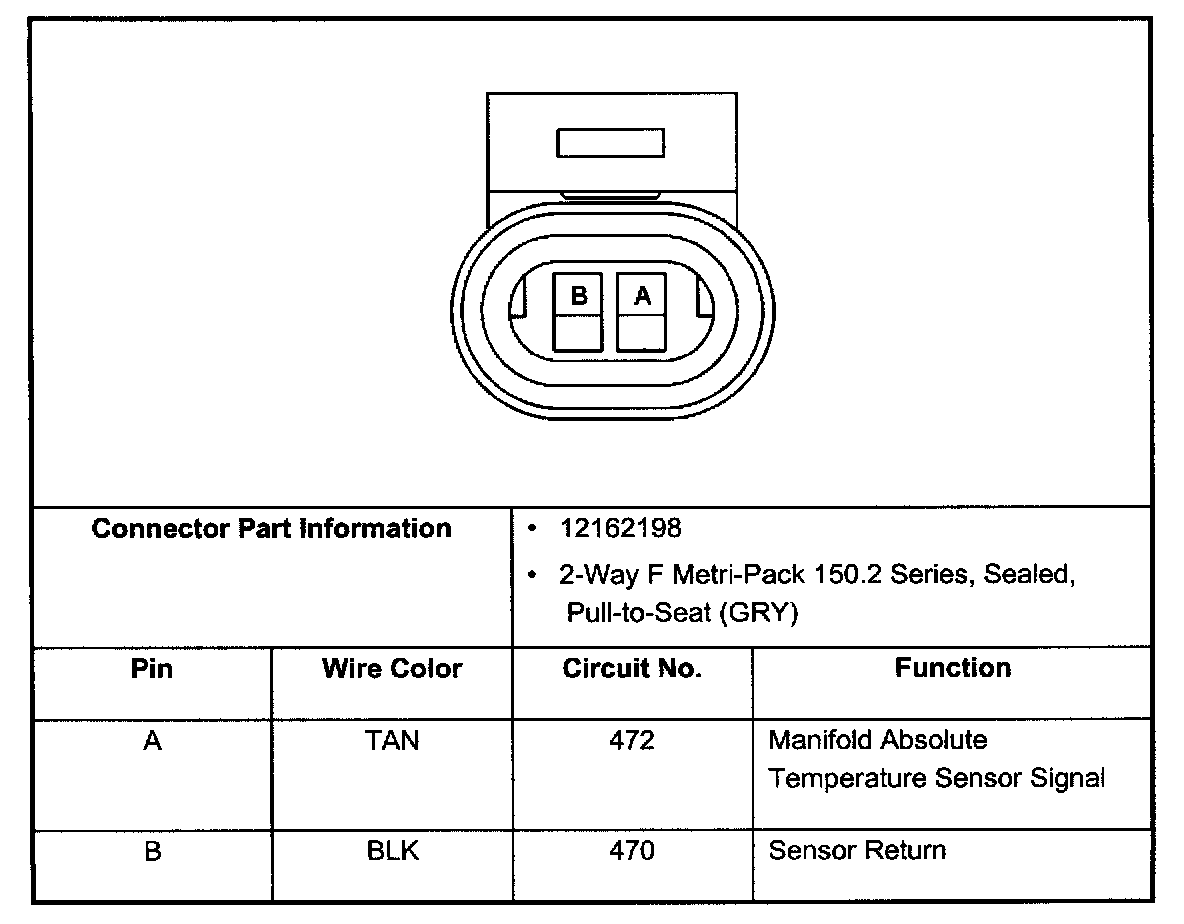

Intake Air Temperature (IAT) Sensor Connector:

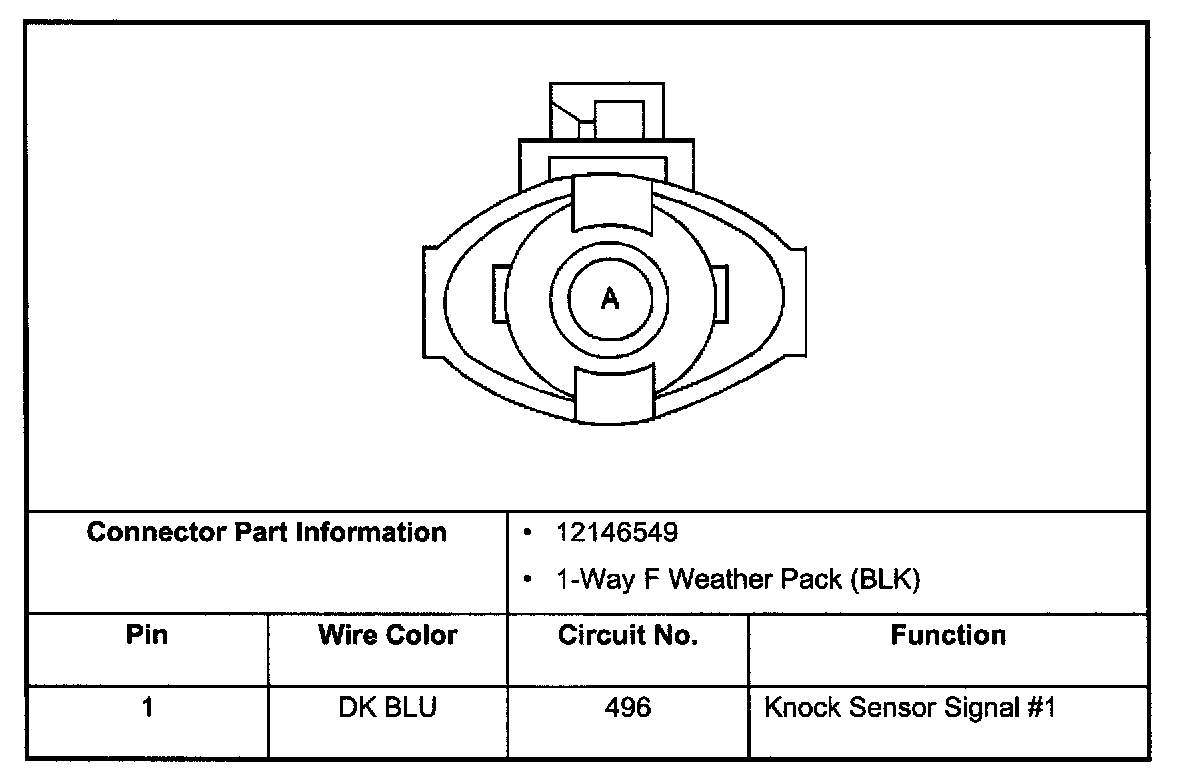

Knock Sensor (KS) Connector:

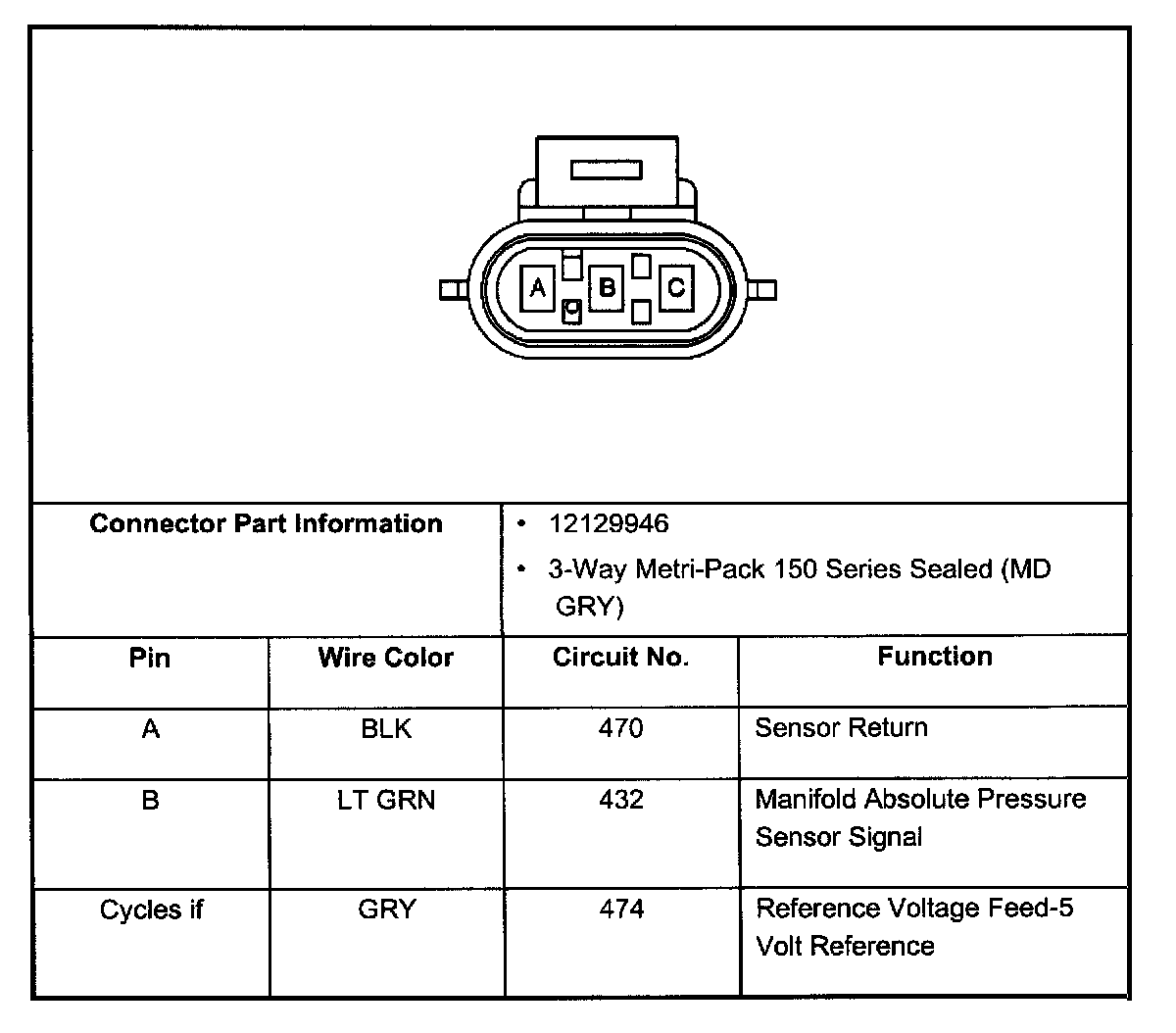

Manifold Absolute Pressure (MAP) Sensor Connector:

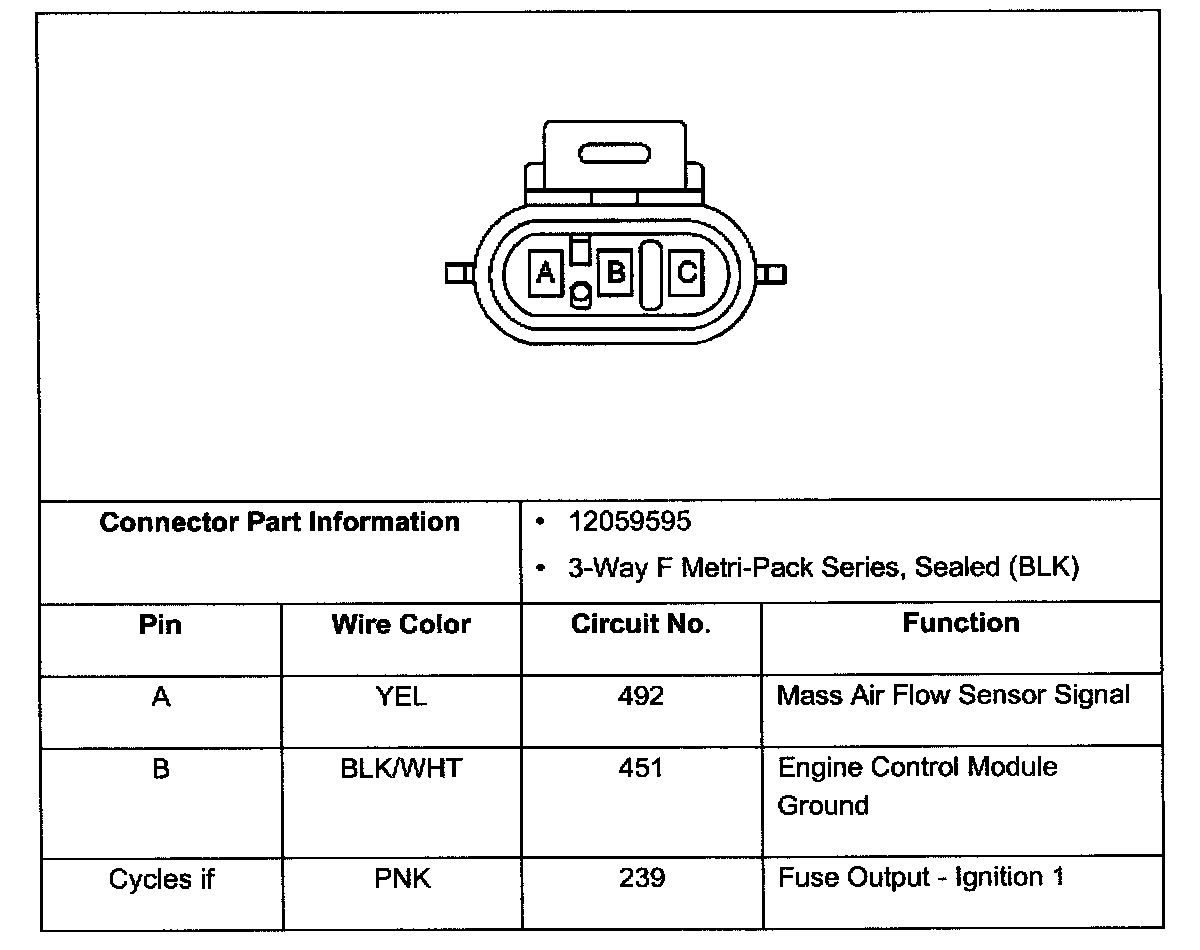

Mass Air Flow (MAF) Sensor Connector:

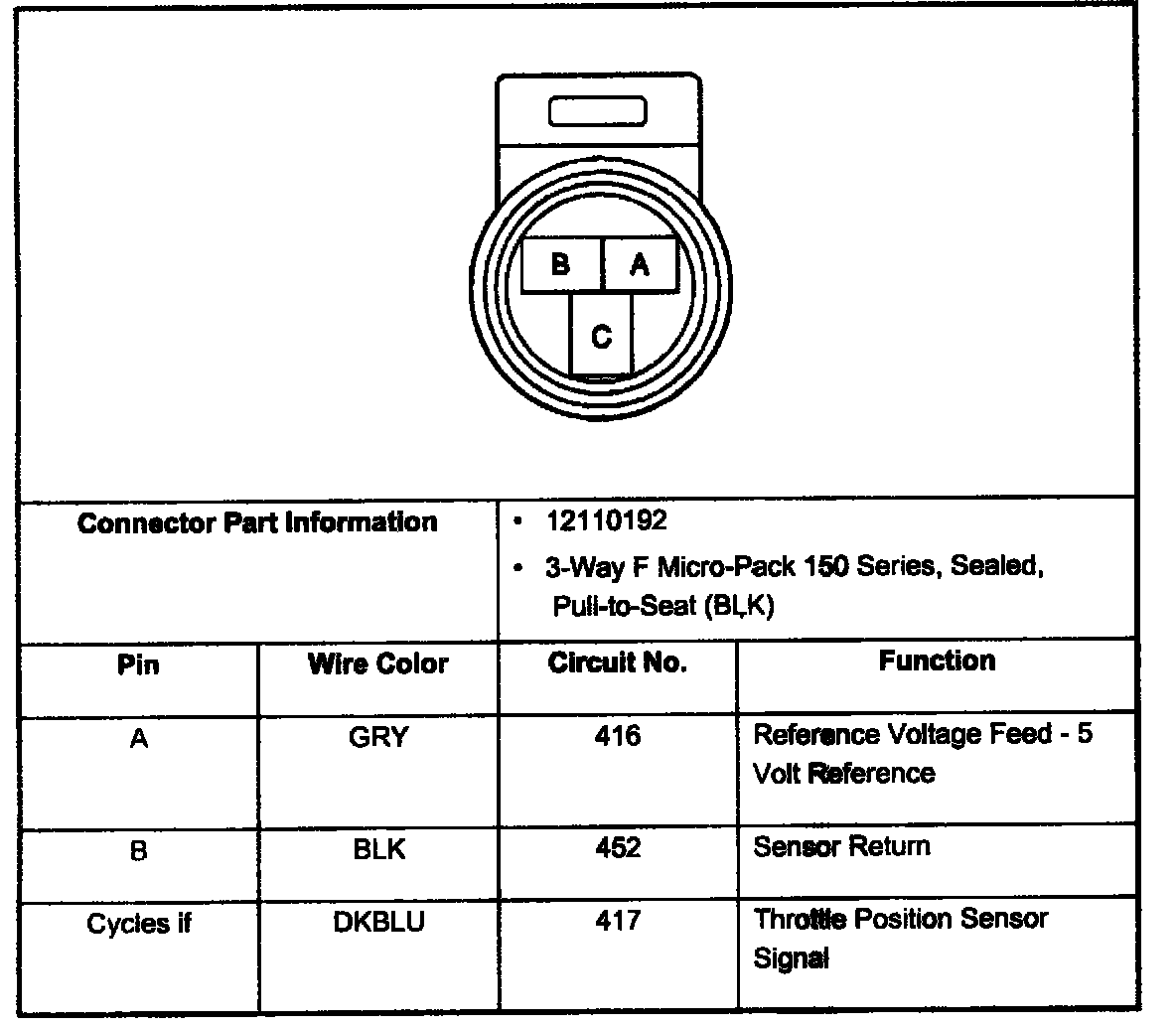

Throttle Position (TP) Sensor Connector:

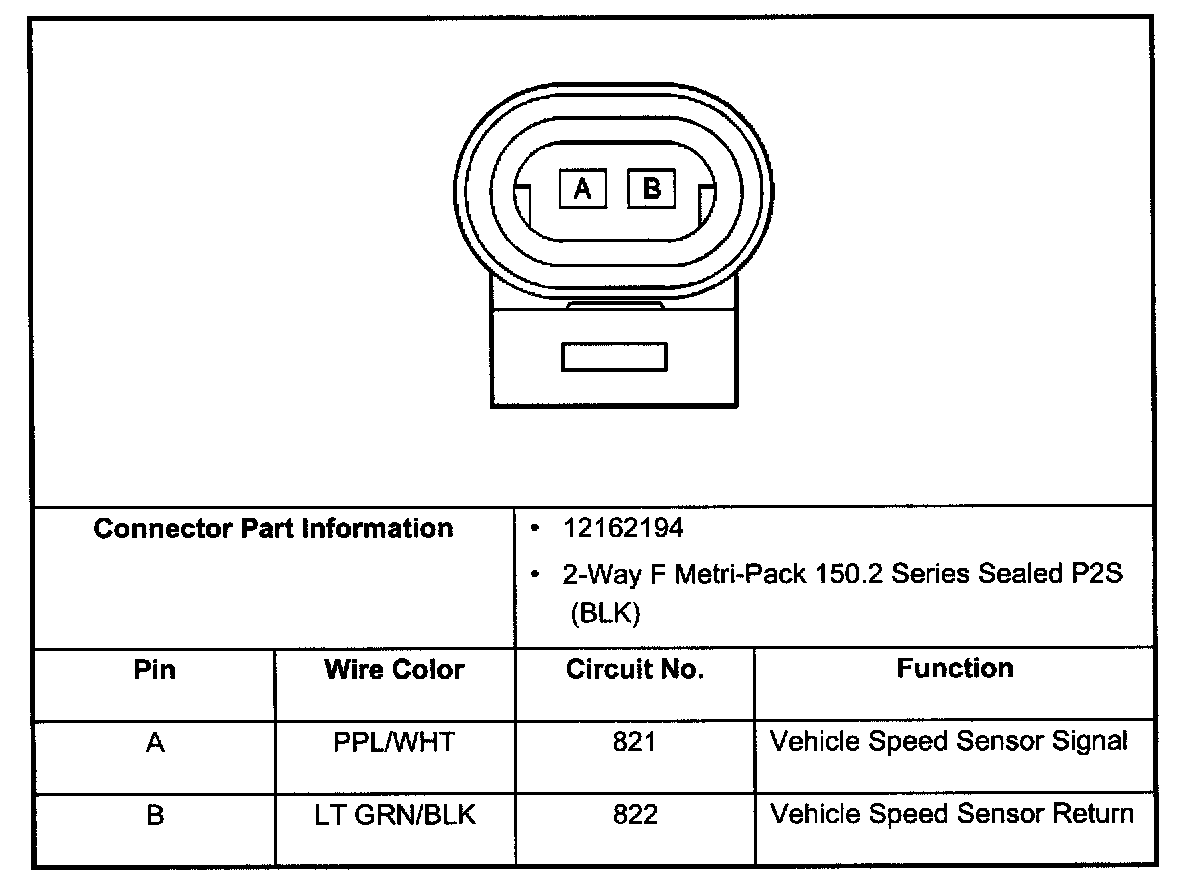

Vehicle Speed Sensor (VSS):
