(a) Primary System-Based Diagnostics

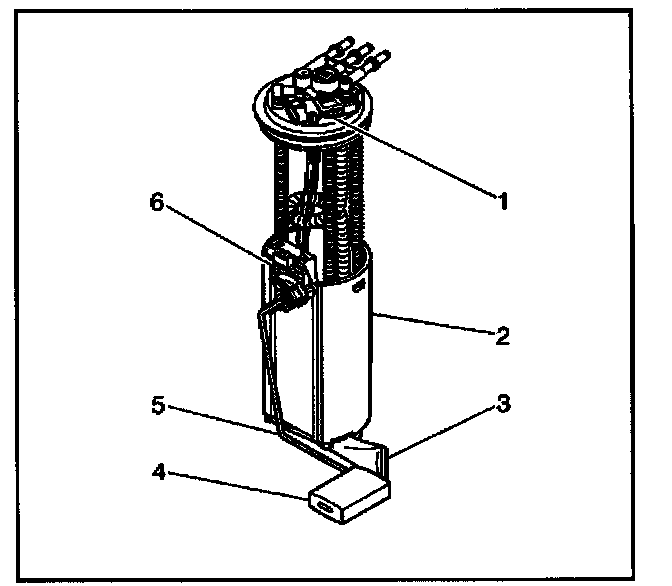

The fuel sender assembly is inside the fuel tank attached to the top of the fuel tank. The fuel sender assembly consists of the following major components:
- The fuel level sensor (6)
- The fuel tank pressure sensor (1)
- The fuel tank fuel pump module (2)
- The fuel strainer (3)
