Engine Control Components Views

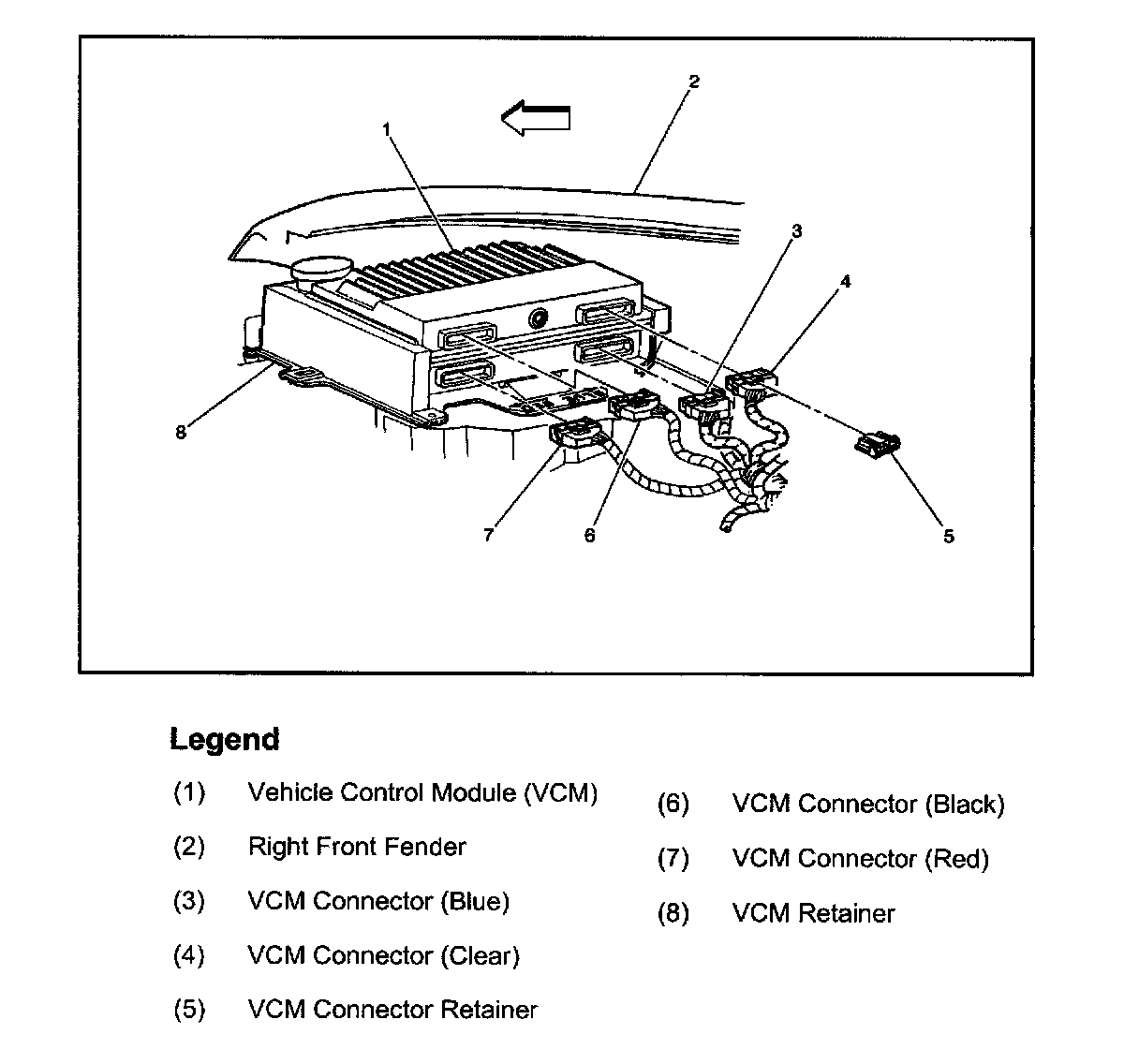

VCM:

Underhood Fuse/Relay Center And Electronic Brake Control Module (EBCM):

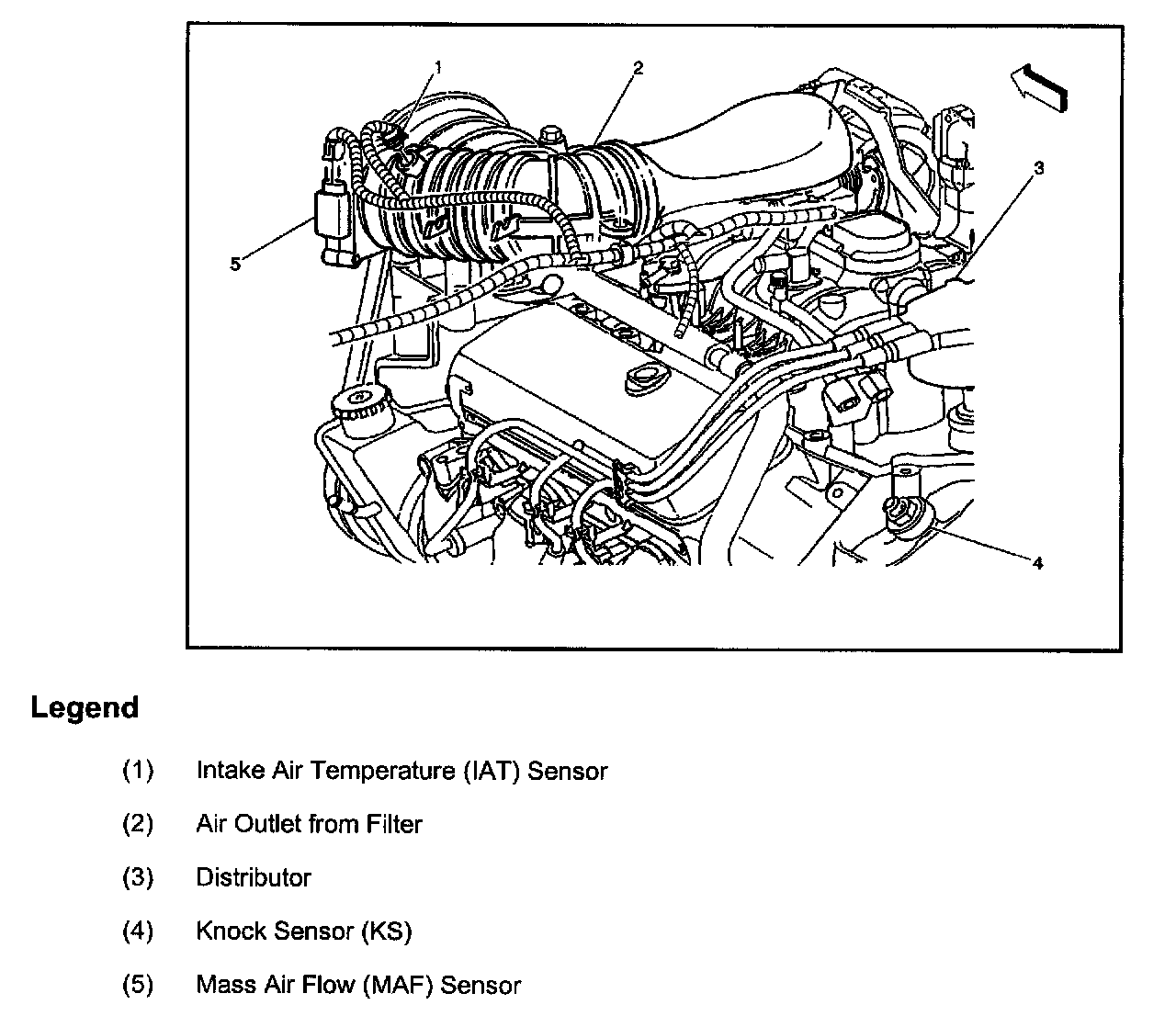

Mass Air Flow (MAF) Sensor And Intake Air Temperature (IAT) Sensor:

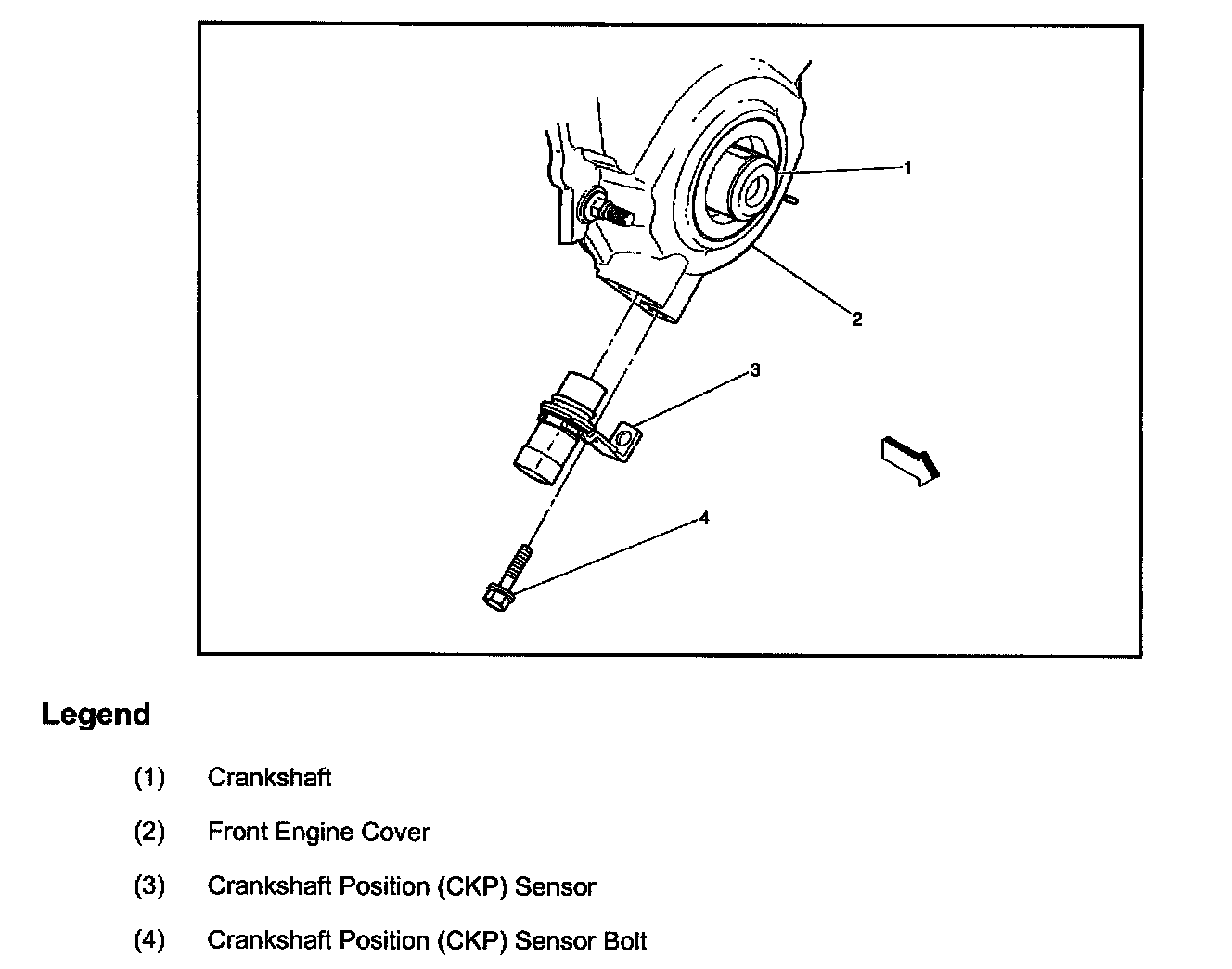

Crankshaft Position (CKP) Sensor:

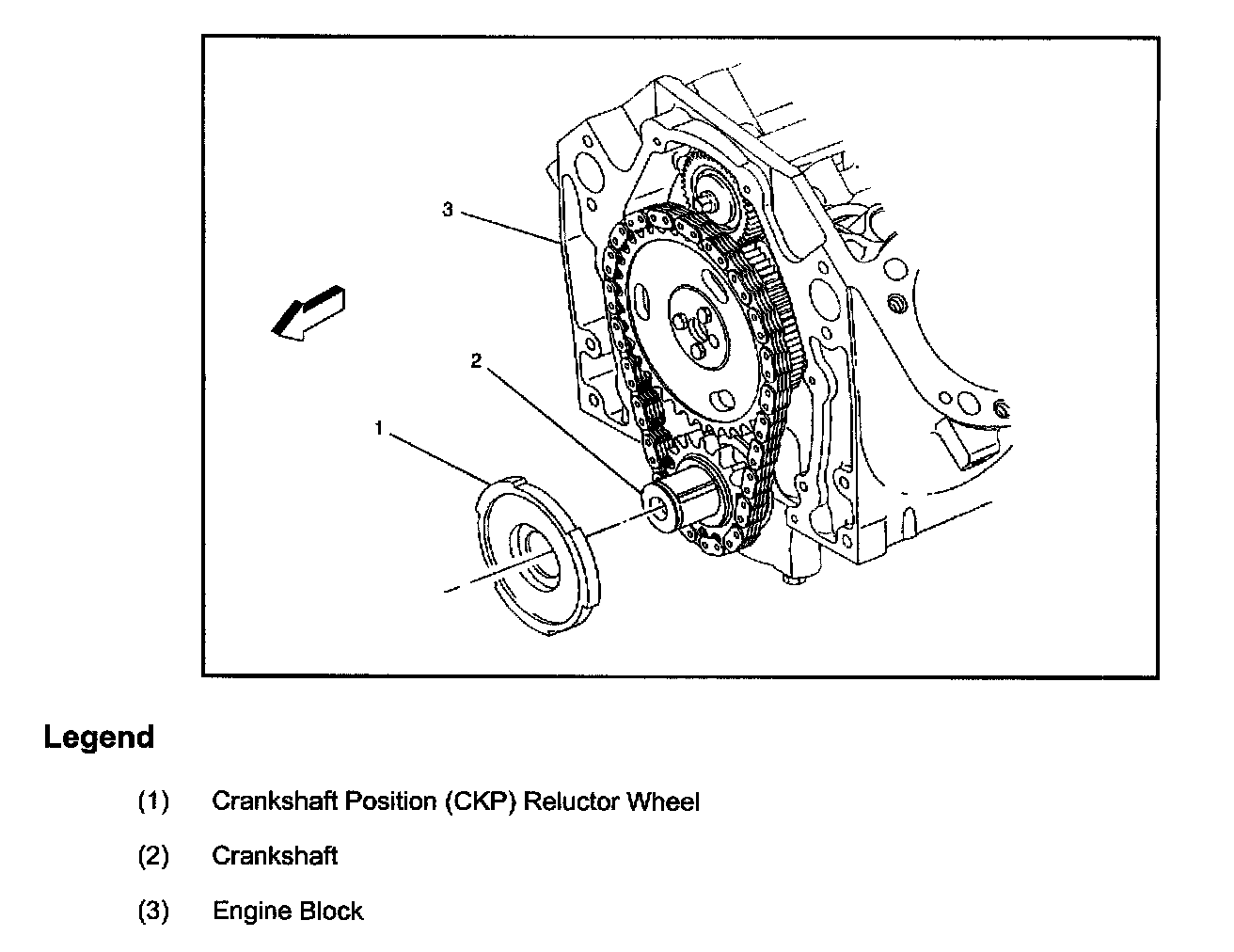

Crankshaft Position (CKP) Reluctor Wheel:

Throttle Position (TP) Sensor , Idle Air Control(IAC) Valve And Positive Crankcase Ventilation Valve (PCV):

MAP, EGR, Purge Solenoid And Throttle Body:

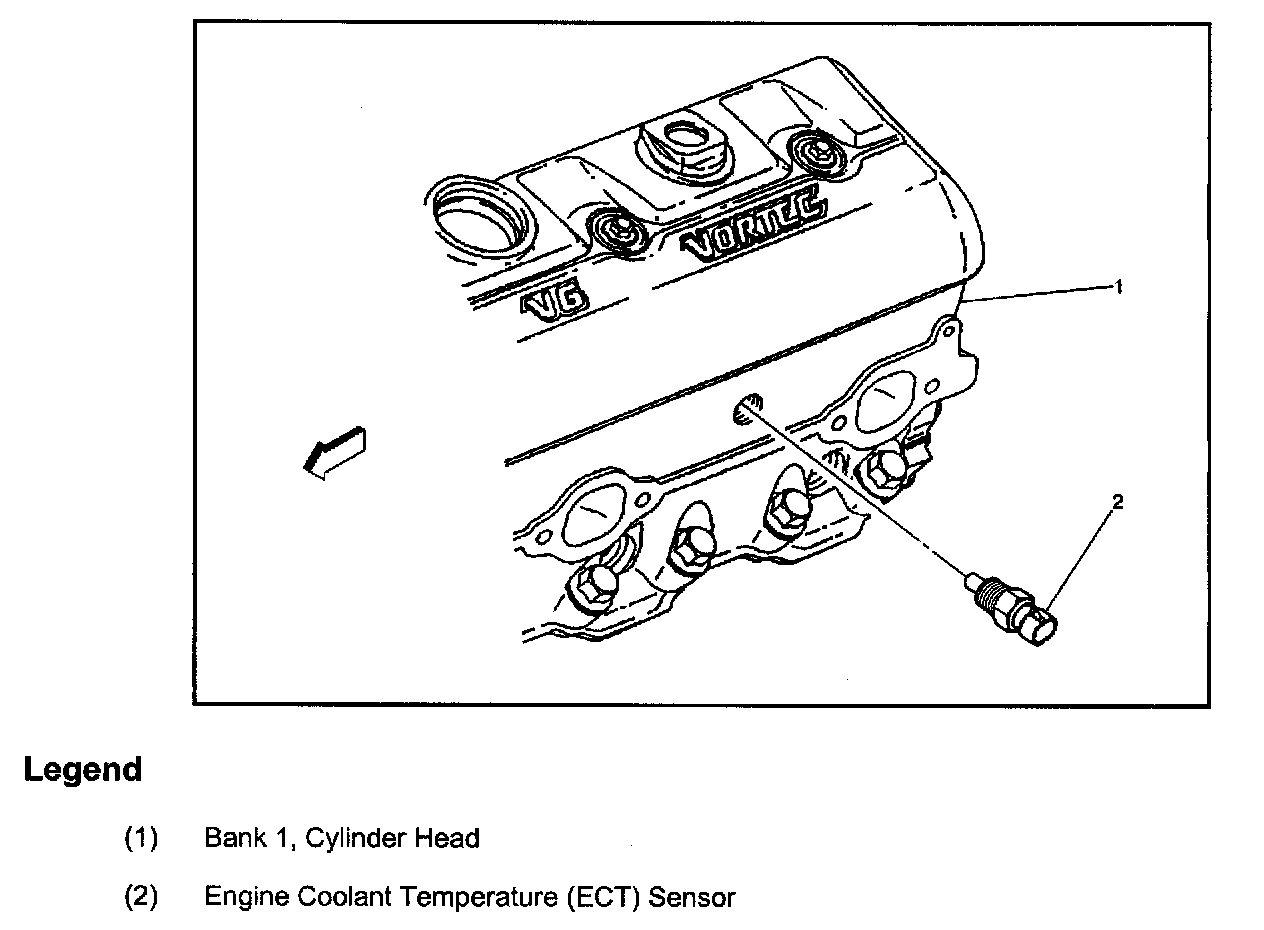

Engine Coolant Temperature (ECT) Sensor:

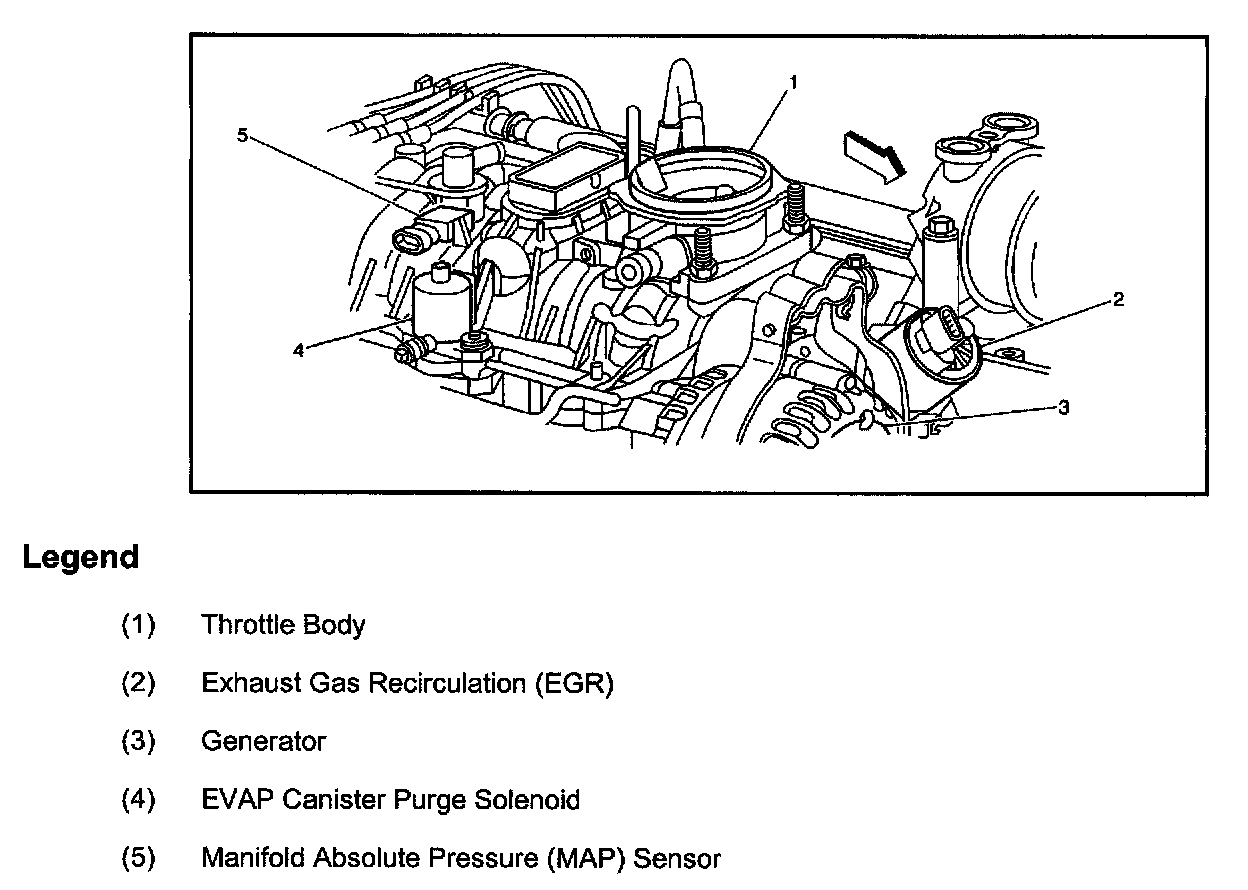

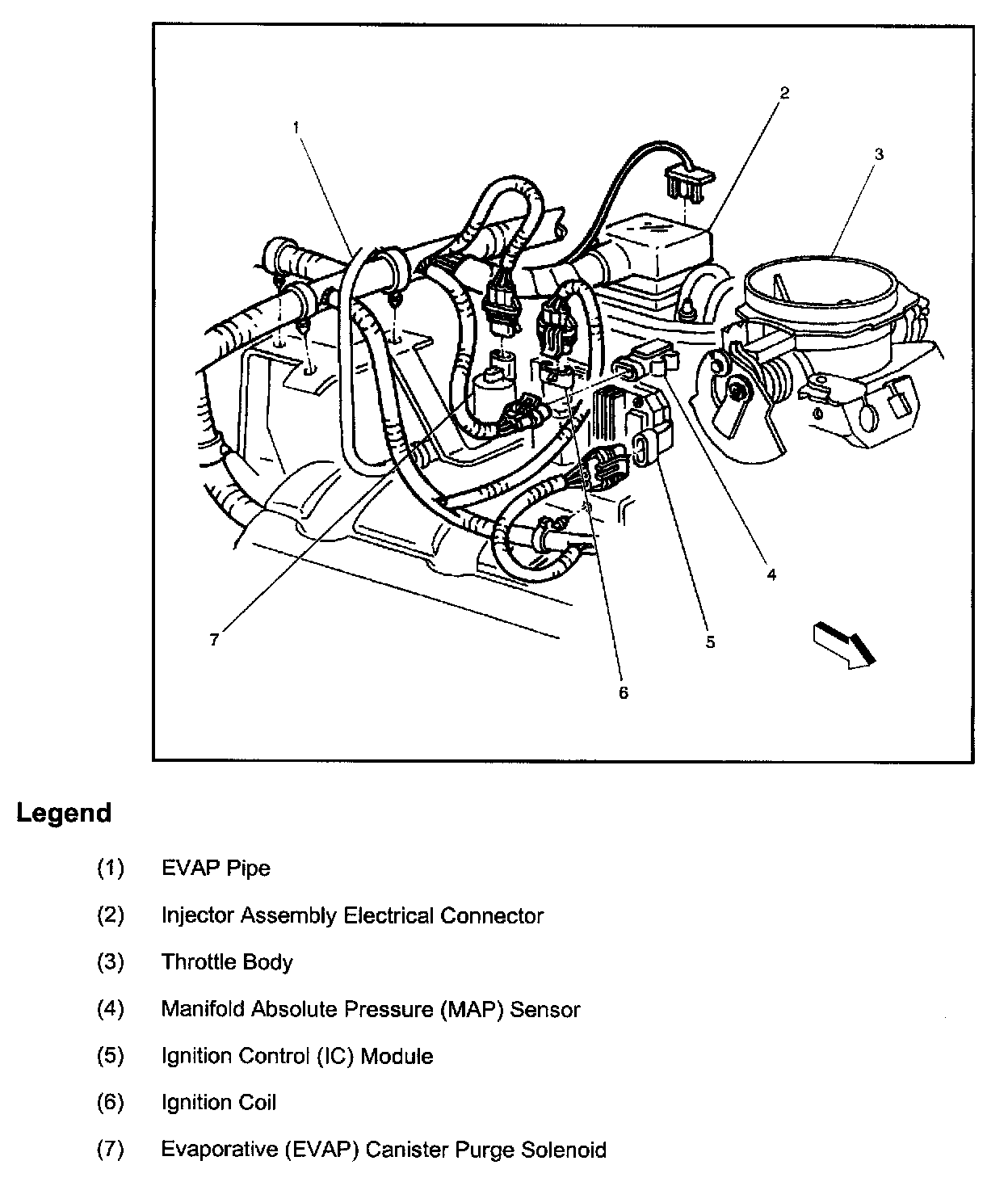

Ignition Coil, IC Module, MAP, Throttle Body And Evaporator (EVAP) Canister Purge Solenoid:

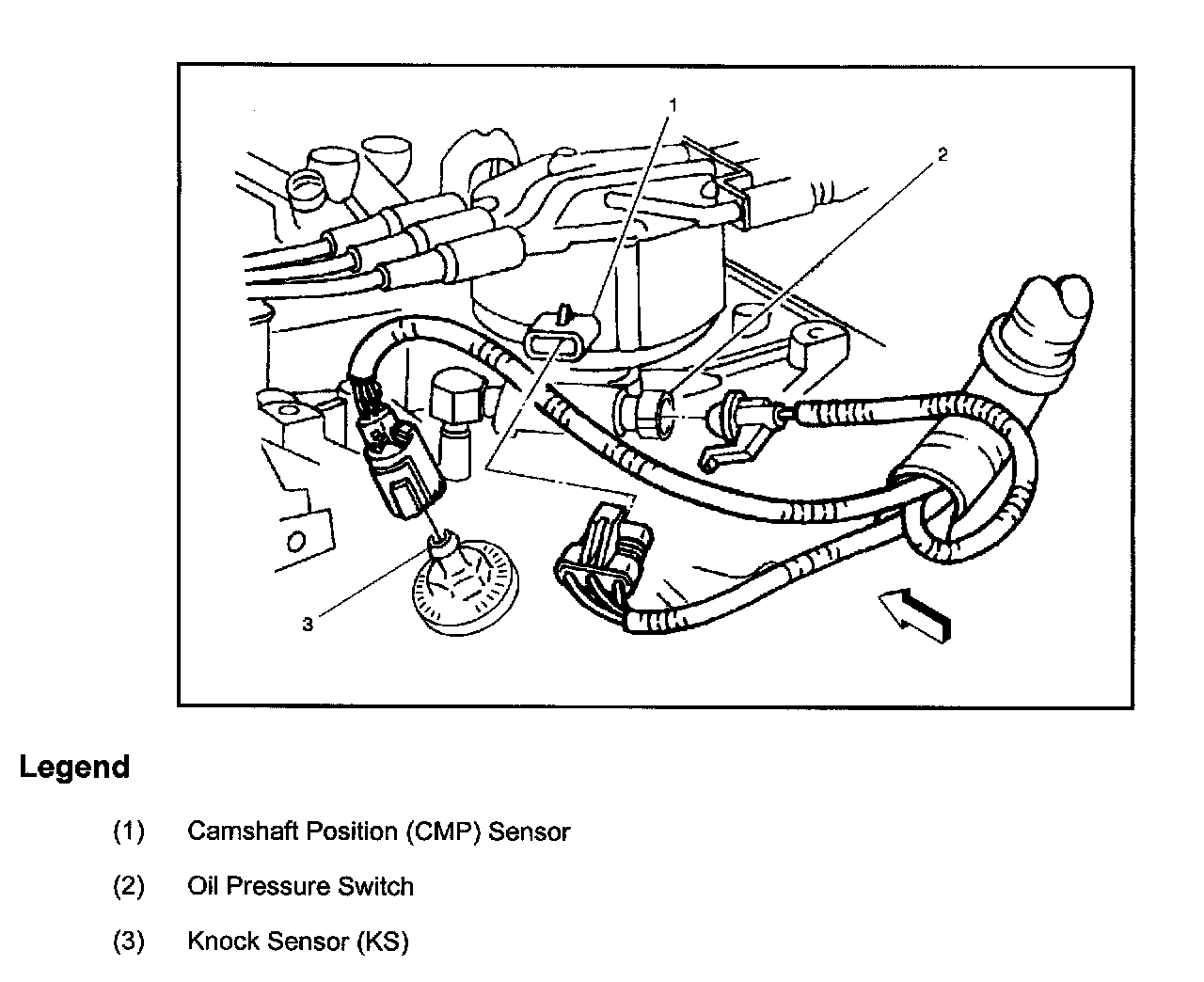

Camshaft Position (CMP) Sensor, Knock Sensor (KS), And Oil Pressure Switch:

Heated Oxygen Sensors:

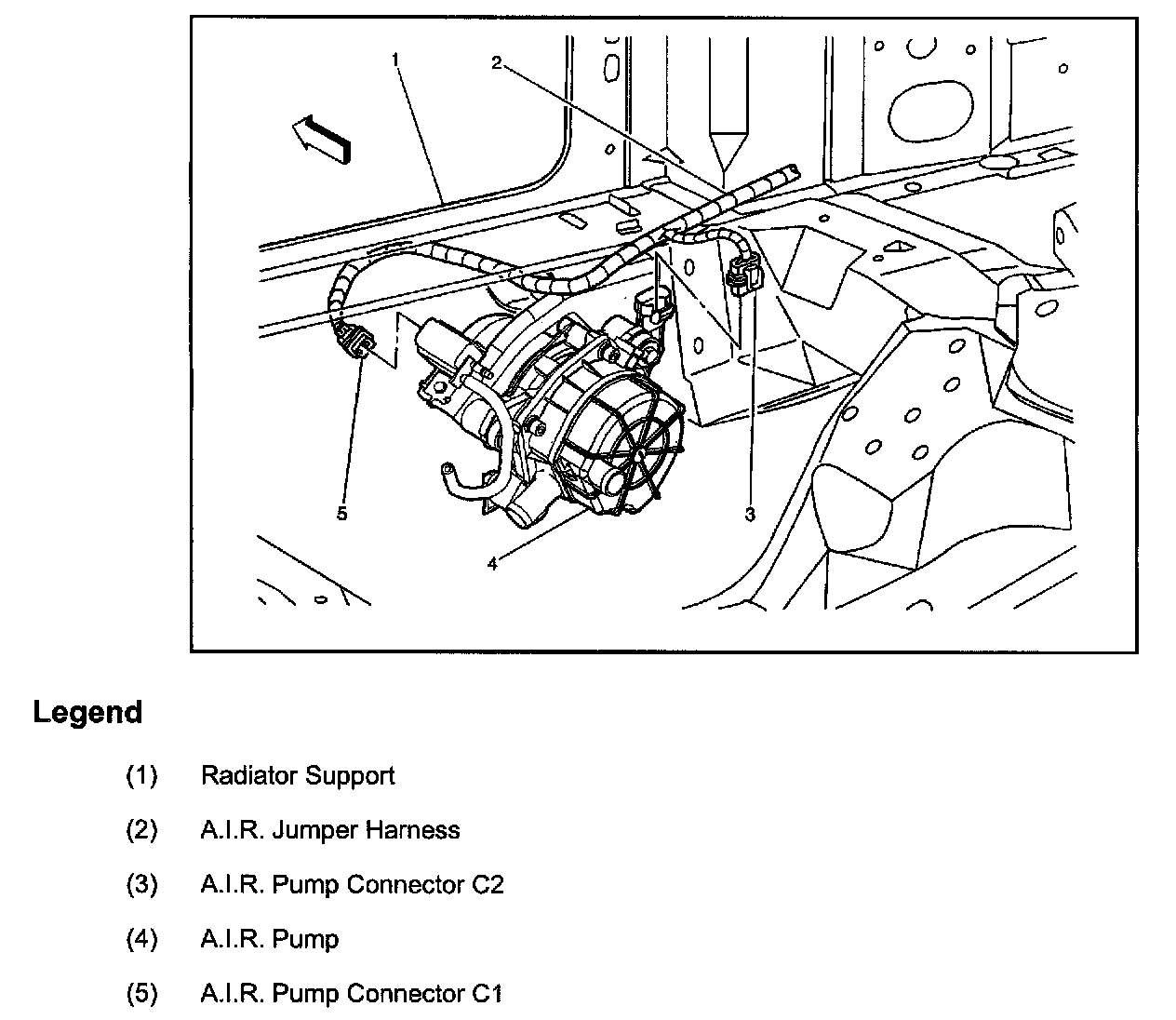

Air Injection Reactor (AIR) Pump:

VSS 2 Wheel Drive (2WD):

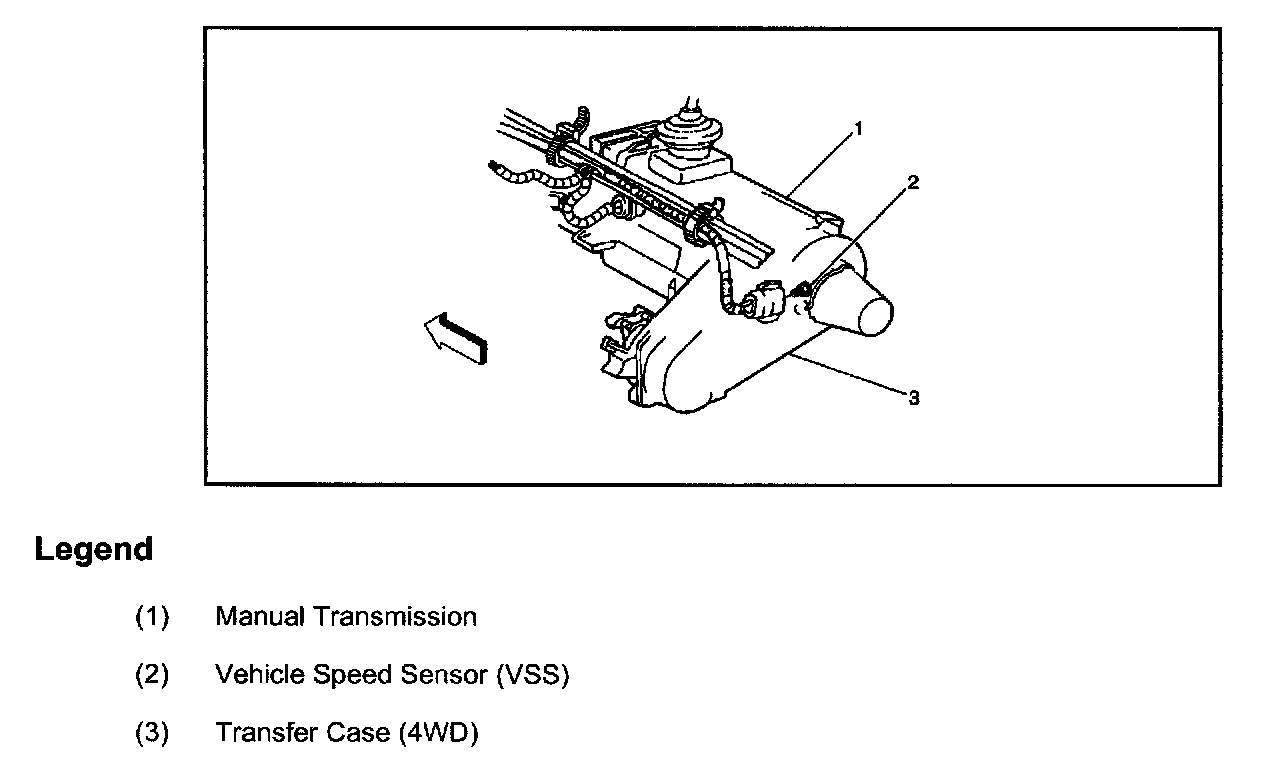

Vehicle Speed Sensor (VSS) - 2 Wheel Drive Manual Transmission:

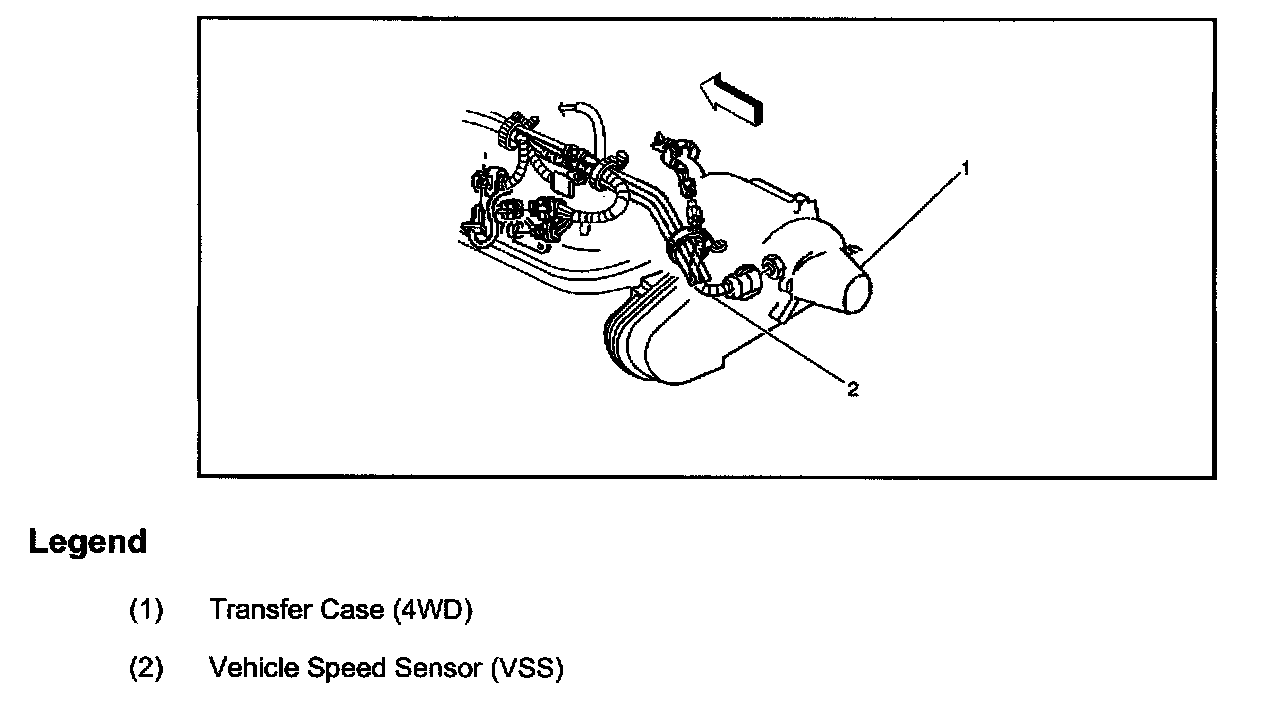

Vehicle Speed Sensor (VSS) - 4 Wheel Drive Automatic Transmission:

Vehicle Speed Sensor (VSS) - 4 Wheel Drive Manual Transmission:

VSS All Wheel Drive (AWD):

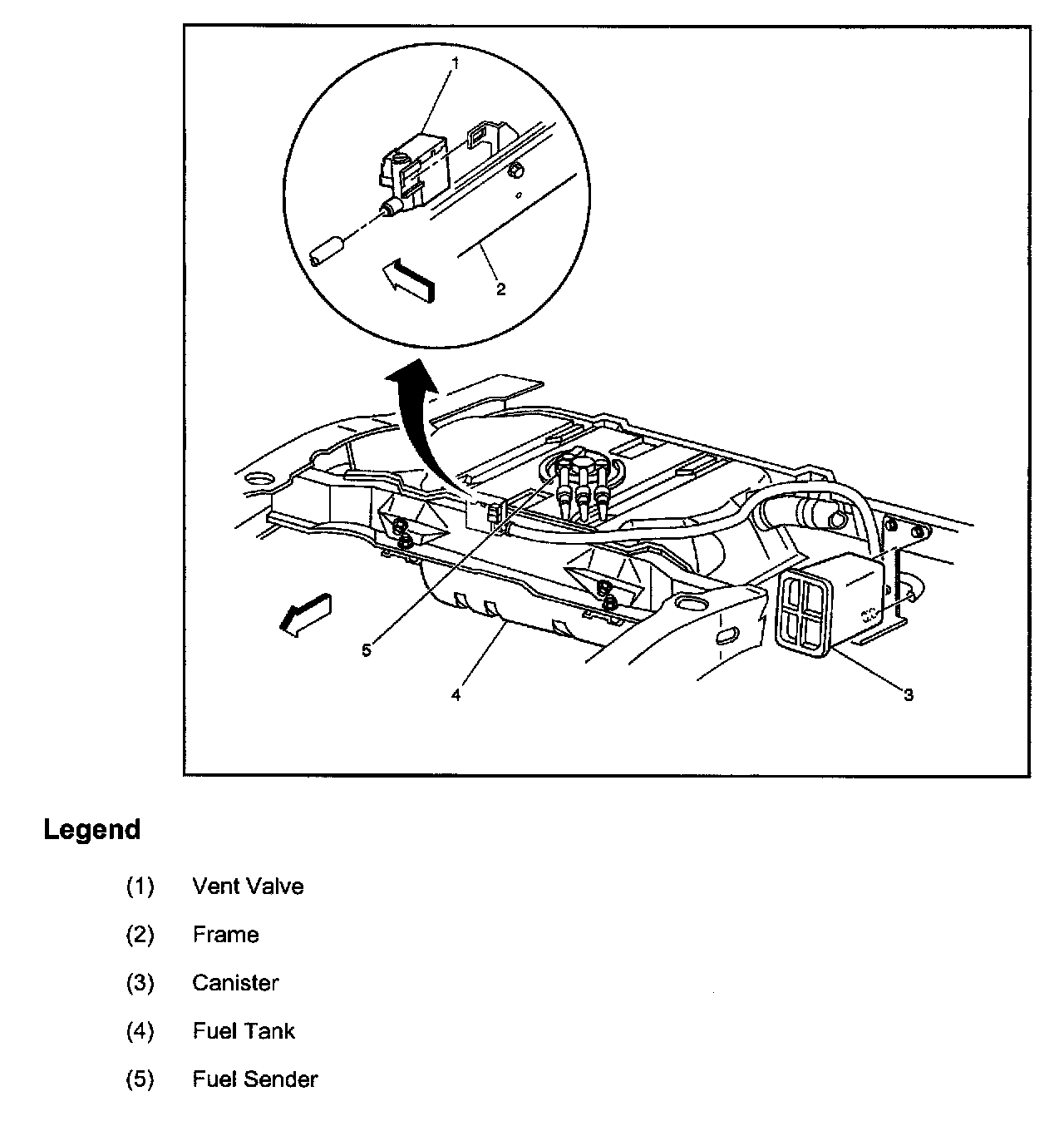

EVAP Canister And EVAP Vent Valve (4DR Utility And Pickup):

Canister And Vent Valve (2DR Utility):

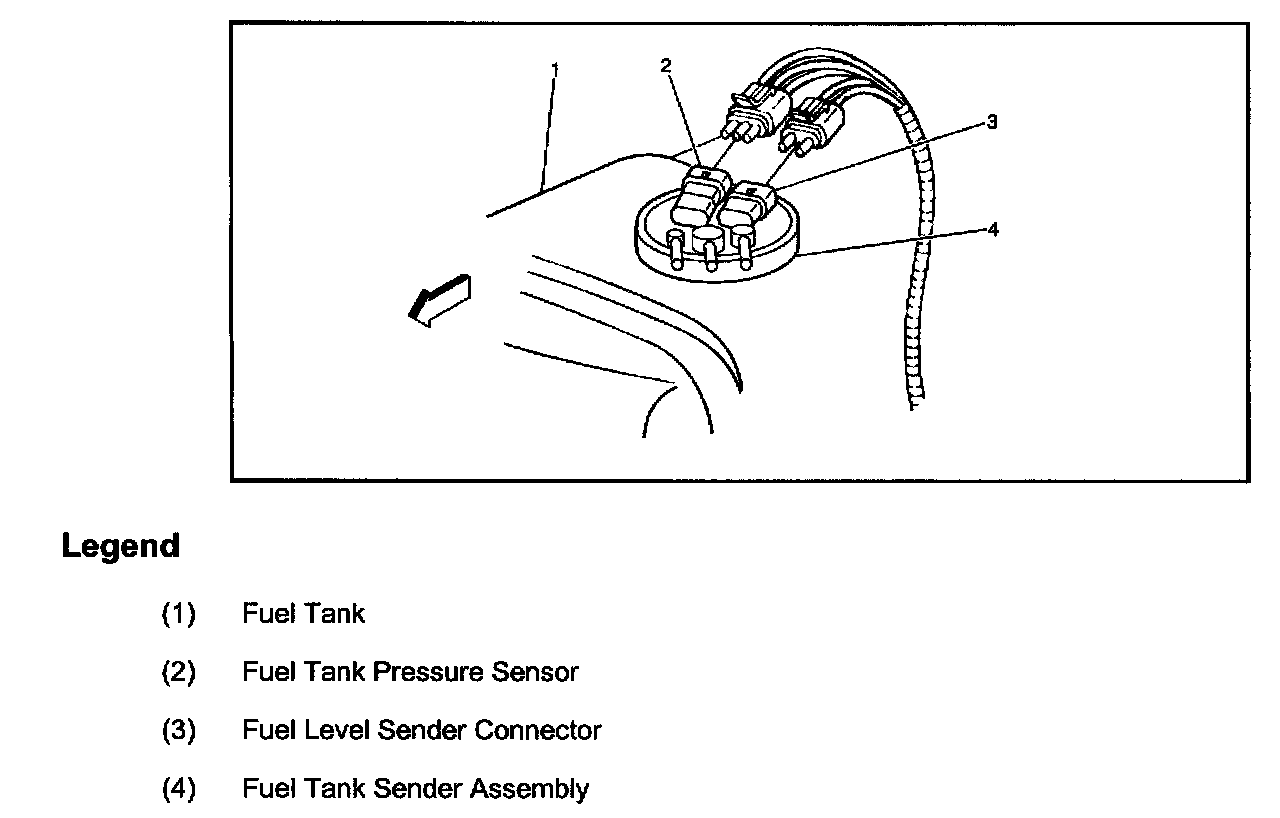

Fuel Tank Pressure Sensor And Fuel Level Sender Assembly:
