Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Turn Signal Lamps >> Turn Signal Lamps Inoperative - LR

Turn Signal Lamps Inoperative - LR

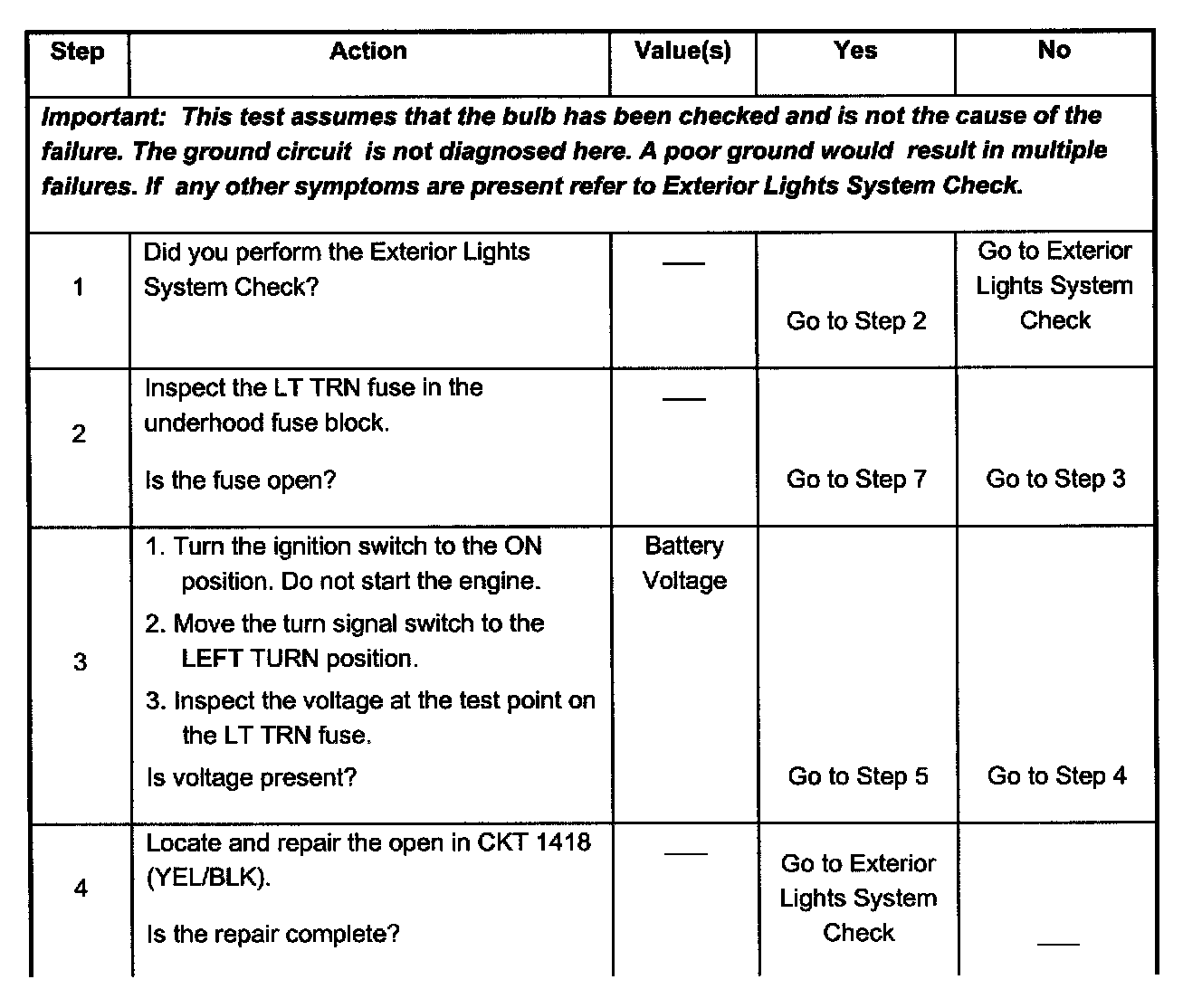

Steps 1 - 4:

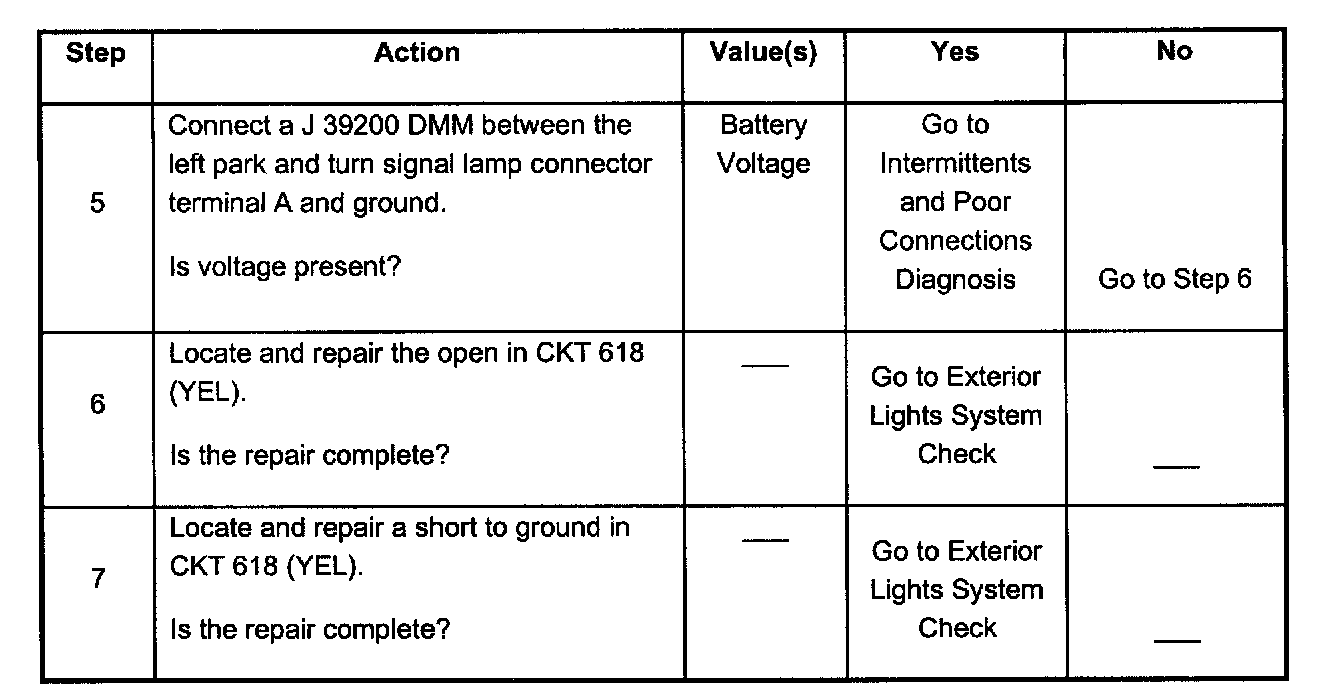

Steps 5 - 7:
