Home >> Isuzu Truck >> 1999 >> Hombre XS Space Cab 2WD V6-4.3L >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Turn Signal Lamps >> Turn Signal Lamp Inoperative

Turn Signal Lamp Inoperative

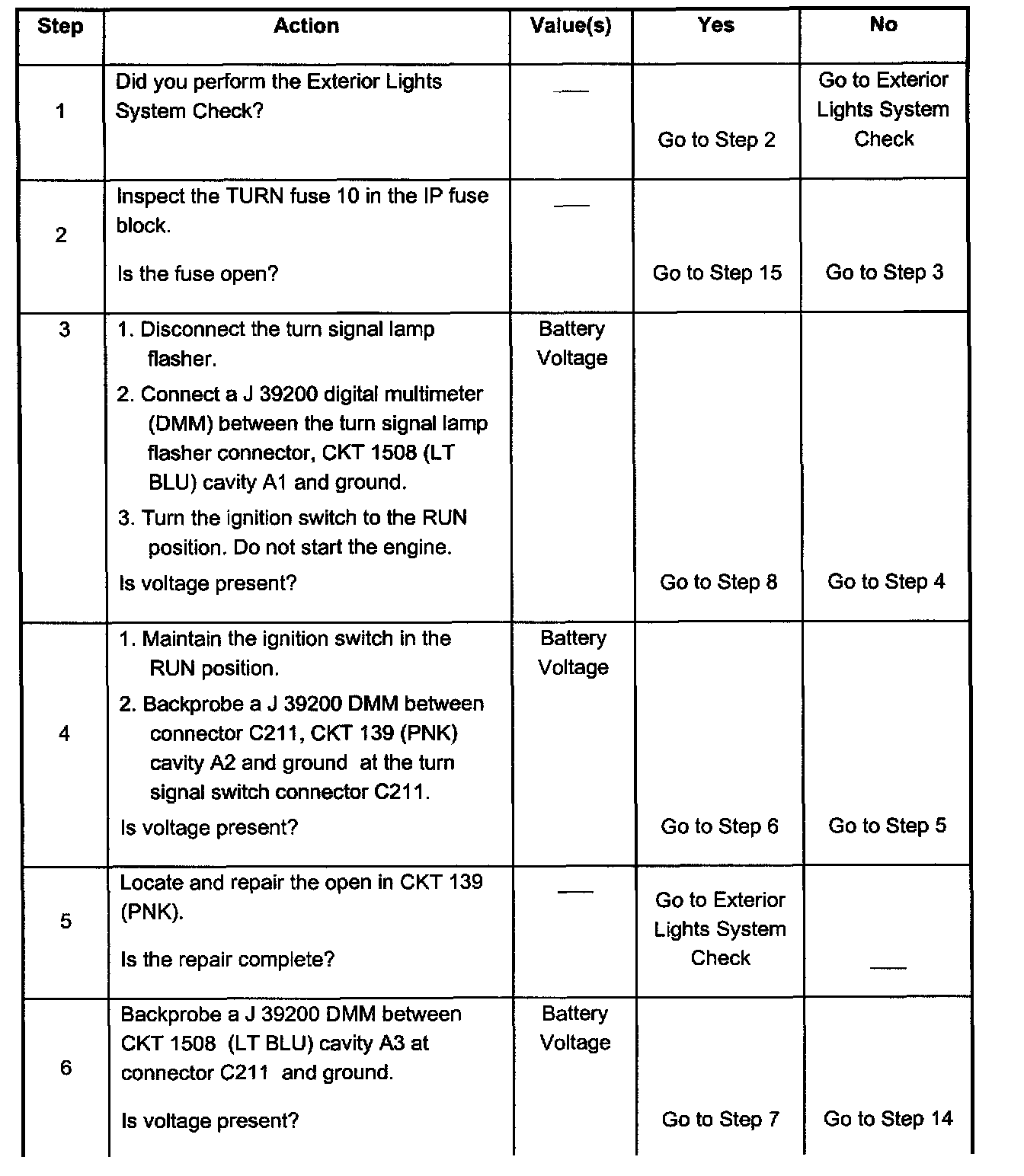

Steps 1 - 6:

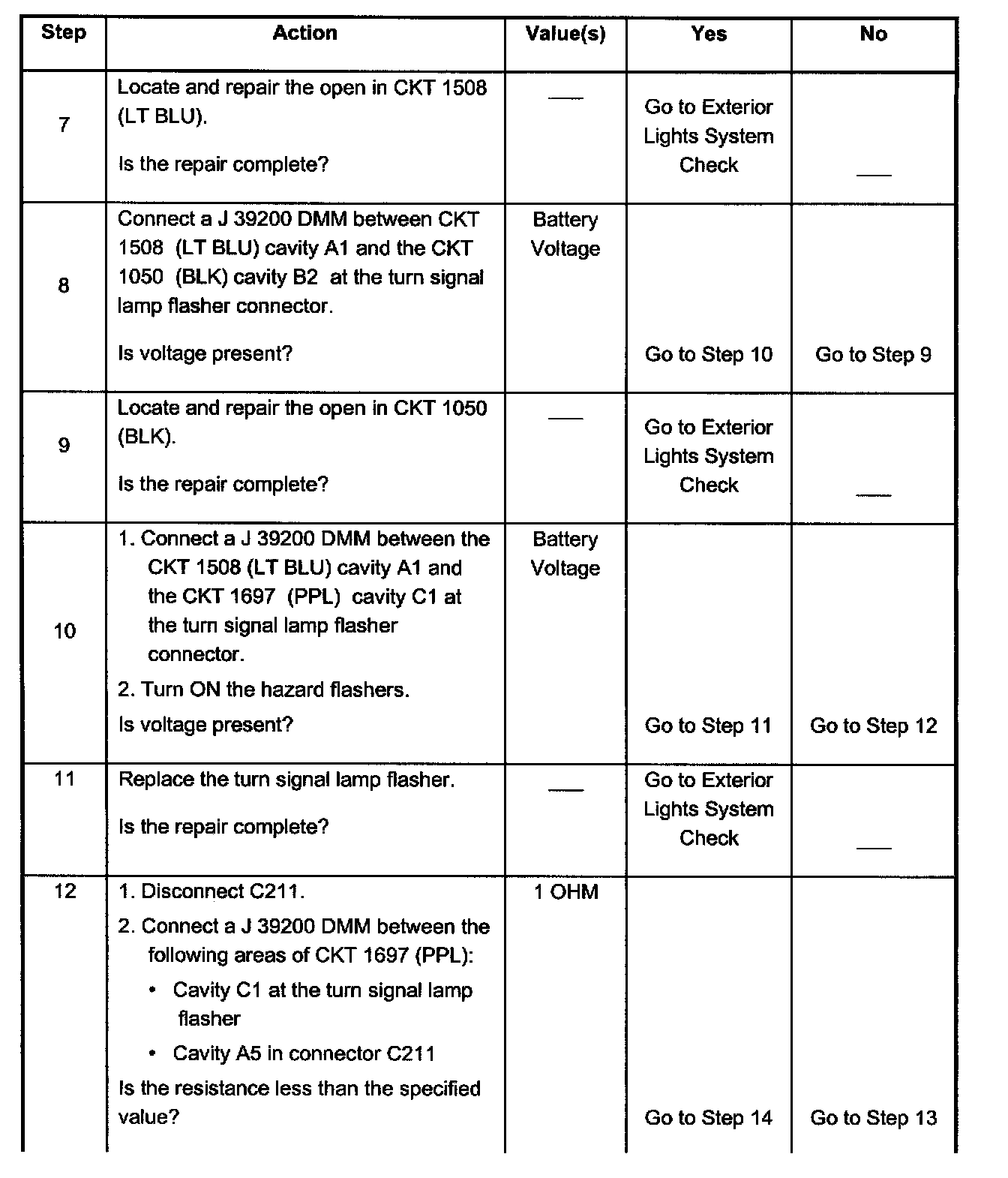

Steps 7 - 12:

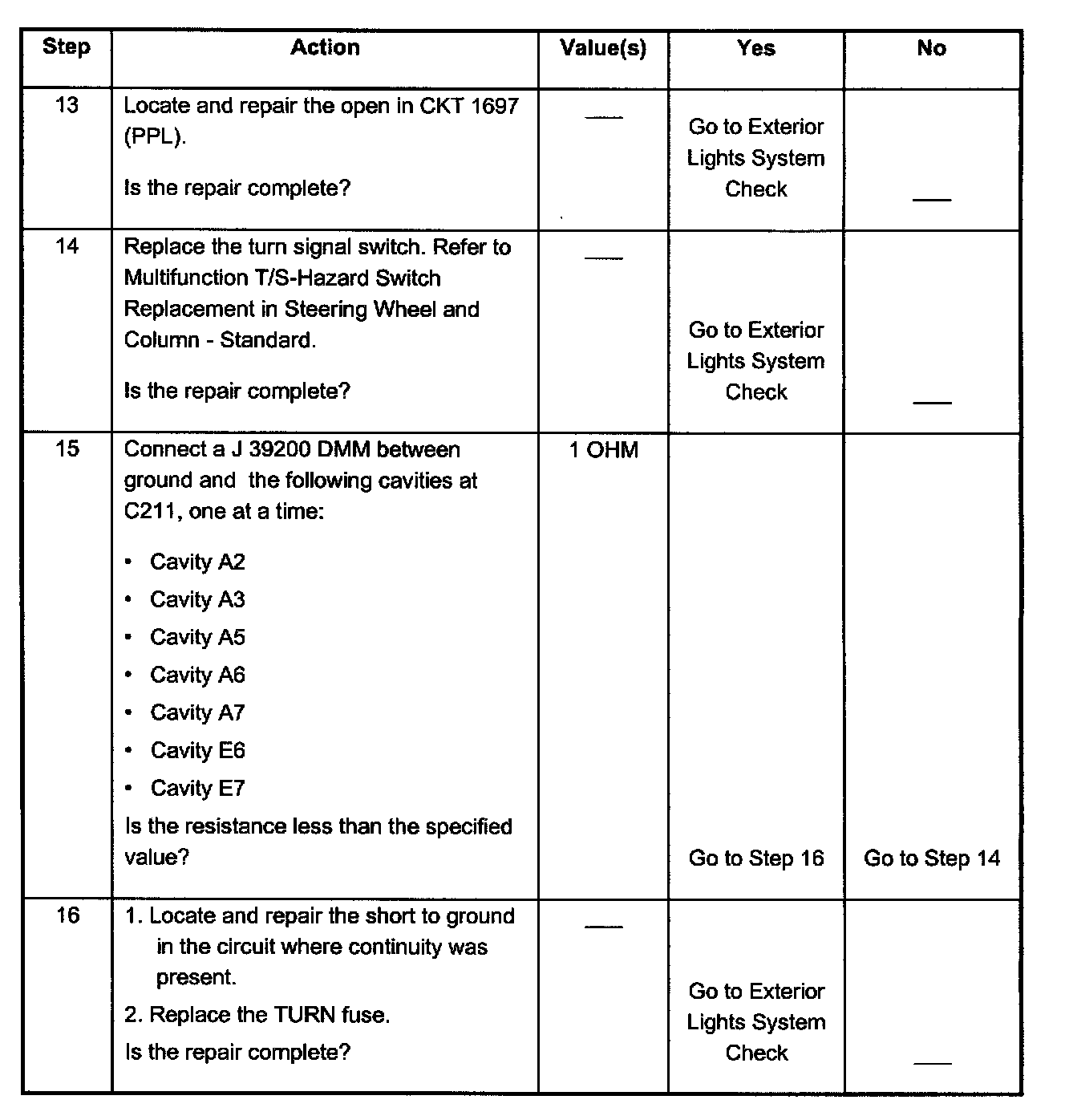

Steps 13 - 16:
